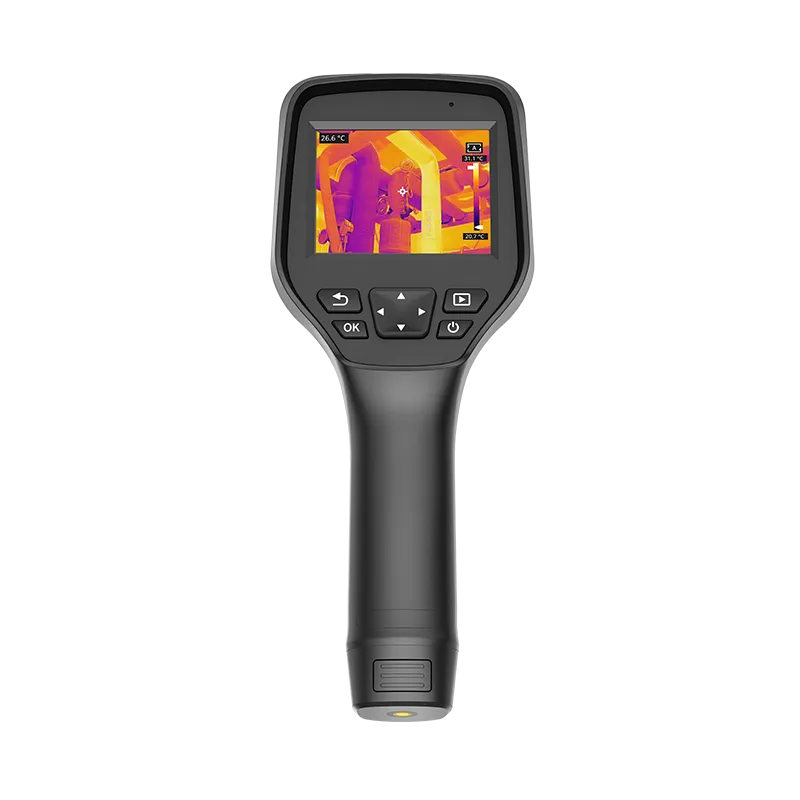

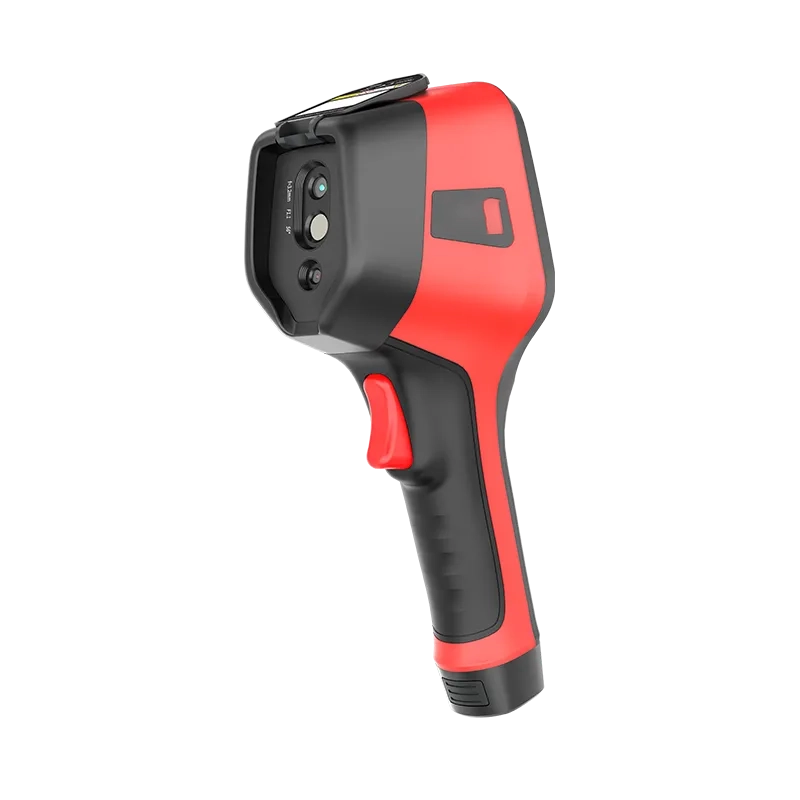

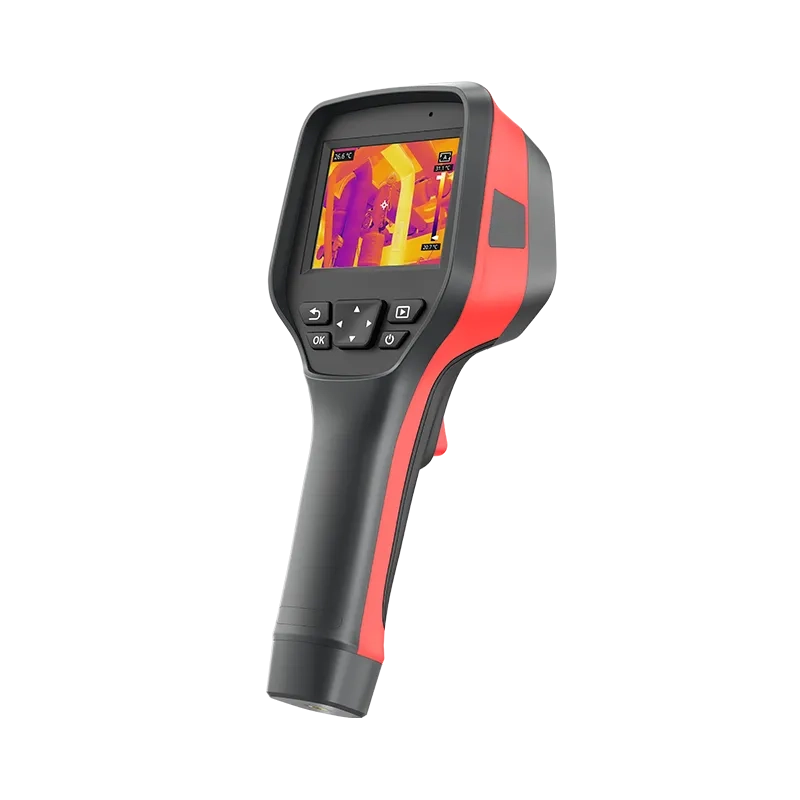

MRM200A Handheld Thermal Camera
China Moneypro
RM200A is equipped with a self-developed 12 m high thermal sensitivity 256 192 infrared thermal imaging detector.

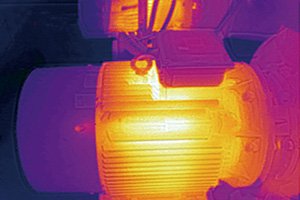

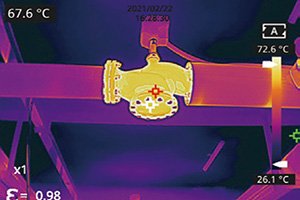

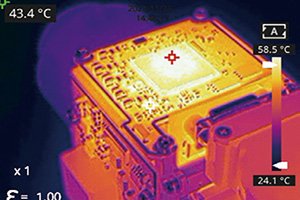

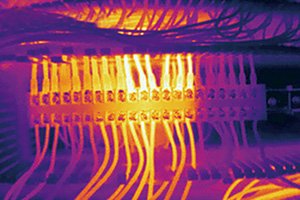

Based on intelligent and precise temperature measurement algorithms and HD image algorithms, it strives to be a professional infrared thermal imaging tool with HD images, a large-screen display, and accurate temperature measurement for applications such as electrical maintenance and circuit design.
Feature
Powerful Detector, Clear Imaging
Equipped with a 256 192 self-developed uncooled infrared detector.
40mK thermal sensitivity, capable of distinguishing the minimum temperature difference of 0.04 C, capturing small hot and cold spots.
-20 C~+550 C wide measurement range for monitoring more temperature targets.
40mK thermal sensitivity, capable of distinguishing the minimum temperature difference of 0.04 C, capturing small hot and cold spots.
-20 C~+550 C wide measurement range for monitoring more temperature targets.
Fully-Functional Software
Manually adjusting the temperature range to meet the needs of multiple scenarios and uses.
Support multiple image modes + multiple palettes to meet the needs of temperature measurement under different requirements.
Support the software analysis on PC.
Support multiple image modes + multiple palettes to meet the needs of temperature measurement under different requirements.
Support the software analysis on PC.
Hardcore Configuration
Equipped with a 3.5-inch touch screen, supporting center point, hot and cold spot tracking and temperature display.
IP54, 2m drop protection.
Standard configuration of 2 quick-removal batteries, with a battery life of up to 8h.
IP54, 2m drop protection.
Standard configuration of 2 quick-removal batteries, with a battery life of up to 8h.
Specification
| Thermal Imaging | ||
| Detector Type | Uncooled infrared detector | |
| Infrared Resolution | 256 192 | |
| Pixel Size | 12 m | |
| Spectral Band | 7.5-14 m | |
| NETD | 40mK (25 C,F1.0) | |
| Frame Rate | 25 Hz | |
| Lens Focal Length | 3.2mm | |
| FOV | 56 42 | |
| IFOV | 3.75mrad | |
| Focusing Mode | Fixed focus | |
| Minimum Imaging Distance | 0.3m | |
| Measurement Range | -20 C~+150 C, 100 C~550 C | |
| Measurement Accuracy | 2 C or 2% of readings, whichever is greater | |
| Imaging Display | ||
| Display | 3.5-inch touch screen, 640 480 resolution | |
| Visible Light Camera | 2 megapixels | |
| Digital Zoom | 1 2 4 | |
| Palettes | 7 options | |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion | |
| Temperature Width Stretch | Automatic/Manual | |
| Image Storage | ||
| Storage Medium | Standard 32GB MicroSD, up to 128G | |
| Text Notes | Support | |
| Voice Annotation | Support | |
| Image Naming | Auto/manual naming, naming by scanning QR code | |
| Measurement and Analysis | ||
| Analysis Functions on the Device | Custom points/lines/areas; up to 10 points, 10 areas, and 10 lines; Center point/Hot and cold spot tracking and temperature display | |
| Supporting Software | PC (Infrared Analysis Software) | |
| System Functions | ||
| Communication Protocol | Wi-Fi, USB | |
| Video Transmission | Support UVC video transmission | |
| Laser Pointer | Support | |
| Others | ||
| Battery | Rechargeable and detachable lithium-ion battery | |
| Charging Mode | USB Type-C or desktop charger | |
| Battery Life | About 8h (about 4h for a single battery) | |
| Interface | USB Type-C, SD card | |
| Tripod Socket | UNC 1/4-20 interface for tripod | |
| Operating Temperature | -10 C~+50 C | |
| Operating Humidity | 10%~95% (non-condensing) | |
| Storage Temperature | -20 C~+60 C | |
| Ingress Protection Rating | IP54 | |
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6) | |
| Weight and Dimensions | About 635g, 258.4 105.1 102.3mm | |
| Authentication | CE/RoHS/CMA, etc. | |
| Packing List | Thermal camera, 5V 2A power adaptor, USB cable, SD card, battery 2, Quick Start Guide, battery charger, calibration certificate, package list, portable cloth bag | |
| Voice Control | Voice assistant, quick command recognition | |
| Flashlight | Support | |
| Others | ||
| Microphone/Speaker | Support | |
| Battery | 9000mAh lithium-ion battery, field-replaceable, fast charging | |
| Charging Mode | USB Type-C or desktop charger | |
| Battery Life | Continuous operating time 3 hours (depending on the actual environment and service conditions) | |
| Interface | USB3.0 Type-C, SD card, SIM card, Mini HDMI | |
| Tripod Socket | UNC 1/4-20 interface for tripod | |
| Operating Temperature | ‘-15 C~+50 C | |
| Operating Humidity | 10%~95% (non-condensing) | |
| Storage Temperature | -40 C~+70 C | |
| Ingress Protection Rating | IP54 | |
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6) | |
| Weight and Dimensions | <1.7kg (with battery), 140 210 115mm | |
| Authentication | CE/RoHS/CMA, etc. |
