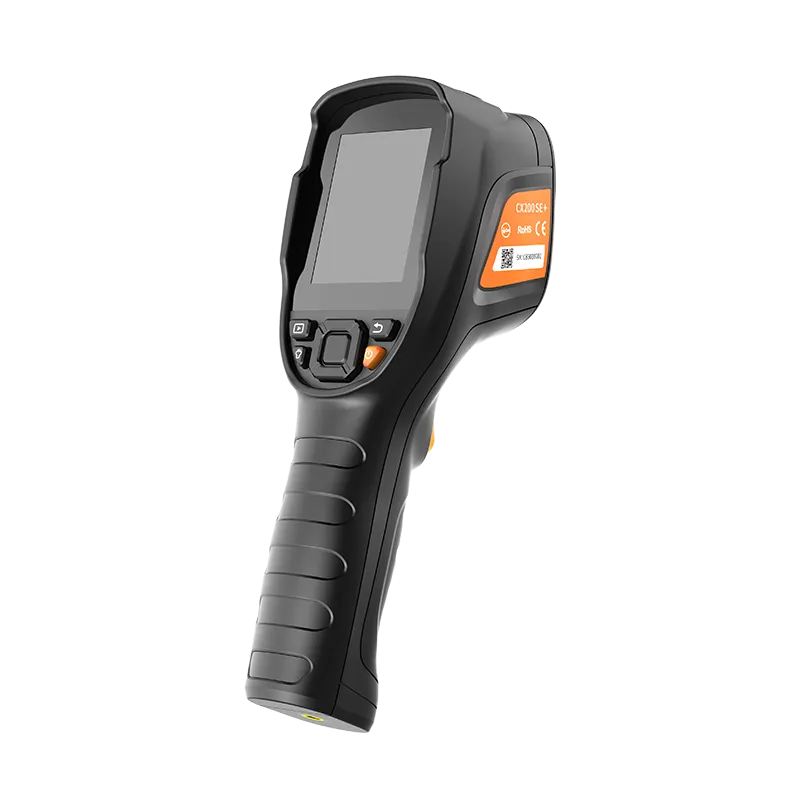

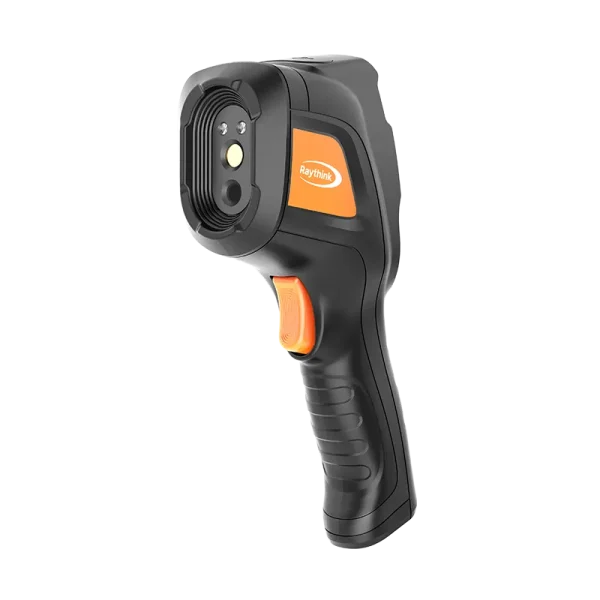

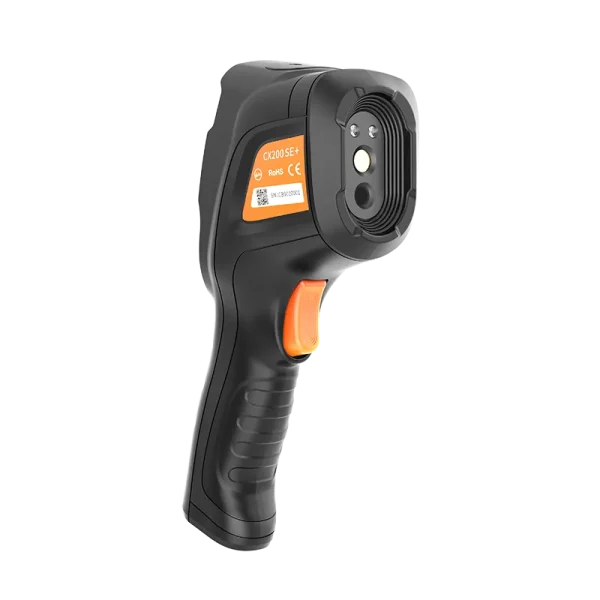

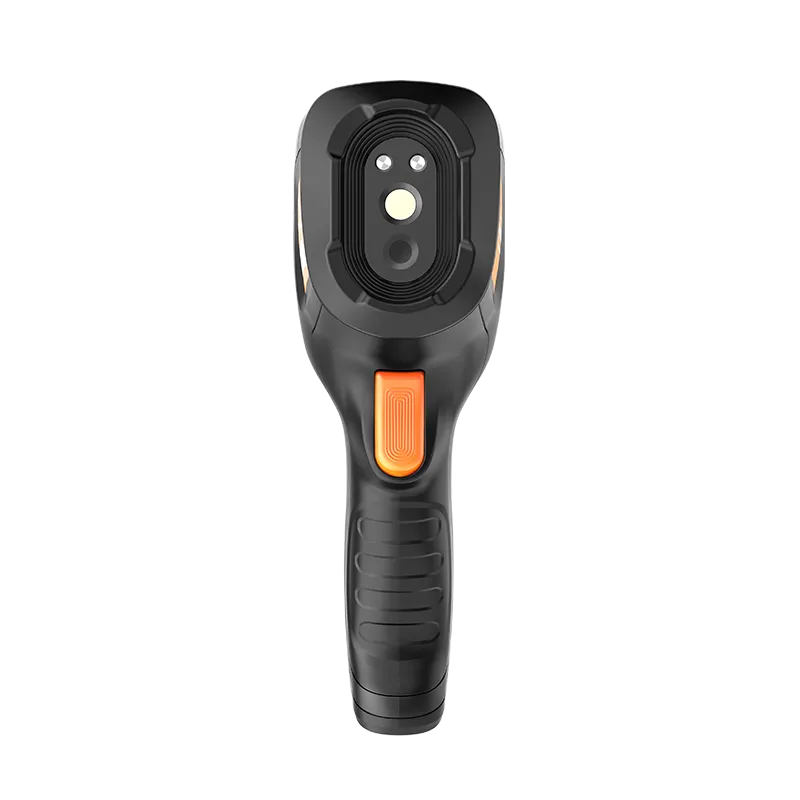

MCX200 SE+ Handheld Thermal Camera
China Moneypro
Equipped with a high-sensitivity infrared detector with a resolution of 256 192, based on an intelligent image algorithm, the CX200 SE+ handheld thermal camera can generate clearer and sharper thermal images.
The product has been completely upgraded to give users a better experience.
Feature
Image+ distinguish smaller temperature differences and more details
1. Equipped with a self-developed 12 m 256 192 uncooled infrared detector.
2. NETD as low as 40mK, capturing smaller temperature differences.
3. Intelligent image algorithm applied, displaying clearer details of temperature measurement targets and sharper images.
4. With the innovative Al real-time super-resolution technology, the resolution jumps to 320 240 to provide clearer infrared images.
2. NETD as low as 40mK, capturing smaller temperature differences.
3. Intelligent image algorithm applied, displaying clearer details of temperature measurement targets and sharper images.
4. With the innovative Al real-time super-resolution technology, the resolution jumps to 320 240 to provide clearer infrared images.
Feature+: professional grade, full services based on thermal sensors, catering to all industrial control scenarios
All-weather, 24/7 security monitoring with dual thermal&visible light imaging.
Performance+: rugged, easy to use, and quick to deploy
IP54 waterproof and dustproof, and 2m drop protection
A battery life of 15 hours.
Built-in 32GB memory card, expandable to 128GB
A battery life of 15 hours.
Built-in 32GB memory card, expandable to 128GB
Software+: complete software ecosystem
Support complete secondary analysis software for PC
Specification
| Thermal Imaging | |
| Detector Type | Uncooled infrared detector |
| Infrared Resolution | 256 192 |
| Al Real-time Super-resolution | 320 240 |
| Pixel Size | 12 m |
| Spectral Band | 7.5-14 m |
| NETD | 40mK (25 C,F1.0) |
| Frame Rate | 25 Hz |
| Lens Focal Length | 3.2mm |
| FOV | 56 42 |
| IFOV | 3.8mrad |
| Focusing Mode | Fixed focus |
| Minimum Imaging Distance | 0.3m |
| Measurement Range | -20 C ~ +150 C, 100 C ~ +550 C |
| Measurement Accuracy | 2 C or 2% of readings, whichever is greater |
| Imaging Display | |
| Display | 2.8 inch, 320 240 |
| Digital Zoom | 1 , 2 , 4 |
| Palettes | 4 options |
| Image Mode | Infrared |
| Temperature Width Stretch | Auto |
| Image Storage | |
| Storage Medium | Standard 32GB MicroSD, up to 128G |
| Measurement and Analysis | |
| Analysis Functions on the Device | Central temperature point/Highest temperature point/Lowest temperature point |
| Supporting Software | PC (Infrared Analysis Software) |
| System Functions | |
| Alarm Type | Highest/Lowest temperature alarm in full frame; Image pop-ups, flash prompts; Auto image capture at alarm time (with temperature data). |
| Power Management | Auto shut-down setting |
| Others | |
| Battery | Built-in rechargeable lithium-ion battery |
| Charging Mode | USB Type-C |
| Battery Life | About 15h |
| Interface | USB Type-C, SD card |
| Tripod Socket | UNC 1/4-20 interface for tripod |
| Operating Temperature | -10 C~+50 C |
| Operating Humidity | 10%~95% (non-condensing) |
| Storage Temperature | -20 C~+60 C |
| Ingress Protection Rating | IP54 |
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6) |
| Weight and Dimensions | About 520g, 237 75 92mm |
| Authentication | CE/RoHS/CMA, etc. |
| Packing List | Infrared camera 1, USB cable, 32GB SD card, user manual, storage bag, certificate of qualification, calibration certificate |
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6) |
| Weight and Dimensions | 500g, 246X101X85mm |
| Authentication | CB/CE/CMA |
| Packing List | USB cable, user manual, certificate of qualification, calibration certificate, charger, portable bag |
