MPC8S4L3 Multi-Spectrum PTZ Camera

China Moneypro

The PC8 series is a long-range monitoring product that integrates HD visible light, laser fill-in light, infrared thermal imaging, triple-spectrum imaging, and intelligent PTZ into one.
Supports intelligent functions such as fire point detection, tripwire intrusion, and regional intrusion detection, providing all-weather, 24/7 monitoring.
It is suitable for long-range visual monitoring scenarios such as forest fire prevention, and important area protection.
Support TPM technology and meeting the FIPS 140-3 Level 3 standard.

Feature

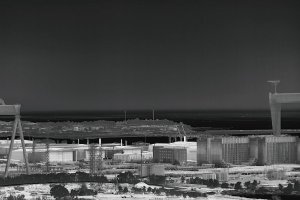

Industry-Leading Infrared Detector

Adopts the latest 12μm uncooled infrared detector and advanced infrared image algorithms to ensure clear imaging at greater distances.

Multi-Spectrum

Supports a maximum thermal imaging resolution of 1.3 megapixels (1280×1024) and a maximum visible light resolution of 4 megapixels (2688×1520), laser illumination

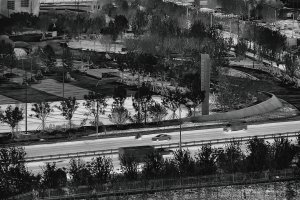

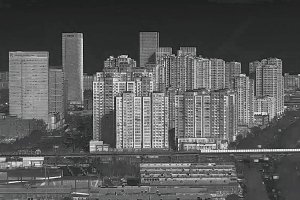

Long-Range Detection

Supports 25～225mm continuous zoom lens for thermal imaging cameras and 15~775mm continuous zoom lens for visible light cameras.

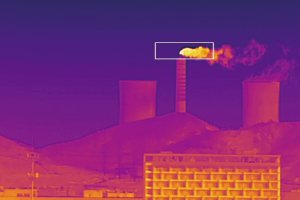

Intelligent Fire Detection Algorithm

Features an integrated intelligent fire detection algorithm for efficient and accurate monitoring, as well as reduced false alarms.

Intelligent Video Analysis

Support tripwire/intrusion detection, as well as intelligent detection of fire point.

Platform Integration

Support ONVIF, provide SDK&demo for development; provide NVR and VMS software for application.

Specification

Thermal Module
Detector Type	VOx, uncooled FPA detectors
Spectral Range	8~14μm
NETD	≤40mK(@25°C, F#1.0, 25 Hz)
Resolution	1280×1024
Pixel Pitch	12μm
Focal Length	30~150mm/25~225mm
Optical Module
Sensor	4MP 1/1.8″ Progressive Scan CMOS
Resolution	2688×1520
Focal Length	6~300mm/15~775mm
Defog	Optical Defog & Digital defog
Laser Illuminator
Laser Illuminator	3km
PTZ
Pan	360° continuous，0.01°~60°/s
Tilt	-60°~+60°，0.01°~15°/s
Preset	1024
Scan mode	Preset/Pattern Scan/Patrol Scan/ Linear Scan/Panorama Scan
Wiper	Auto-wiper
Smart Function
Fire Detection	Support
Smoke Detection	support
VCA	Support Line Crossing&Intrusion detection
2-Way Audio	Support
Linkage Action	Video/ Snapshot/Email/Alarm output
System Interface
Power	DC 48V±15%
Network	1 RJ45 10M / 100M self-adaptive Ethernet port
Audio	1 in/1 out
Alarm	1 in/1 out
Storage	Micro SD memory（maximum 256G）
Serial Port	1 channel RS485, can support Pelco protocol
General
Work Environment	-40℃~+70℃；≤95%RH
Protection	IP66
Certification	CE,ROHS,CE-EMC Test Report, FIPS 140-3 Level 3
Power Consumption	max. 190w
Dimenstion(mm)	645×680.5×550
Weight	59kg
