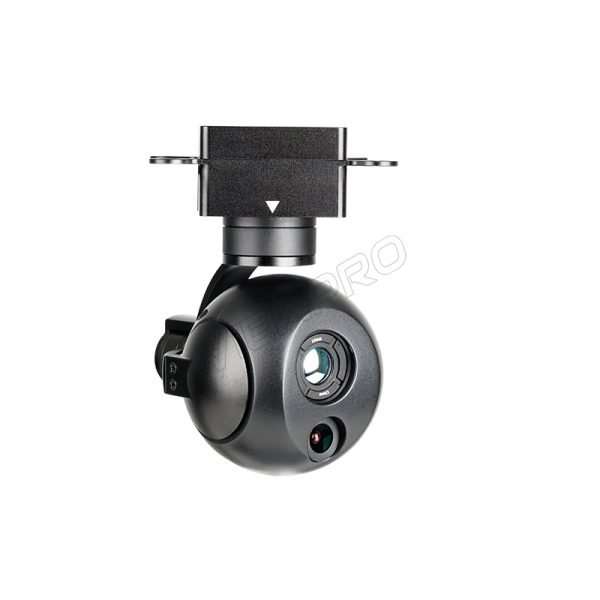

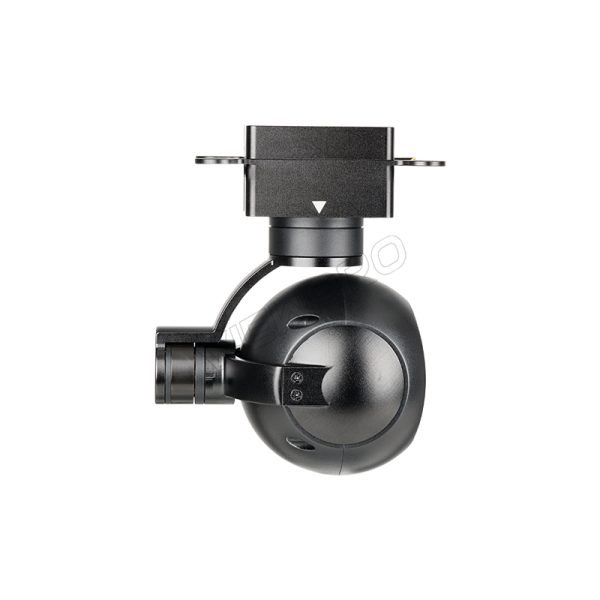

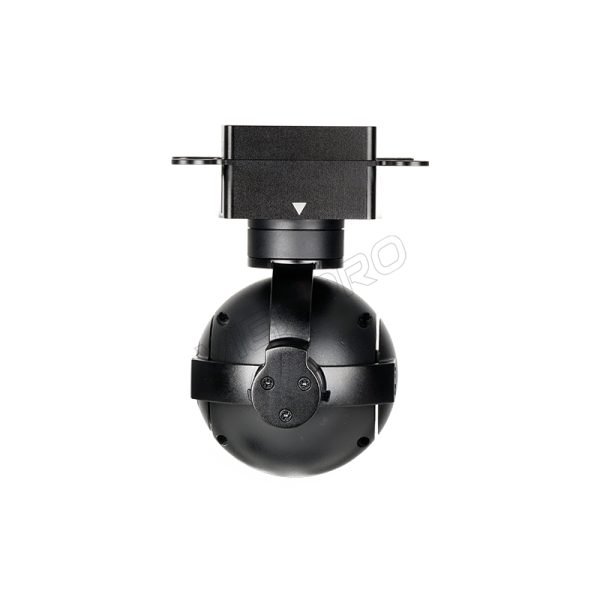

MA613 Mini 3-Aixs Stabilizer Prime Lens EO/IR AI Tracking Thermal Imager Gimbal Camera
China Moneypro

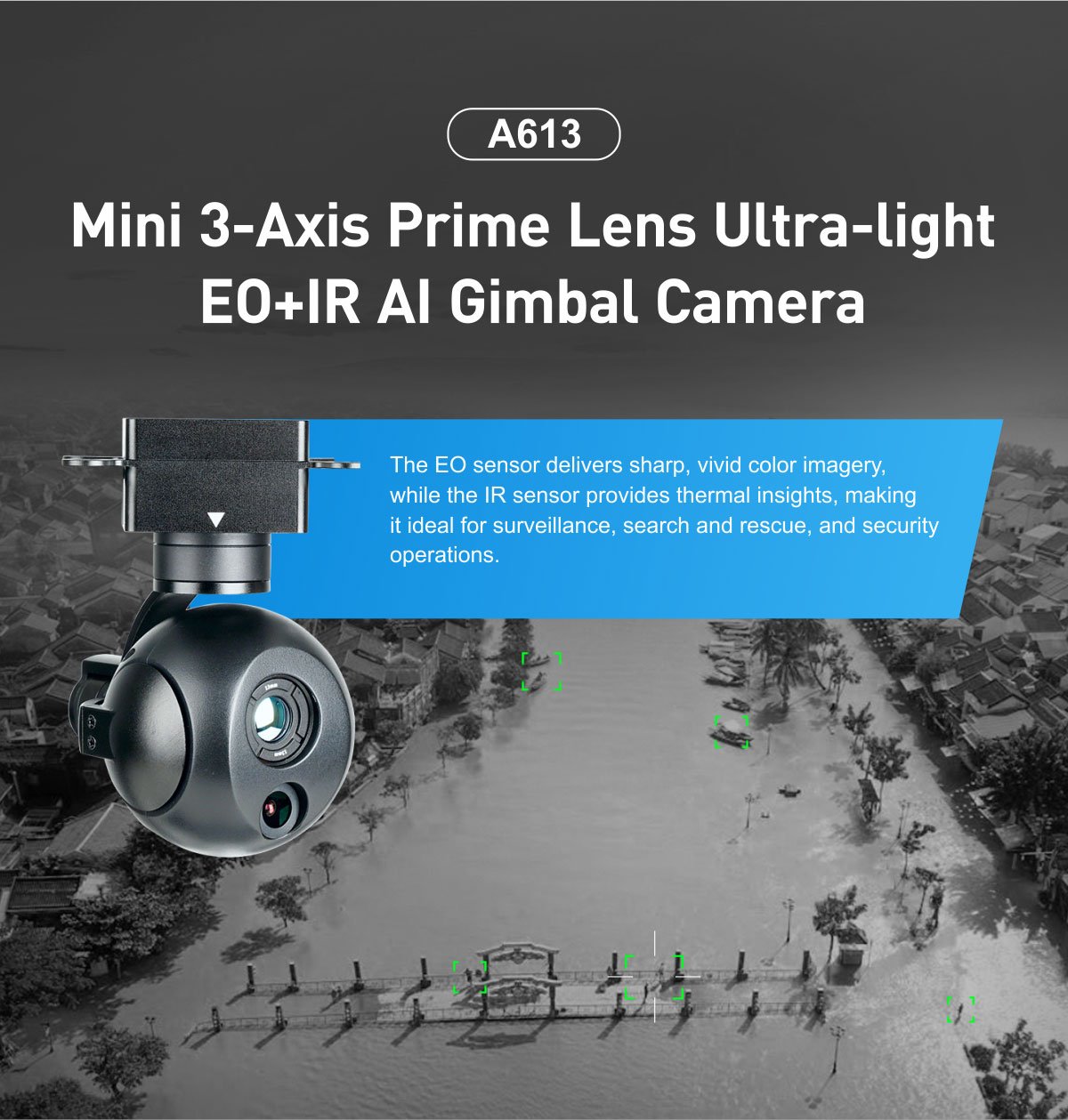

MA613 is a 3-axis gimbal camera integrated with both EO and IR sensors. The EO sensor delivers sharp, vivid color imagery, while the IR sensor provides thermal insights, making it ideal for surveillance, search and rescue, and security operations.
| Hardware Parameters | ||||
| Working voltage | 16V | |||
| Input voltage | 4S ~ 6S | |||
| Output voltage | 5V (connect with PWM) | |||
| Dynamic current | 1200~2500mA @ 16V | |||
| Working environment temp. | -20 C ~ +60 C | |||
| Video Output | micro HDMI (1080P 30/60fps) / IP Rtsp (720P/1080P 30fps) | |||
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) | |||
| Photo storage format | JPG (1920*1080) | |||
| Video storage format | MP4 (1080P 30fps) | |||

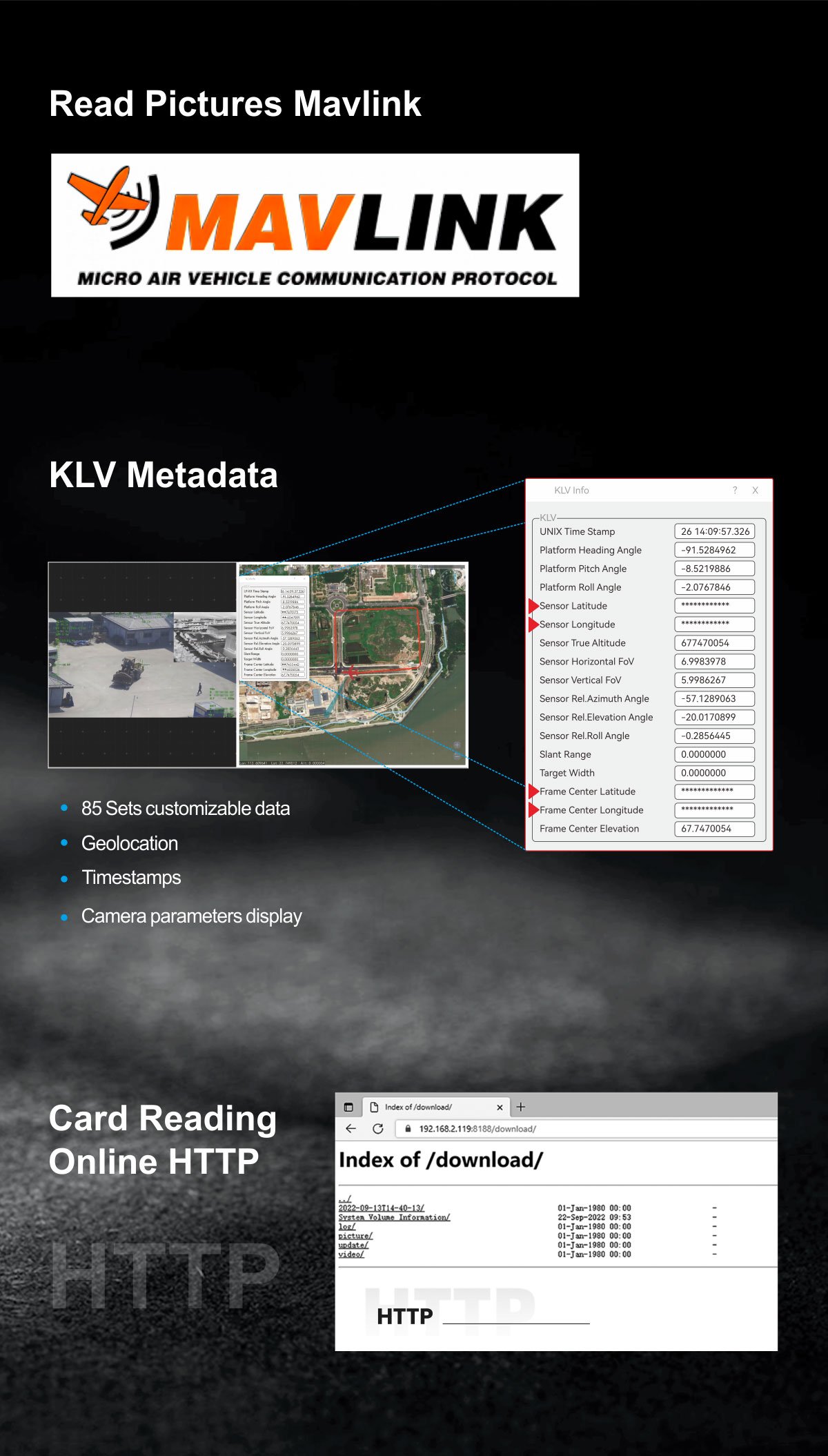

| Network reader | HTTP reading | |||

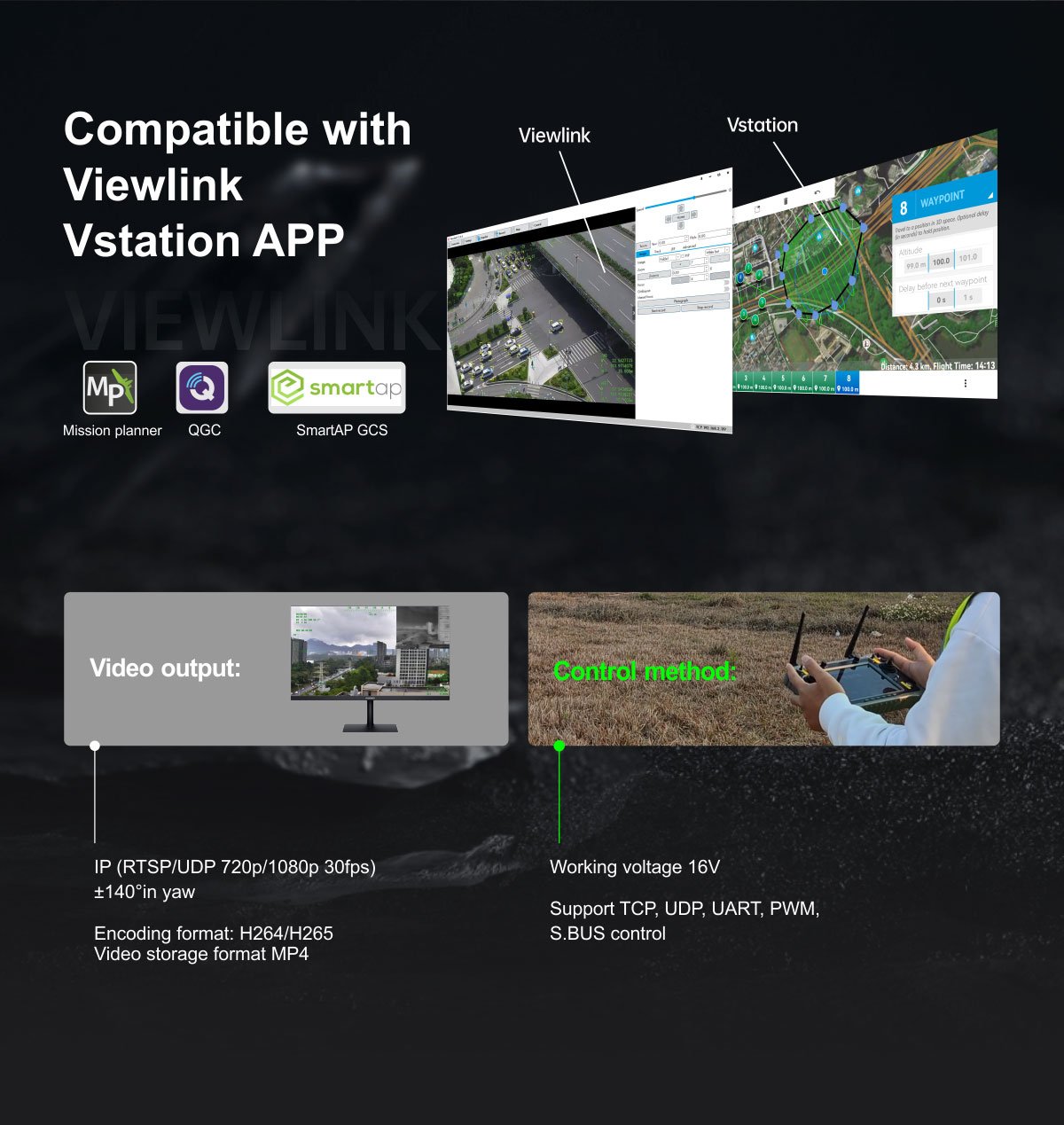

| Control method | PWM / S.BUS / TTL / TCP(IP output version) / UDP(IP output version) | |||
| Gimbal Parameters | ||||

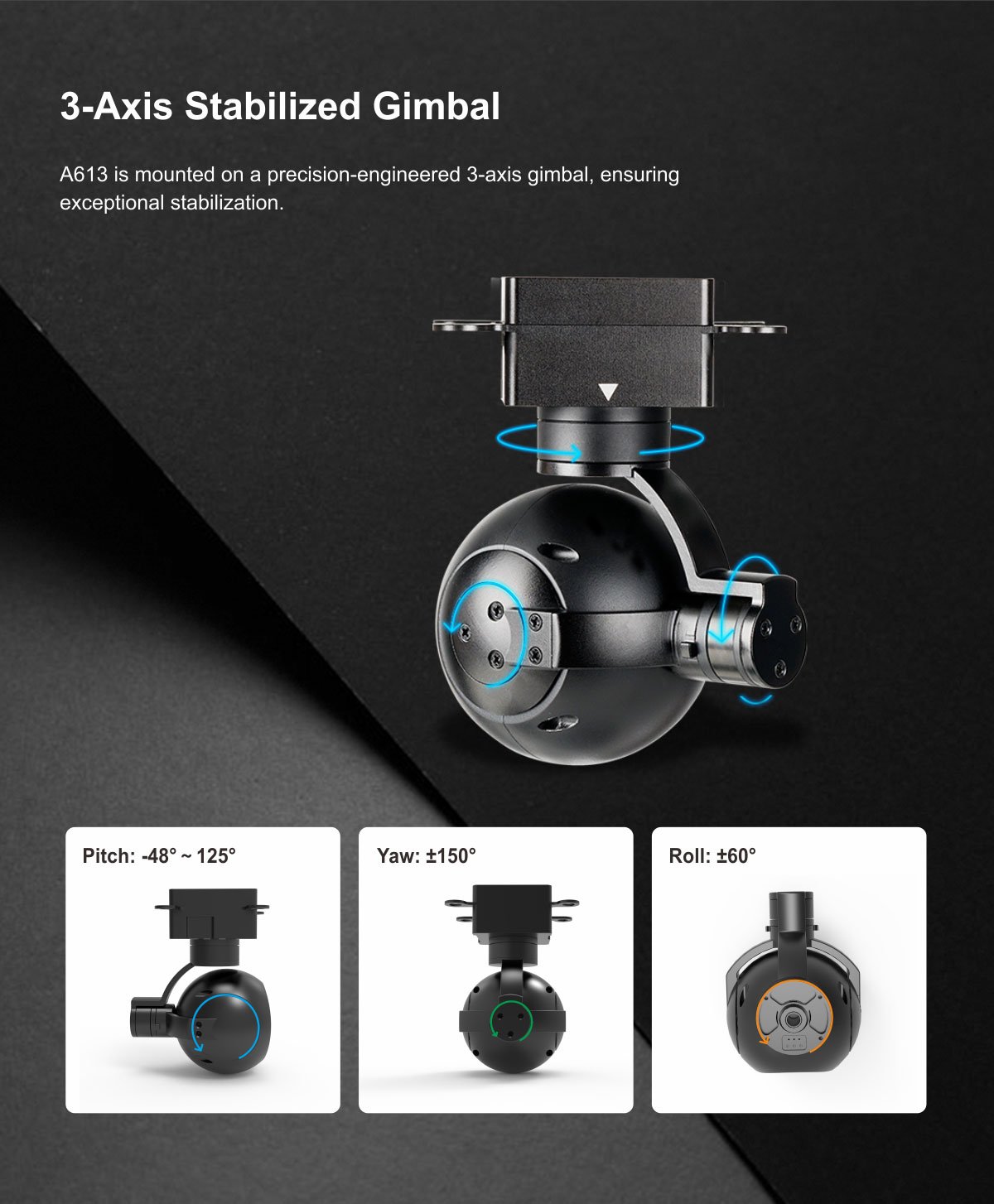

| Mechanical Range | Pitch/Tilt: -60 130 , Roll: 40 , Yaw/Pan: 300 / 360 *N (IP output version) | |||
| Controllable Range | Pitch/Tilt: -45 90 , Yaw/Pan: 290 / 360 *N (IP output version) | |||
| Vibration angle | Pitch/Roll/Yaw 0.02 | |||
| One-key to center | ||||
| Camera Parameters | ||||
| Imager Sensor | 1/2.8 Sony CMOS | |||
| Effective pixel | 2.13 MP | |||
| Lens | Optical zoom: 40x f = 4.25 mm (Wide), 170 mm (Tele) F1.6 to F4.95 | |||
| Digital zoom | 32x | |||
| Angle of view ( H ) | 66.35 (Wide) ~ 1.9 (Tele) | |||
| Min. object distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m | |||
| Focus | Auto / One-click auto focus / Manual | |||
| White balance | Auto / Indoor / Outdoor / One-key / Manual | |||
| Shutter speed | 1/1 to 1/30,000 S | |||
| Exposure control | Auto / Manual / Priority mode ( Shutter priority / Aperture priority ) | |||
| Sync system | Internal | |||
| Back light compensation | Yes | |||
| Auto ICR | Yes | |||
| Progressive scan | Yes | |||
| Image stabilizer | Yes | |||
| Defog mode | Yes | |||
| IR Thermal Imager Parameters | ||||
| Focus Length | 19mm | |||
| Coating Film | DLC | |||
| Horizontal FOV | 22.9 | |||
| Vertical FOV | 18.4 | |||
| Diagonal FOV | 29.0 | |||
| Detective Distance (Man: 1.8 0.5m) | 792 meters | |||
| Recognize Distance (Man: 1.8 0.5m) | 198 meters | |||
| Verified Distance (Man: 1.8 0.5m) | 99 meters | |||
| Detective Distance (Car: 4.2 1.8m) | 2428 meters | |||
| Recognize Distance (Car: 4.2 1.8m) | 607 meters | |||
| Verified Distance (Car: 4.2 1.8m) | 303 meters | |||
| Working mode | Uncooled long wave (8 m~14 m) thermal imager | |||
| Detector pixel | 640*512 | |||
| Pixel size | 12 m | |||
| Focusing method | Athermal prime lens | |||
| NETD | 50mK @F.0 @25 | |||

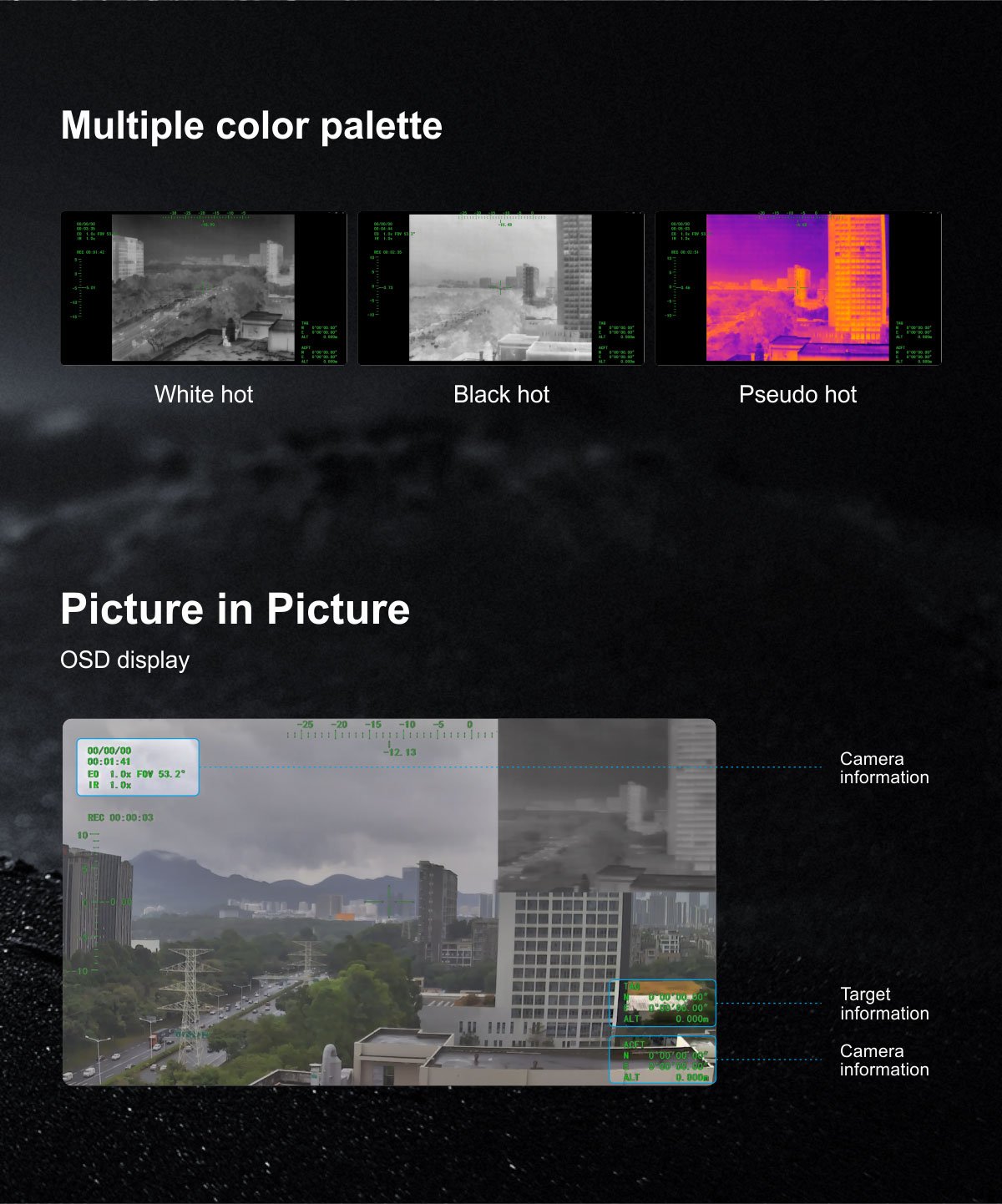

| Color palette | White hot, black hot, pseudo color | |||
| Digital zoom | 1x ~ 8x | |||
| Sync correct time | Yes | |||

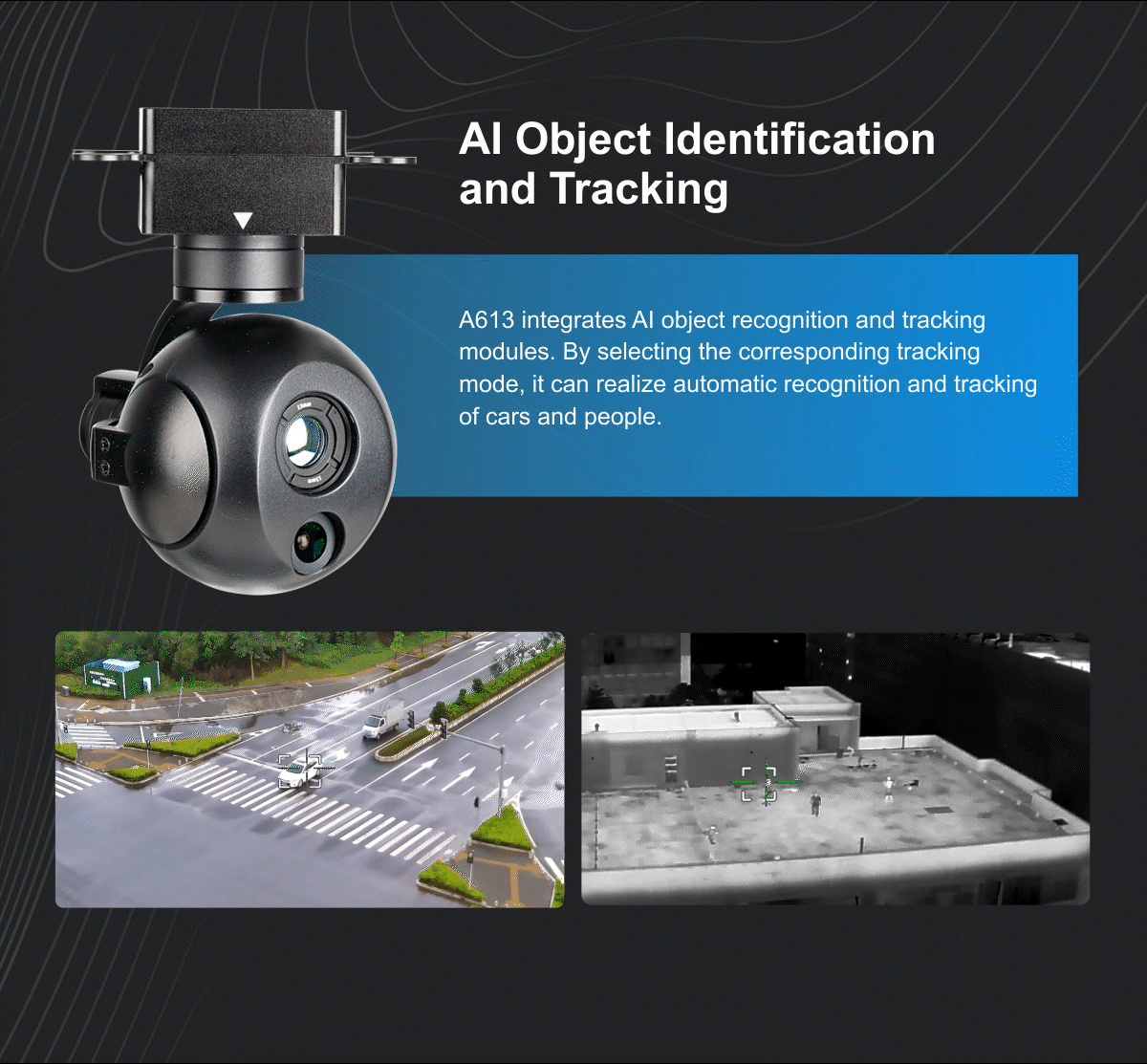

| EO / IR Camera Object Tracking Parameters | ||||
| Update rate of deviation pixel | 30Hz | |||
| Output delay of deviation pixel | <30ms | |||
| Minimum object contrast | 5% | |||
| SNR | 4 | |||
| Minimum object size | 16*16 pixel | |||
| Maximum object size | 256*256 pixel | |||
| Tracking speed | 48 pixel/frame | |||
| Object memory time | 100 frames | |||
| AI Tracking Linkage | Yes | |||
| Laser Rangefinder Parameters | ||||
| Effective range | For Vehicle 3000m For human 2000m | |||
| Minimum range of measurement | 15m | |||
| Range accuracy | 1m | |||
| Range frequency | 1~10Hz | |||
| Wave length | 1535 5nm | |||
| Divergence angle | ~0.6mrad | |||
| Coordinate resolve | Logitude and latitude of target | |||
| Measurement | Measure distance from center of object to laser rangefinder sensor | |||
| Camera AI Recogn | ition Performance Parameters | |||
| Target type | Vehicle, Human | |||
| Simultaneous detection quantity | 10 targets | |||
| Contrast ratio | 5% | |||
| Minimum size of target | 5 X 5 pixel | |||
| Vehicle detection ratio | 85% | |||
| False alarm ratio | 10% | |||
| Packing Information | ||||
| N.W. | 1136g (Viewport Version) | |||

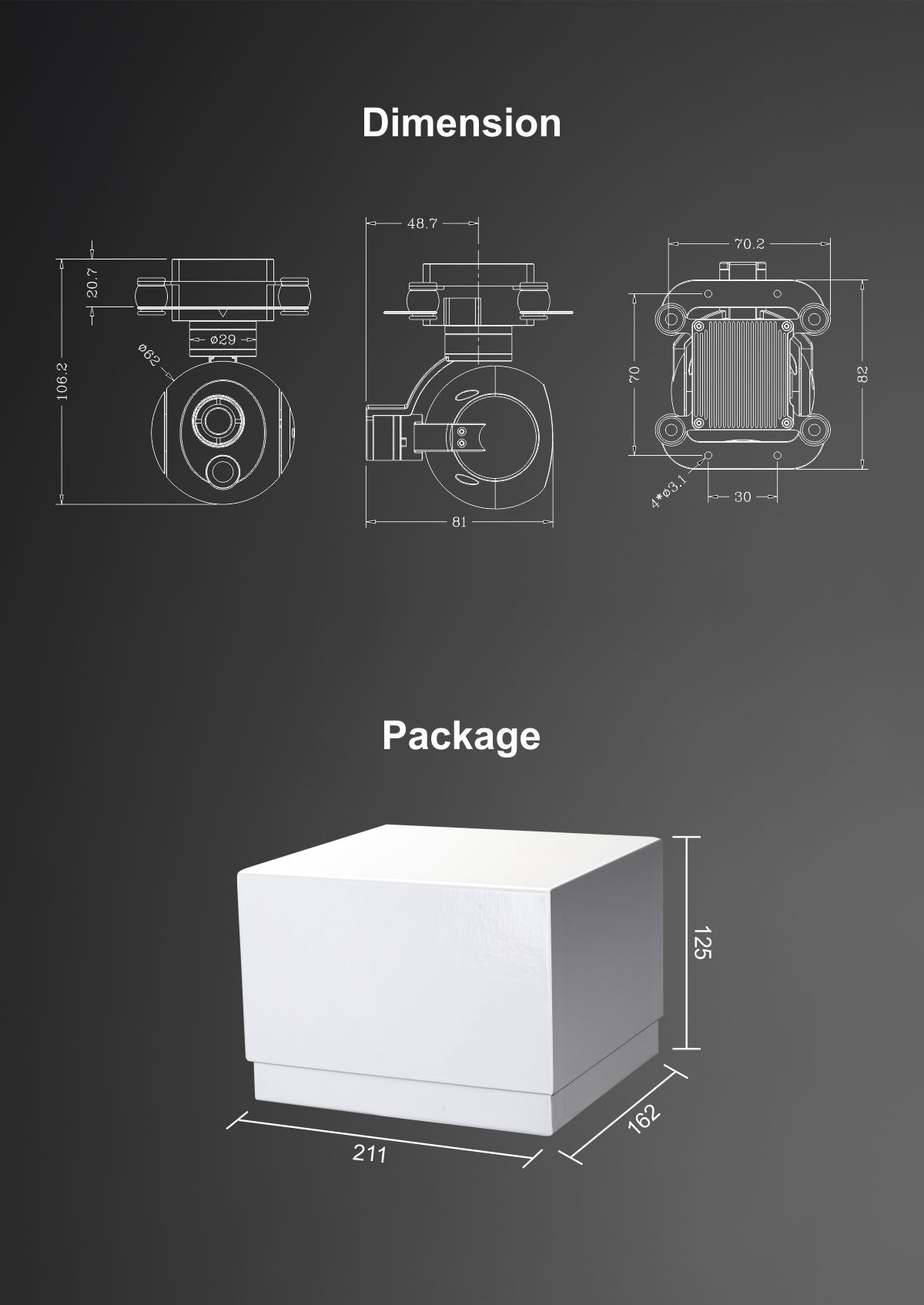

| Product meas. | 134.2*125*210.4mm Viewport Version | |||
