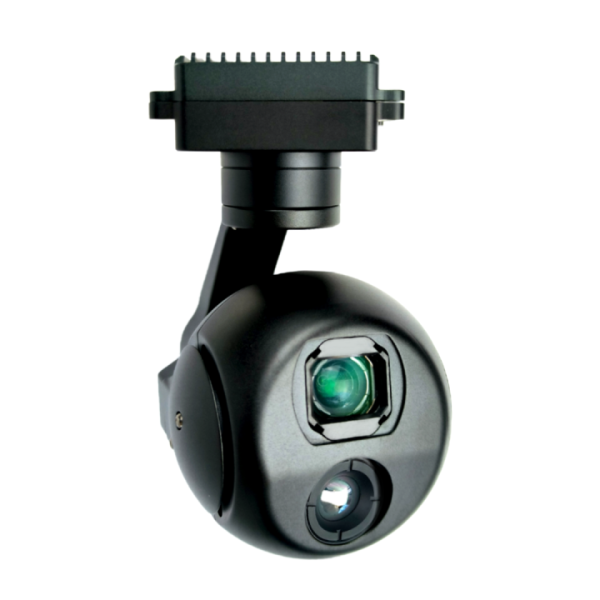

MDHU05G609 45x hybrid zoom + thermal imaging
China Moneypro
The MDHU05G609 is a compact dual-light gimbal combining 45x hybrid zoom visible light camera with 640×512 thermal imaging in a professional 3-axis stabilized PTZ system. Featuring a 4MP CMOS sensor with 5x optical zoom and real-time autofocus under 1 second, it delivers exceptional clarity across wide and telephoto ranges. The uncooled thermal camera offers 50mK sensitivity for precise temperature detection. Advanced AI tracking simultaneously detects and follows up to 100 human and vehicle targets with dynamic stabilization. Weighing just 260g with ultra-low 6W power consumption, it operates via IP, S.Bus, or serial control with 1080p network streaming and local dual-channel TF recording. Exceptional stability with 0.02-degree pitch/roll jitter enables professional surveillance, search and rescue, and industrial inspection applications.
The DHU05G609 is a compact dual-light gimbal camera system combining a 45x hybrid zoom visible-light camera with a 640×512 thermal imager, supported by a high-precision 3-axis stabilization platform. It features IP-based output and control, along with an FOC control scheme using high-precision encoders for gimbal movement. This gimbal stands out for its excellent stability, compact form factor, lightweight construction, and low power consumption. The visible light camera is built around a 4-megapixel effective sensor. Control options include serial ports, S.BUS, and Ethernet, enabling operation of both the camera and the gimbal. Additionally, it supports dual-channel local recording and photography via a TF card.
| Voltage | DC 12V-26.2V/td> | Power | Static 6W |
| Roll angle action range | -45 +45 | Pitch angle action range | -45 +100 |
| Yaw angle action range | -145 +145 | Angle jitter in pitch and roll direction | 0.02 |
| Horizontal angle jitter | 0.03 | One click return function | One click automatic quick return to the initial position |
| PTZ control speed adjustable | When the PTZ rotates, the speed is adaptive based on the current speed mode and the multiple of the visible camera | Control mode | Support network IP, S.Bus and Serial port control (Optional PWM control) |
| CMOS Size | 1/3 inch 4MP CMOS SENSOR |
| Optical zoom | 5x HD optical zoom lens, f=5 10% 25 10%mm |
| AF Time | Real time focusing, fast focusing time < 1s |
| Video output | Network RTSP 1080p output, video stream local TF storage |
| Field Angle(FOV) | D : WIDE 61.1o TELE 12.41o H : WIDE 50.12o TELE 10.81o V : WIDE 38.07o TELE 8.13o |
| Network support mode | 1080P 30 fps |
| HDMI support mode | Micro-D HDMI 1080P 60fps |
| Resolution ratio | 640 512 pixel |
| Space between pixels | 12 m |
| Type | Uncooled Vanadium Oxide Detector |
| Wavelength Range | 8 14 m |
| Thermal sensitivity(NETD) | 50mk@F1.0@25 |
| Field Angle | 9.1mm Lens; FOV 45.76 37.31 |
| Measurement (Optional) | Global temperature measurement, optional full pixel temperature saving |
| Min tracking target size | 16 16 pixels | Max tracking target size | 256 256 pixels |
| Target Memory Time | 2 seconds | Tracking speed | 50 Pixel/Frame max |
| Simultaneous detection qty | 100 targets max | Recognized categories | Human and Vehicle |
| Min detection target size | 32 32 pixels | Debounce | Dynamic stabilization |

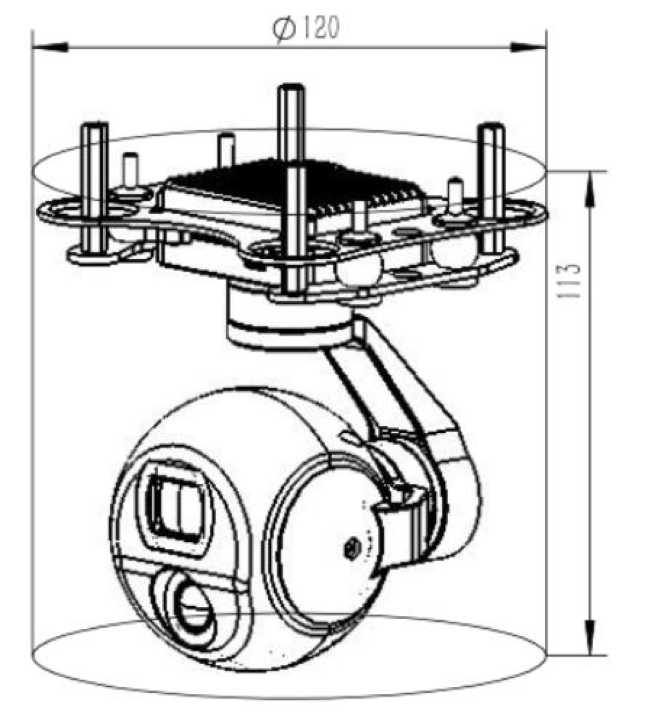

| Dimensions | 120mm 113mm | Working Condition | -10 to +45 / 20% to 80% RH |
| Stored Environment | -20 to +60 / 20% to 95% RH | Weight | 260 20g |
