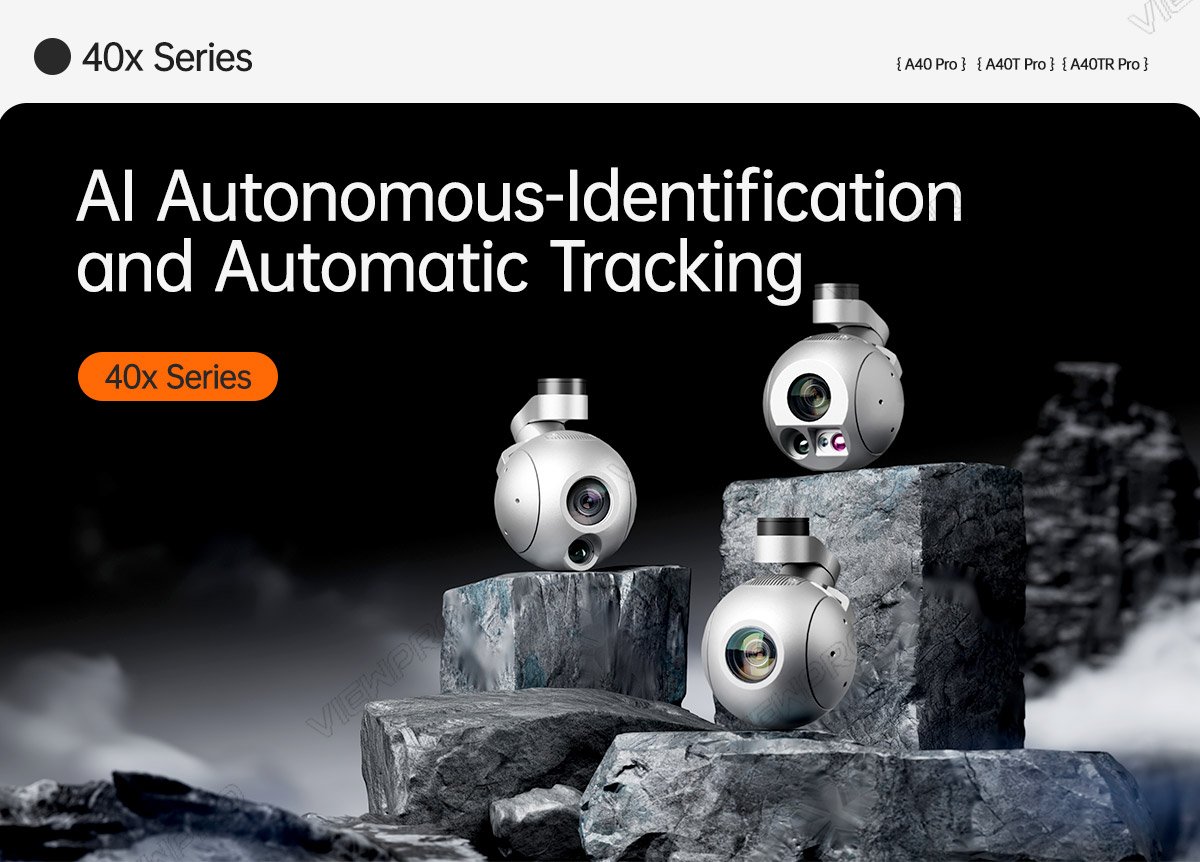

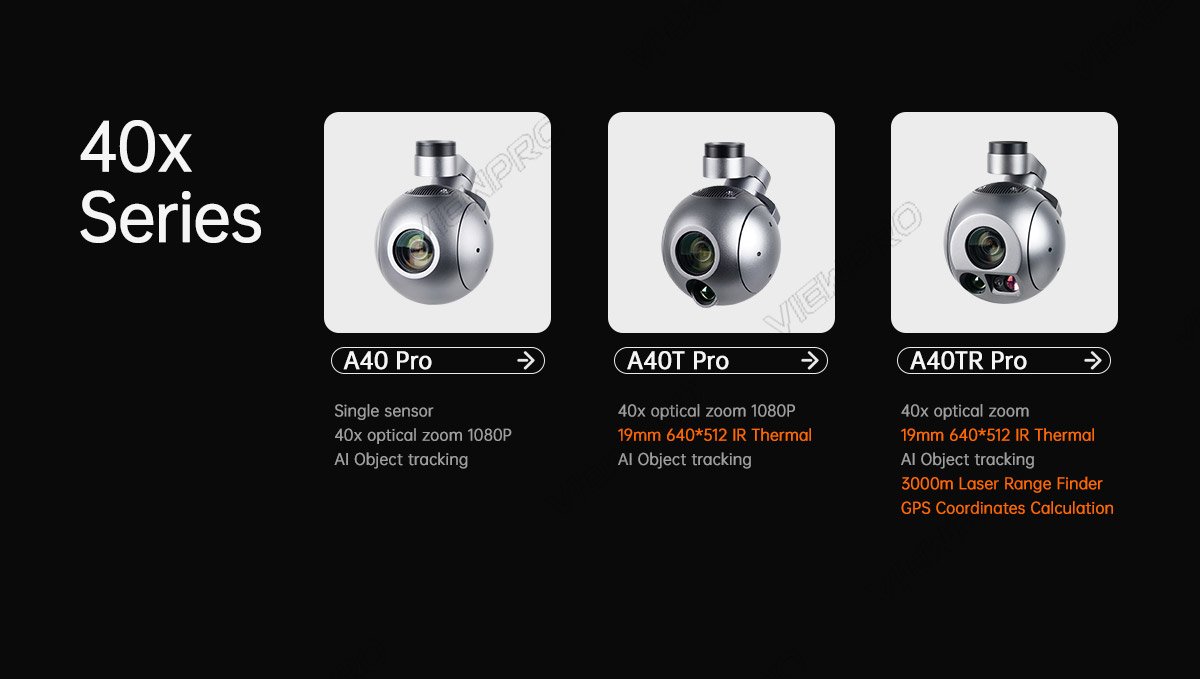

MA40T Pro AI-Tracking 40X Object Identification and Tracking Camera with 3-axis Gimbal
China Moneypro
MA40T AI-Tracking is an 40X optical zoom camera with 3-axis gimbal integrated with AI object identification and target tracking module, which can be widely used in public security, field search and rescue, military reconnaissance and other industries.s.
| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 3S 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 1350 1600mA @ 12V |
| Idle current | 1350mA @ 12V |
| Working environment temp. | -20 +60 |
| Output | micro HDMI(1080P30/60fps)/IP (1080P/720p 30/60fps ) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |

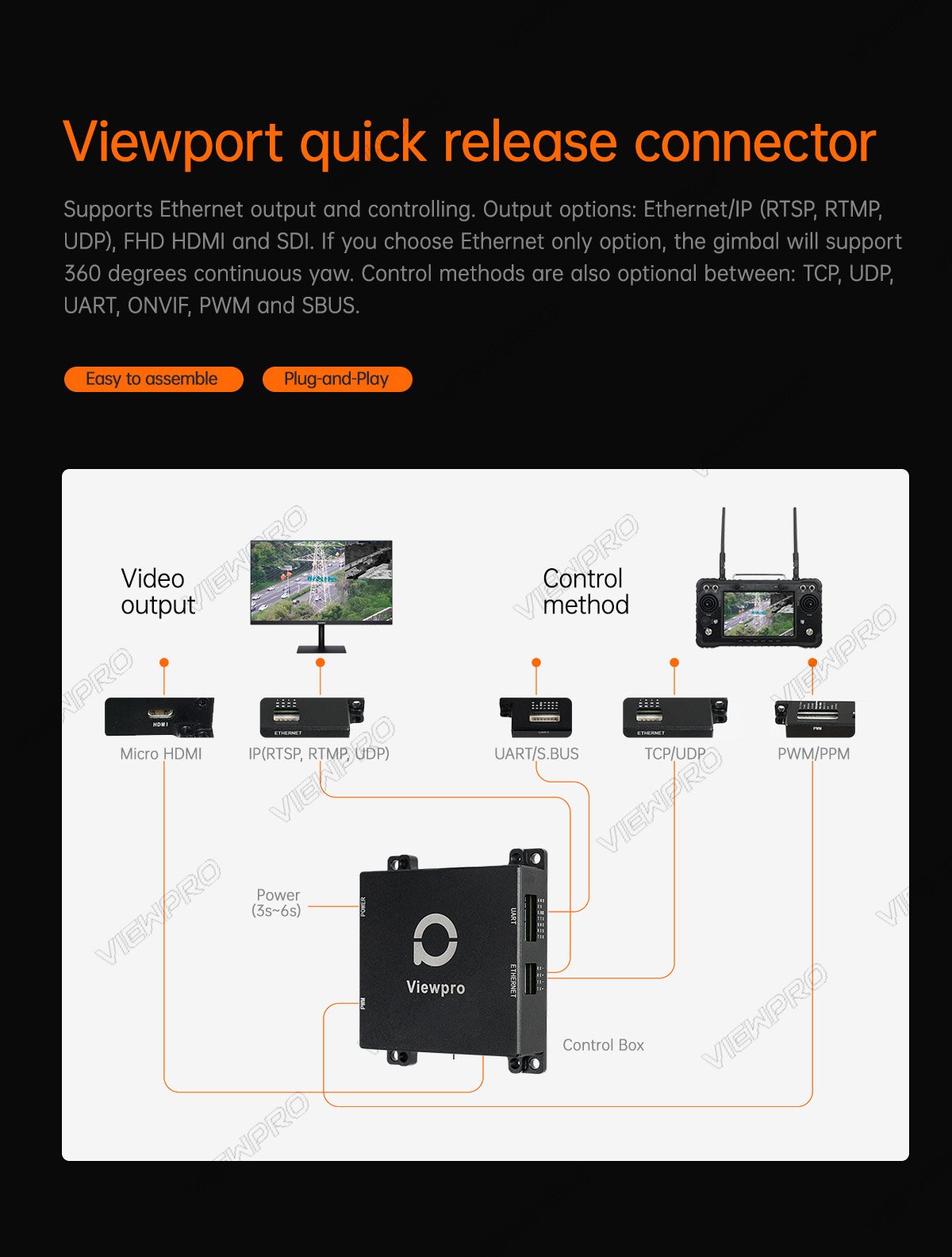

| Control method | PWM / SBUS / TTL / TCP (IP output version) |

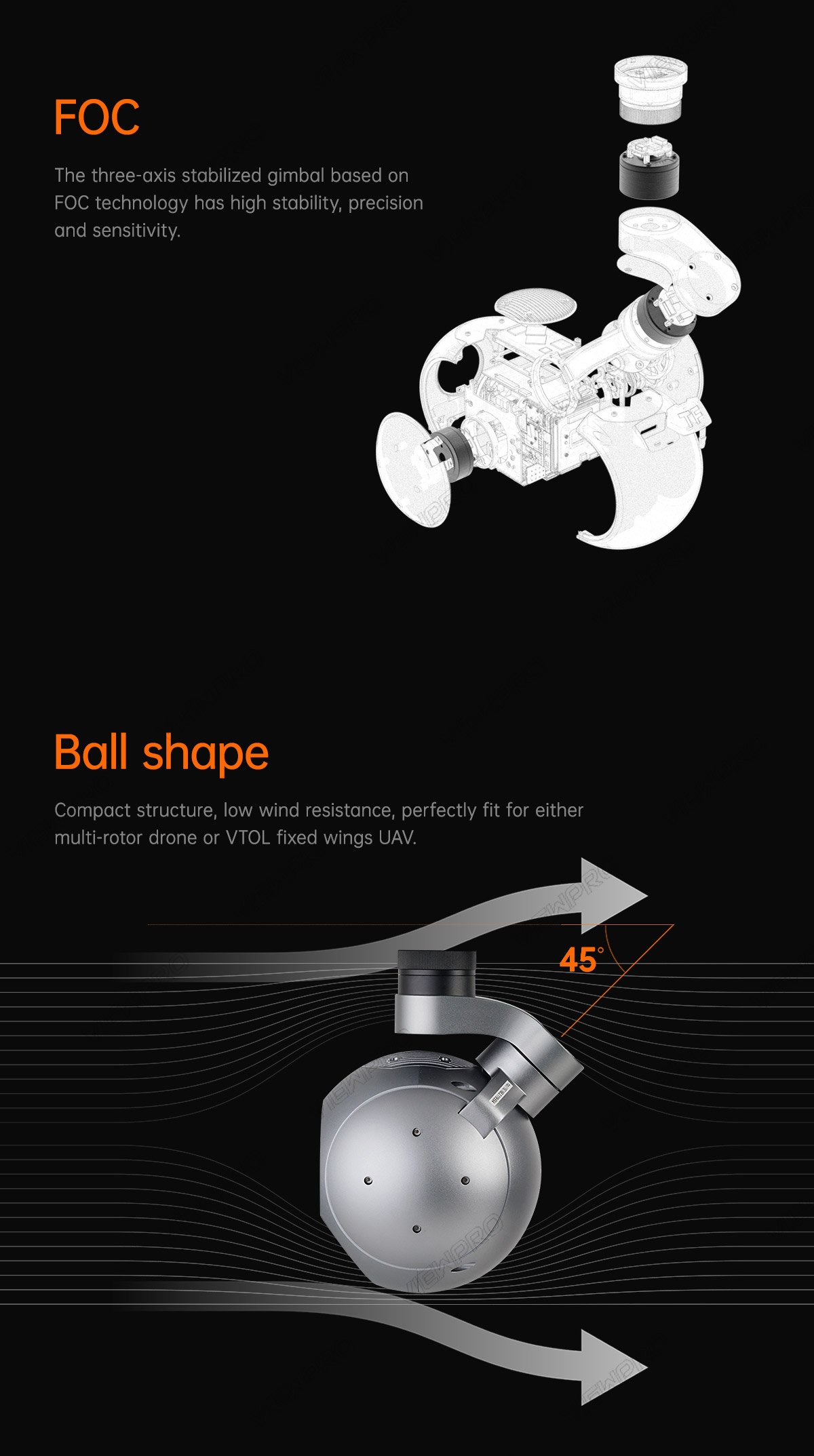

| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -55 130 ,Roll: 45 ,Yaw/Pan: 300 / 360 *N (IP/SDI output version) |
| Controllable Range | Pitch/Tilt: -45 90 ,Yaw/Pan: 290 / 360 *N (IP/SDI output version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| Camera Spec | |
| Imager Sensor | 1/2.8 Sony IMX462LQR CMOS Sensor |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Photo storage format | JPG(1920*1080 / 1280*720) |
| Video storage format | MP4 (1080P/720P 25fps/30fps) |

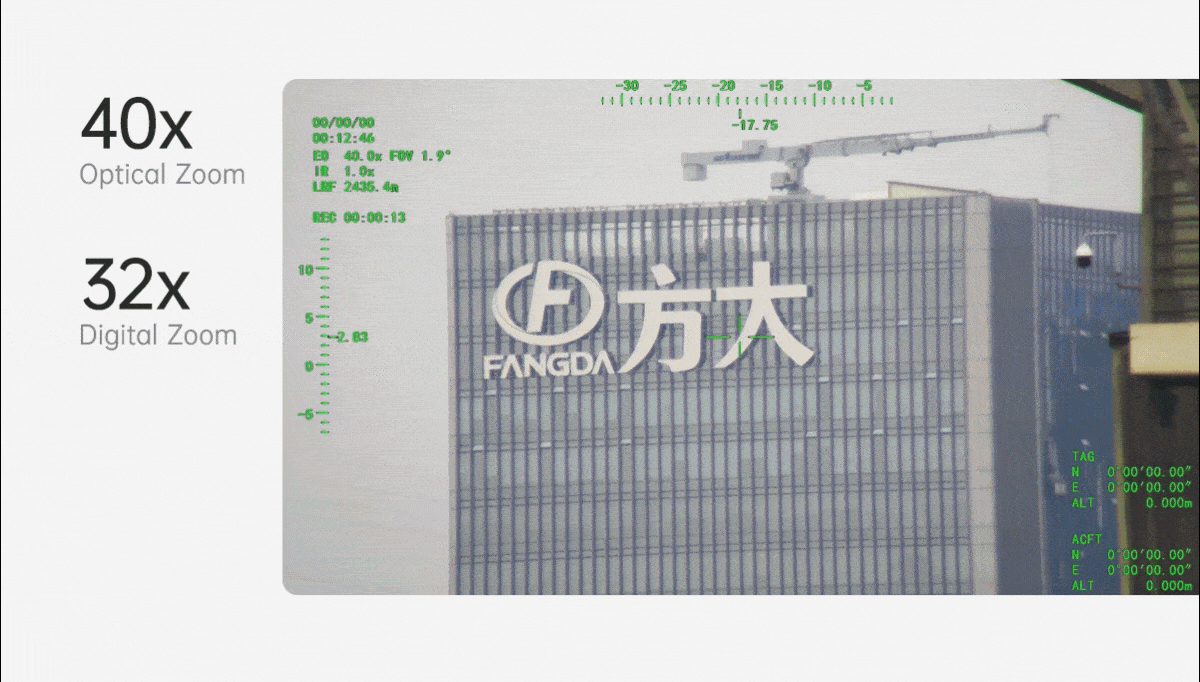

| Lens optical zoom | 40x, F=4.25 170mm |
| Digital zoom | Off / MAX x2 x32 |
| Min object distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Angle of View (D, H, V) | Wide: 73.80 / 66.35 / 39.98 |
| Tele: 2.16 / 1.90 / 1.11 | |
| AF Mode | Auto/One Push/Manual |
| Iris | Close F1.6 |
| Shutter speed | 1/1 1/30,000 sec |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color(1/30s, 79.5dB) : 0.01 lux , BW(1/30s, 79.5dB) : 0.002 lux Color DSS(1/1s, 79.5dB) : 0.001 lux , BW DSS(1/1s, 79.5dB) : 0.0002 lux |
| Exposure control | Auto / Iris. Priority / Shut. Priority / Manual |
| Gain Control(AGC) | 0 10 steps |
| White balance | Auto / One Push / Manual / Indoor / Outdoor |
| Back Light | Off / BLC / HLC / WDR |
| Defog | Off / Manual / Auto |
| OSD | Yes |

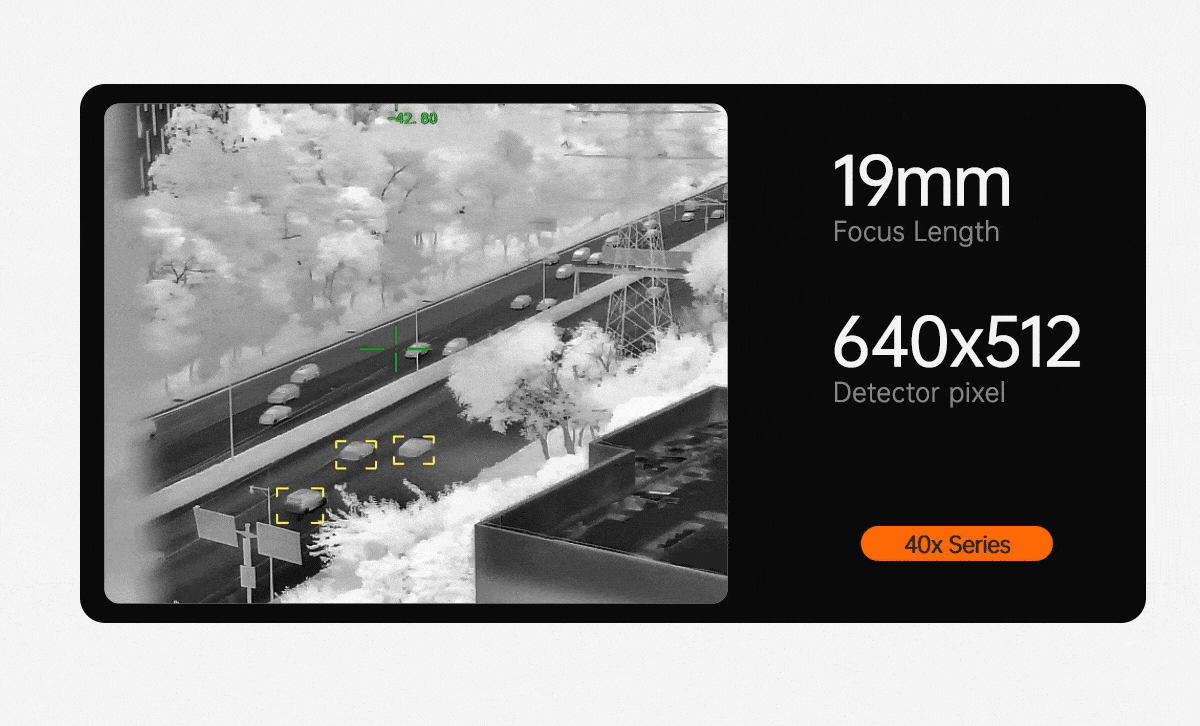

| Thermal Imager Spec | |
| Lens size | 19mm |
| Coating Film | DLC |
| Horizontal FOV | 22.9 |
| Vertical FOV | 18.4 |
| Diagonal FOV | 29 |

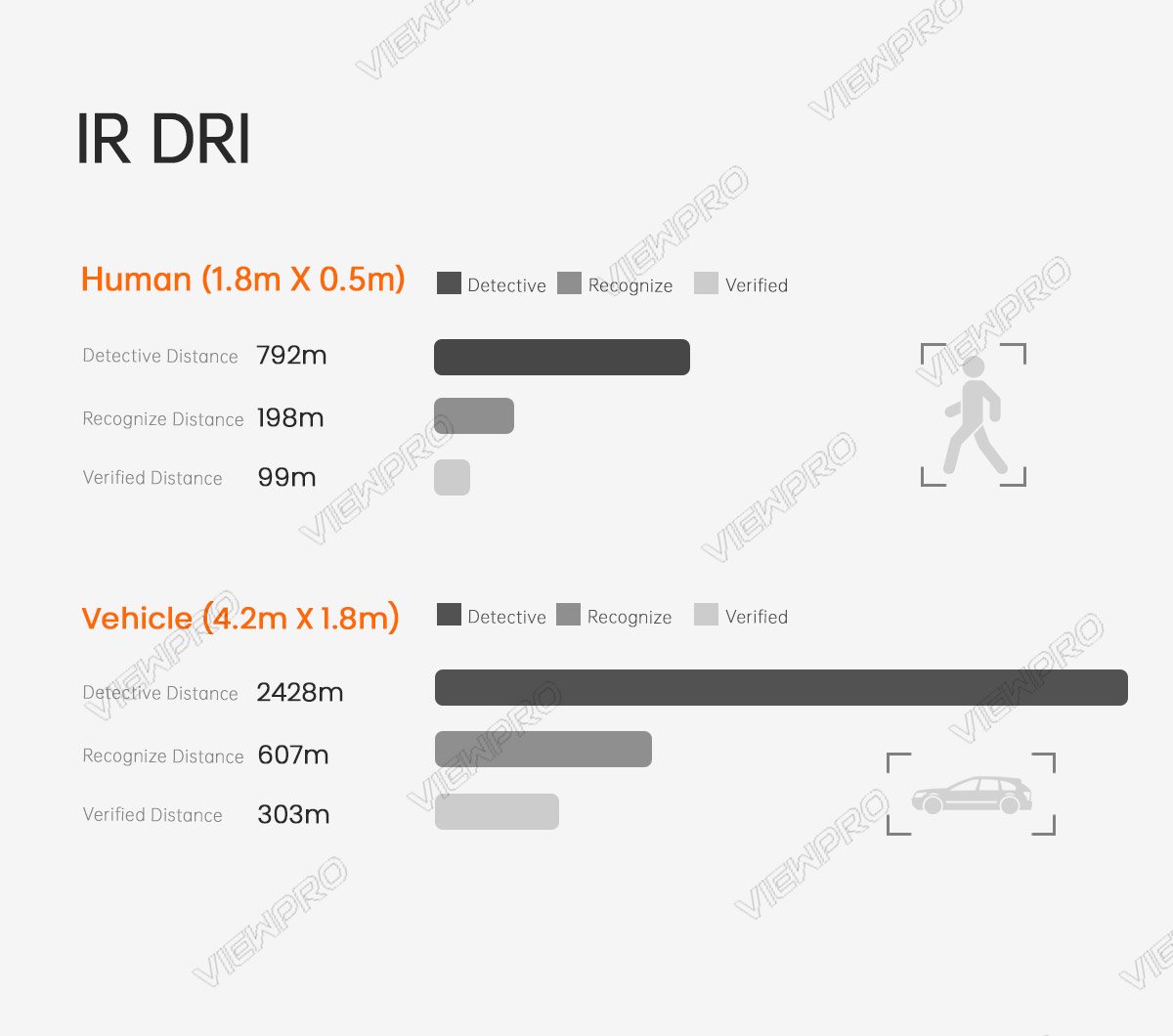

| Detective Distance (Man: 1.8 0.5m) | 792 meters |
| Recognize Distance (Man: 1.8 0.5m) | 198 meters |
| Verified Distance (Man: 1.8 0.5m) | 99 meters |
| Detective Distance (Car: 4.2 1.8m) | 2428 meters |
| Recognize Distance (Car: 4.2 1.8m) | 607 meters |
| Verified Distance (Car: 4.2 1.8m) | 303 meters |
| Working mode | Uncooled long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12 m |
| Focusing method | Athermal prime lens |
| NETD | 50mK (@25 ) |
| Color palette | White, iron red, pseudo color |
| Digital zoom | 1x 8x |
| Sync correct time | Yes |

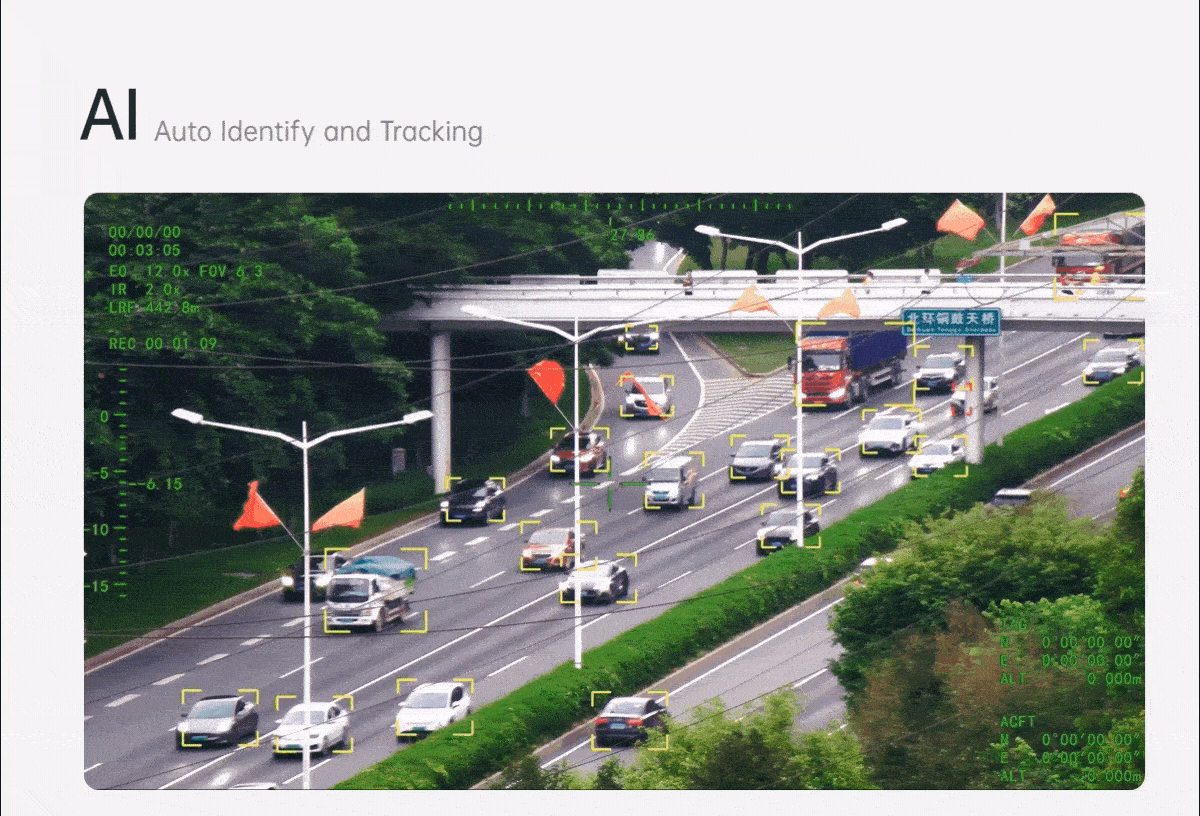

| EO/IR Camera Object Tracking& EO camera AI Recognition Performance | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | 32 pixel/frame |
| Object memory time | 100 frames (4s) |
| Targets type | Car and human |
| Simultaneous detection quantity | 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5 5 pixel |
| Car detection rate | 85% |
| False alarm rate | 10% |
| Packing Information | |
| N.W. | 1095g(Viewport Version) |

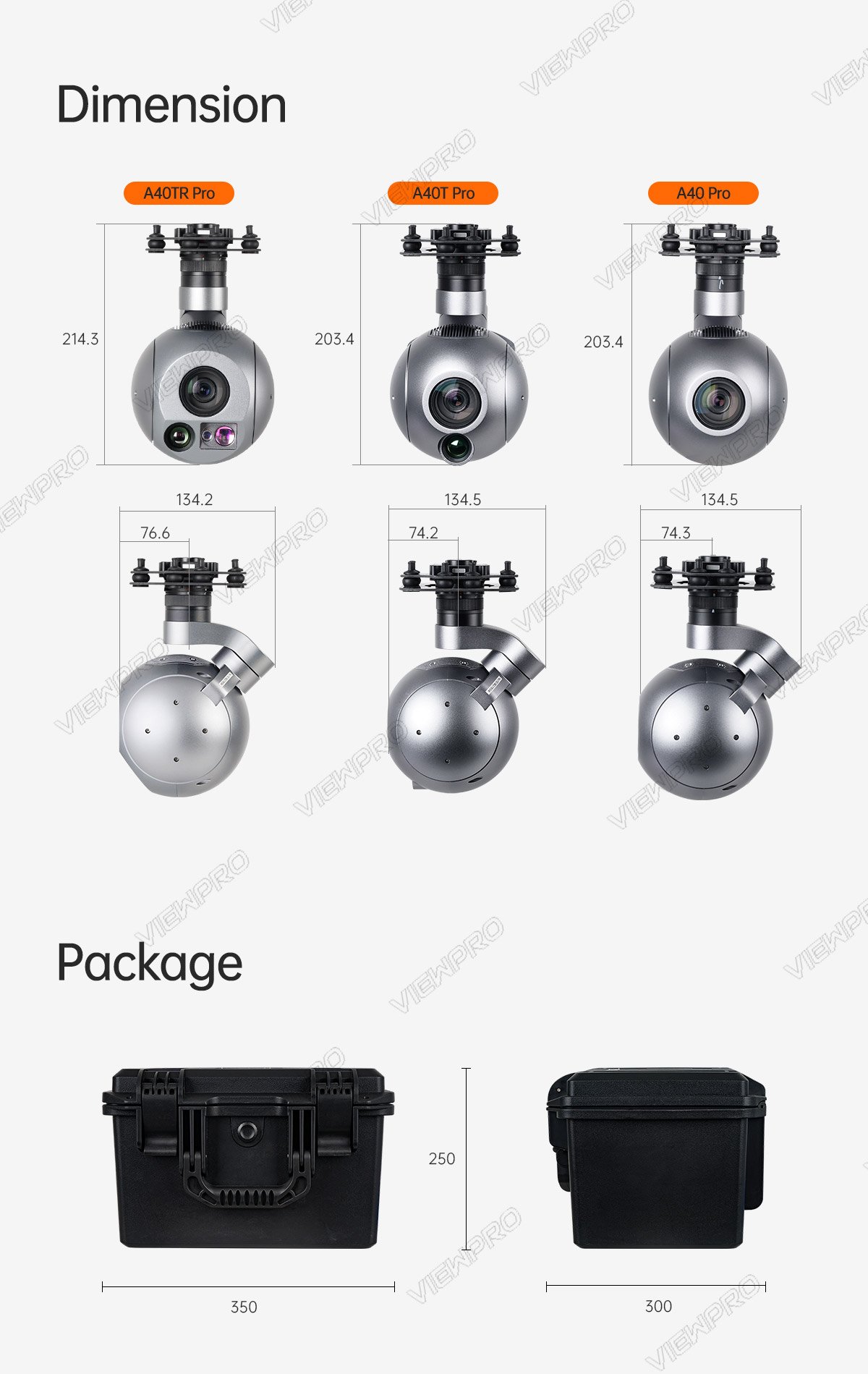

| Product meas. | 118*137.3*207.8mm Standard Version 118*137.3*213.5 Viewport Version |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards Hight quality plastic box with foam cushion |
| Package meas. | 360*300*250mm |
