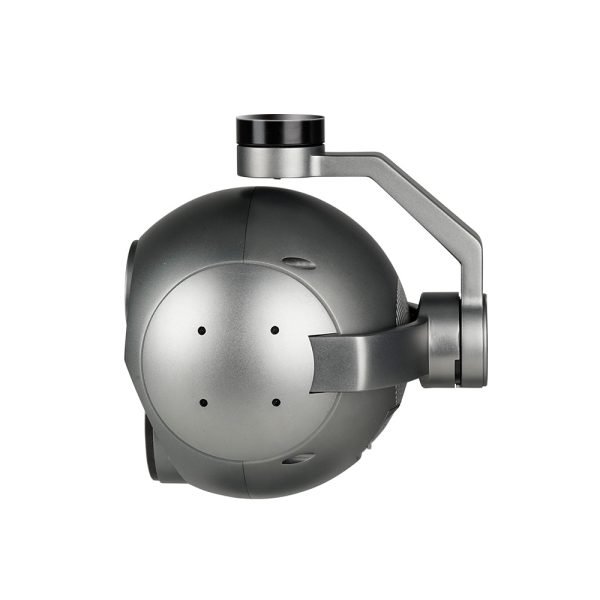

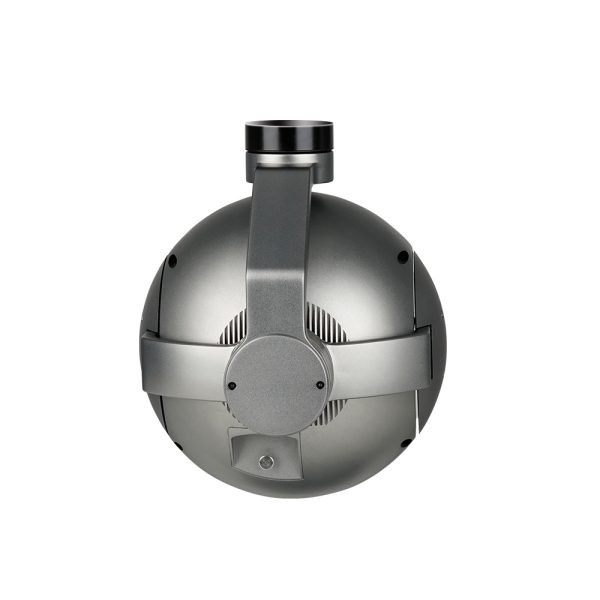

MA30TR-1575 Precision Vision Redefining Optical and Thermal Imaging Triple Sensors Al Object Tracking Gimbal Camera
China Moneypro

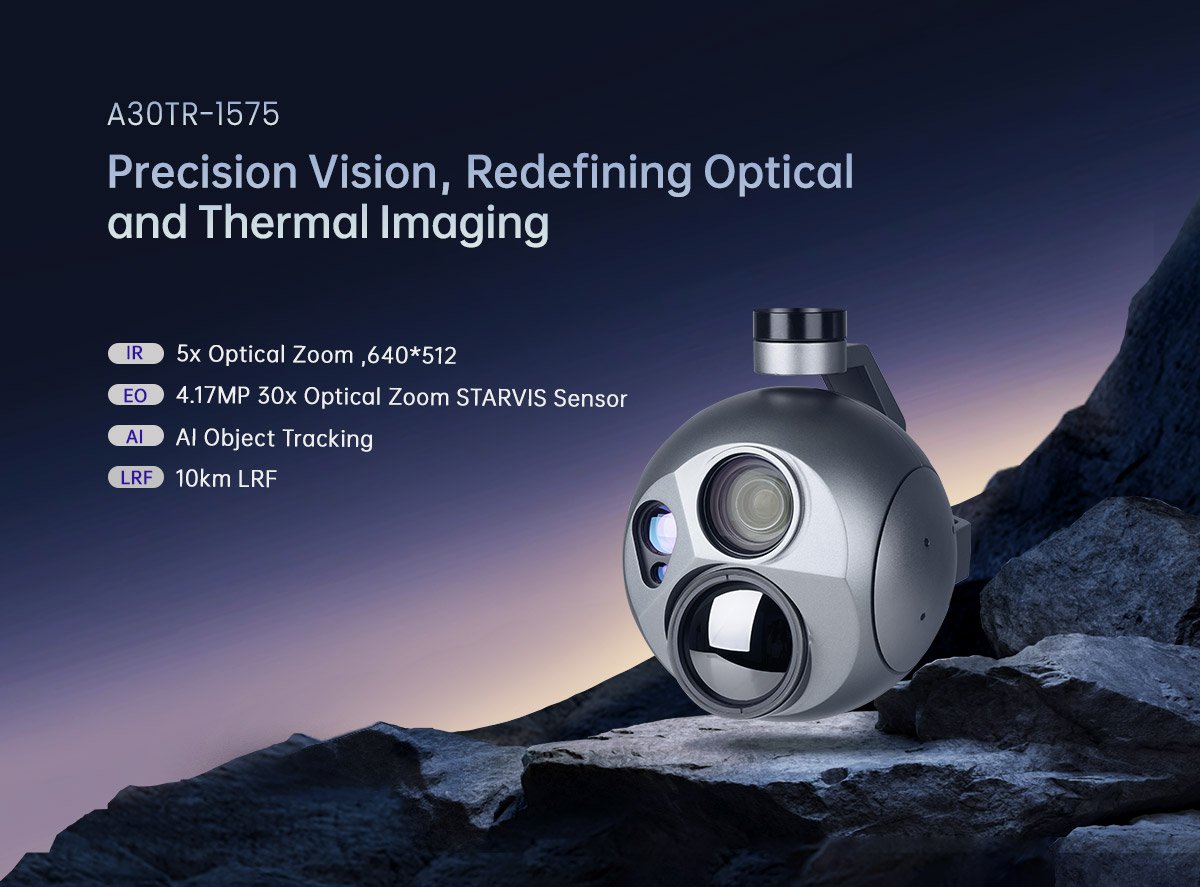

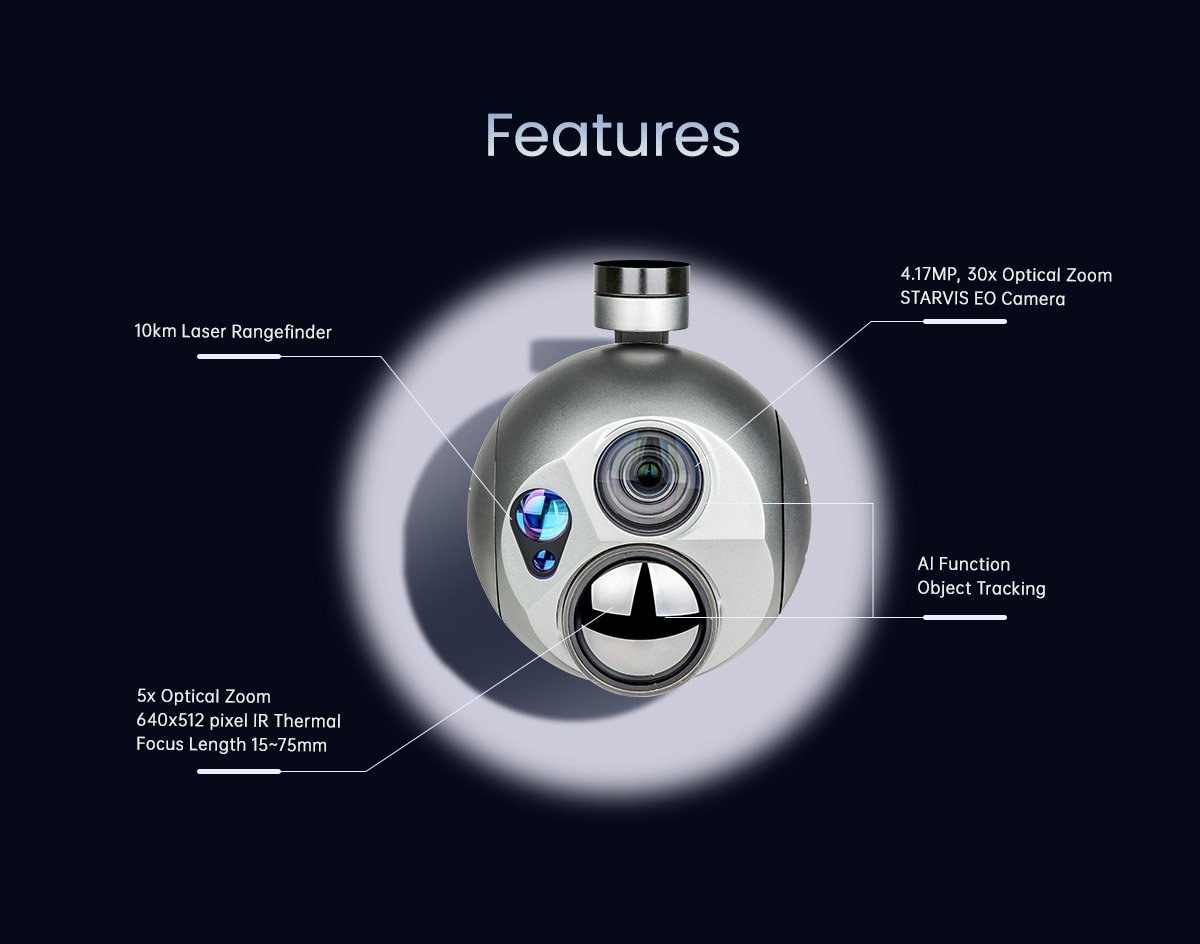

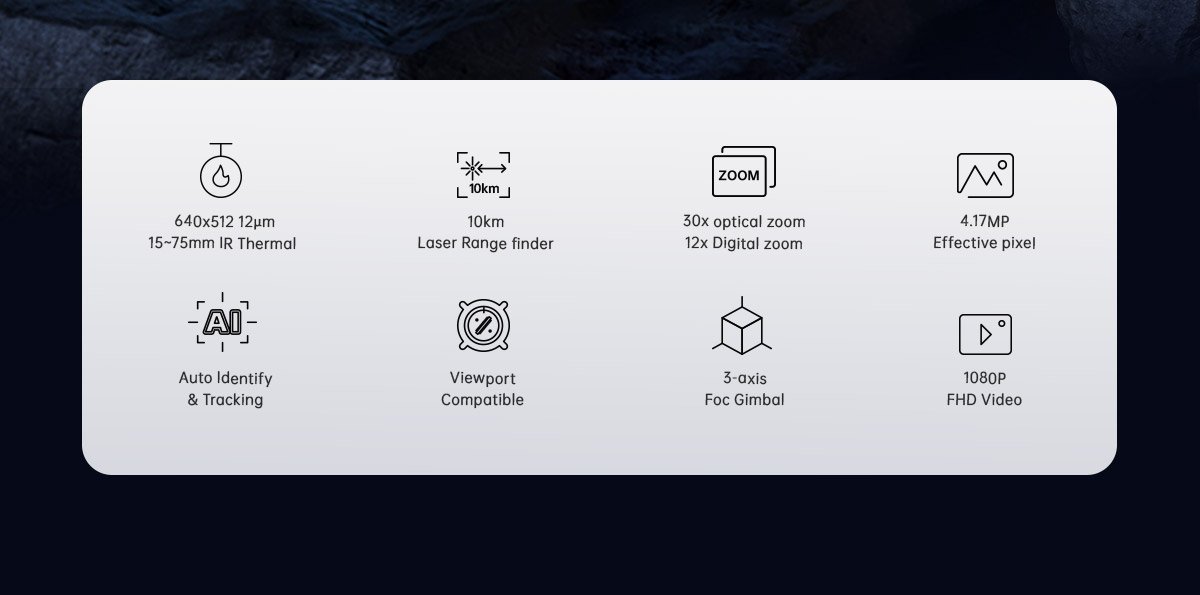

The MA30TR-1575 is an advanced gimbal camera system featuring triple sensors for precision optical and thermal imaging. It combines a 30x optical zoom EO camera with a 5x thermal imager and integrated laser rangefinder. The system delivers exceptional performance with 4.17MP resolution, 640×512 thermal detection, and AI-powered object tracking for vehicles and humans. With mechanical ranges up to 105 degrees pitch and 360-degree pan capability, it offers superior stabilization at 0.02-degree vibration. The thermal imager achieves detection ranges up to 9.5km for vehicles and 3.1km for personnel. Features include dual video streaming, multiple control protocols, TF card recording, and compatibility with ArduPilot and PX4 platforms. Operating from -20 to +50 degrees Celsius with average power consumption of 19.2W, this professional-grade system excels in surveillance, reconnaissance, and autonomous applications.

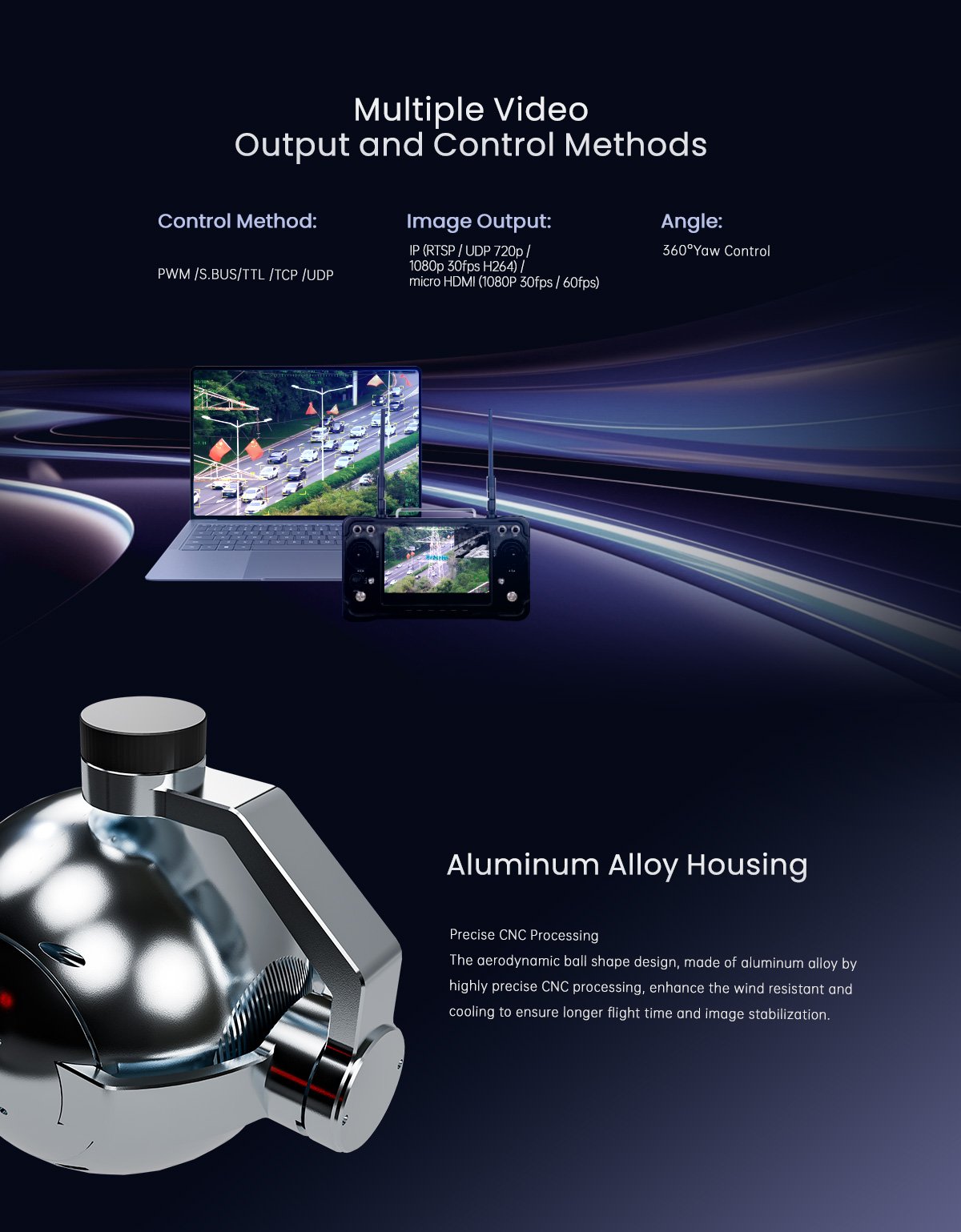

| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S (14.8V~25.2V) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 1200~1700mA @ 16V |
| Power consumption | Average 19.2W, Max 27.2W |
| Working environment temp. | -20 ~ +50 |
| Output | Micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps H264) |
| Local-storage | TF card (Up to 256G,class 10, FAT32) |
| Picture storage format in TF card | JPG(1920*1080) |
| Video storage format in TF card | MP4(1080P 30fps) |
| Control method | PWM / TTL / S.BUS / TCP / UDP |
| Gimbal Spec | |

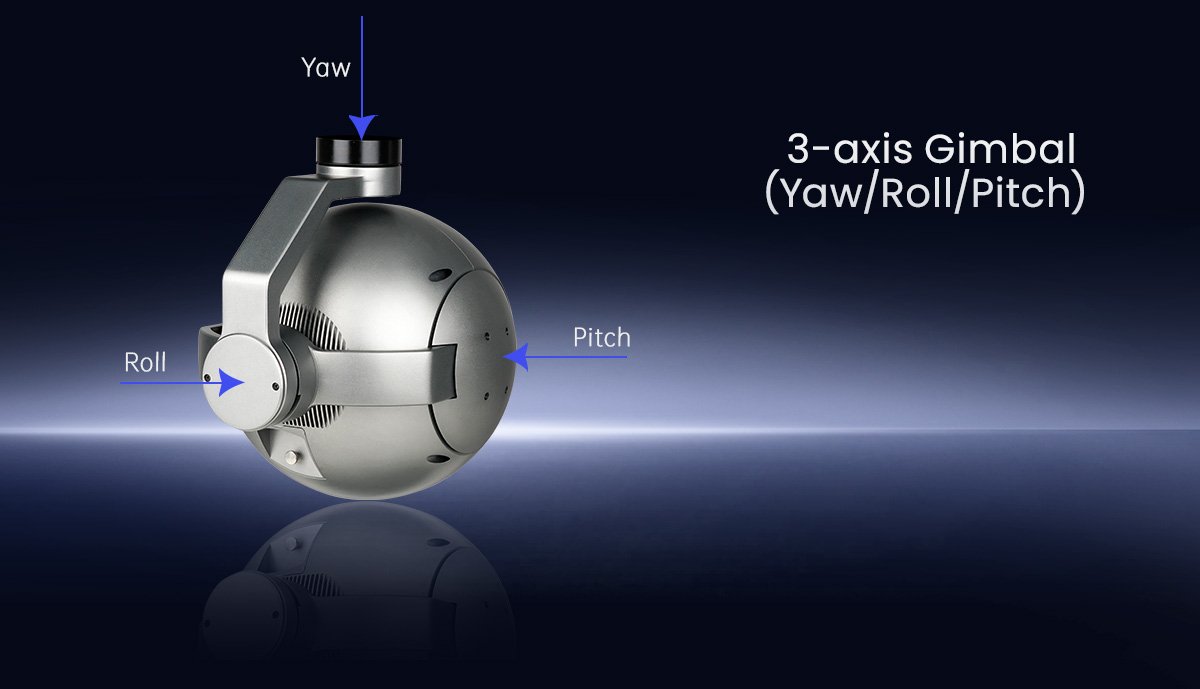

| Mechanical Range | Pitch/Tilt: -60 (Up) 105 (Down), Roll: 60 , Yaw/Pan: 300 / 360 *N (IP output version) |
| Controllable Range | Pitch/Tilt: -45 100 , Yaw/Pan: 290 / 360 *N (IP output version) |
| Vibration angle | Pitch/Roll/Yaw: 0.02 |
| One-key to center | |
| EO Camera Spec | |
| Imager Sensor | 1/1.8 Type STARVIS CMOS Sensor |
| Picture quality | 4.17MP |
| Lens optical zoom | 30x, f=6.5~162.5mm, F1.6 to F4.8 |
| Digital zoom | 12x (max. 432x with StableZoom) |
| Min object distance | 100 mm (Wide end), 1200 mm (Tele end) |
| Horizontal viewing angle | 58.1 (wide end) ~ 2.3 (tele end) |
| Image S/N | 50 dB (Weight On) |
| Min illumination | In the case of ICR-Off (Typical value) 0.009 lx (1/30 sec, 50%, High Sensitivity mode On) 0.09 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.0012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode On) 0.012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode Off) In the case of ICR-On 0.00008 lx (1/30 sec, 50%, High Sensitivity mode On) 0.00063 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.000005 lx (1/4 sec, 1/3 sec, 30%, High Sensitivity mode On) |
| High Sensitivity mode On/Off | Off |
| Recommended illumination | 100 lx to 100,000 lx |
| Gain | Auto/Manual (0 to 50.0 dB (0 to 28 step)) Max. Gain Limit (10.7 to 50.0 dB (6 to 28 step)) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Wide Dynamic Range Mode | On/Off |
| Shutter speed | 1/1 sec to 1/10000 sec (22 steps) |
| Backlight compensation On/Off | Off |
| Image Stabilizer On/Off/Hold | Off |
| ICR On/Off | Off |
| Noise Reduction | On/Off |
| Defog | On/Off (low, mid, high) |

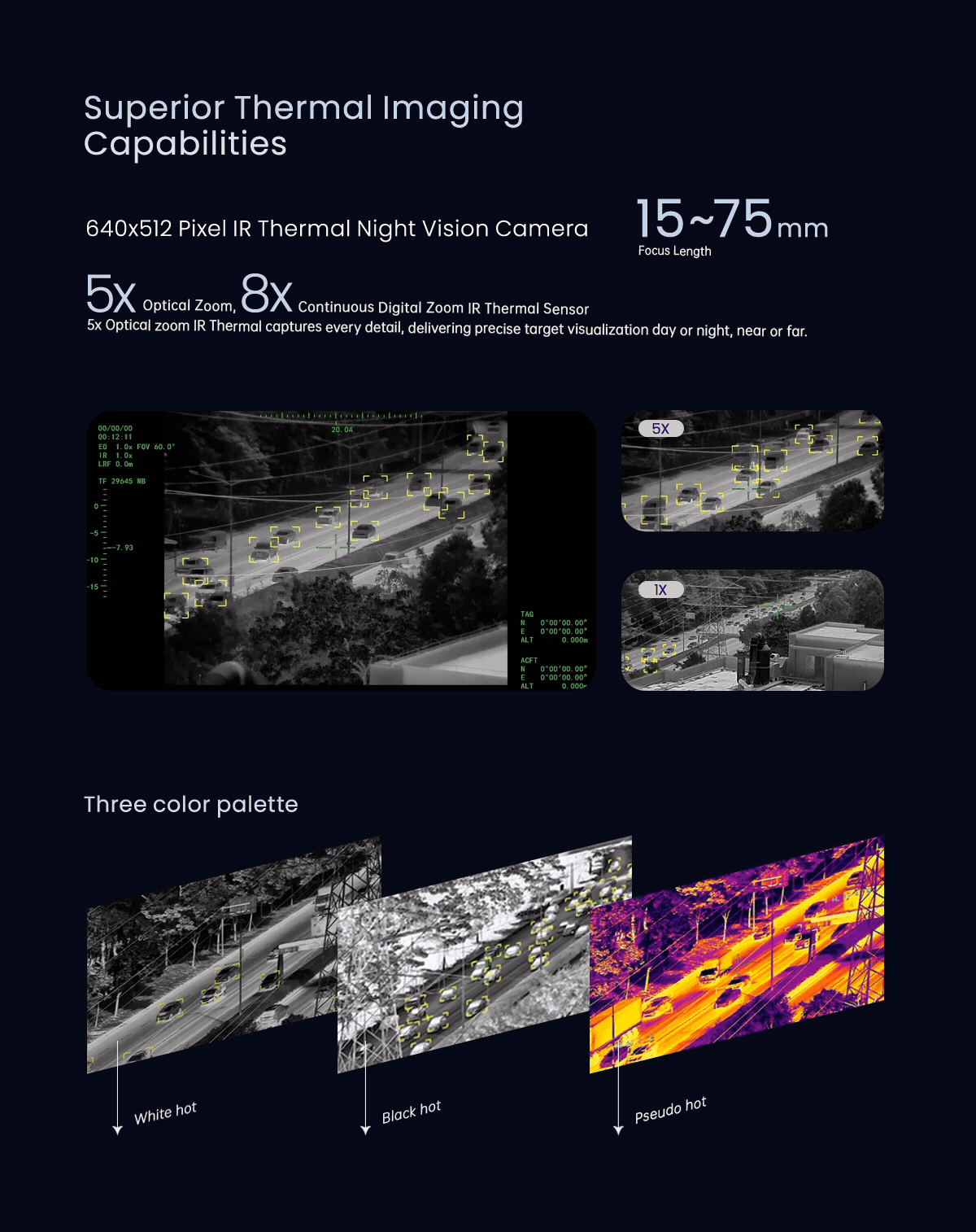

| IR Thermal Imager Spec | |
| Focus Length | 15~75mm |
| optical zoom | 1x ~ 5x |
| Horizontal FOV | 28.7 ~5.86 |
| Vertical FOV | 23.1 ~4.69 |

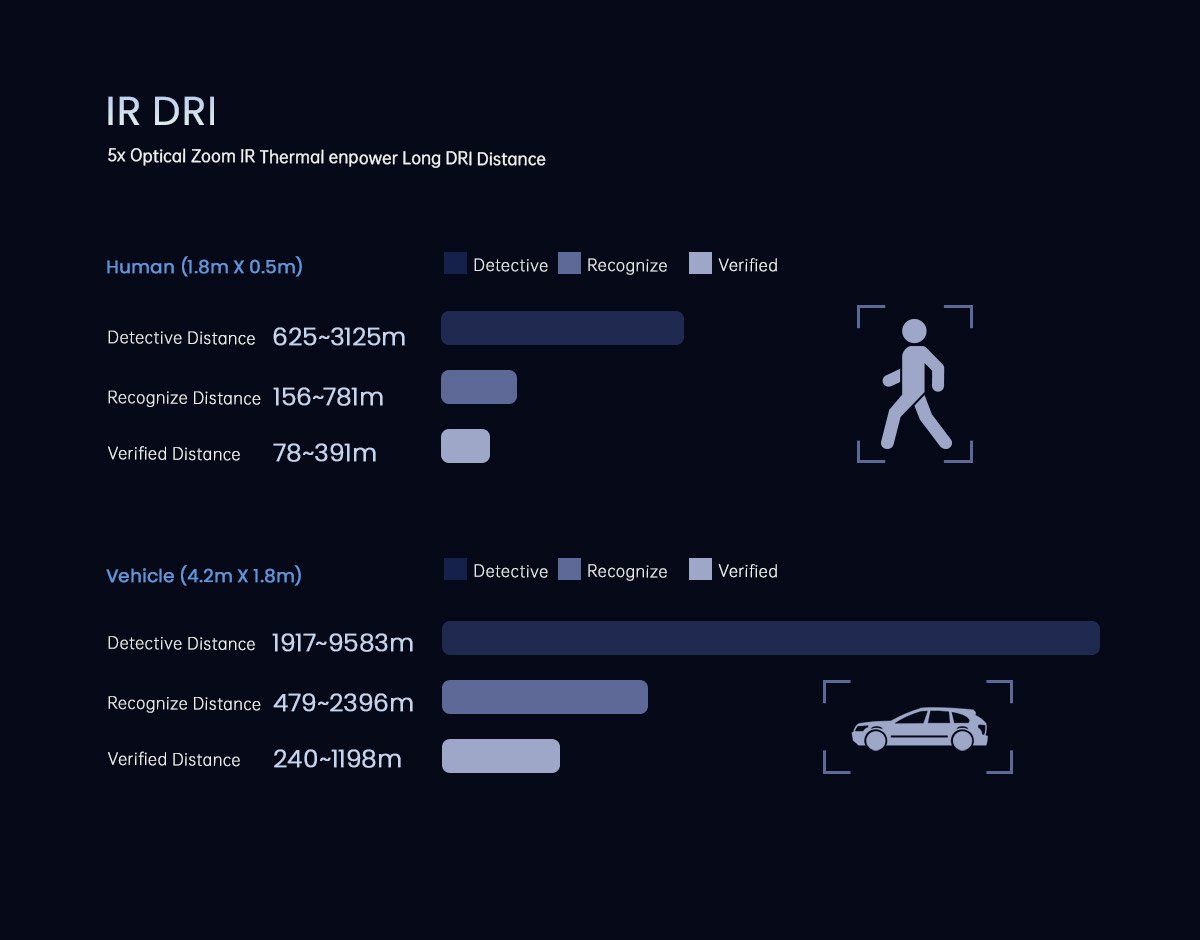

| 15~75mm Detective Distance (Man: 1.8 0.5m) | 625~3125 meters |
| 15~75mm Recognize Distance (Man: 1.8 0.5m) | 156~781 meters |
| 15~75mm Verified Distance (Man: 1.8 0.5m) | 78~391 meters |
| 15~75mm Detective Distance (Car: 4.2 1.8m) | 1917~9583 meters |
| 15~75mm Recognize Distance (Car: 4.2 1.8m) | 479~2396 meters |
| 15~75mm Verified Distance (Car: 4.2 1.8m) | 240~1198 meters |
| Working mode | Uncooled VOx long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*512 |
| Pixel pitch | 12 m |
| Focusing method | Athermal prime lens |
| NETD | 40mK@25 ,F #1.0 |
| Color palette | white hot, black hot, Iron Red |
| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames |
| EO Camera AI Performance | |

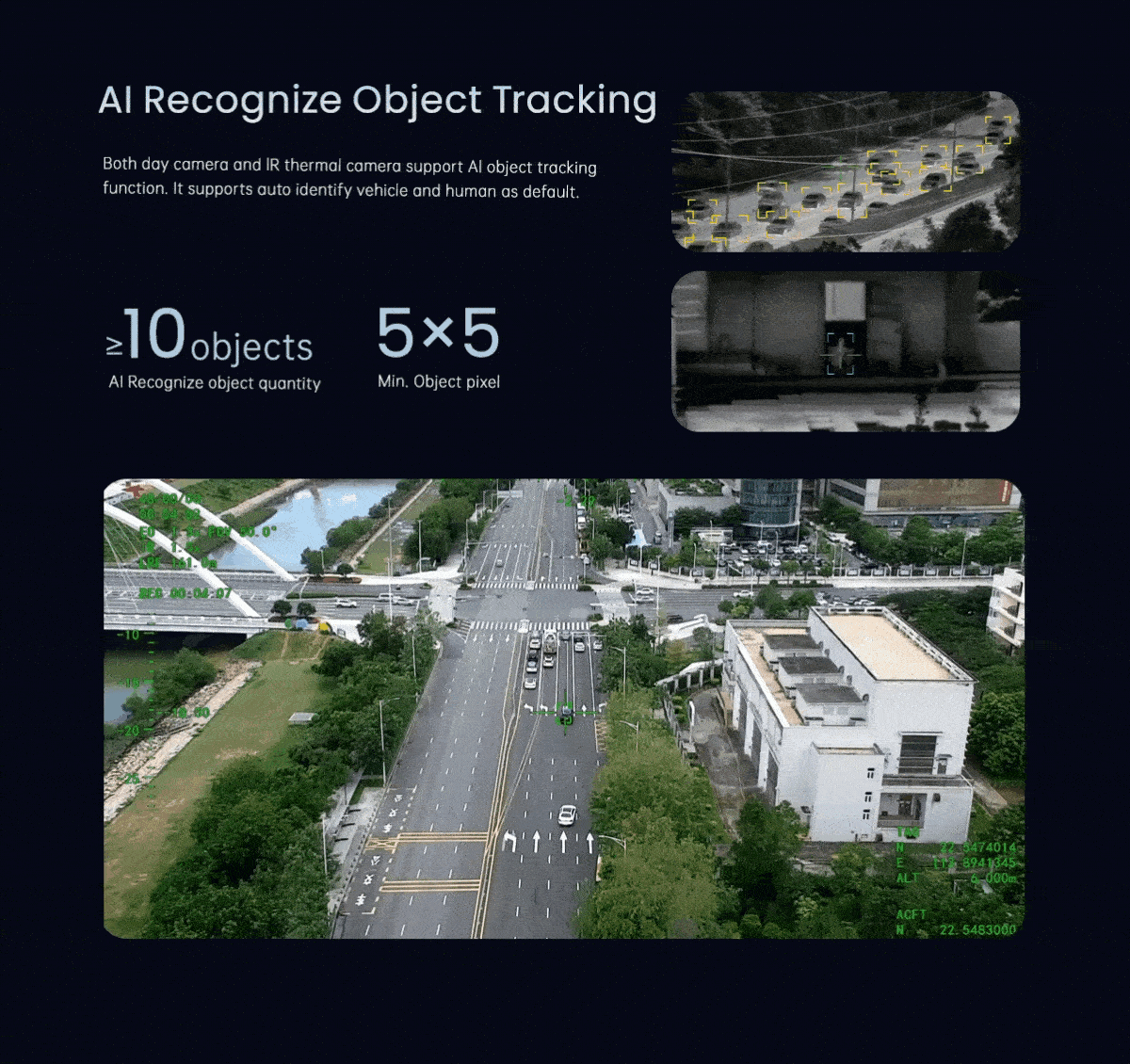

| Targets type | Car and human |
| Simultaneous detection quantity | 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5 5 pixel |
| Car detection rate | 85% |
| False alarm rate | 10% |
| IR Laser Rangefinder | |

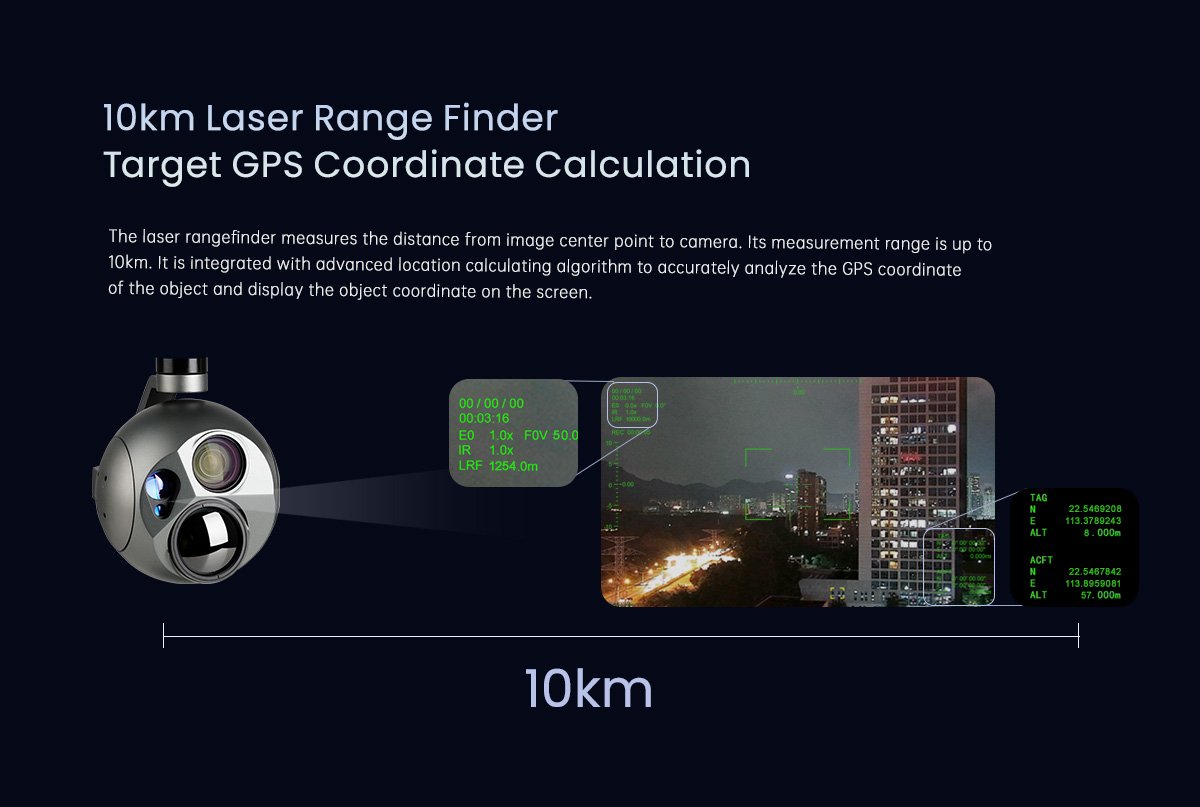

| Range | 10km for big target (eg. building) 6km for car (2.3m 2.3m) 2.5km for people (1.75m 0.75m)(Based on typical value: LOS visibiligy: 10km Diffuse reflection rate: 0.3 Humility: 80%) |
| Accuracy | 2m (RMS) |
| Light Beam | 1535 5nm pulse laser |
| Divergent Angle | 0.5mrad |
| Laser pulse frequency | 1~10Hz |
| Min measuring range | 30m |
| Location Resolving | Latitude and longitude of target |
| Rangefinder | Measure the distance between the object at the center of screen and the laser rangefinder |
| Features | |
| OSD | Display the gimbal s yaw and pitch angle, magnification, ranging value, card recording duration, aircraft GPS and altitude, target ranging point GPS and altitude, date and time |
| Geotagging | Display time and GPS coordinate in picture exif |
| Card reading online | HTTP read pictures or videos |
| KLV (UDP) | Card recording or Viewlink video playback |

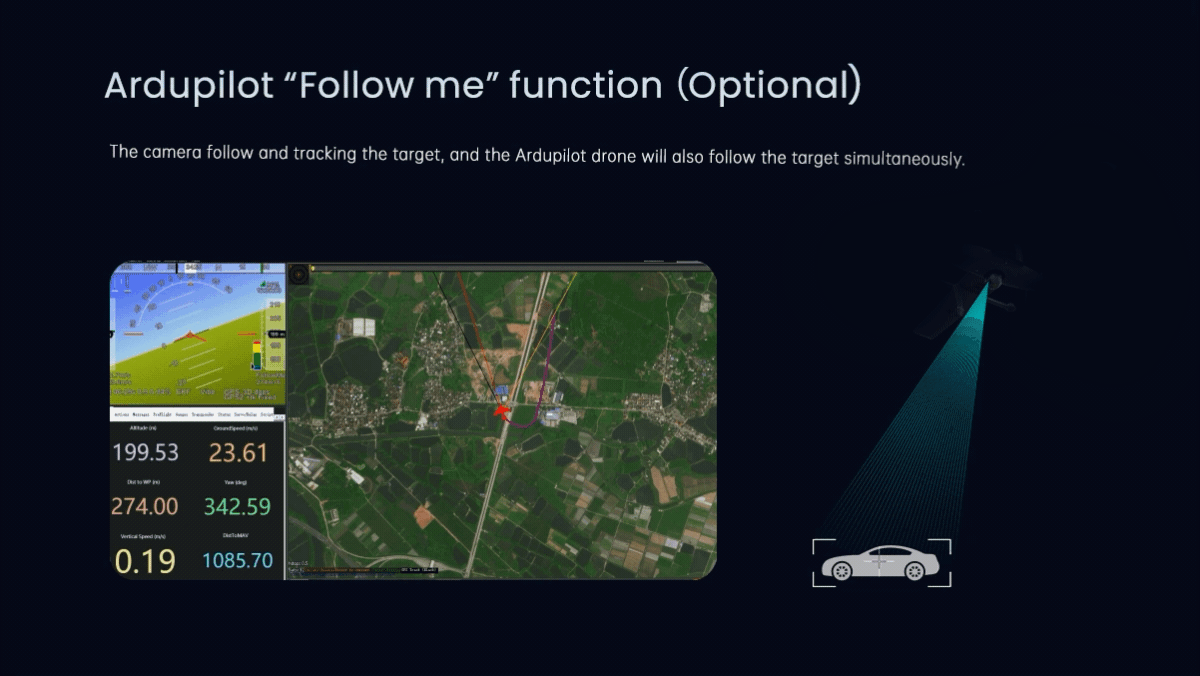

| ArduPilot / PX4 | Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature |
| Video switching | EO+IR /IR+EO /EO /IR |
| Dual video stream output (optional) | Support(EO and IR two stream output, notes: unable to record once the dulal video stream output activated) |
| Packing Information | |
| N.W. | 2582 50g(Viewport version with Viewport) |

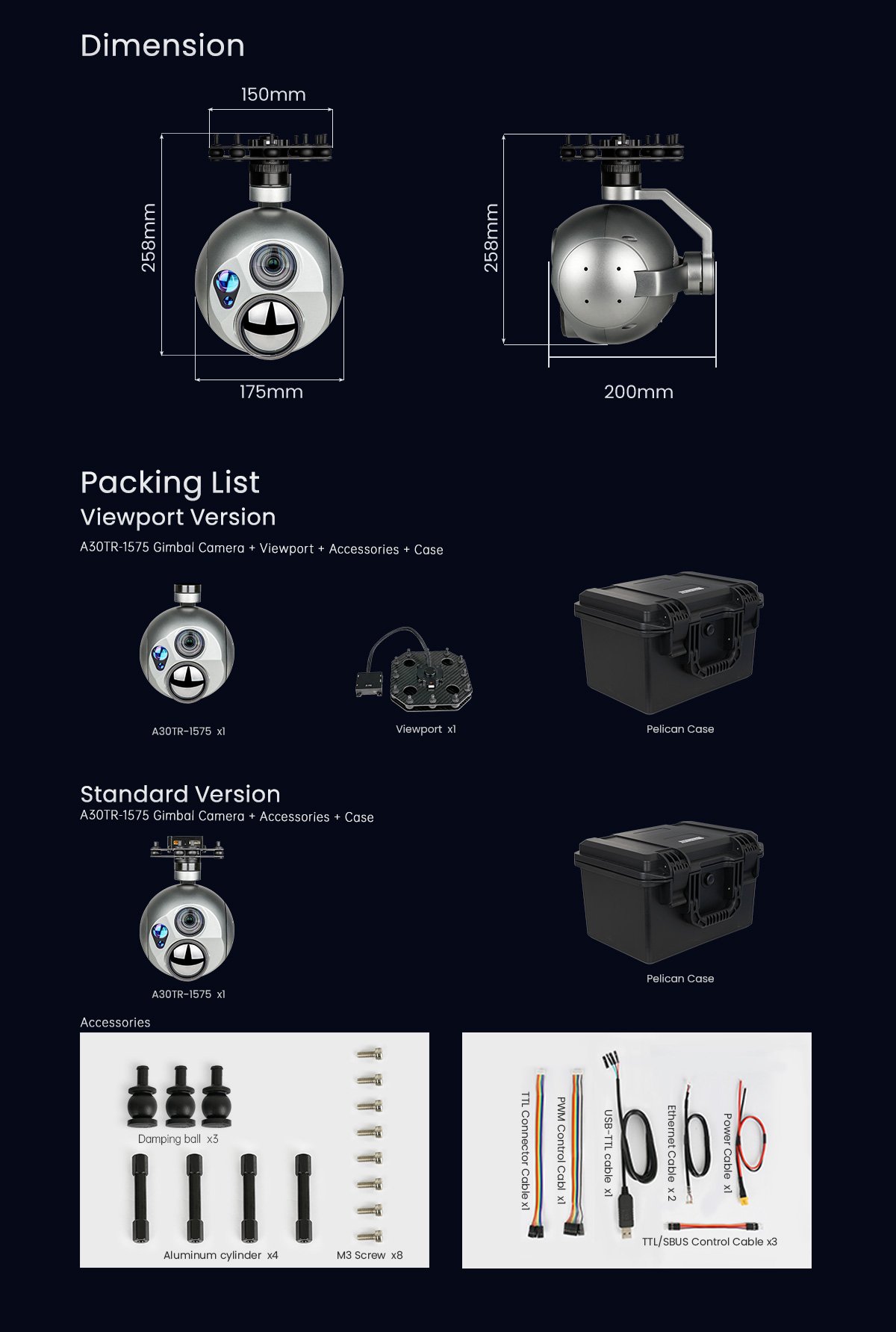

| Product meas. | 200*175*258mm(Viewport version with Viewport) |
| Accessories | 1pc gimbal camera device, screws, aluminum cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
