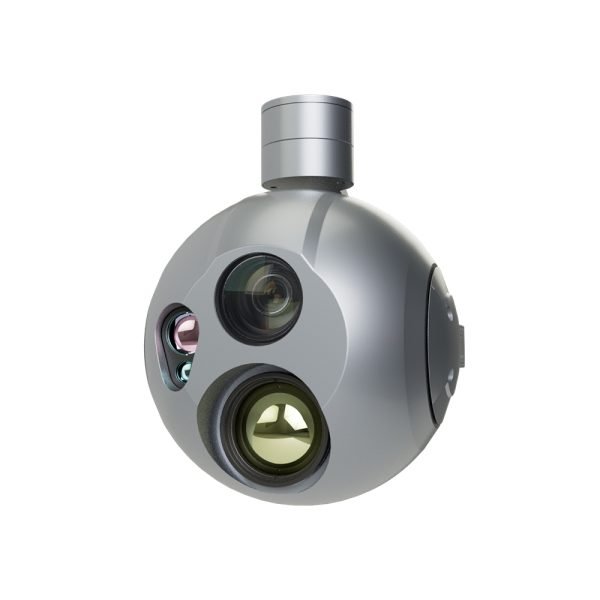

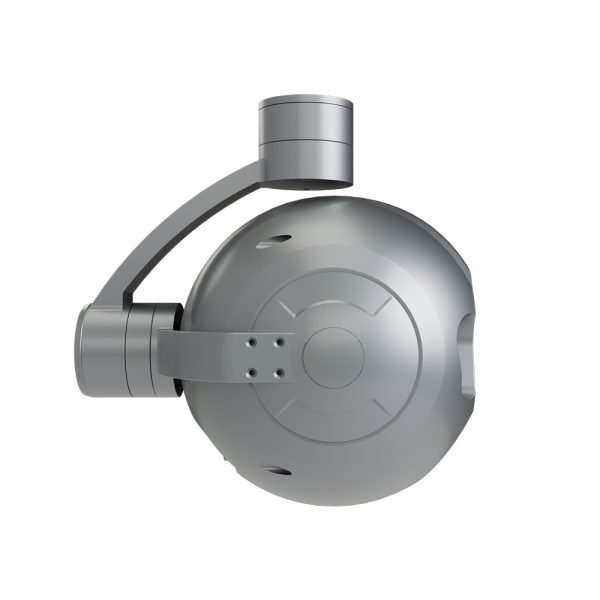

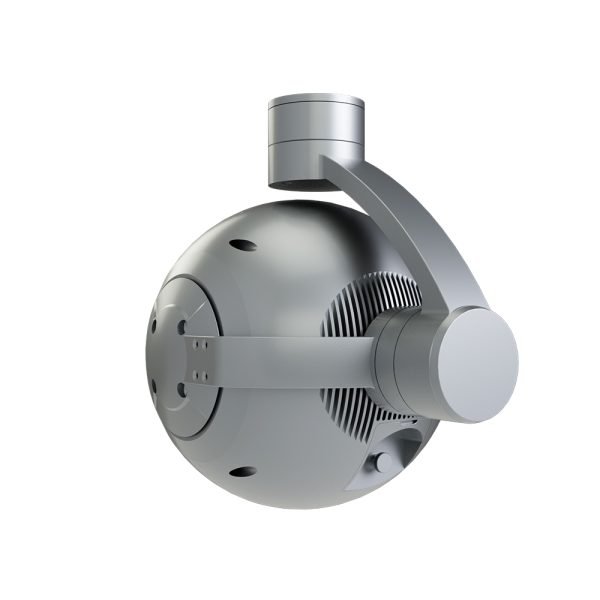

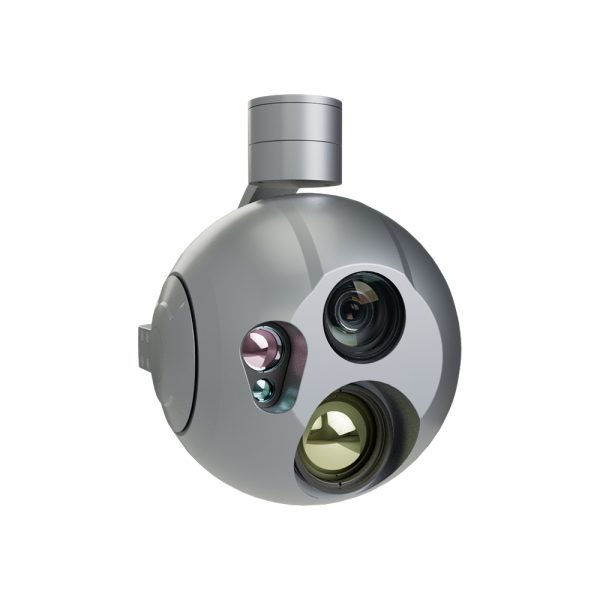

MA20KTR 4K 20X Optical Zoom Triple Sensors Al Object Tracking Target GPS Coordinate Resolving and 3000m LRF Gimbal Camera
China Moneypro

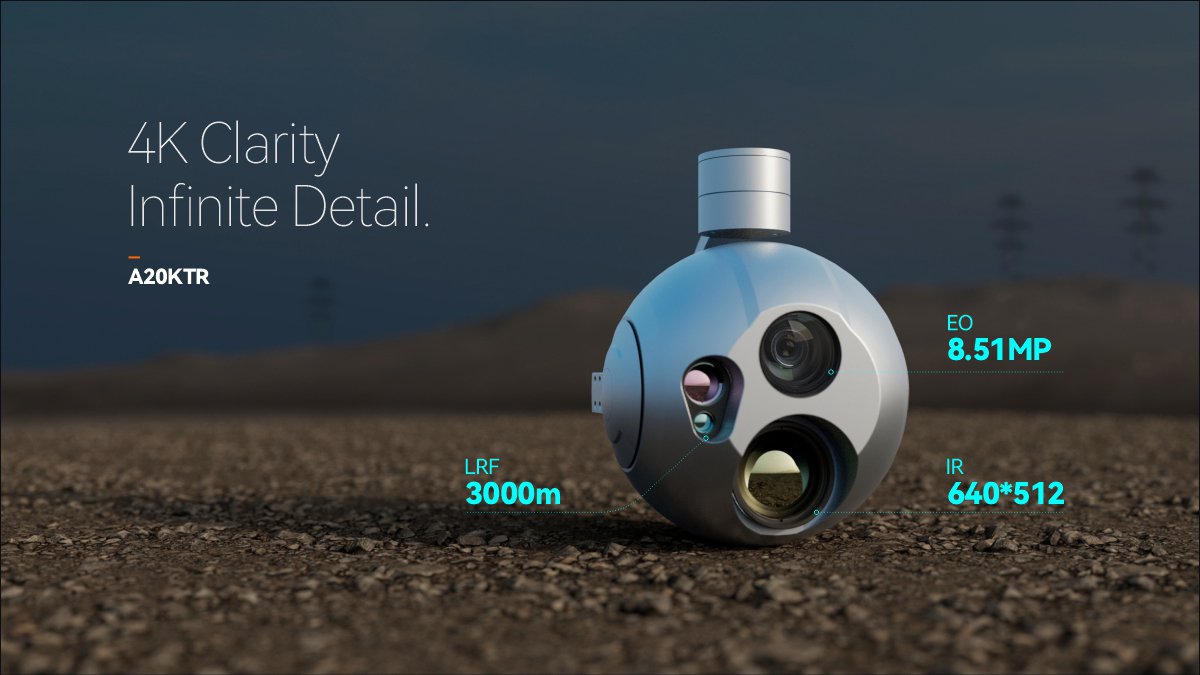

The MA20KTR is a professional-grade gimbal camera system featuring 4K resolution with 20X optical zoom and triple sensor integration. It combines an 8.51MP EO camera with advanced thermal imaging and AI-powered object tracking capabilities. The system includes a 3000m laser rangefinder for precise distance measurement and GPS coordinate resolving for accurate target location. With uncooled thermal imaging detecting objects up to 4472 meters away and AI detection supporting up to 10 simultaneous targets, this gimbal delivers exceptional surveillance performance. The stabilized platform offers precise pitch, tilt, and yaw control with 0.02-degree vibration accuracy. Multiple output options including 4K HDMI and IP streaming, combined with SD card storage up to 256GB, provide flexible deployment options. Compatible with ArduPilot and PX4 autopilot systems, the MA20KTR is ideal for professional reconnaissance, search and rescue, and tactical operations requiring long-range target acquisition and tracking.
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S (14.8V~25.2V) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 950~1500mA @ 16V |
| Power consumption | Average 15.2W, Max 24W |
| Working environment temp. | -20 ~ +50 |
| Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 4K/1080P/720P 30fps H264/H265) |
| Local-storage | SD card (Up to 256G,class 10, FAT32) |
| Picture storage format in TF card | JPG(4K:3840*2160) |
| Video storage format in TF card | MP4(4K 30fps) |
| Control method | PWM / TTL / S.BUS / TCP / UDP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -125 115 , Roll: 70 , Yaw/Pan: 300 / 360 *N (IP output version) |
| Controllable Range | Pitch/Tilt: -45 110 , Yaw/Pan: 290 / 360 *N (IP output version) |
| Vibration angle | Pitch/Roll/Yaw: 0.02 |
| One-key to center | |
| EO Camera Spec | |
| Imager Sensor | SONY 1/2.5 Exmor R CMOS |
| Total pixel | 8.51MP |
| Optical zoom | 20x, F2.0 to F3.8,f = 4.4 mm (Wide), 88.4 mm (Tele), up to 30x with Super Resolution |
| Digital zoom | 12x (240x with optical zoom) |
| Min. working distance | 80 mm (Wide end), 800 mm (Tele end) |
| Angle of view | H: 70.2 (Wide end) ~ 4.1 (Tele end) V: 43.1 (Wide end) ~ 2.3 (Tele end) |
| Focus | Auto/Manual |
| S/N ratio | 50dB |
| Recommended illumination | 100 to 100000 lux |
| Min illumination | 1.6 lux (1/30 sec, 50%, ICR off, High Sensitivity mode Off ) 0.4 lux (1/30 sec, 50%, ICR Off, High Sensitivity mode On) 0.21 lux (50%, ICR off, Slow Shutter 1/4s, High sensitivity off) 0.06 lux (50%, ICR off, Slow shutter 1/4s, High sensitivity on) |
| Gain | Auto |
| White balance | Auto/Manual |
| Electronic shutter speed | 1/1 to 1/10000 sec |
| Back light compensation | On/Off |
| Noise reduction | On/Off |
| Image stabilization | On/Off |
| Defog | On/Off |
| IR Thermal Imager Spec | |
| Focus Length | 35mm |
| Coating Film | DLC |
| Horizontal FOV | 12.5 |
| Vertical FOV | 10.0 |
| Diagonal FOV | 16.0 |
| Detective Distance (Man: 1.8 0.5m) | 1458 meters |
| Recognize Distance (Man: 1.8 0.5m) | 365 meters |
| Verified Distance (Man: 1.8 0.5m) | 182 meters |
| Detective Distance (Car: 4.2 1.8m) | 4472 meters |
| Recognize Distance (Car: 4.2 1.8m) | 1118 meters |
| Verified Distance (Car: 4.2 1.8m) | 559 meters |
| Working mode | Uncooled VOx long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*512 |
| Pixel pitch | 12 m |
| Focusing method | Athermal prime lens |
| NETD | 50mK@F1.0 @25 |
| Color palette | white hot, black hot, pseudo color |
| Digital zoom | 1x ~ 8x |
| Radiometric function(optional) | Thermometry range optional -20 ~+150 , 0 ~+550 |
| Thermometry accuracy: 3 or +3%(take larger value)@23 3 , Thermometry range 5m | |
| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames |
| EO Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5 5 pixel |
| Car detection rate | 85% |
| False alarm rate | 10% |
| IR Laser Rangefinder | |
| Range | for car 3000m; for human 2000m |
| Minimum range | 15m |
| Frequency | 1~10Hz |
| Accuracy | 1m |
| Light Beam | 1535 5nm pulse laser |
| Divergent Angle | ~0.6 mrad |
| Location Resolving | Latitude and longitude of target |
| Rangefinder | Measure the distance between the object at the center of screen and the laser rangefinder |
| Features | |
| OSD | Display the gimbal s yaw and pitch angle, magnification, ranging value, card recording duration, aircraft GPS and altitude, target ranging point GPS and altitude, date and time |
| Geotagging | Display time and GPS coordinate in picture exif |
| Card reading online | HTTP read pictures or videos |
| KLV (UDP) | Card recording or Viewlink video playback |
| ArduPilot / PX4 | Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature |
| Video stitching | EO+IR /IR+EO /EO /IR |
| Dual video stream output (optional) | Support(EO and IR two stream output, notes: unable to record once the dulal video stream output activated) |
| Packing Information | |
| N.W. | 1145 10g(Viewport version with Viewport) |
| Product meas. | 161*130*205.7mm / 161*130*211.4mm(Viewport version with Viewport) |
| Accessories | 1pc gimbal camera device, screws, USB to TTL cable / Hight quality box with foam cushion |
| G.W. | 2872g |
| Package meas. | 350*300*250mm |
