MA10 pro 10x Single Sensor Light Weight AI Tracking Camera
China Moneypro

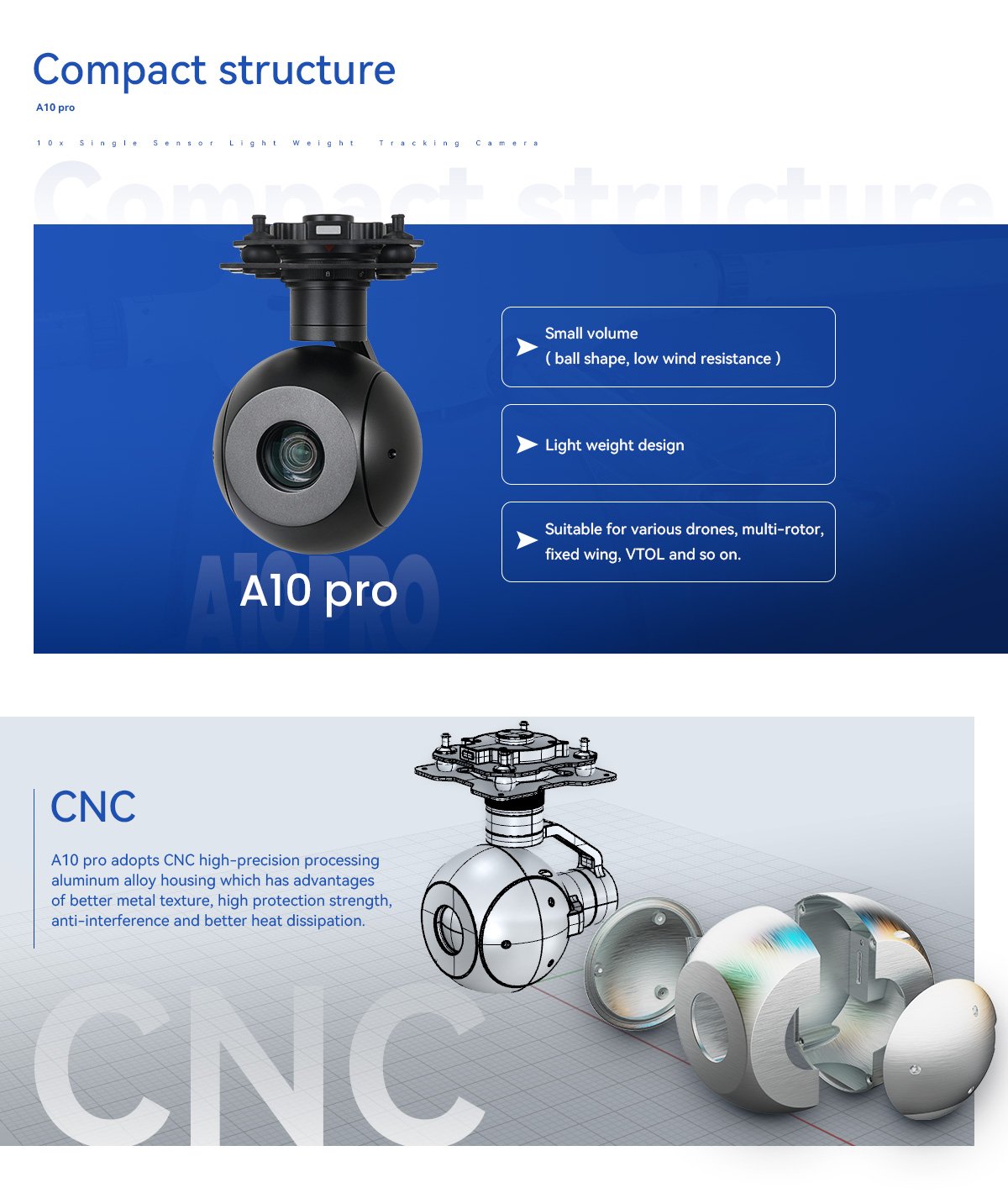

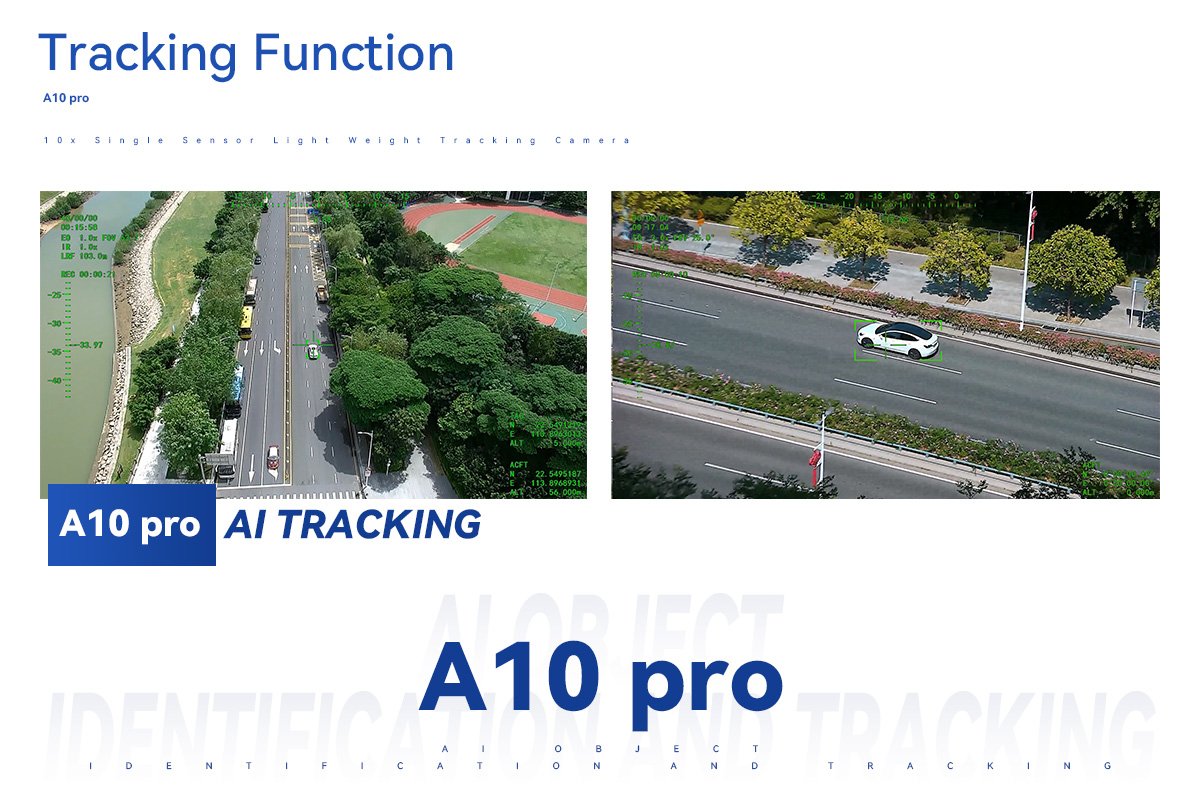

MA10 pro is a Single-sensor gimbal camera featuring lightweight design, small volume and compact structure, which integrates a 10x optical zoom camera and tracking function. It s with 3-axis high-precision aluminum alloy gimbal which has advantages of anti-interference and better heat dissipation. It is integrated with AI object identification and tracking module, which can realize car and human autonomous recognition and automatic tracking. It widely used in UAV industries of inspection, surveillance, search and rescue and other industrial applications.
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 520~1300mA @ 16V |
| Working environment temp. | -20 ~ +60 |

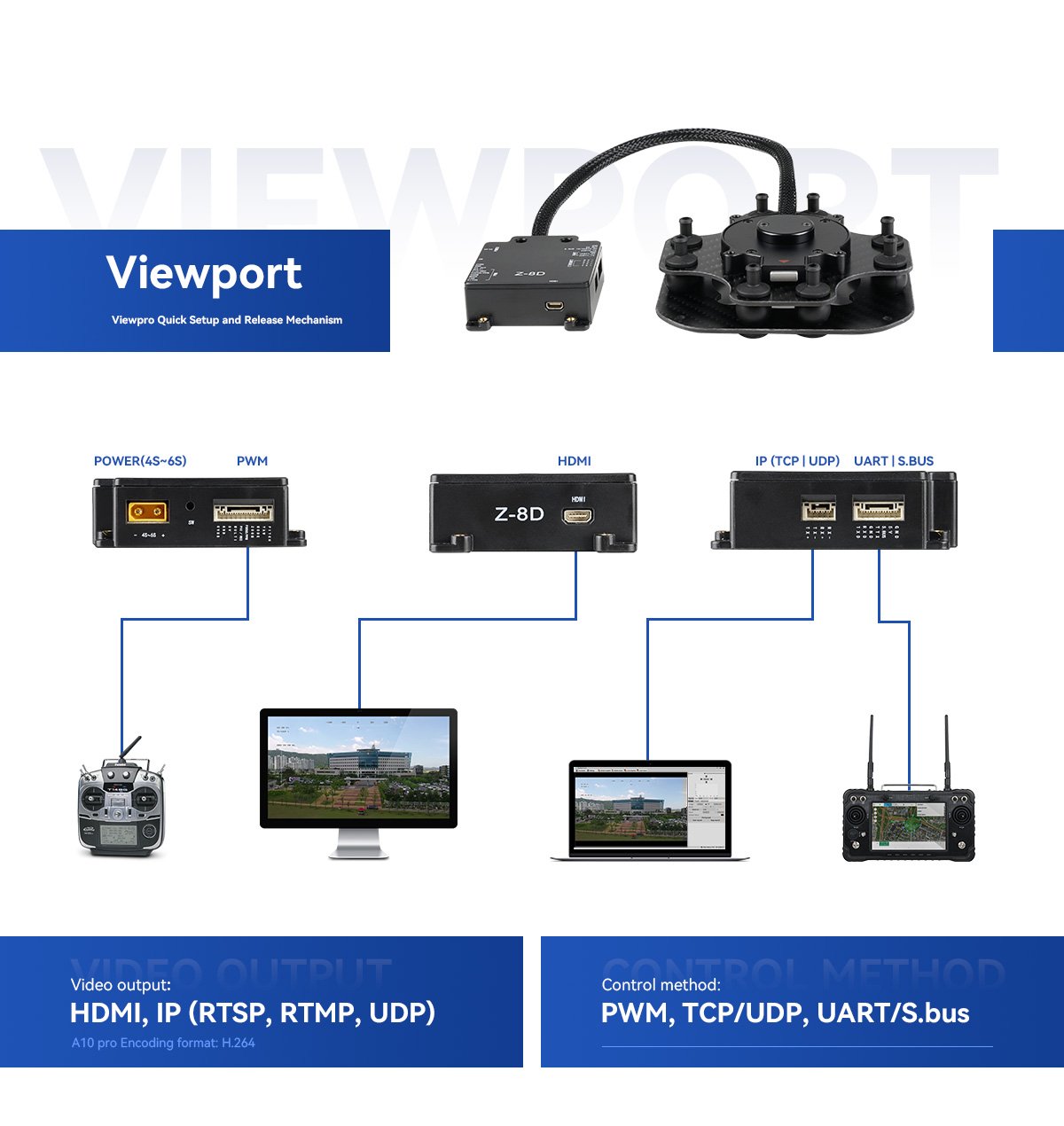

| Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |

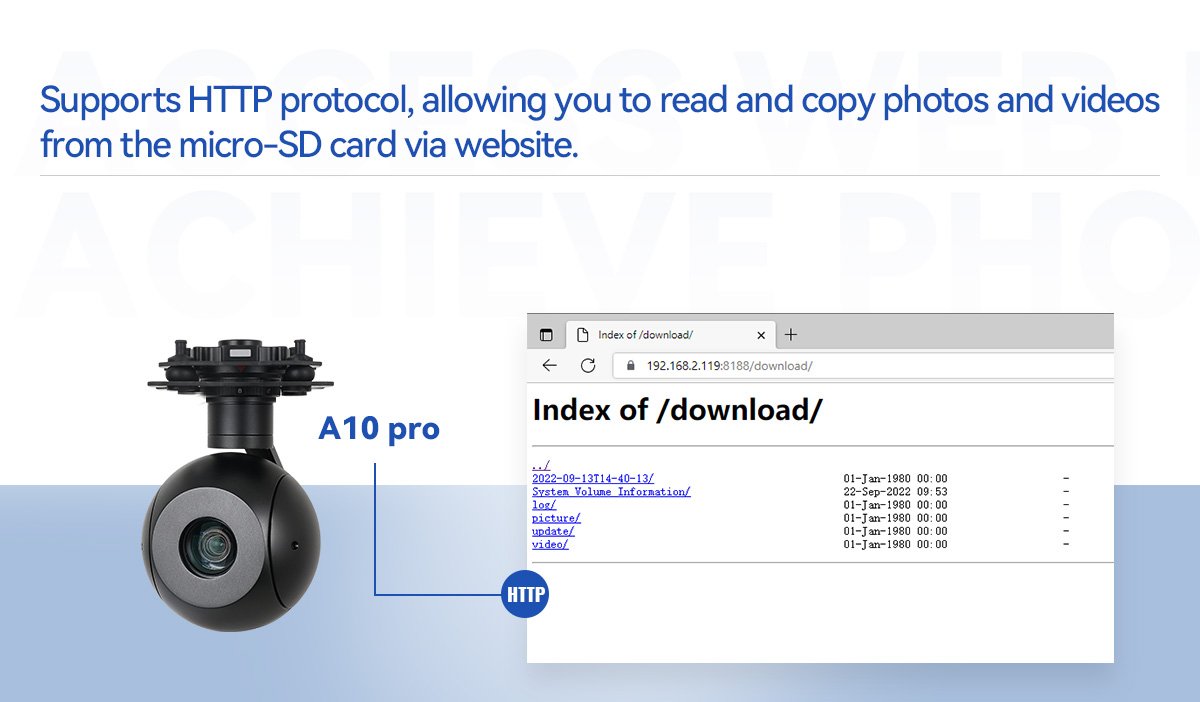

| Card reading online | HTTP read pictures |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Control method | PWM / TTL / S.BUS/ TCP(IP output version)/UDP(IP output version) |

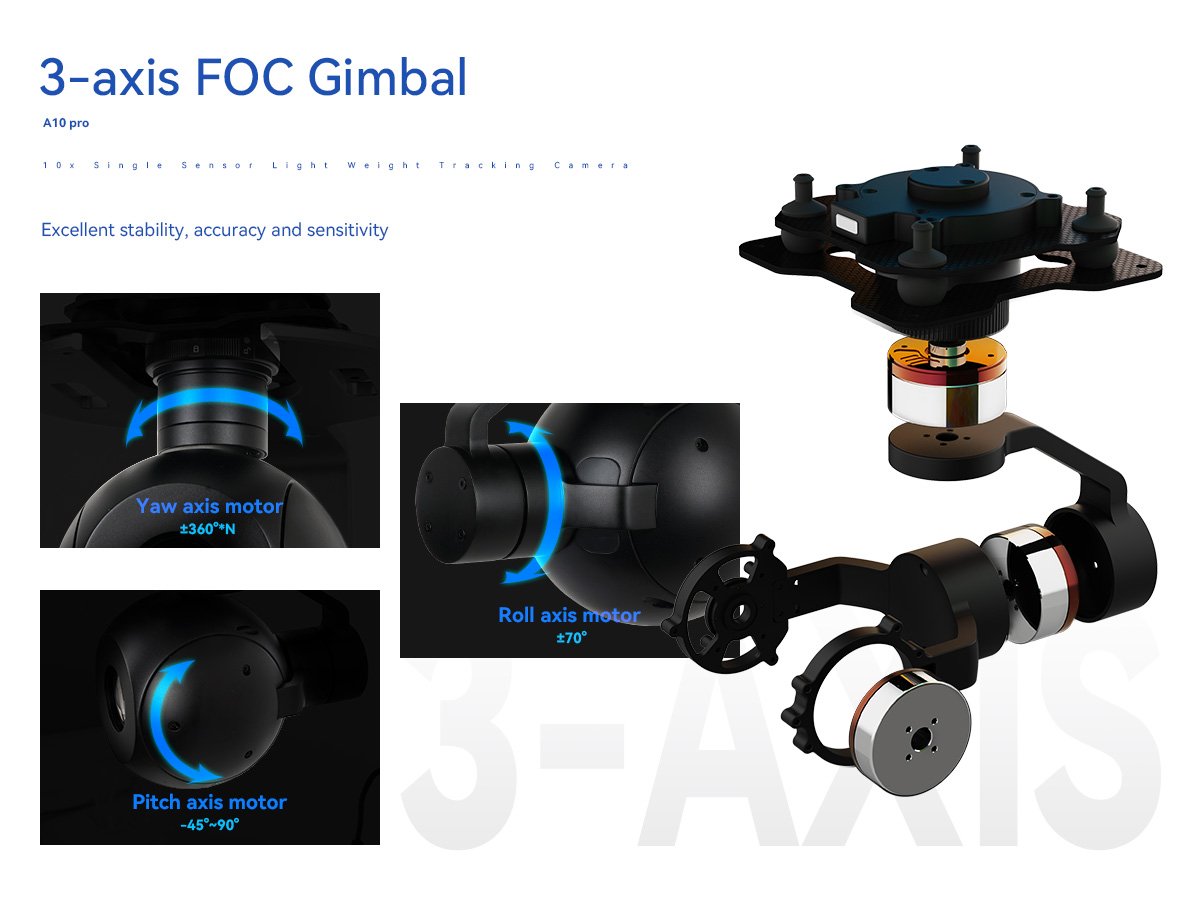

| Gimbal Spec | |
| Angle scope of structure design | Pitch/Tilt: 120 , Roll: 70 , Yaw/Pan: 300 / 360 *N (IP output version) |
| Angle scope of software design | Pitch/Tilt: -45 115 , Yaw/Pan: 290 / 360 *N (IP output version) |
| Vibration angle | Pitch/Roll/Yaw: 0.02 |
| One-key to center | |
| Camera Spec | |
| Imager Sensor | 1/2.8 SONY CMOS Sensor |
| Total pixel | 5.13MP |
| Picture quality | Full HD 1080 (1920*1080) |

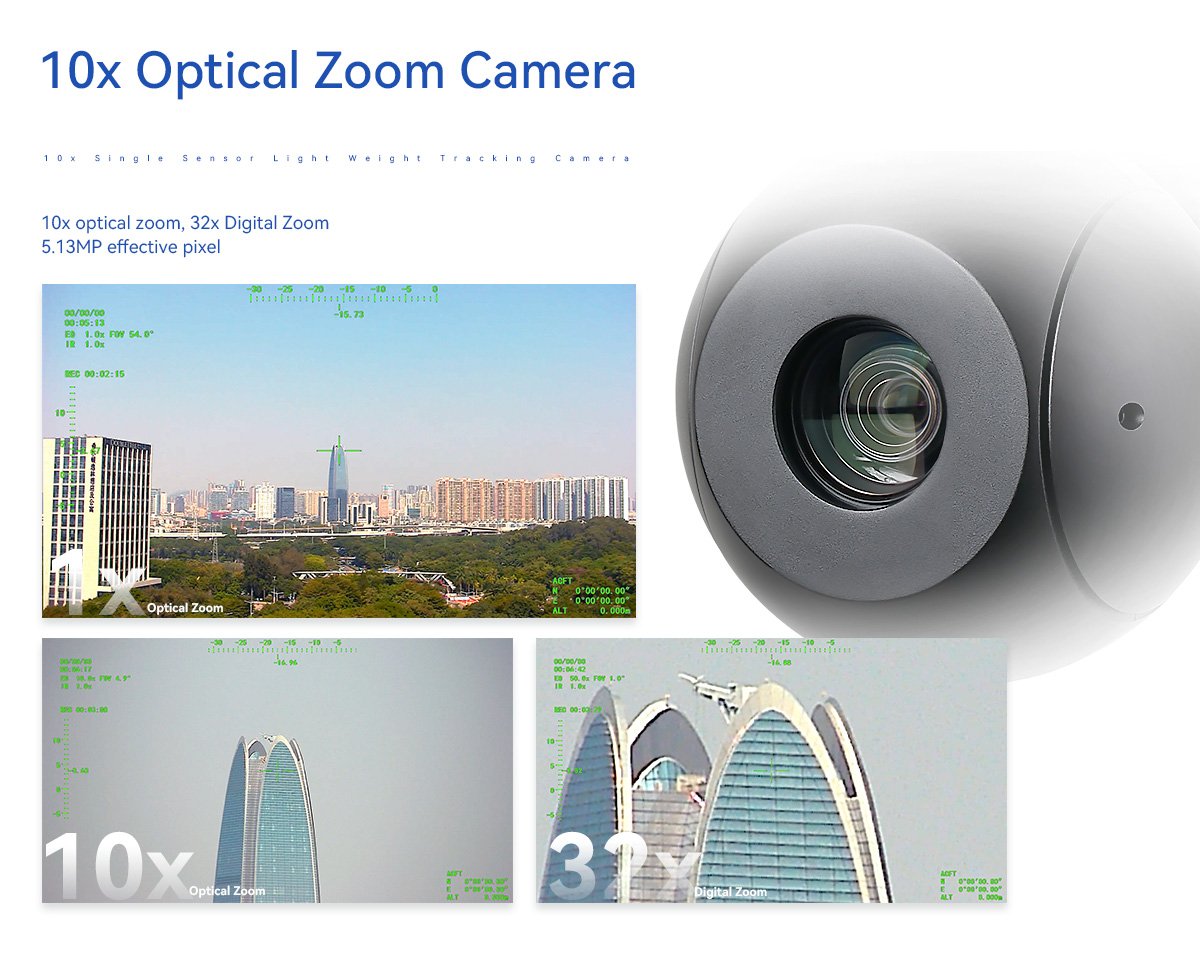

| Optical zoom | 10x, f = 4.7mm ~ 47mm, F1.7~F3.1 |
| Digital zoom | 32x |
| Angle of View (H) | 69.9 (Wide end) ~ 8.7 (Tele end) |
| Min target distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Min illumination | Color(1/30s, 72.0dB): 0.02 lux , BW(1/30s, 72.0dB): 0.005lux Color DSS(1/1s, 72.0dB): 0.002 lux , BW DSS(1/1s, 72.0dB): 0.0005 lux |
| Shutter speed | 1/1sec ~ 1/100,000 sec |
| White balance | Auto / One Push / Manual / Indoor / Outdoor |
| Focus | Auto / One Push / Manual |
| Iris | 0 ~ 20 steps |
| Exposure | Auto / Manual / Priority Mode (Shutter priority & aperture priority) |
| Sync system | Progressive Scan |
| Sync. System Internal | Internal |
| Backlight compensation | Yes |
| Auto ICR | Yes |
| Image stabilization | Yes |
| Defog | Yes |
| EO Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames |

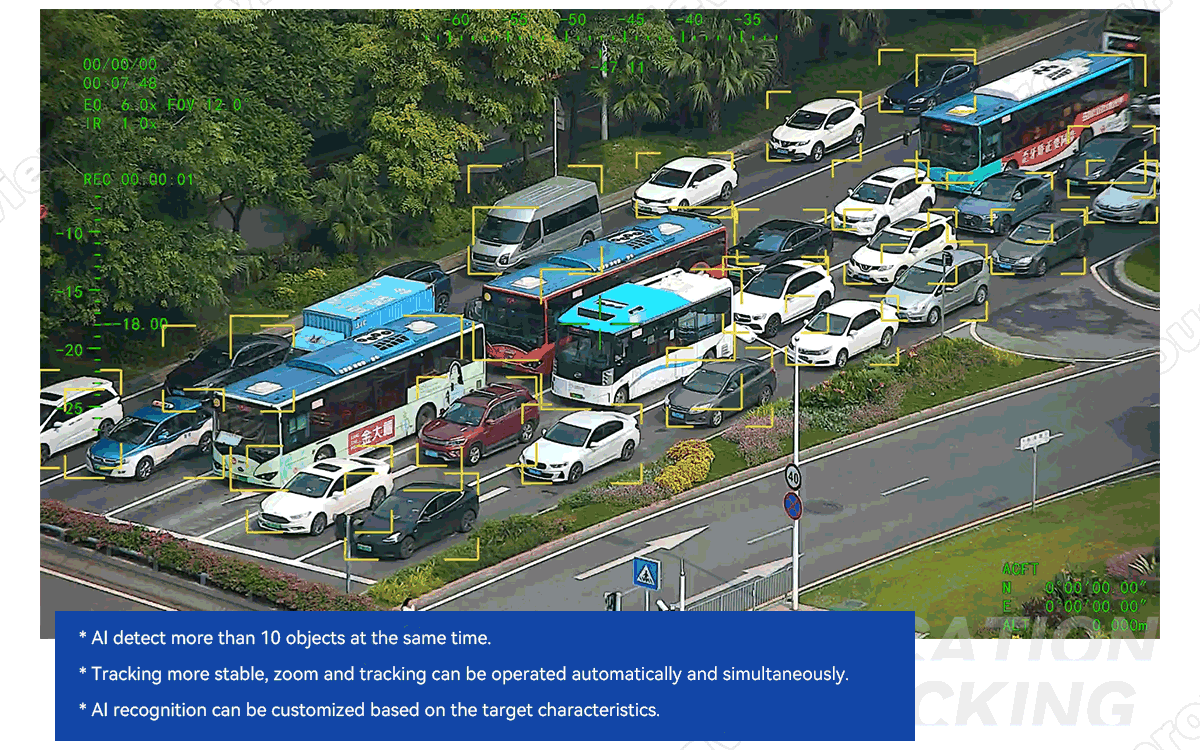

| EO Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5 5 pixel |
| Car detection rate | 85% |
| False alarm rate | 10% |
| Packing Information | |
| N.W. | 660g(Viewport version with Viewport) |
| Product meas. | 121.5*96*158.1mm / 121.5*96*163.8mm(Viewport Version) |
| Accessories | 1pc gimbal camera device, screws, USB to TTL cable / Hight quality box with foam cushion |
| G.W. | 1740g |
| Package meas. | 300*250*200mm |
