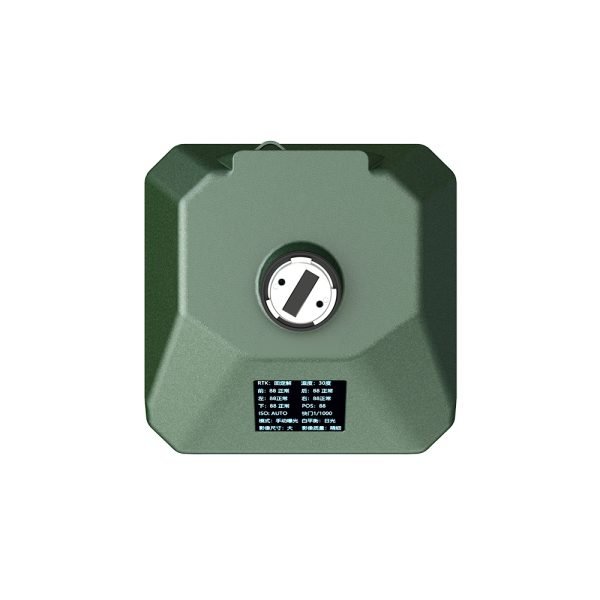

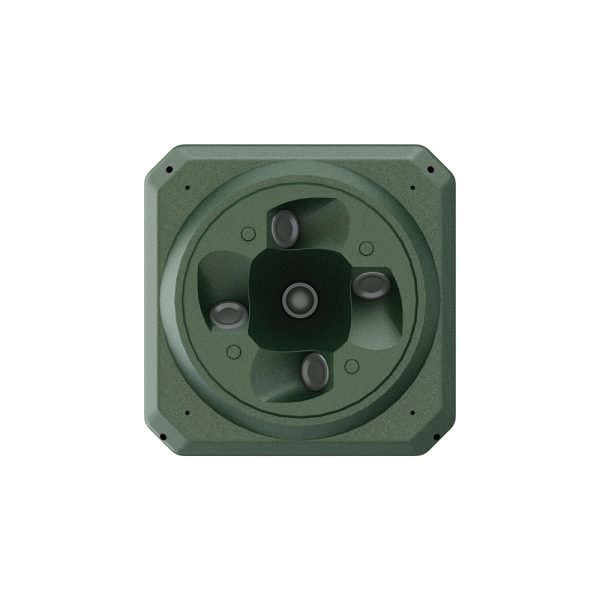

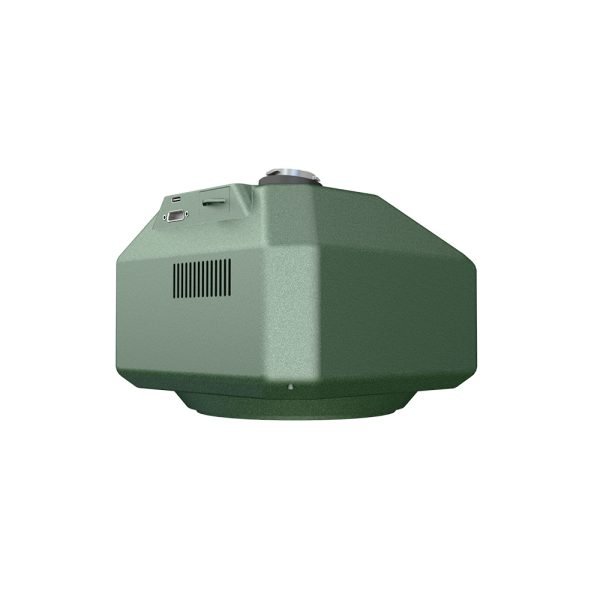

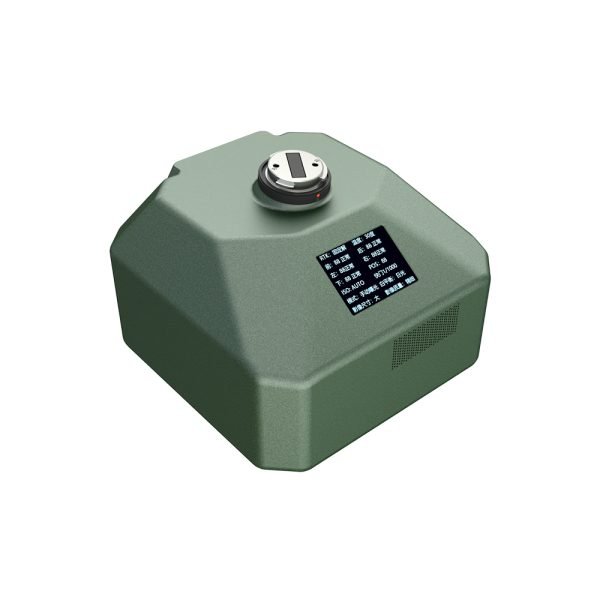

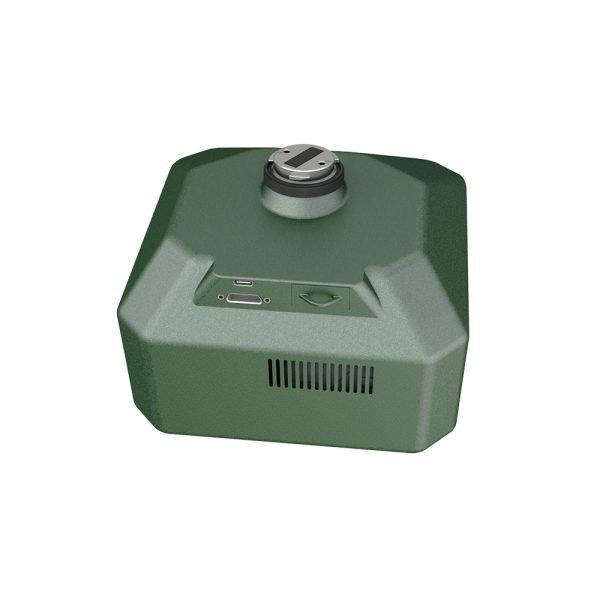

High-Performance Five-Lens Tilt Photography Camera MVO305 PRO
China Moneypro

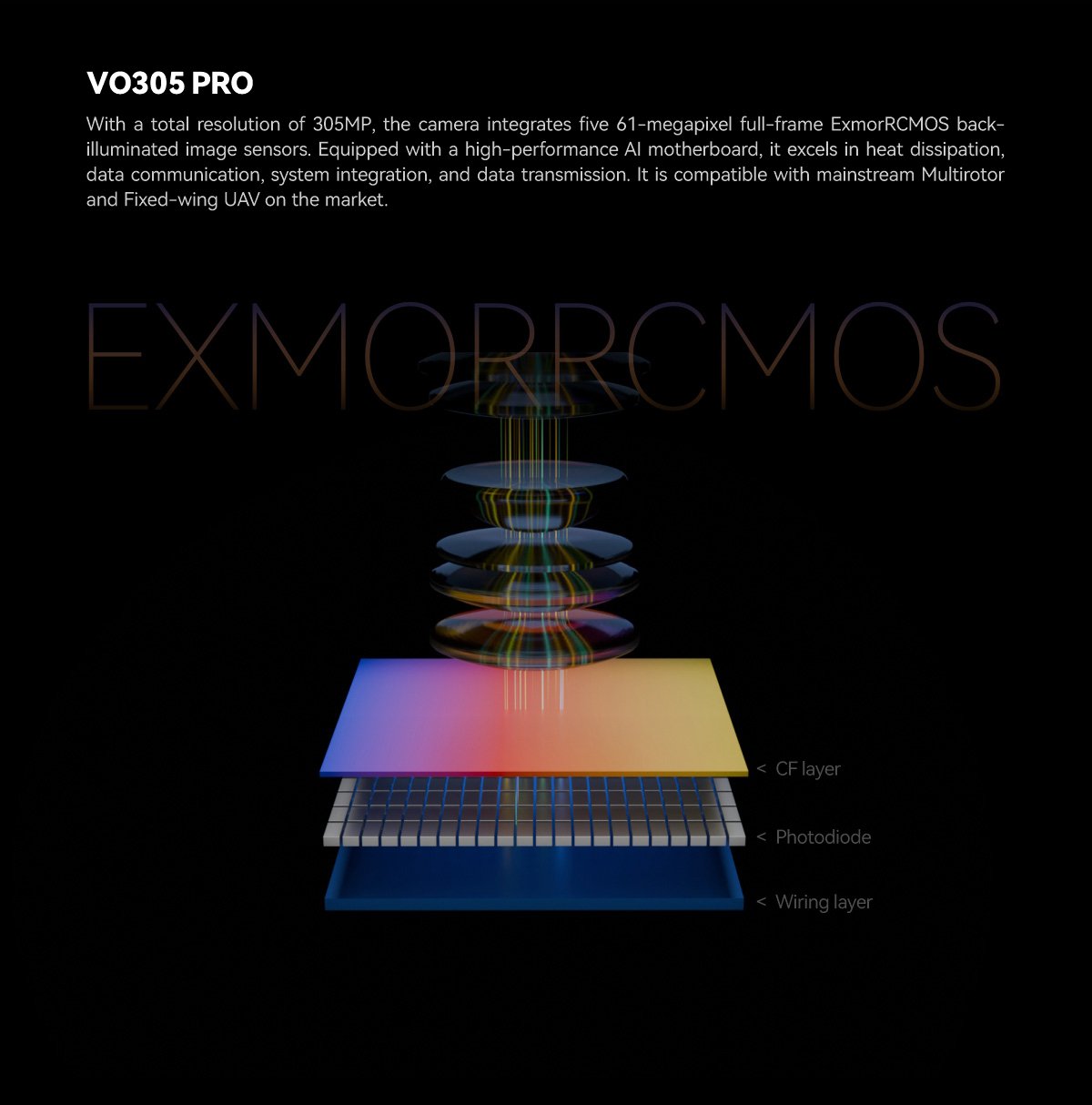

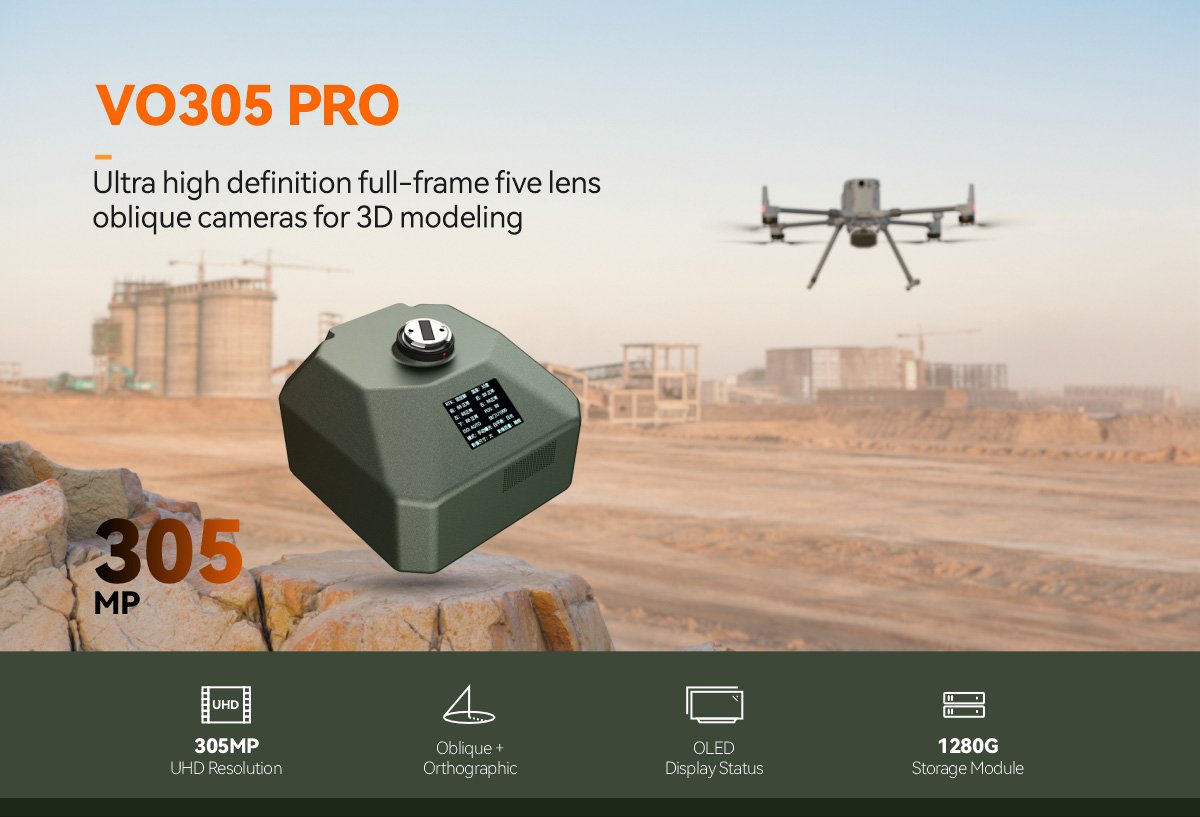

With a total resolution of 305MP, the camera integrates five 61-megapixel full-frame ExmorRCMOS back-illuminated image sensors. Equipped with a high-performance AI motherboard, it excels in heat dissipation, data communication, system integration, and data transmission. It is compatible with mainstream Multirotor and Fixed-wing UAV on the market.
| Technical Specifications | |||

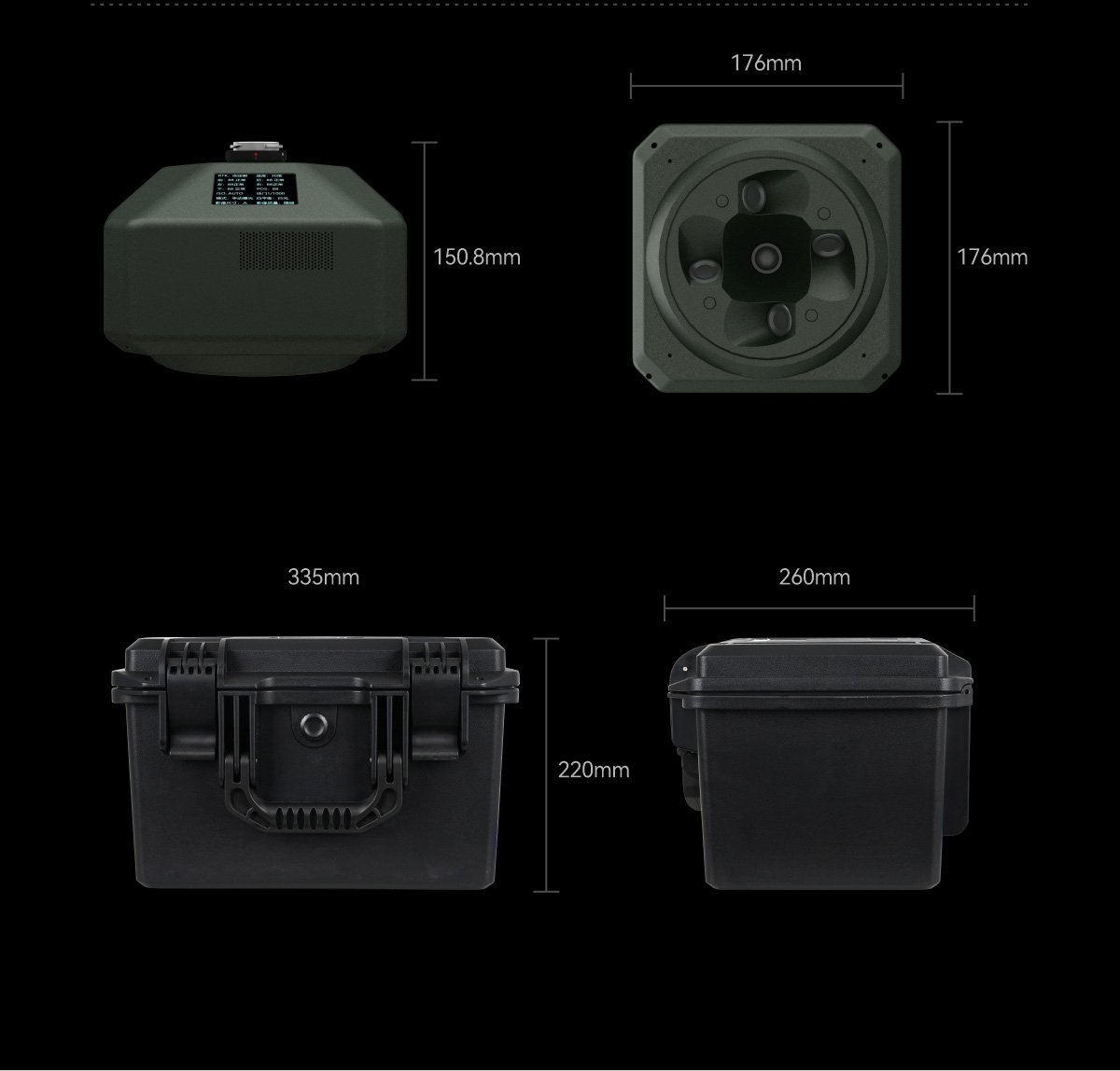

| Dimensions | 175*175*130mm | Weight | Approx. 1400g |
| Image Resolution | 9504*6336 | Pixel Size | 3.7um |
| Total Pixels | 305 million | Minimum Exposure Interval | 0.8s |
| Sensor Type | Exmor R CMOS Sensor | Sensor Size | 35.7×23.8 mm |
| White Balance | Auto/Shade/Cloudy/Daylight | Shutter Speed | 1/8000 to 1 second |
| ISO | Auto/Manual | Image Quality | Small/Standard/Fine/ Ultra-fine |
| Lens Type | Professional Prime Lens | Focal Length | Down: 40mm, Side: 56mm |

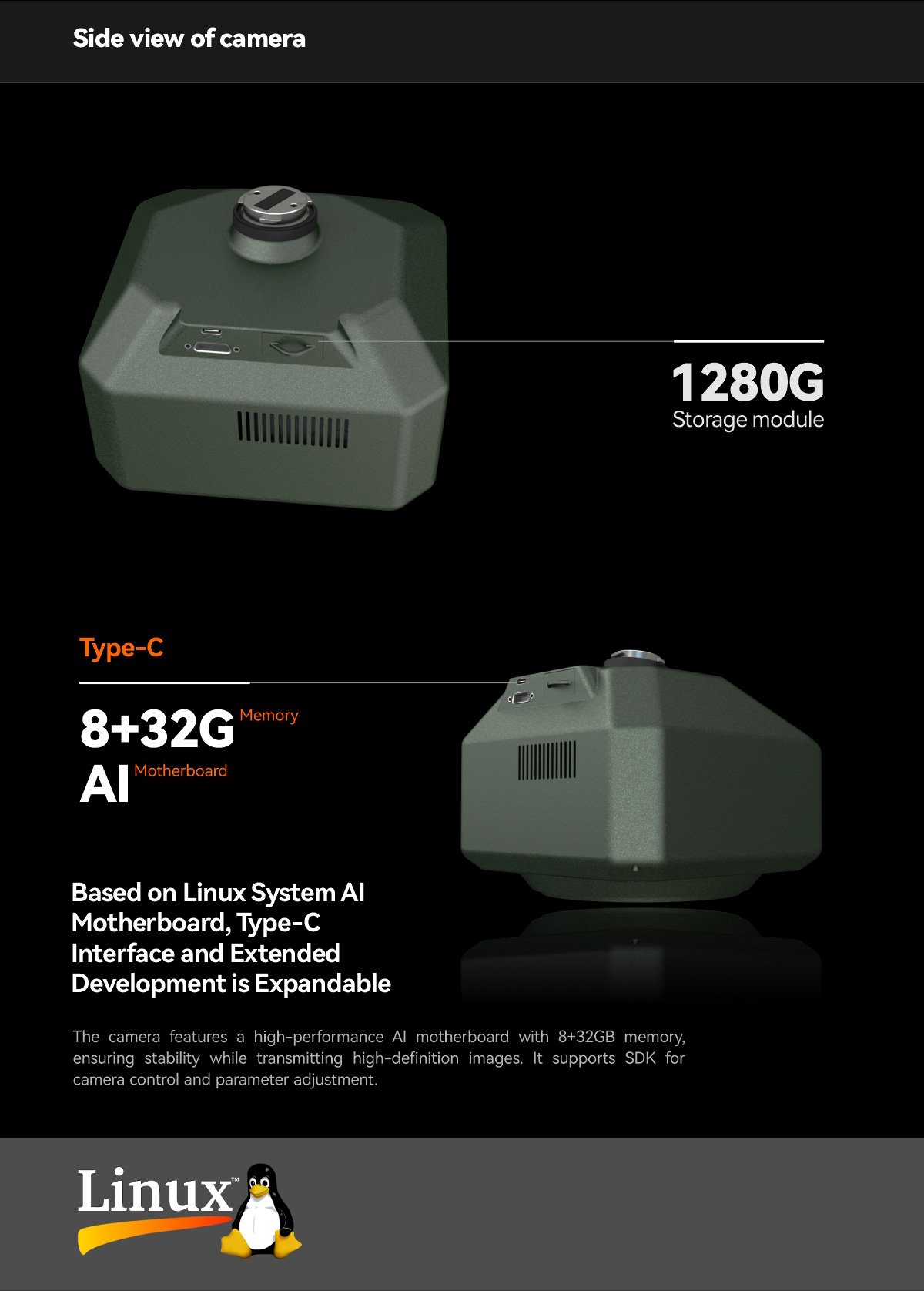

| Image Size | Large/Medium/Small | Network Function | Type-C Expandable Network |
| Data Storage | External 1280GB High-Speed Storage Card | Structural Performance | Integrated Camera Lens |
| Power Supply | External 10V-18V | Video Transmission | Dynamic HD Downward Video Transmission |

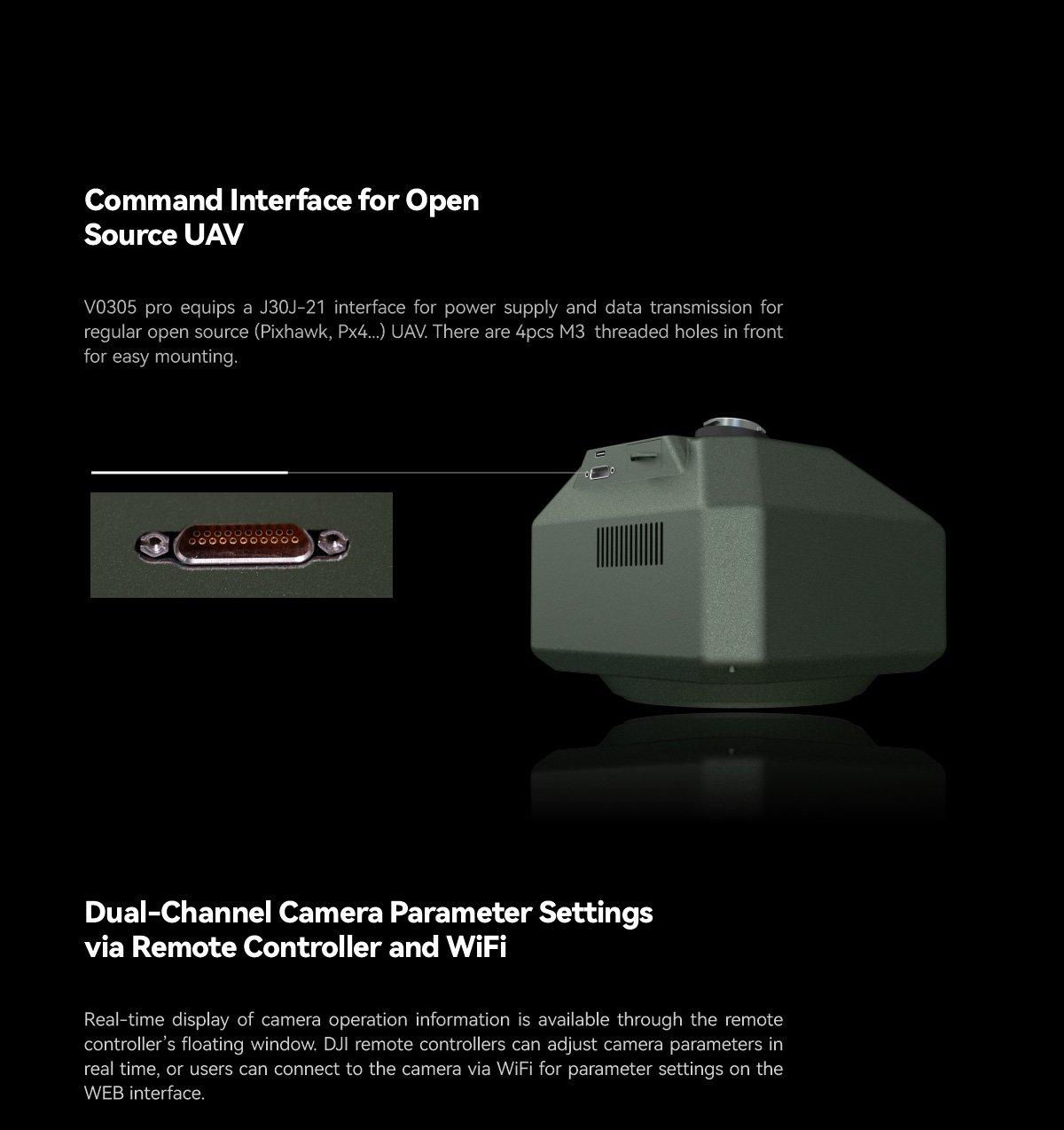

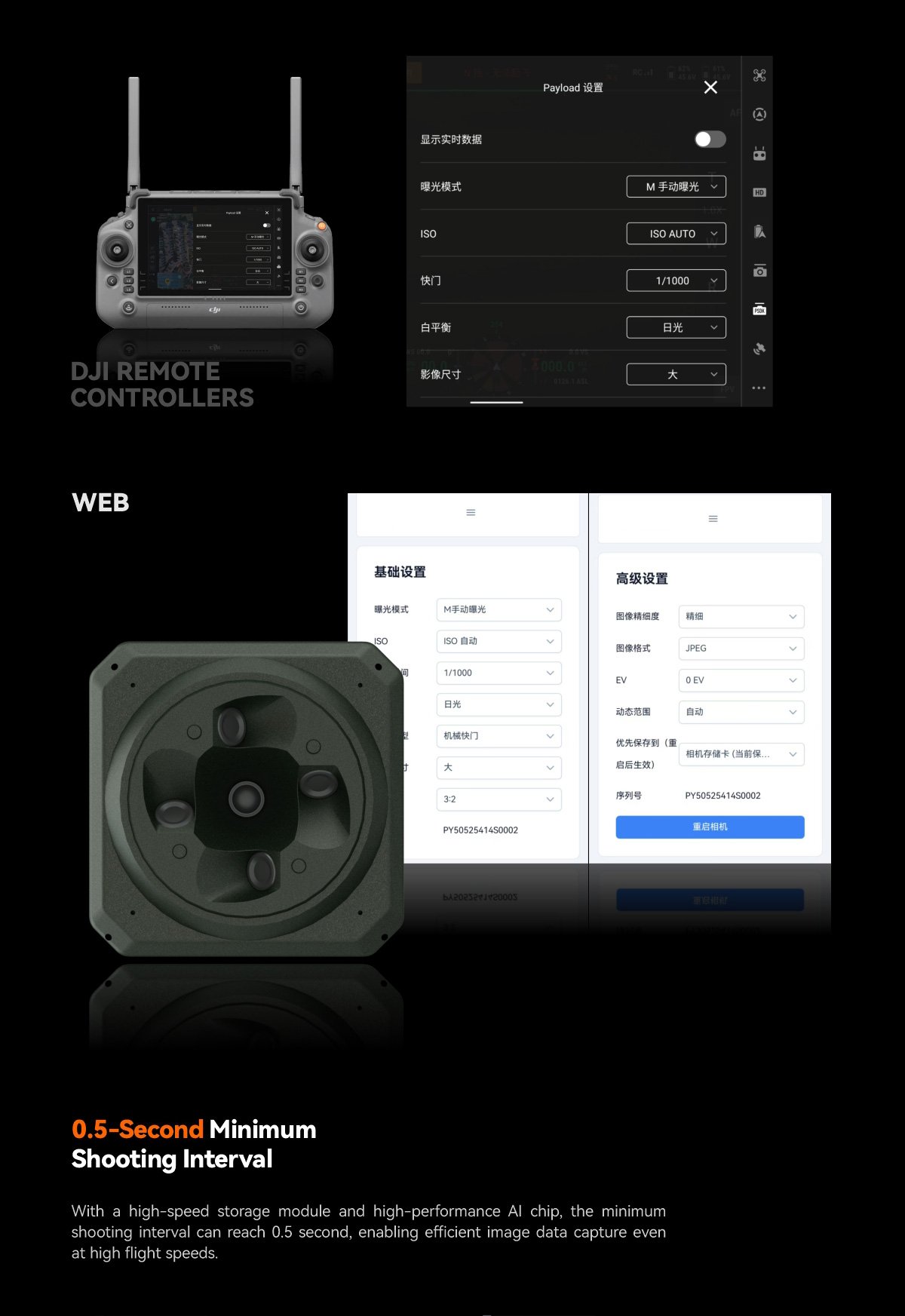

| POS Storage | Independent Precise POS for Five Lenses | Camera Parameter Settings | Adjust via DJI Remote Controller or WiFi |

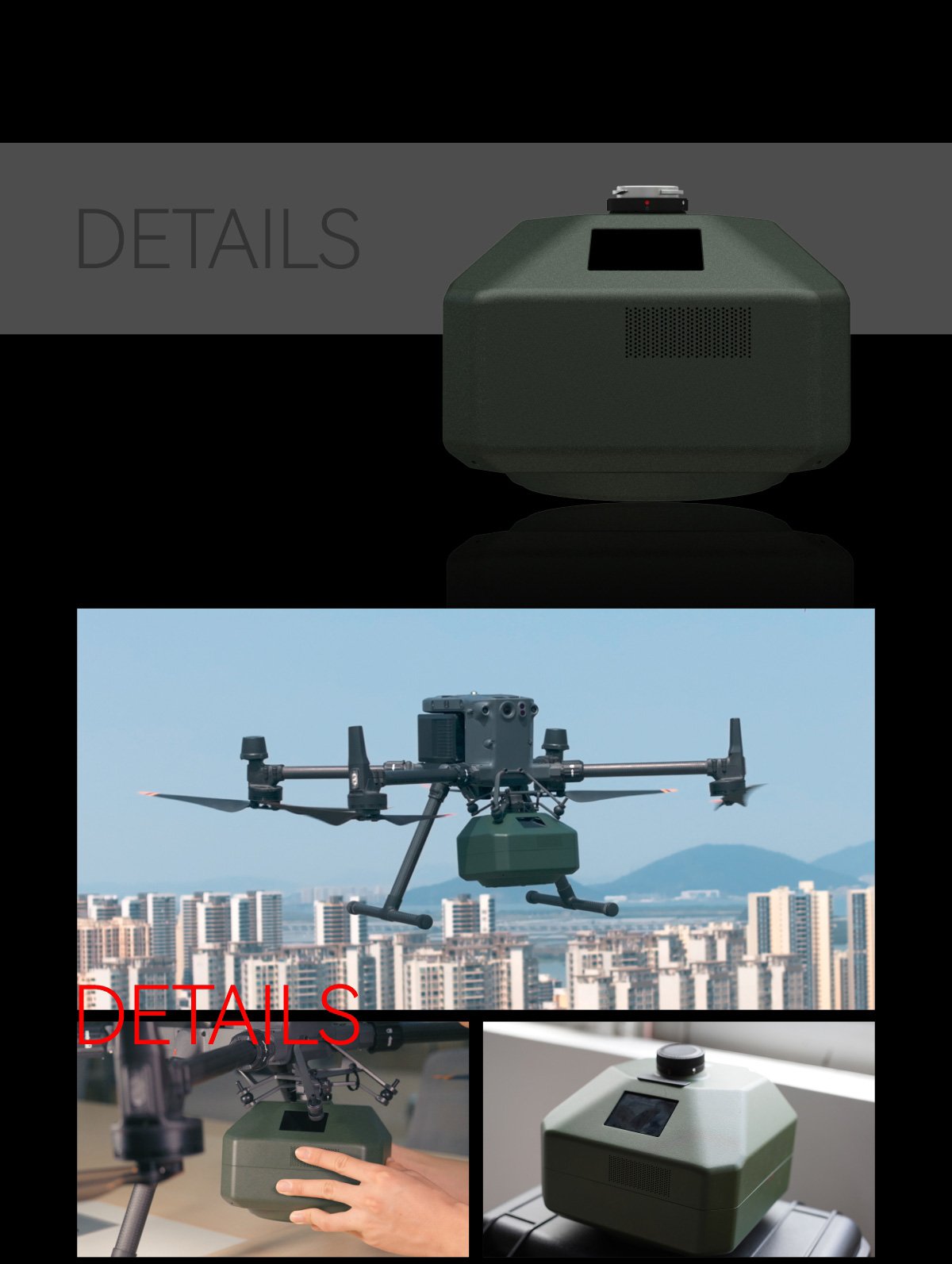

| Trigger Mode | Manual/Auto Trigger | Supported Drones | DJI M300 Series, Other UAVs |
| Humidity | ≤70% | Operating Temperature | -10°C~50°C |
