MZT430TA Two-Axis Three-Light Turntable

The MZT430TA two-axis three-light turntable consists of a cooled infrared thermal imager , a visible light camera , a laser rangefinder, a two-axis stabilization structure for elevation and azimuth , a high-precision gyroscope, servo control circuitry, and an image tracker. It features high stability, high accuracy, and high integration, and can be applied to unmanned vehicles, armored vehicles, unmanned ships, and sentry towers to perform day and night reconnaissance, surveillance, and target location tasks in conjunction with payloads.

Photoelectric turntables can operate day and night, quickly searching large areas or areas inaccessible to personnel for close-range inspection, making work more efficient, easier, and safer .

Optical turntables are mainly used in scenarios such as reconnaissance, border patrol, personnel search and rescue, and forest fire prevention.

I. Product Images

Figure 1 Product Image

II. Product Functions

a) It has the function of automatic identification and tracking of typical targets;

b) It has self-testing and fault reporting functions;

c) It has a 25x optical zoom function for visible light ;

d) Possesses infrared and visible light band detection capabilities, and can output infrared and visible light images;

e) Visible light has optical zoom, autofocus, manual focus and low light functions;

f) The infrared sensor features 3-field-of-view and color palette switching capabilities;

g) Equipped with laser ranging function;

h) Possesses the ability to move with two degrees of freedom: azimuth and pitch;

i) It has multiple working modes such as automatic search , manual search, follow-up, automatic tracking, and favorites;

j) In manual search mode, it has the function of receiving control station commands and completing turntable operations;

k) Possesses the ability to isolate carrier disturbances and stabilize the line of sight;

l) It has a target locking /unlocking function, and after locking the target, the turntable output image is an image with a tracking frame;

m) It has an automatic target tracking function, which can automatically track targets and is resistant to natural interference;

n) It has a memory tracking function, which allows the target to be recaptured in a short time after being briefly lost;

o) It has the function of adjusting the gate size;

p) It has a tracking point switching function;

q) The target coordinates can be calculated based on laser ranging and vehicle attitude information;

r) It has target positioning function;

s) Airtight optical cabin;

t) It has photo and video recording functions .

III. Mounting Platform

Unmanned vehicles, armored vehicles, unmanned boats, and sentry towers, etc.

IV. Main Technical Parameters

model	ZT430TA
Visible light camera
resolution	1920*1080
Pixel size	3.75um
focal length	20-500mm
Field of view	0.97 0.52 28.52 16.27
Infrared camera
Detector type	Medium-wave cooled detector
Operating band	medium wave
Detector resolution	640*512
Pixel size	17um
Lens focal length	30mm/50mm/150mm
Field of view	20 16 4 3
Laser rangefinder
wavelength	1535nm
Maximum ranging distance	8,000 m ( under weather conditions with visibility 12 km )
Minimum ranging distance	80m
Distance measurement accuracy	2m
Ranging frequency	1Hz
Servo Platform
Orientation angle	360 n (360 continuous rotation)
Pitch angle	-25 +90
Stable accuracy	0.1mrad (1 ) ( 1 /2Hz oscillation) ;
Angular position accuracy	1mrad 1ң
Maximum turning speed	Azimuth   60  /s, Pitch  60  /s
Maximum turning acceleration	Azimuth   60  /s2, Pitch  60  /s2
System Indicators
Power supply voltage	DC 2.4V   32V
power	Stable power consumption:   100 W; Peak power consumption:   200 W
weight	54Kg
volume	430mm 430mm 600mm
Continuous working time	8h
Image recording time	8h
Storage capacity	128G
Image frame rate	25Hz
interface
Control Interface	RS-422
Video interface	HD-SDI/Gigabit Ethernet ( H.264 )
Storage interface	Memory card ( Mini SD card)
Storage format	.avi format
Environmental adaptability
Operating temperature	-40 55
Storage temperature	-45 60
Protection level	Rainproof

V. Mechanical Dimensions and Installation Interfaces

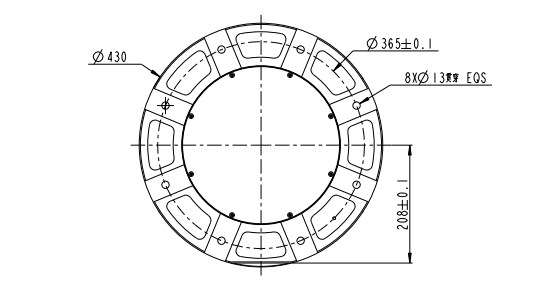

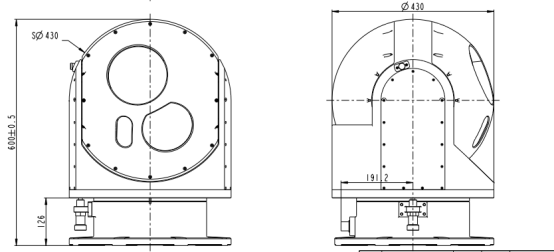

Figure 2 External Dimensions
