MZT260TA Two-Axis Three-Light Turntable

I. Product Introduction

The MZT260TA optoelectronic turntable consists of an uncooled infrared thermal imager, a 30x continuous zoom visible light camera, a laser rangefinder, a two-axis servo-stabilized platform, and an image tracker. It features lightweight construction, high stability and accuracy, and high integration, and can be applied to unmanned vehicles, armored vehicles, and sentry towers to perform day and night reconnaissance, surveillance, and target location tasks.

The photoelectric turntable uses an uncooled infrared thermal imager and a visible light camera to detect, identify, and track ground targets around the clock, and outputs infrared and visible light videos in real time for mission personnel to view.

Optoelectronic turntables are mainly used in scenarios such as air detection, ground detection, border and coastal defense, high-point monitoring, and border sentry posts.

II. Actual product photos

Figure 1 Product Image

III. Product Functions

a) It has the function of automatic identification and tracking of typical targets;

b) It has self-testing and fault reporting functions;

c) It has a 30x optical zoom function for visible light ;

d) Possesses infrared and visible light band detection capabilities, and can output infrared and visible light images;

e) Visible light has optical zoom, autofocus, manual focus and low light functions;

f) The infrared sensor has electronic amplification and color palette switching functions;

g) Equipped with laser ranging function;

h) Possesses the ability to move with two degrees of freedom: azimuth and pitch;

i) It has multiple working modes such as automatic search , manual search, follow-up, automatic tracking, and favorites;

j) In manual search mode, it has the function of receiving control station commands and completing turntable operations;

k) Possesses the ability to isolate carrier disturbances and stabilize the line of sight;

l) It has a target locking /unlocking function, and after locking the target, the turntable output image is an image with a tracking frame;

m) It has an automatic target tracking function, which can automatically track targets and is resistant to natural interference;

n) It has a memory tracking function, which allows the target to be recaptured in a short time after being briefly lost;

o) It has the function of adjusting the gate size;

p) It has a tracking point switching function;

q) The target coordinates can be calculated based on laser ranging and vehicle attitude information;

r) It has target positioning function;

s) Airtight optical cabin;

t) It has photo and video recording functions .

IV. Platform

Unmanned vehicles, armored vehicles, monitoring towers, etc.

V. Main Technical Parameters

model	ZT260TA
Infrared thermal imager
Detector type	Uncooled focal plane detector
Operating band	8 m 14 m
Detector resolution	640 512
Pixel size	12 m
Lens focal length	25mm to 100mm
Field of view	17.4 x 14 to 4.4 x 3.5 ( 5%)
Pseudo-color	6 types
Numbers multiplied	1 4X
Noise equivalent temperature difference	NETD 50mK
Minimum distinguishable temperature difference	MRTD 500mK
Visible light camera
resolution	1920 1080
Response band	0.4 m to 0.9 m
Pixel size	2.8 m
Optical zoom	30 times
Mixed Variable Multiplication	60 times
focal length	4.3mm 129mm
Field of view	63.7 35.8 2.3 1.3 ( 5%)
zoom mode	Autofocus, manual focus
Minimum Illumination	0.01 Lux (Black and White)
Laser rangefinder
wavelength	1535nm
Maximum ranging distance	8km (under conditions of visibility 15km)
Minimum ranging distance	20m
Distance measurement accuracy	2m
Ranging frequency	1-5Hz adjustable
Servo Platform
Orientation angle	360 n (360 continuous rotation)
Pitch angle	-90 to +120 (positive for upward)
Frame corner accuracy	0.05 (1 )
Stable accuracy	0.05mrad (1 )
Maximum turning speed	Azimuth  60 /s, Pitch 60 /s
Maximum turning acceleration	Azimuth  100 /s2, Pitch 100 /s2
System Indicators
Image tracking	Automatically track selected target
Power supply voltage	20V 32VDC
power	Stable power consumption:  40W
weight	15Kg
volume	260mm 260mm 390mm
interface
Control Interface	RS422/100Mbps Ethernet
Video interface	HD-SDI/100Mbps Ethernet
Storage interface	128G memory card (Mini SD card)
Image format	JPG format
Video format	AVI format
Environmental adaptability
Operating temperature	-40 60
Storage temperature	-45 65
Vibration conditions	The acceleration was 6.06g; 30 minutes each in the vertical, lateral, and longitudinal directions.
Impact conditions	Peak acceleration 20g, duration 11ms
Protection level	Optical cabin airtight

VI. Mechanical Dimensions and Installation Interfaces

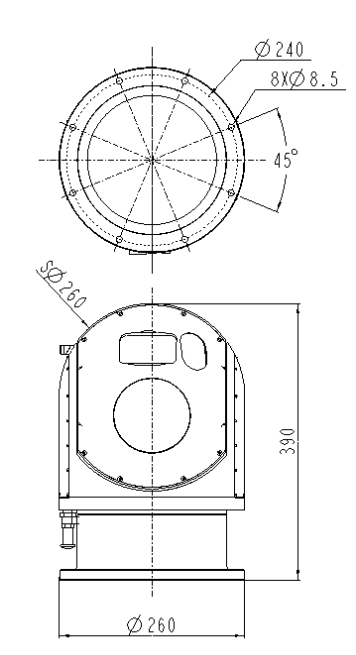

Figure 2 Product Dimensions
