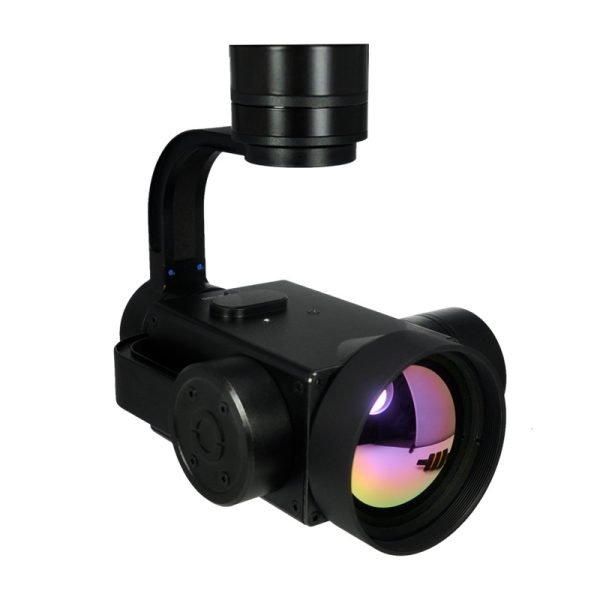

MZIR50T Professional 3-axis High-precise FOC Program with Powerful 50mm Thermal Imager Camera
China Moneypro
The MZIR50T is a professional 3-axis gimbal featuring advanced FOC motor control technology with pinpoint precision. Equipped with a powerful 50mm thermal imaging camera using French ULIX uncooled long-wave sensors, it detects temperature differences invisible to the naked eye, revealing equipment damage, locating lost people, and more. The compact, lightweight gimbal offers exceptional stability with adjustable speed modes for precise control and includes a one-key center function. It supports multiple output methods including HDMI, Ethernet, and SDI at 1080p resolution, plus flexible control options via PWM, S.BUS, serial commands, and TCP. With three color palettes, automatic non-uniform correction, and impressive detection ranges up to 4510 meters for vehicles, the MZIR50T delivers professional-grade thermal imaging and gimbal stabilization for demanding applications.

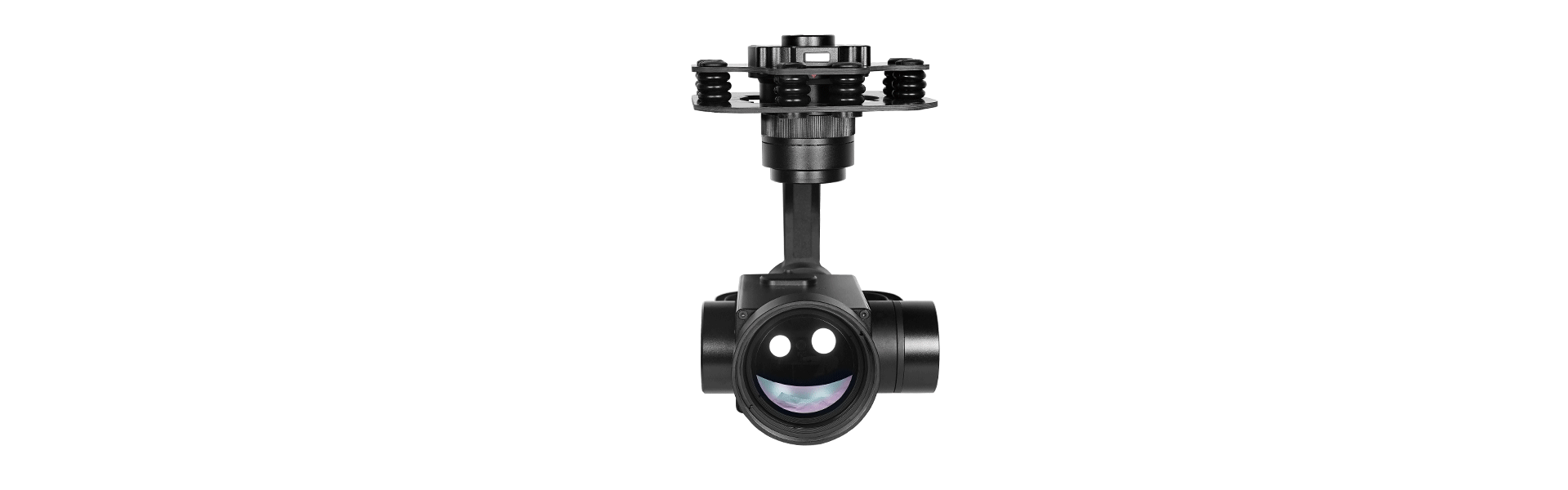

Professional 3-axis High-precise FOC Program
The ZIR50T thermal imaging camera features a 50mm lens and operates with a single infrared sensor. It offers three selectable color palettes: white hot, iron red, and pseudo color.
Designed as a professional 3-axis gimbal with pinpoint precision, the ZIR50T combines high stability with a compact, lightweight structure and low power consumption. Its 3-axis stabilization system utilizes FOC motor control technology, with each motor integrated with a high-accuracy encoder.
The gimbal supports multiple control methods, including PWM, S.BUS, and serial command protocols, making it ideal for both short-range remote control and long-distance data command transmission.
The rotation speed of the ZIR50T is adjustable. In low-speed mode, it offers greater control accuracy for applications requiring a large zoom range. High-speed mode delivers fast and responsive gimbal movement for smaller zoom ranges. Additionally, the one-key center function enables the gimbal to quickly and automatically return to its home position.
Powerful 50mm Thermal Imager
See what’s hidden—integrate the French-made ULIX high-precision uncooled LWIR (8–14 µm) thermal imaging core with a 50mm lens. The ZIR50T simultaneously records and streams both thermal and visible light imagery. By turning tiny temperature variations into clear visual details, the ULIX sensor exposes what the naked eye can’t detect: early damage to equipment or structures, the location of missing persons, and other invisible signs of trouble.

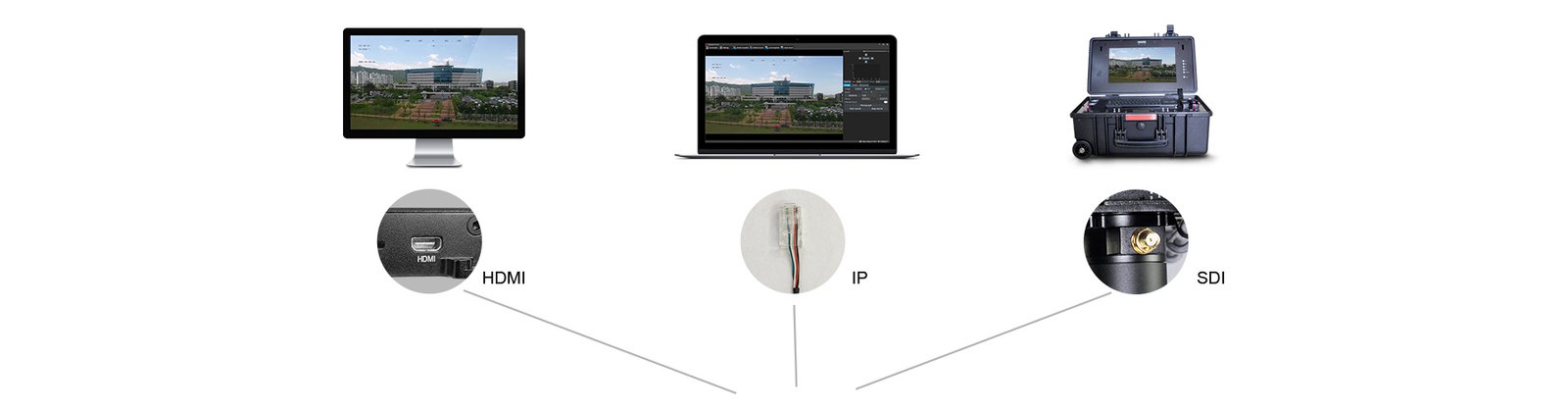

Multi Output Methods Optional
The ZIR50T is compatible with HDMI, Ethernet/IP, and SDI outputs. Both HDMI and SDI outputs deliver 1080p resolution, while the default Ethernet/IP output is set to 720p with recording available in 1080p. The IP and SDI output versions also support continuous 360-degree panning.

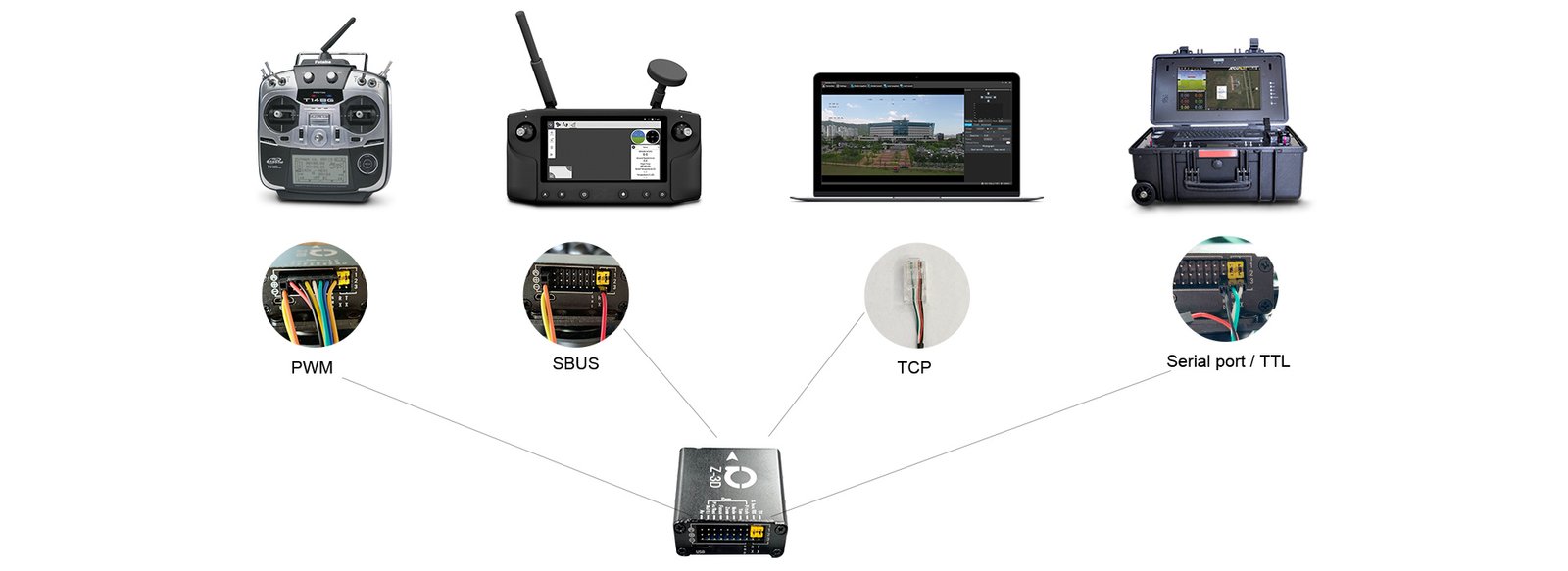

Multi Control Methods
Default control options include PWM and Serial TTL, with SBUS available as an optional feature. An IP output version is also offered.
Supports TCP control through an Ethernet connection. Using Viewlink by Viewpro software, you can achieve IP streaming, TTL control, and TCP-based control.
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 370~1000mA @ 12V |
| Working environment temp. | -20 ~ +60 |
| Output | micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / Skyport (DJI version) |
| Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Picture storage format in TF card | JPG(1920*1080) |
| Video storage format in TF card | MP4 (1080P 30fps) |
| Card reading online | SMB read / HTTP read |
| Control method | PWM / TTL / S.BUS / TCP(IP output) / DJI Pilot (DJI version)/UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: 120 , Roll: 70 , Yaw/Pan: 300 / 360 *N (IP / SDI / Skyport version) |
| Controllable Range | Pitch/Tilt: -45 115 , Yaw/Pan: 290 / 360 *N (IP / SDI / Skyport version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| IR Thermal Imager Spec | |
| Focus Length | 50mm |
| Horizontal FOV | 12.4 |
| Vertical FOV | 9.3 |
| Diagonal FOV | 15.5 |
| Detective Distance (Man: 1.8 0.5m) | 1471 meters |
| Recognize Distance (Man: 1.8 0.5m) | 368 meters |
| Verified Distance (Man: 1.8 0.5m) | 184 meters |
| Detective Distance (Car: 4.2 1.8m) | 4510 meters |
| Recognize Distance (Car: 4.2 1.8m) | 1127 meters |
| Verified Distance (Car: 4.2 1.8m) | 564 meters |
| Working mode | Uncooled long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*480 |
| Pixel pitch | 17 m |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | 50mK (@25 ) |
| MRTD | 650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0 ~120 (For thermometry version only) |
| IR Thermal Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames (4s) |
| Packing Information | |
| N.W. | 819g (Viewport version) |
| Product meas. | 146*99.8*160.2mm(including control box)/146*99.8*166.2mm(Viewport version) |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 2411g |
| Package meas. | 300*250*200mm |
