MZIR1352T Professional 3-axis High-precise FOC Program with High Resolution Dual Thermal Zooming Camera
China Moneypro
The MZIR1352T features thermal imager with 13mm & 52mm lens, supports 640*512 detector pixels, 4x optical zoom and 1x ~ 4x digital zoom. Integrated French ULIS high-precision uncooled long wave (8 m ~14 m) thermal image sensor. With 4x optical zoom capabilities that IR sensor sitches from 13mm to 52mm.
Professional 3-axis High-precise FOC Program
The ZIR1352T is equipped with a thermal imaging system that includes both 13mm and 52mm lenses. It supports a detector resolution of 640 × 512 pixels, offers 4x optical zoom, and features digital zoom ranging from 1x to 4x. The three-axis gimbal enables movement in yaw, roll, and pitch directions. By utilizing a field-oriented control (FOC) solution, the system significantly reduces vibrations caused by the UAV.

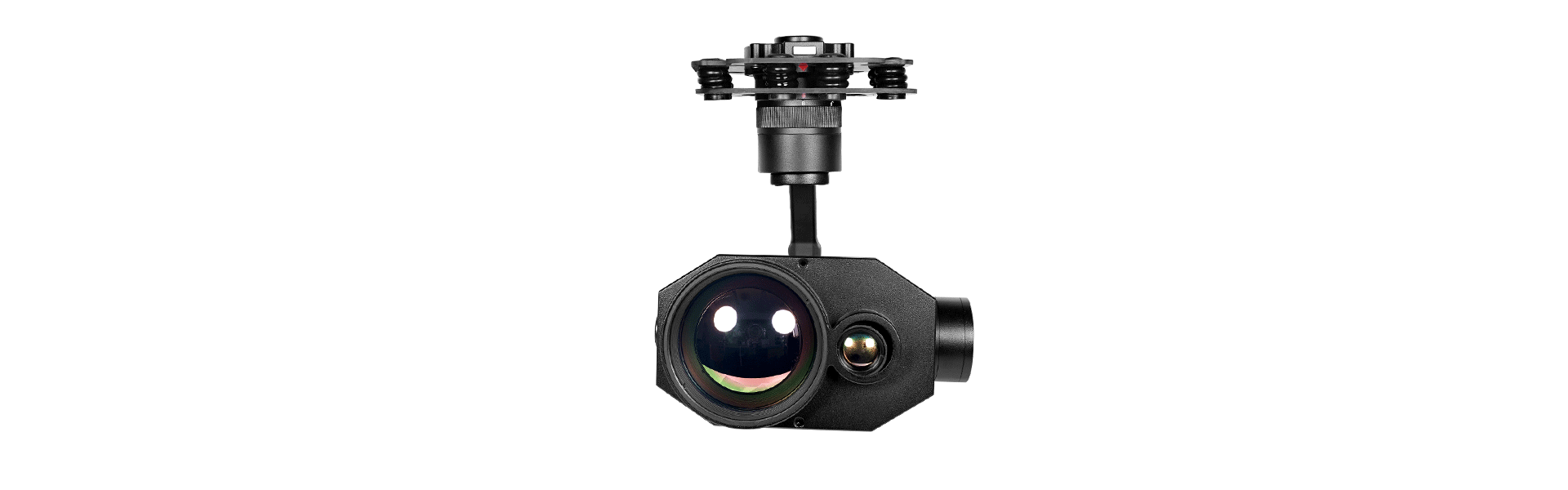

High Resolution Dual Thermal Zooming Camera
Featuring an integrated French ULIS high-precision uncooled long-wave infrared sensor (8–14 μm), the ZIR1352T delivers exceptional thermal imaging for drone applications. Its 4x optical zoom capability smoothly shifts between 13 mm and 52 mm focal lengths, offering a broad 32.9° field of view for enhanced situational awareness and a narrow 8.4° FOV to concentrate thermal resolution directly on the target. This flexibility in field of view allows public safety and industrial inspection drone pilots to capture improved image detail and effective magnification, supporting better situation assessment and informed decision-making in critical missions.
Multi Output Methods Optional
The ZIR1352T is compatible with HDMI, Ethernet/IP, and SDI output formats. Both HDMI and SDI outputs deliver 1080p resolution, while the default Ethernet output is set to 720p with recording capability at 1080p. For IP and SDI output versions, they support continuous 360-degree panning.
| Overall Specifications | |
| N.W. | 695g |
| Product meas. | 168.5*157.8*203.8mm |
| Input voltage | 14.8V~25.2V |
| Dynamic current | 500~1000mA @16V |
| Power consumption | Average 8W, Max 16W |
| Working environment temp. | -20 ~ +50 |
| IP rate | IP4X |
| Output (optional) | micro HDMI(1080P 60fps) / IP (RTSP/UDP 1080p/720p 25fps/30fps) |
| Storage | TF card (Up to 512G,class 10, FAT32 format) |
| Picture in TF Card | JPG(1920*1080) |
| Video in TF Card | MP4(1080P@30fps) |
| Control method | PWM / S.BUS / UART (TTL) / TCP / UDP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -70 (Up) 120 (Down), Roll: 55 , Yaw/Pan: 300 / 360 *N (IP output version) |
| Controllable Range | Pitch/Tilt: -45 115 , Yaw/Pan: 290 / 360 *N (IP output version) |
| Vibration angle | Pitch/Roll/Yaw: 0.02 |
| One-key to center | |
| IR Thermal Imager Spec 52mm | |
| Focus Length | 52mm |
| Horizontal FOV | 8.4 |
| Vertical FOV | 6.8 |
| Diagonal FOV | 10.8 |
| Detective Distance (Man: 1.8 0.5m) | 2167 meters |
| Recognize Distance (Man: 1.8 0.5m) | 542 meters |
| Identification Distance (Man: 1.8 0.5m) | 271 meters |
| Detective Distance (Car: 4.2 1.8m) | 6644 meters |
| Recognize Distance (Car: 4.2 1.8m) | 1661 meters |
| Identification Distance (Car: 4.2 1.8m) | 831 meters |
| Working mode | Uncooled long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*512 |
| Pixel pitch | 12 m |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | 50mK (@25 ) |
| MRTD | 650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | white hot, black hot, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 4x / 8x / 12x / 16x |
| IR Thermal Imager Spec 13mm | |
| Focus Length | 13mm |
| Horizontal FOV | 32.9 |
| Vertical FOV | 26.6 |
| Diagonal FOV | 41.4 |
| Detective Distance (Man: 1.8 0.5m) | 542 meters |
| Recognize Distance (Man: 1.8 0.5m) | 135 meters |
| Identification Distance (Man: 1.8 0.5m) | 68 meters |
| Detective Distance (Car: 4.2 1.8m) | 1661 meters |
| Recognize Distance (Car: 4.2 1.8m) | 415 meters |
| Identification Distance (Car: 4.2 1.8m) | 208 meters |
| Working mode | Uncooled long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*512 |
| Pixel pitch | 12 m |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | 50mK (@25 ) |
| MRTD | 650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | white hot, black hot, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x / 2x / 3x |
| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Features | |
| OSD | Display the gimbal s yaw and pitch angle, magnification, card recording duration, aircraft GPS and altitude, date and time |
| Geotagging | Display time and GPS coordinate in picture exif |
| Card reading online | SMB read pictures or videos / HTTP read pictures or videos |
| KLV (UDP) | Card recording or Viewlink video playback |
| ArduPilot / PX4 | Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature |
