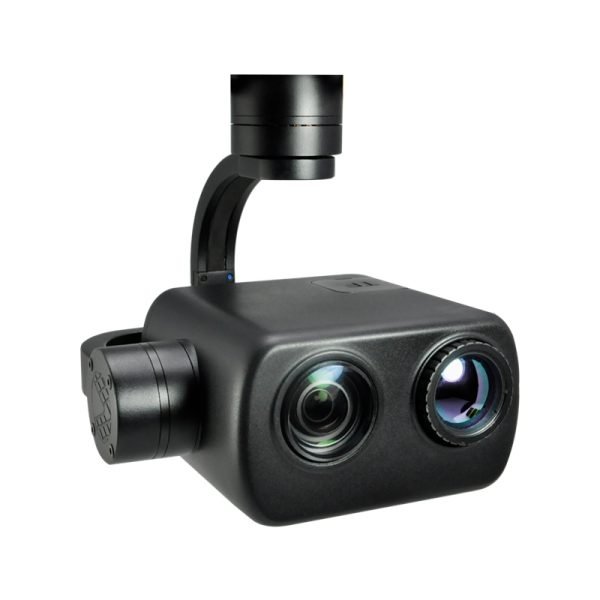

MZ40TIR 20x 4K EO+IR Dual-Sensor Object Tracking Gimbal Gamera
China Moneypro
The MZ40TIR is a professional dual-sensor gimbal camera combining a 4K EO camera with a 640×480 thermal imager. Featuring a precision 3-axis stabilization system with 0.01-degree accuracy, it delivers exceptional image quality for long-distance inspections, rescue operations, and surveillance. The 4K camera offers 40x advanced zoom with 25.9MP resolution and can observe targets up to 500 meters away. The integrated 25mm thermal imager reveals temperature differences invisible to the naked eye, enabling detection of equipment damage and lost persons. Advanced dual-sensor object tracking algorithms maintain stable target acquisition with tracking speeds up to 32 pixels per frame. Multiple output options include HDMI, Ethernet, and SDI, with flexible control via PWM, TTL, SBUS, or TCP protocols. Ideal for professional aerial photography and comprehensive surveillance applications.
Professional 3-axis High-precise FOC Program
Z40TIR is a powerful dual sensor with 4K camera and 640*480 25mm lens thermal imager. Stabilizing the highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of 0.01 powered by a dedicated processor, the high-end cameras module and advanced pinpoint anti-vibration system bring you extreme stable high image quality at anytime. Specially designed for long distance details inspections, research & rescue, surveillance and aerial photography.
4K Camera with 40x Advanced IA Zoom
Powered by Panasonic 1/2.3 COMS CMOS module, with 3840p UHD image quality illumination, Z40TIR can still clearly display image features in utter poor light environment. 25.9 mega effective pixel and 4K video camera , combined with 40x advanced IA zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.

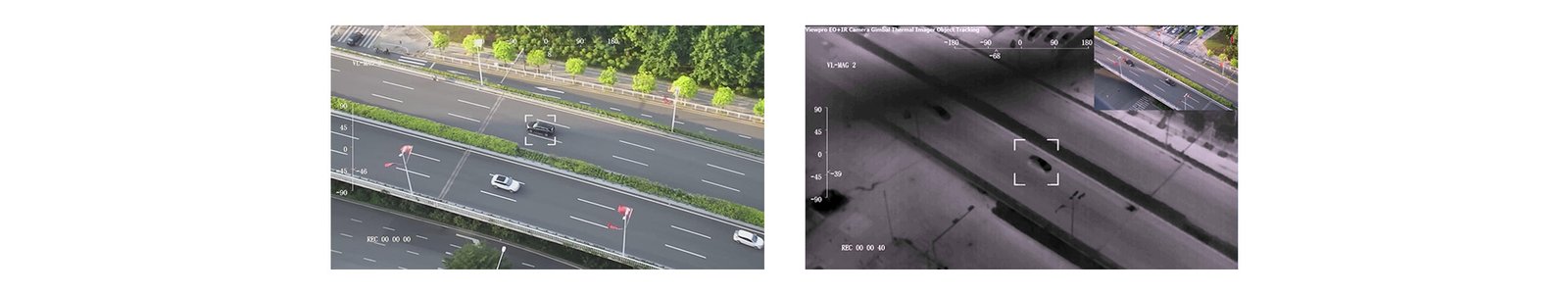

IR+EO Dual Sensors Object Tracking
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.

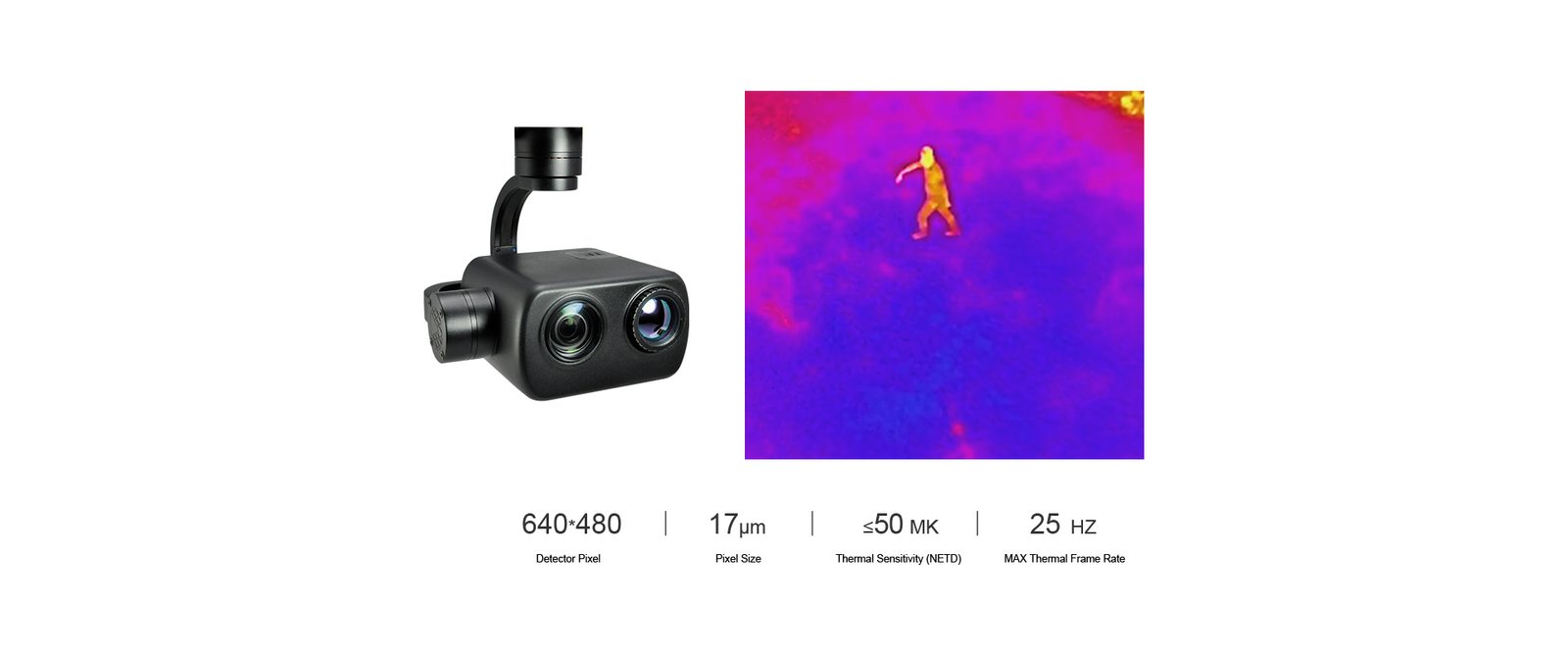

Powerful 25mm Thermal Imager
Integrated French ULIX high-precision uncooled long wave (8 m ~14 m ) with 25mm lens thermal image sensor, Z40TIR can record and transmit thermal image and visible images at the same time. See the unseen. ULIX thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.

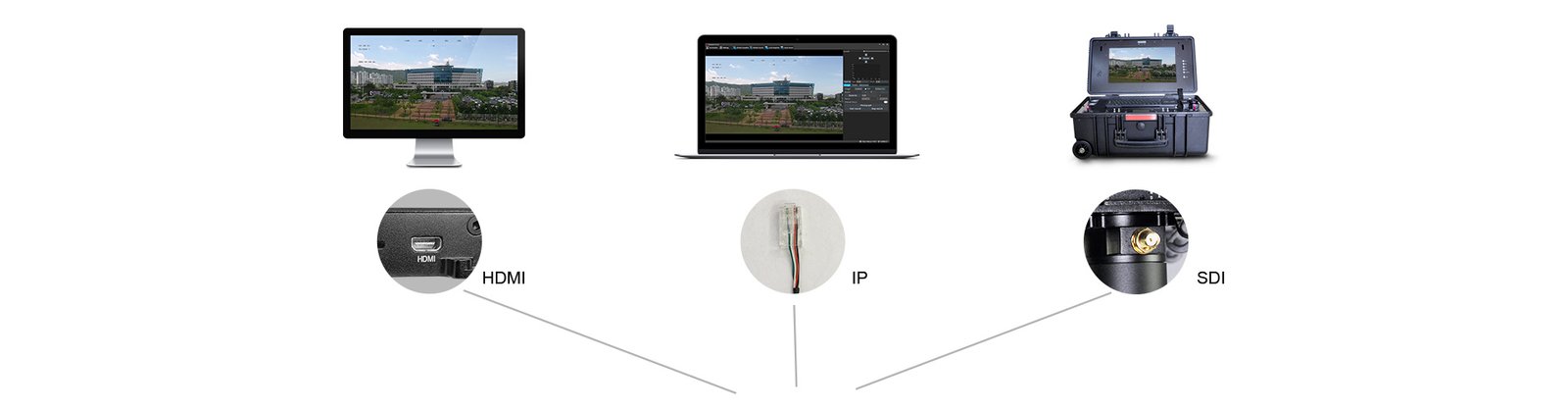

Multi Output Methods Optional
Z40TIR supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.

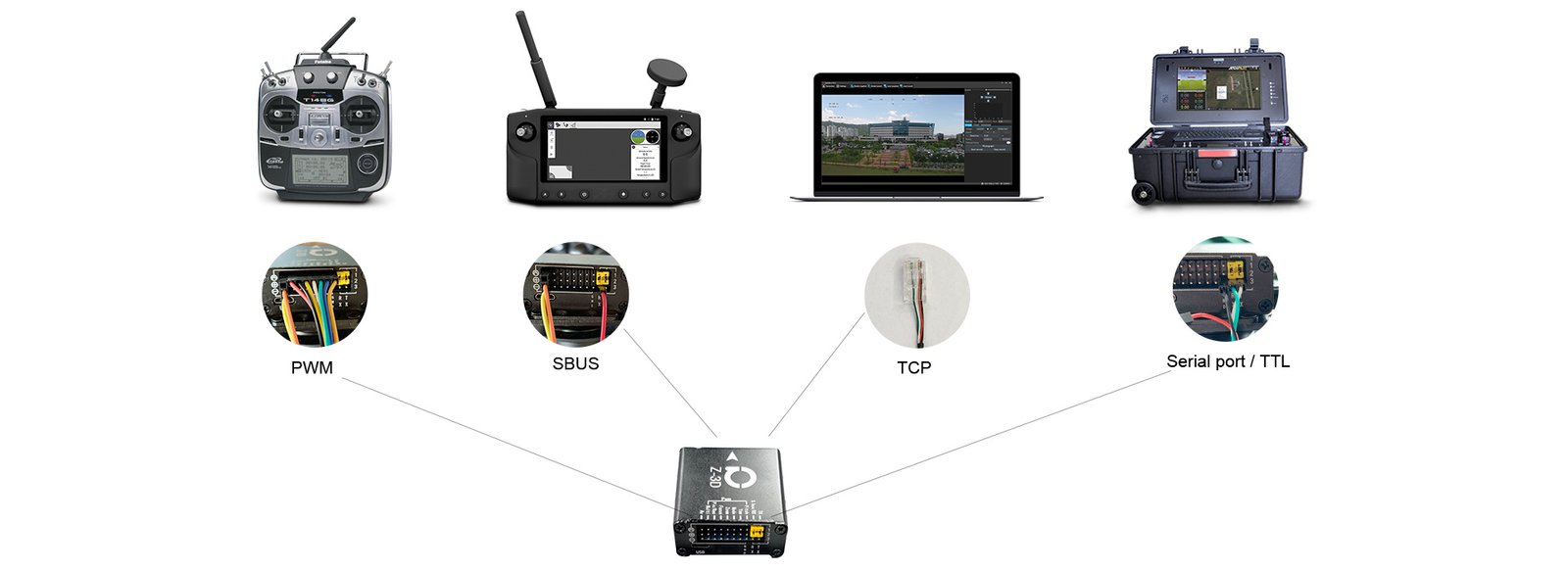

Multi Control Methods
Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

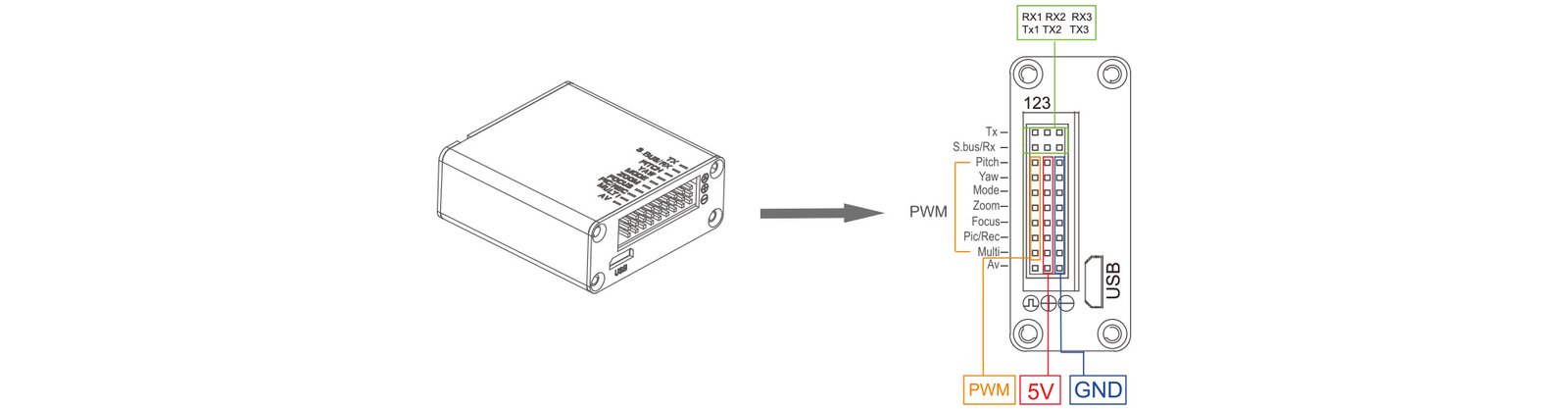

Control box signal interfaces:
| Hardware Parameter | |
| Working voltage | 12V ~ 16V |
| Input voltage | 3S ~ 4S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 500mA @ 12V |
| Idle current | 400mA @ 12V |
| Power consumption | 6W |
| Working environment temp. | -20 ~ +60 |
| Output | micro HDMI(HD output 1080P 60fps) / IP |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Picture storage format in TF card | JPG(1920*1080) |
| Video storage format in TF card | MP4 (1080P/720P 25fps/30fps) |
| Control method | PWM / TTL / SBUS / TCP(IP output) |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -60 120 ,Roll: 70 Yaw/Pan: 300 / 360 *N (IP output version) |
| Controllable Range | Pitch/Tilt: -45 90 ,Yaw/Pan: 290 / 360 *N (IP output version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| Camera Spec | |
| Imager Sensor | Panasonic 1/2.3inch CMOS |
| Lens | F1.8~F3.6(f=4.08~81.6mm) |
| Zoom | Optical zoom:20x, iA zoom:25x(4k) / 40x(FHD) |
| Total pixel | 25.9MP |
| Record effective pixel | 4k:8.29MP / FHD:6.10MP(16:9) |
| Picture effective pixel | 25.9MP(4:3) |
| Optical Image Stabilization | 5 axis Optical Image Stabilization |
| Record format | MPEG-4 |
| Record pixel | 4k:3840*2160/30p FHD:1080/60p (HD:720/30p) |
| Record shutter speed(Manual) | 1/30 ~ 1/8000 |
| Picture format | JPEG(4K:20.4M FHD:14M) |
| Picture pixel | 20.4M(4:3 |
| Picture shutter speed(Manual) | 1/2 ~ 1/2000 |
| Dynamic range | 65dB |
| Min object distance | 1.5M |
| Viewing angle | Horizontal: 62.95 (Wide end) ~ 3.45 (Tele end) Vertical: 38.00 (wide end) ~ 1.94 (tele end) |
| Sync system | Progressive scanning |
| Local video | 1080P 30fps local TF card |
| HD output | 1080P/720/480P 60fps HDMI1.4 |
| S/N ratio | 38dB |
| Min illumination | Color 0.05lux@F1.6 |
| Backlight compensation | Backlight compensation/strong light inhibition |
| Gain | Auto |
| White balance | Auto/Manual |
| Focus | Auto/Manual/One-time automatic focus |
| Focus speed | 2s |
| Lens initialization | Built-in |
| User presetting bit | 20 sets |
| Image rotation | 180 , Horizontal/Vertical mirror image |
| Facial recognition | |
| EO Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <15ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 160*160 pixel |
| Tracking speed | 32 pixel/frame |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Thermal Imager Spec | |
| Lens size | 25mm |
| Horizontal FOV( ) | 24.6 |
| Vertical FOV( ) | 18.5 |
| Diagonal FOV( ) | 30.4 |
| Detective Distance (Man: 1.8 0.5m) | 735 meters |
| Recognize Distance (Man: 1.8 0.5m) | 184 meters |
| Verified Distance (Man: 1.8 0.5m) | 92 meters |
| Detective Distance (Car: 4.2 1.8m) | 2255 meters |
| Recognize Distance (Car: 4.2 1.8m) | 564 meters |
| Verified Distance (Car: 4.2 1.8m) | 282 meters |
| Working mode | Uncooled long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*480 |
| Pixel size | 17 m |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | 50mK (@25 ) |
| MRTD | 650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x~6x |
| Sync correct time | Yes |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0 ~100 |
| Thermal Object Tracking | |
| Update rate of deviation pixel | 25Hz |
| Output delay of deviation pixel | <3ms |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 32 pixel/frame |
| Object memory time | 100 frames (4s) |
| Packing Information | |
| N.W. | 916g (Viewport Version) |
| Product meas. | 150*152.5*166.2mm |
