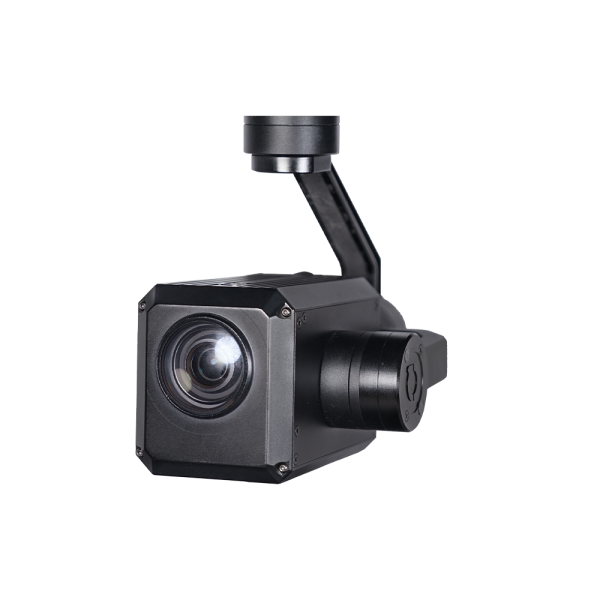

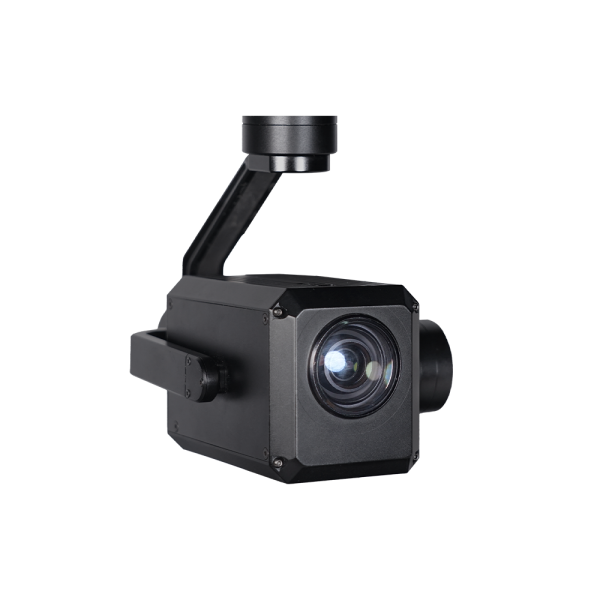

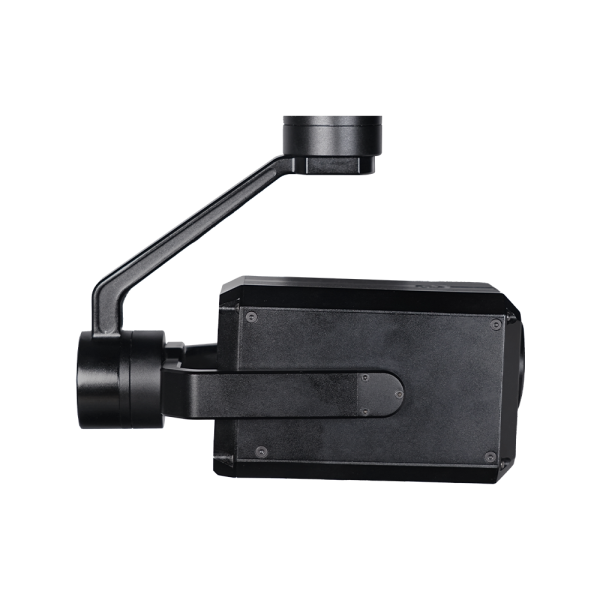

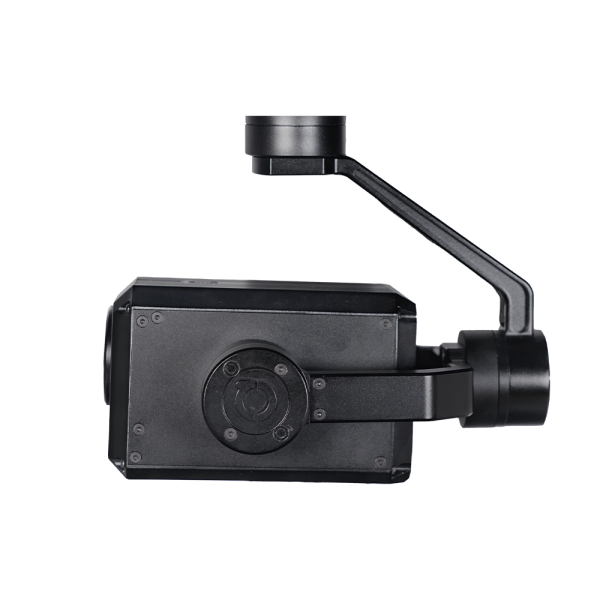

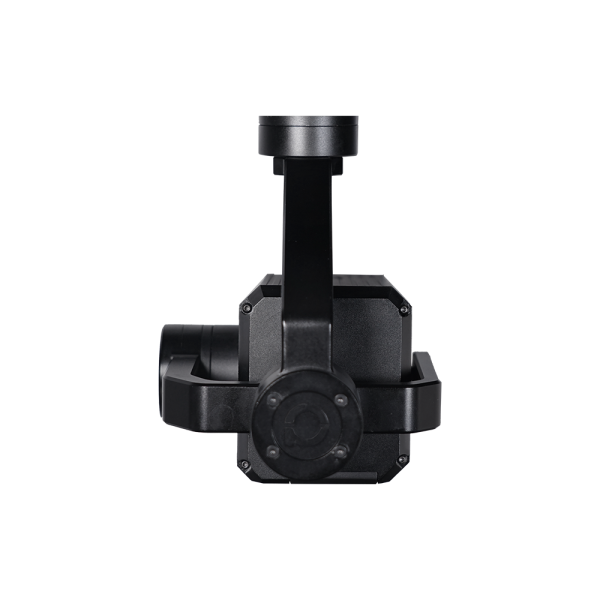

MZ40K single 4K HD 25 times zoom gimbal camera 3-axis gimbal UAV Aerial photography, cartography and patrol inspection
China Moneypro
The MZ40K is a professional-grade gimbal camera system designed for UAV aerial photography, cartography, and inspection missions. Featuring a Panasonic 1/2.3-inch CMOS sensor with 25.9MP resolution, it delivers stunning 4K video at 25/30fps and exceptional still images. The advanced 25x intelligent zoom combined with 20x optical zoom provides remarkable detail capture from distance. A sophisticated 3-axis gimbal with 0.02-degree vibration stabilization ensures smooth, professional footage in any condition. The camera includes 5-axis optical image stabilization, manual shutter control from 1/30 to 1/8000, and impressive low-light performance at 0.05lux. With geotagging support, SD card storage up to 256GB, and multiple control methods including PWM, TTL, and SBUS, this system offers versatile integration options. Operating in temperatures from -20 to +60 degrees Celsius, the MZ40K weighs just 595g, making it ideal for extended aerial missions requiring professional-quality imaging and reliable performance.
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 450~1500mA @ 12V |
| Working environment temp. | -20 ~ +60 |
| Output | IP(RTSP/UDP 720P/1080P 25/30fps) |
| Local-storage | SD card (Up to 256G, class 10, FAT32 or ex FAT format) |
| Control method | PWM / TTL / SBUS/ UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: 120 , Roll: 70 , Yaw/Pan: 300 / 360 *N (IP output version) |
| Controllable Range | Pitch/Tilt: -45 90 , Yaw/Pan: 290 / 360 *N (IP output version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| Camera Spec | |

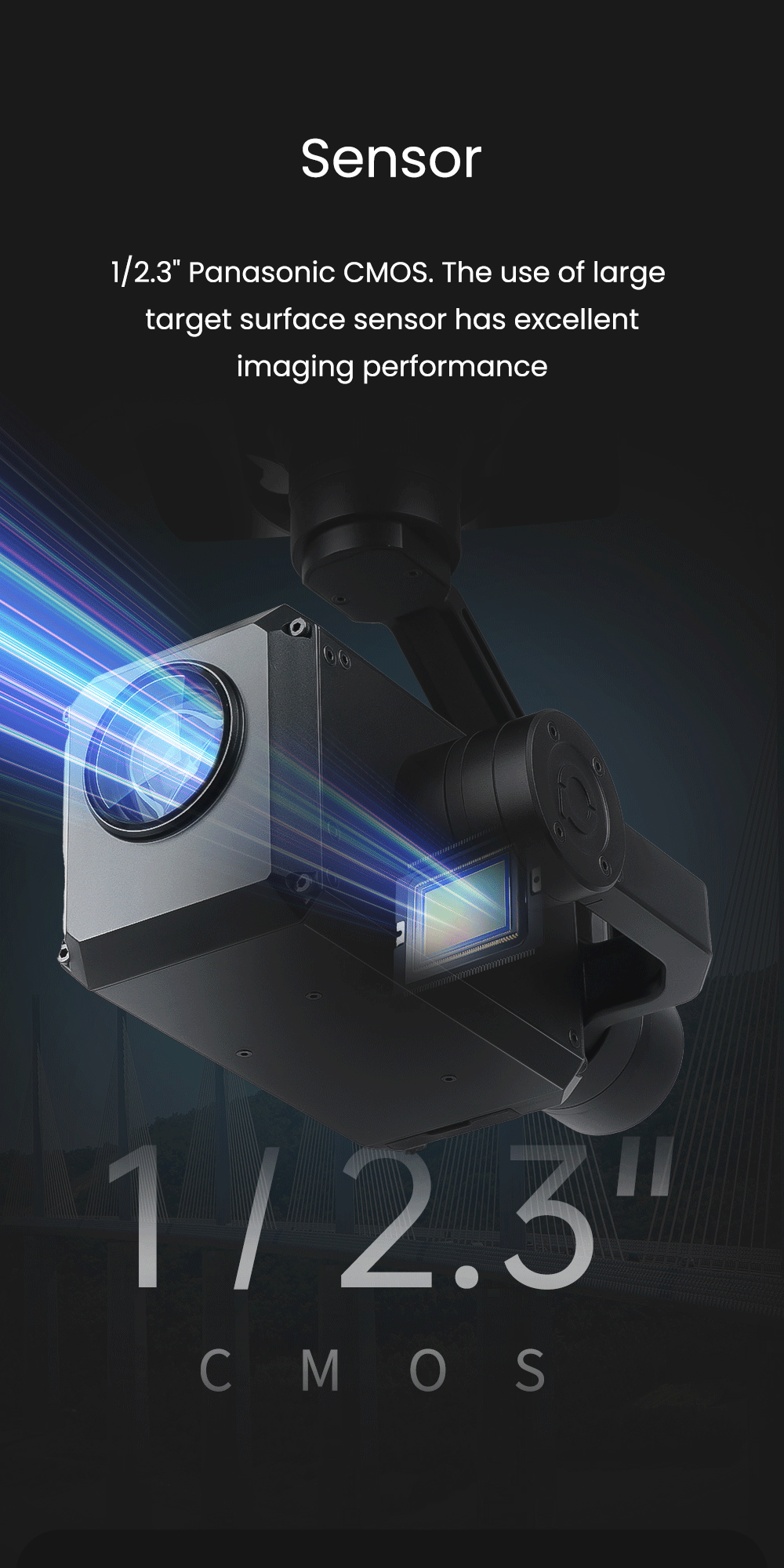

| Imager Sensor | Panasonic 1/2.3inch CMOS |
| Lens | F1.8~F3.6(f=4.08~81.6mm) |
| Zoom | Optical zoom:20x, iA zoom:25x(4k) / 40x(FHD) |
| Total pixel | 25.9MP |
| Record effective pixel | 4k:8.29MP / FHD:6.10MP(16:9) |
| Picture effective pixel | 25.9MP(16:9) 6784*3816 |
| Optical Image Stabilization | 5 axis Optical Image Stabilization |
| Video storage format | MPEG-4 (4k:3840*2160 25/30fps FHD:1080P 50/60fps) |
| Record shutter speed(Manual) | 1/30 ~ 1/8000 |
| Photo storage format | JPG(4K:20.4M FHD:14M) |
| Picture shutter speed(Manual) | 1/2 ~ 1/2000 |
| Dynamic range | 65dB |
| Min object distance | 1.5M |
| Viewing angle | Horizontal: 62.95 (Wide end) ~ 3.45 (Tele end) |
| Vertical: 38.00 (wide end) ~ 1.94 (tele end) | |
| Sync system | Progressive scanning |
| Local video | 1080P 30fps local TF card |
| HD output | 1080P 50/60fps HDMI1.4 |
| S/N ratio | 38dB |
| Min illumination | Color 0.05lux@F1.6 |
| Backlight compensation | Backlight compensation/strong light inhibition |
| Gain | Auto |
| White balance | Auto/Manual |
| Focus | Auto/Manual/One-time automatic focus |
| Focus speed | 2s |
| Lens initialization | Built-in |
| User presetting bit | 20 sets |
| Image rotation | 180 , Horizontal/Vertical mirror image |
| Facial recognition | |
| Packing Information | |
| N.W. | 595g / 681g (With Viewport) |
| Product meas. | 153*95.3*166.4mm / 153*95.3*172.1mm (Viewport version) |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion |
| G.W. | 1820g |
| Package meas. | 300*250*200mm |
