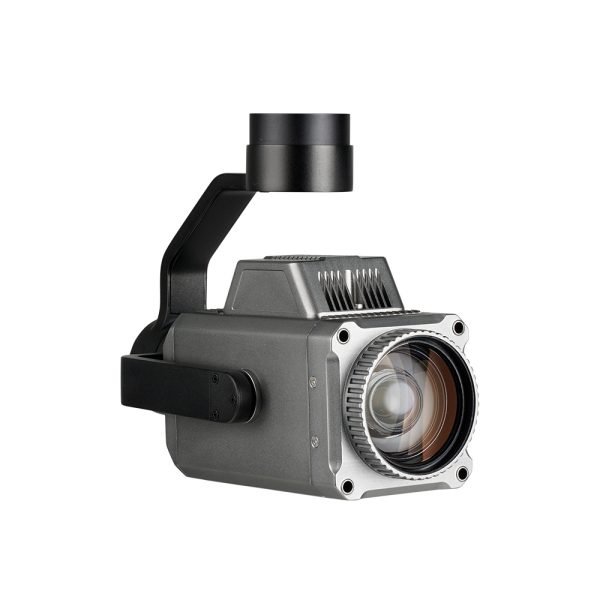

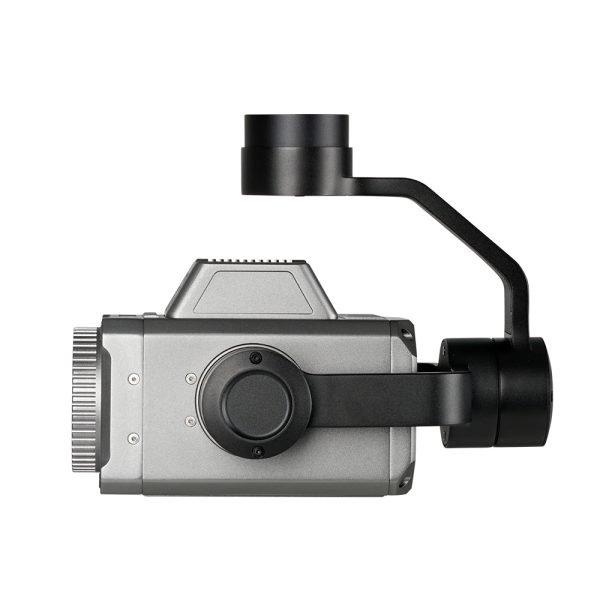

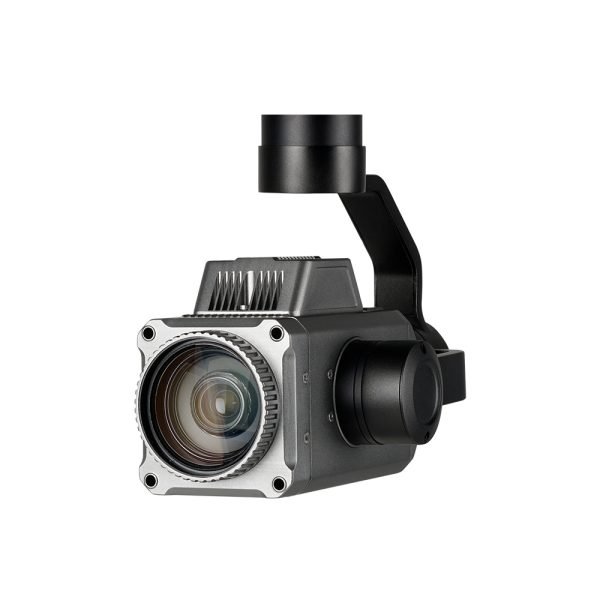

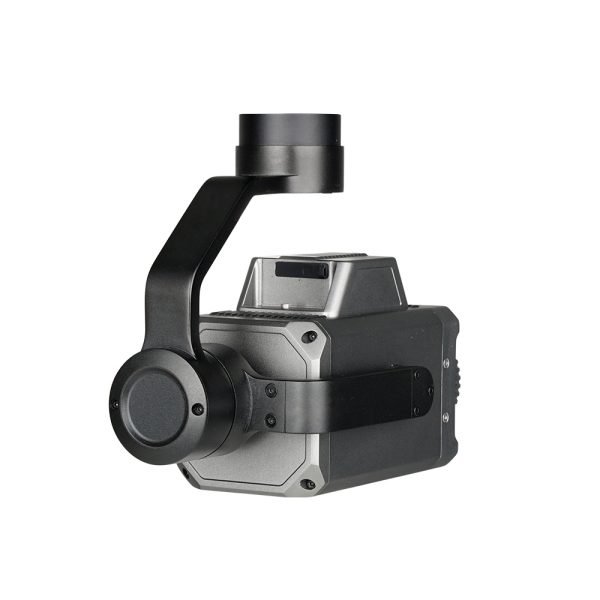

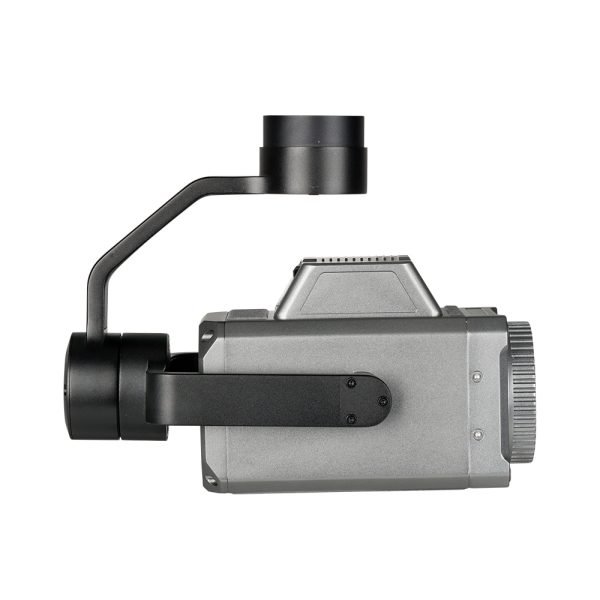

MZ36T Cube Optimized 36times Zoom Camera Gimbal Professional 3-axis High-precise FOC Program tracking camera
China Moneypro
The MZ36T Cube Optimized is a professional 3-axis camera gimbal featuring 36x optical zoom and advanced tracking capabilities. Equipped with a Sony IMX385 CMOS sensor delivering full HD 1080p resolution, it offers exceptional low-light performance down to 0.001 lux. The high-precision FOC program enables automatic object tracking with 50Hz update rates and minimal latency. Its robust 3-axis stabilization system provides pitch, tilt, and pan control with vibration angles as low as 0.02 degrees. Supporting multiple output formats including HDMI, IP streaming, and SDI, plus SD card storage up to 512GB, this gimbal is ideal for surveillance, broadcasting, and professional video production requiring superior zoom range and tracking accuracy.
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 580~1150mA @ 16V |
| Working environment temp. | -20 ~ +60 |
| Output | micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / SDI (1080P 30fps) |
| Local-storage | SD card (Up to 512G,class 10, FAT32 format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |

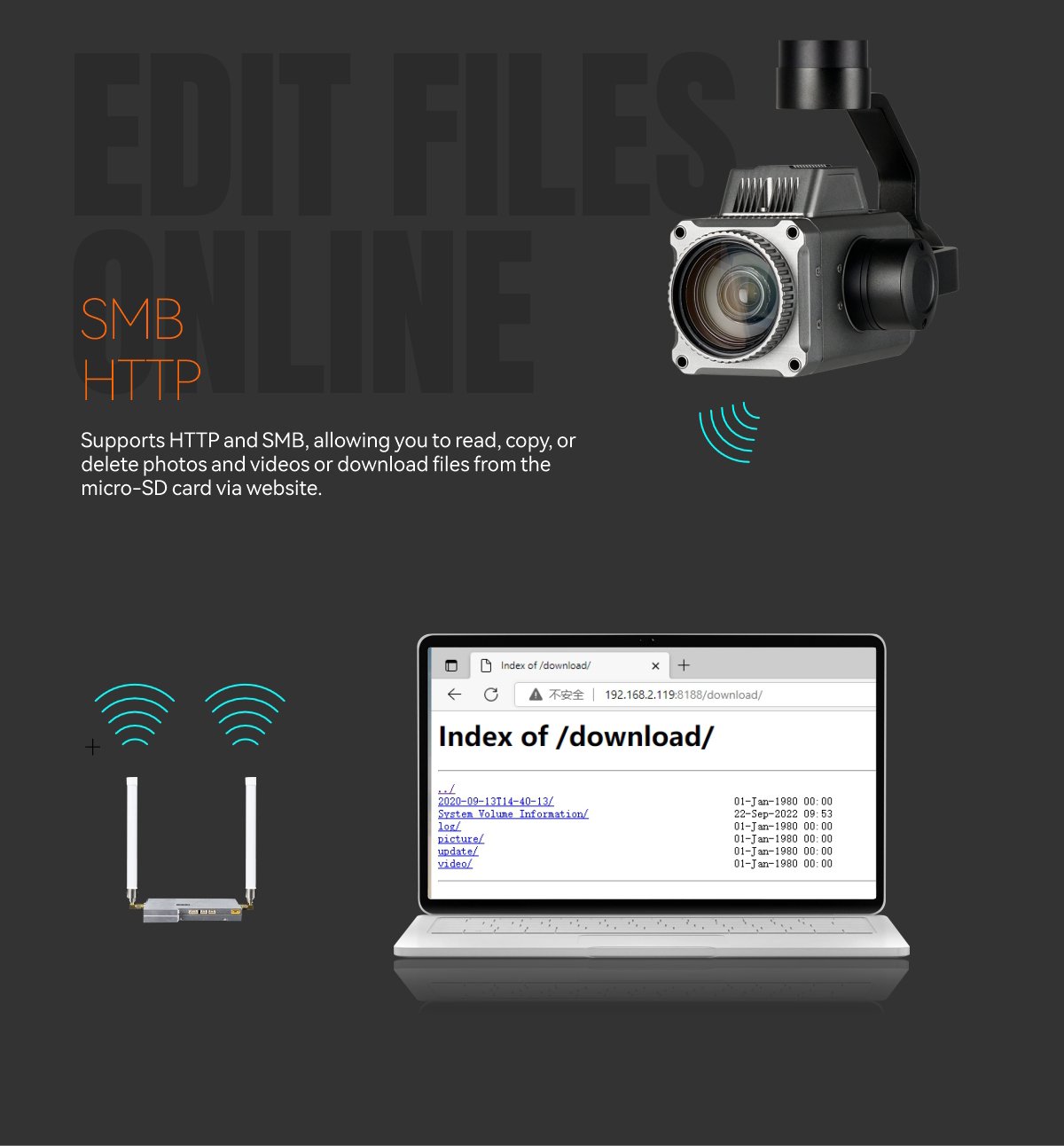

| Card reading online | SMB read / HTTP read |

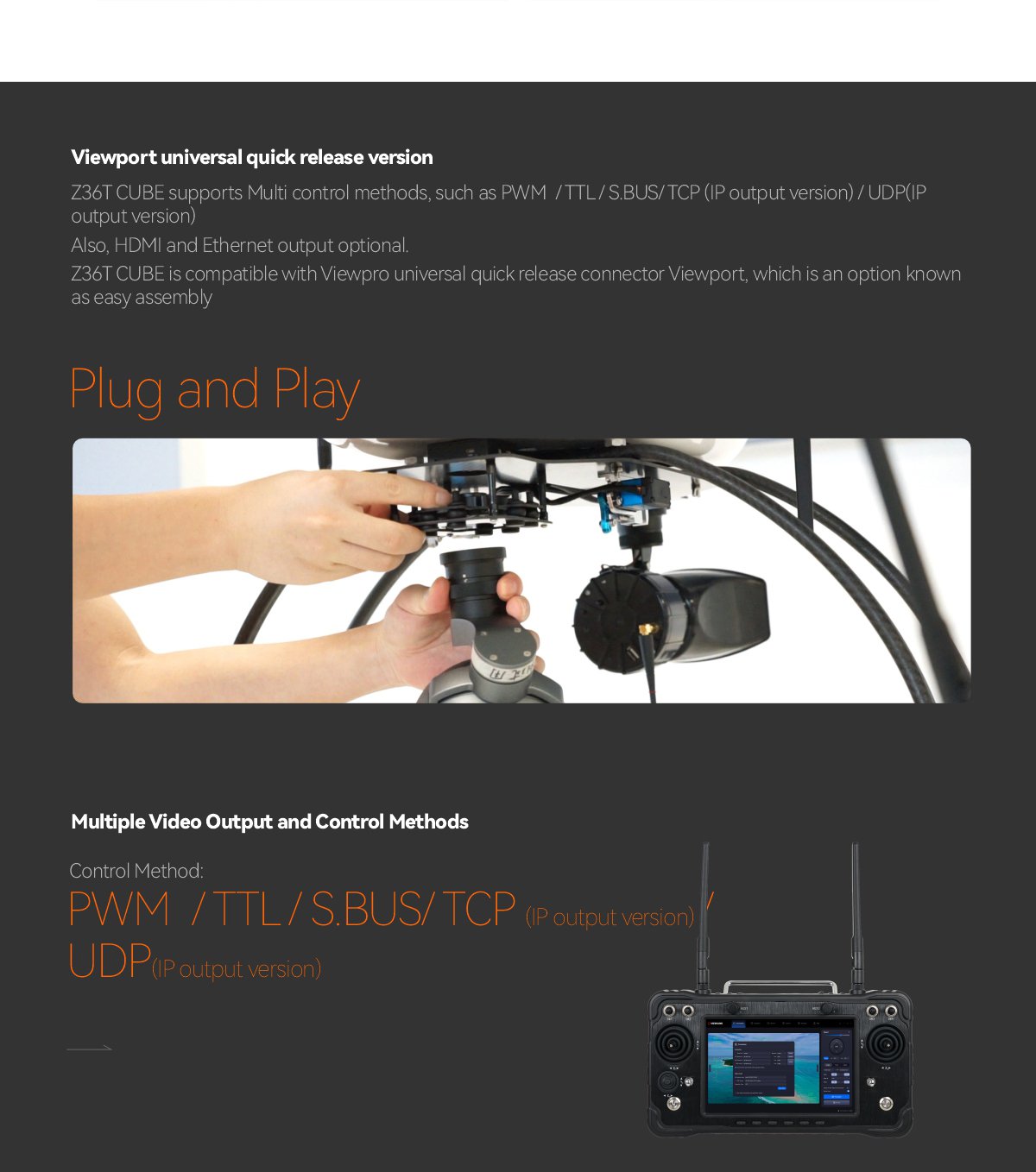

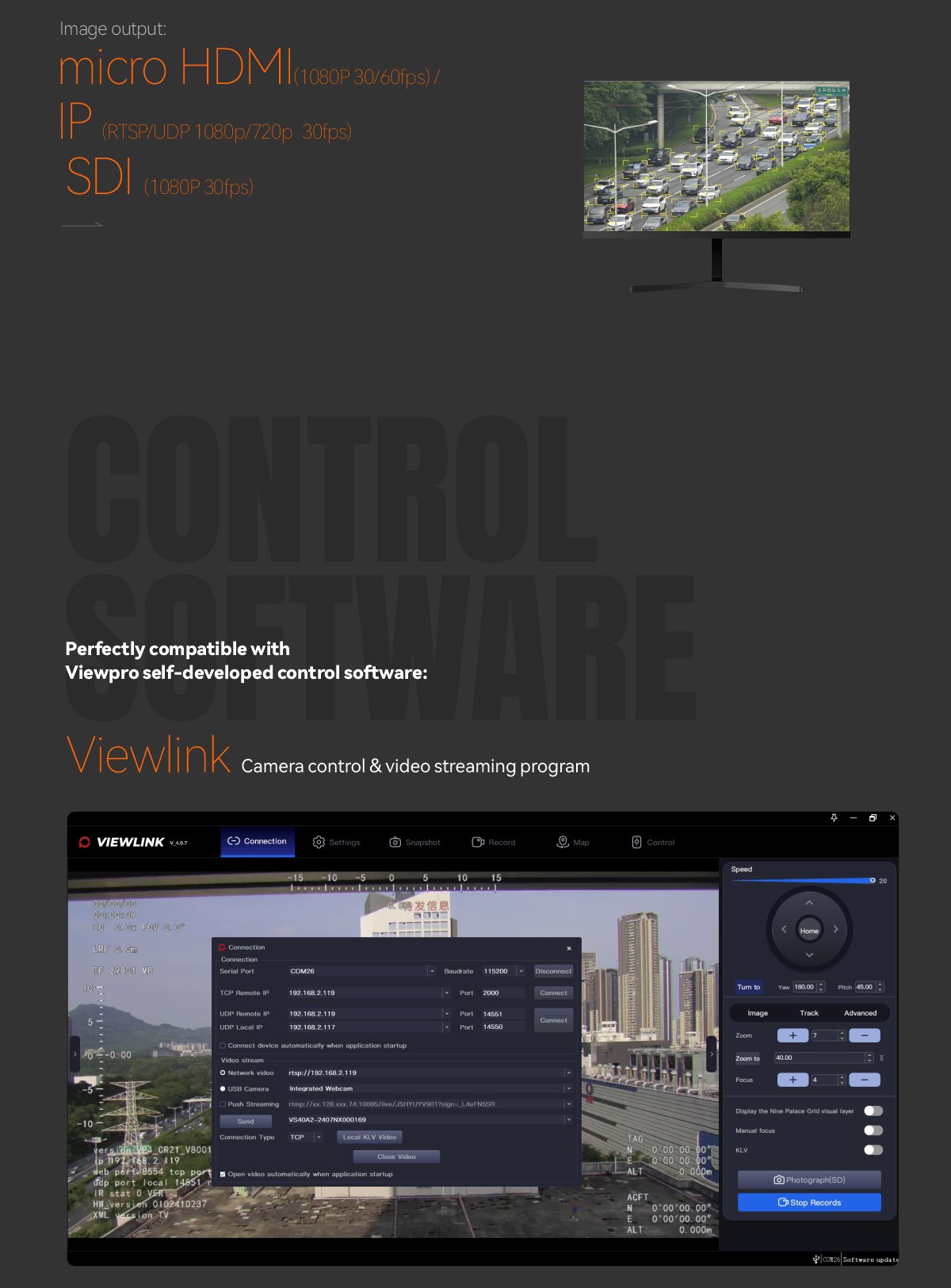

| Control method | PWM / TTL / S.BUS/ TCP (IP output version) / UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: 120 , Roll: 70 , Yaw/Pan: 300 / 360 *N (IP output version) |
| Controllable Range | Pitch/Tilt: -45 115 , Yaw/Pan: 290 / 360 *N (IP output version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| Camera Spec | |
| Imager Sensor | 1/2 Sony IMX385LQR-C CMOS Sensor |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13M pixels |

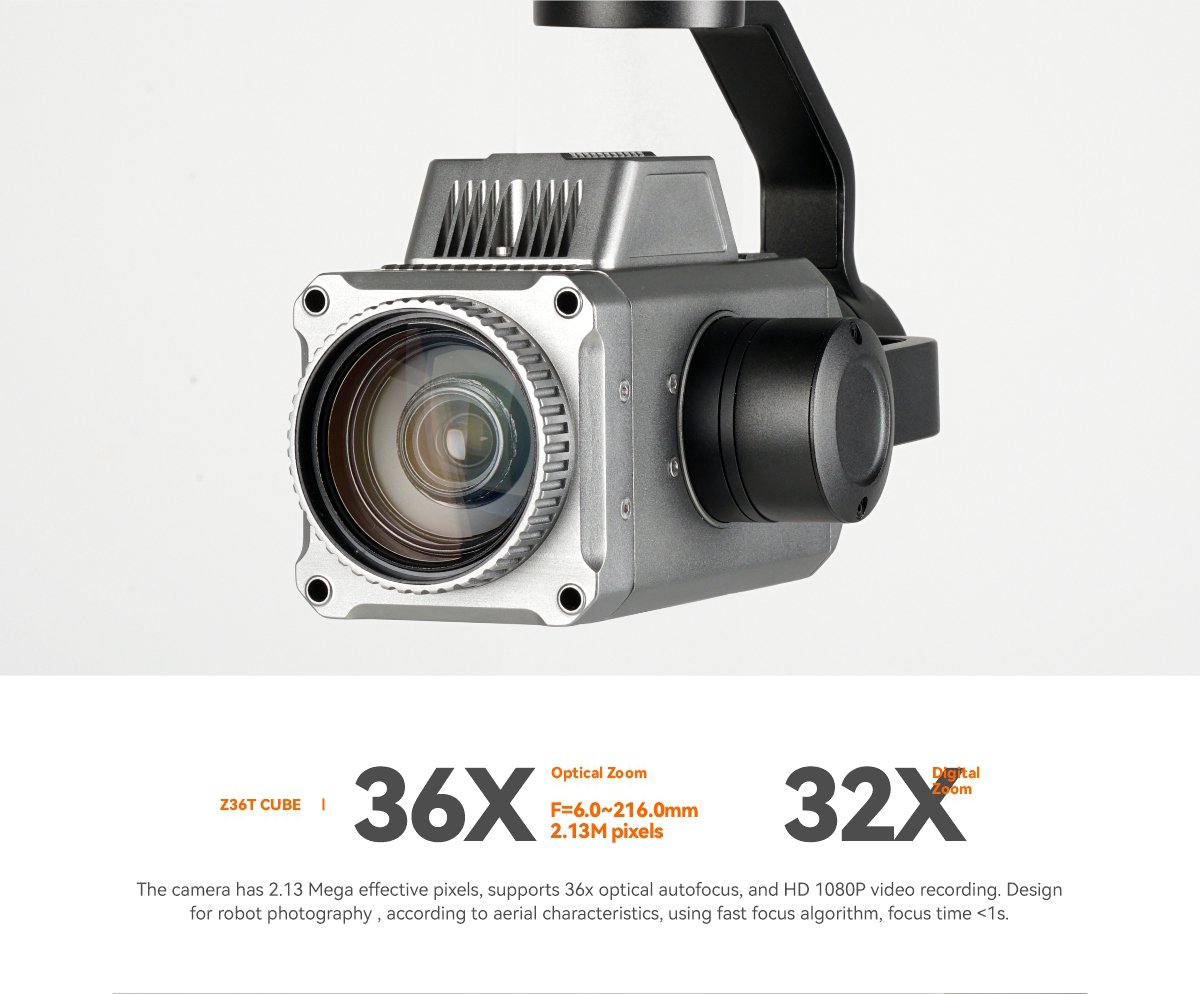

| Lens optical zoom | 36x, F= 6.0mm ~ 216.0mm |
| Digital zoom | Digital x32 Zoom |
| Angle of View (D, H, V) | Wide: 63.31 56.5 33.63 |
| Tele: 2.44 2.12 1.19 | |
| Sync system | Progressive scanning |
| S/N ratio | more than 50dB (AGC off) |

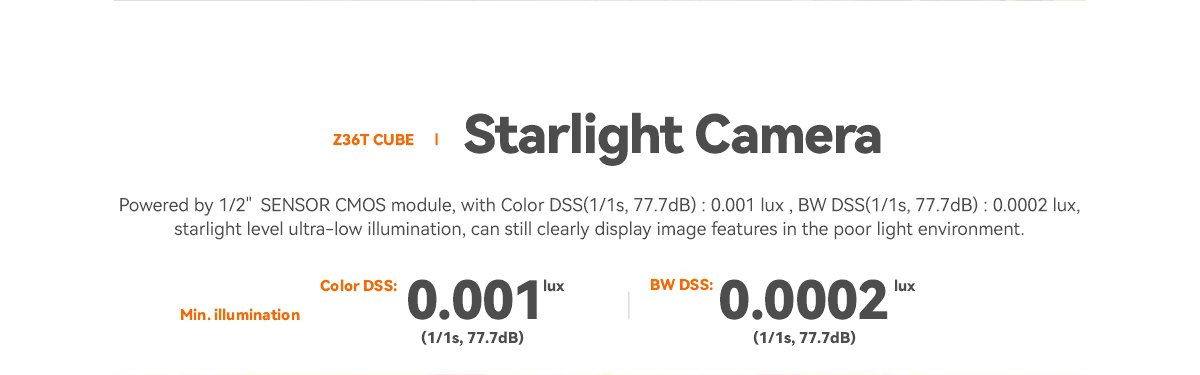

| Min. illumination (50%) | Color(1/30s, 77.7dB) : 0.01 lux , BW(1/30s, 77.7dB) : 0.002lux |
| Color DSS(1/1s, 77.7dB) : 0.001 lux , BW DSS(1/1s, 77.7dB) : 0.0002 lux | |
| Gain | Auto |
| White balance | Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext |
| Shutter speed | 1/30(25) ~ 1/60,000 sec |
| Brightness | 0 ~ 20 steps |
| Aperture control | 0 ~ 20 steps |
| Defog | Yes |

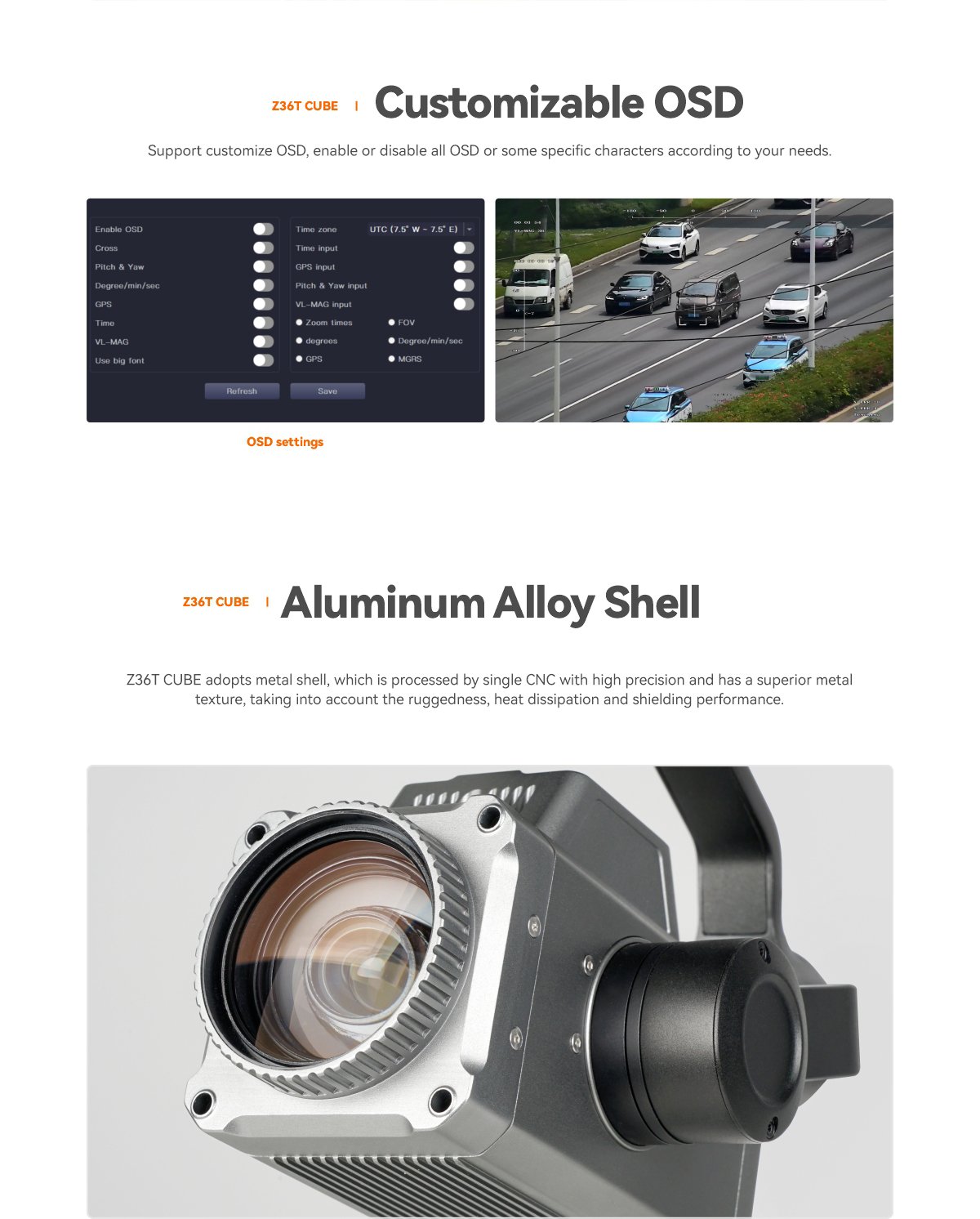

| OSD | Yes |

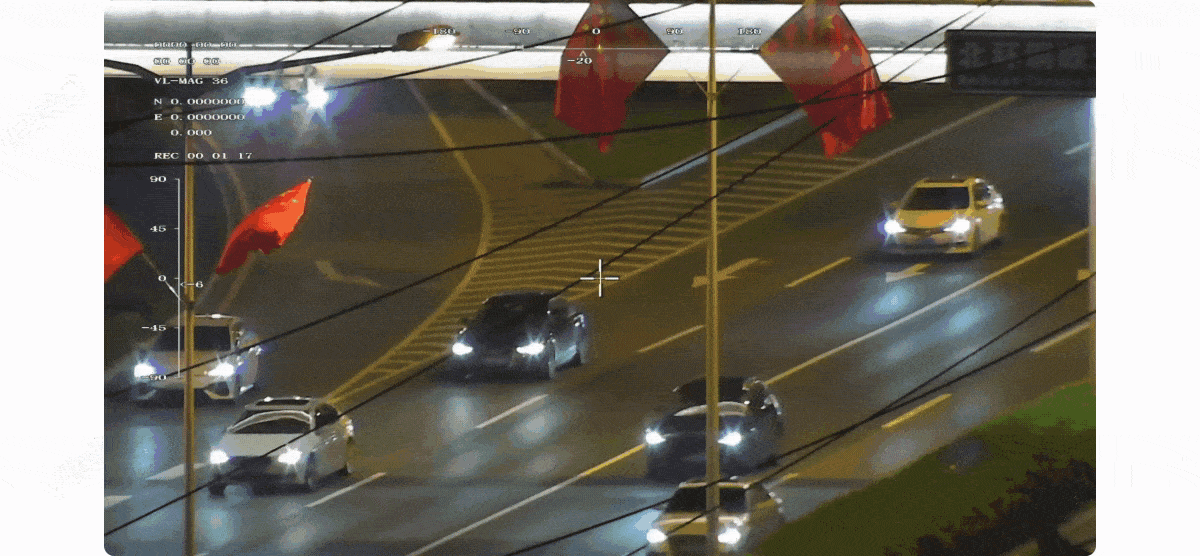

| Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 930g / 992g(Viewport Version) |

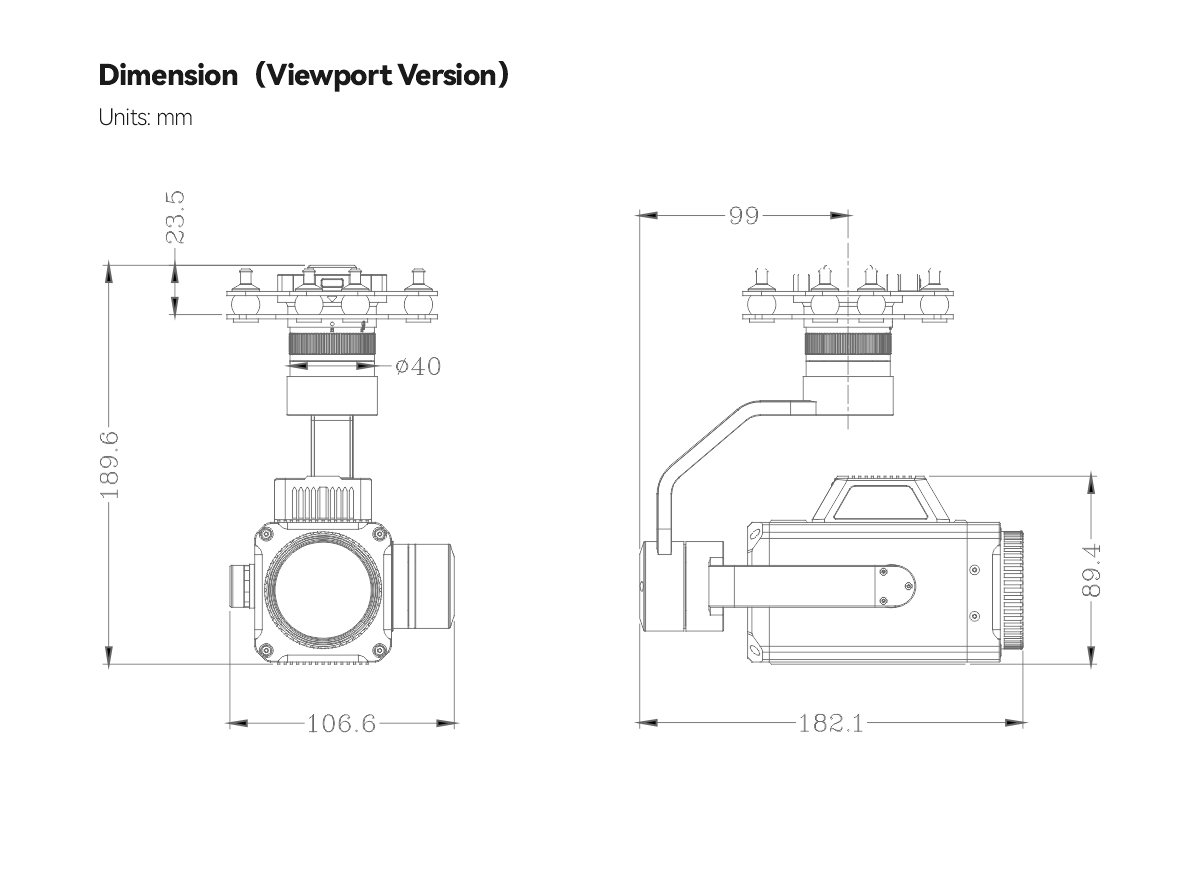

| Product meas. | 106.8*182.1*194.6mm |

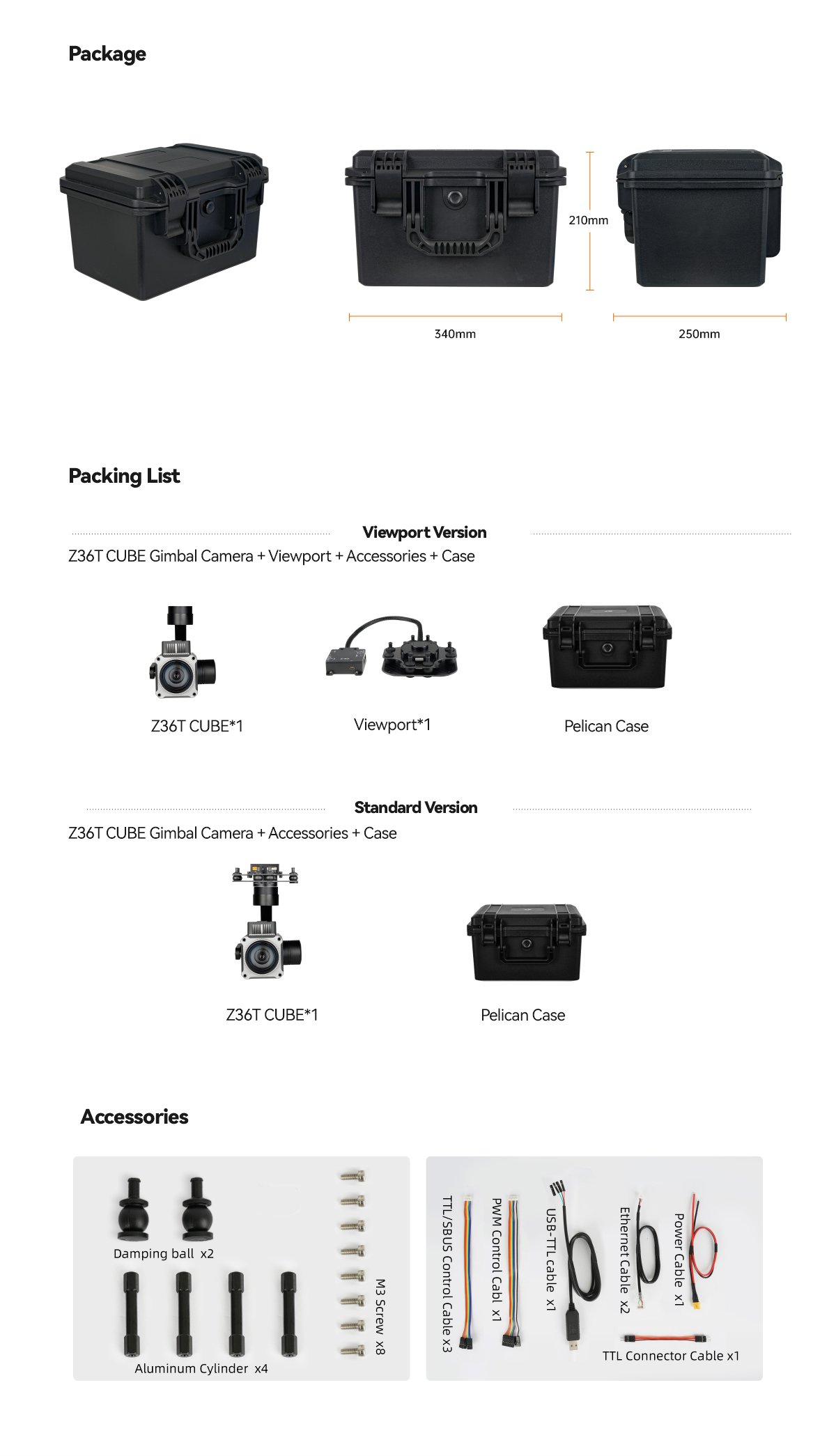

| Accessories | 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with foam cushion |
| G.W. | 3112g |
| Package meas. | 360*300*250mm |
