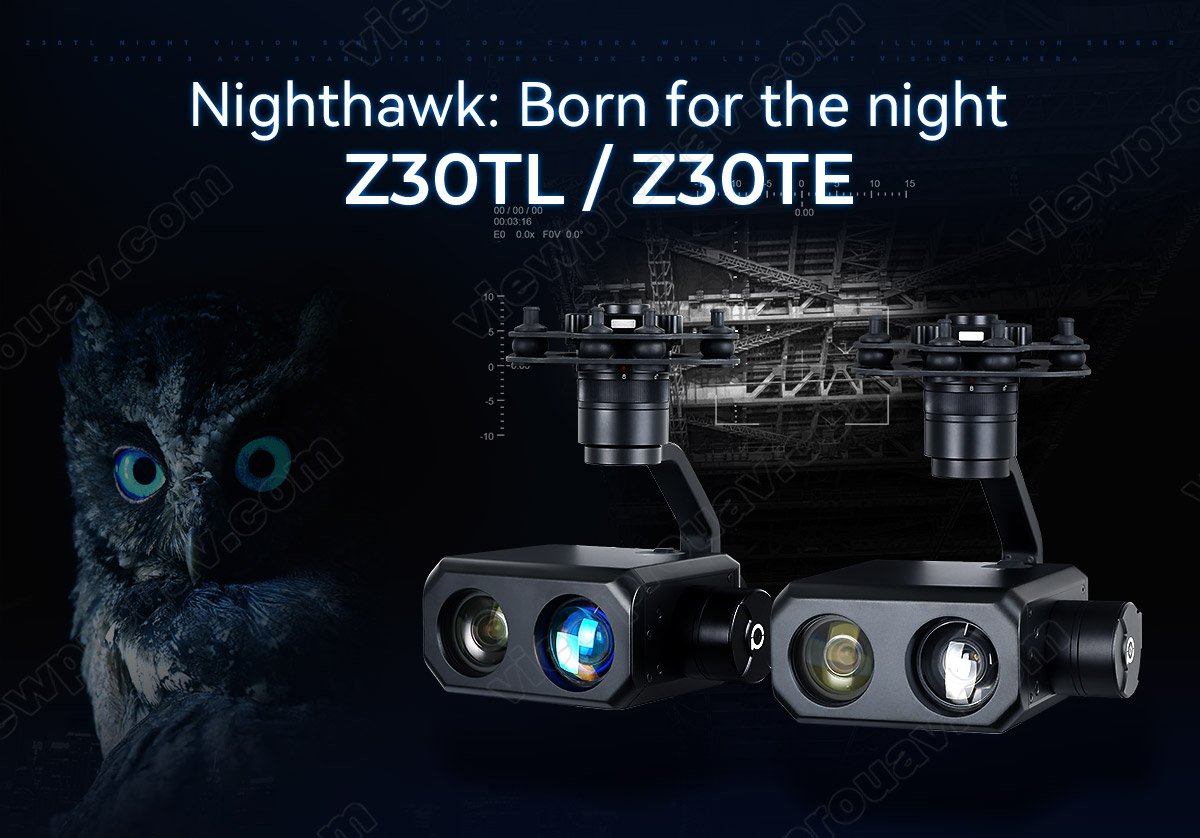

MZ30TL /Z30TE Night vision SONY 30x Zoom camera with IR laser Illumination sensor
China Moneypro

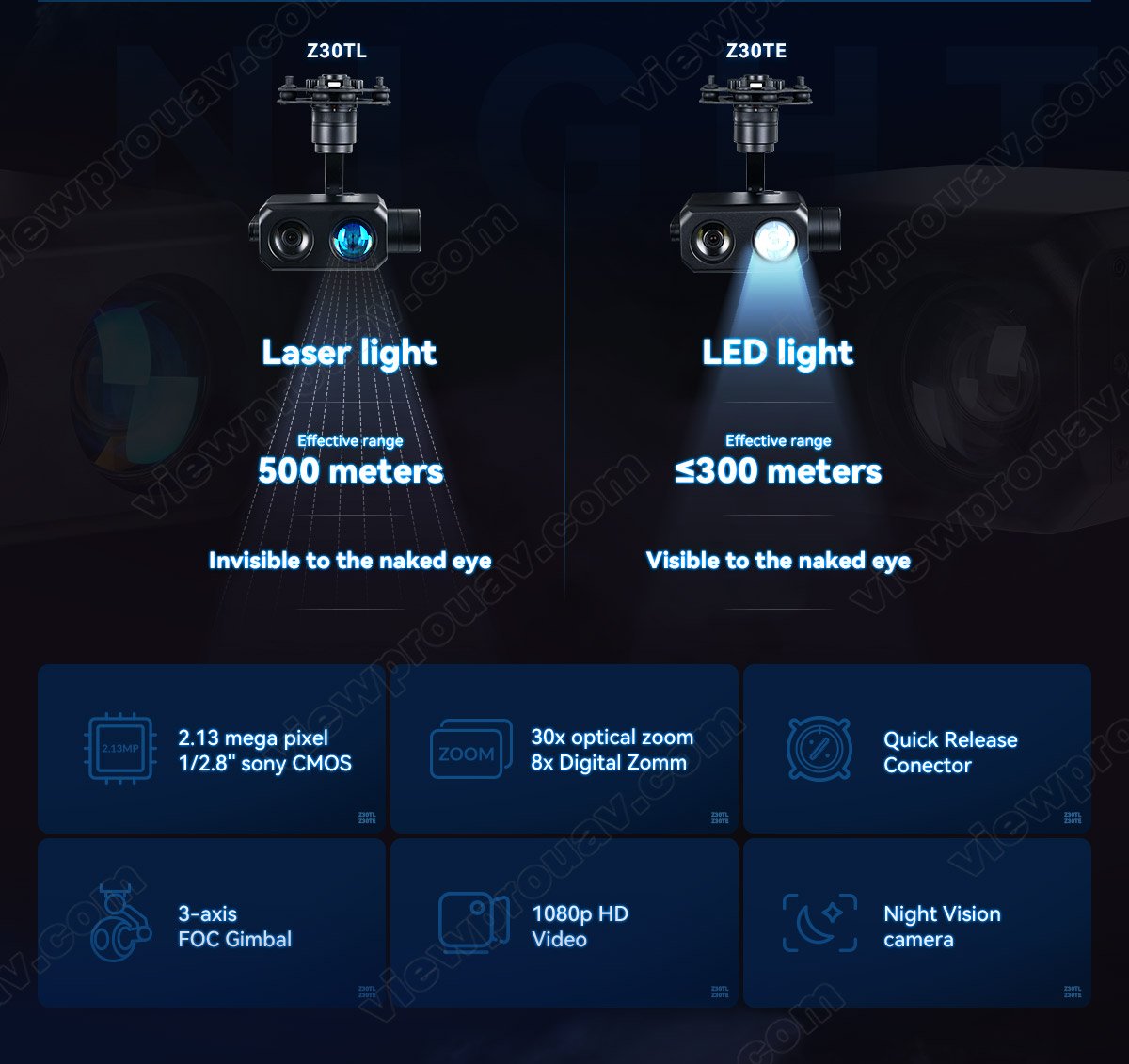

MZ30TL/Z30TE is a high-precision 3-axis gimbal integrated with a SONY 30x optical zoom Starlight camera, target tracking, IR Laser Illumination/LED Spotlight Illuminaion. It supports visible optical zoom, photographing and video, target tracking, Laser night vision.
| Hardware Parameter | |
| Model No. | Z30TL |
| Working voltage | 12V |
| Input voltage | 3S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 800~2000mA @ 12V |
| Idle current | 800mA @ 12V |
| Working environment temp. | -20 ~ +60 |
| Output | micro HDMI(1080P 60fps) / IP (720p/1080p 25fps/30fps) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P/720P 25fps/30fps) |

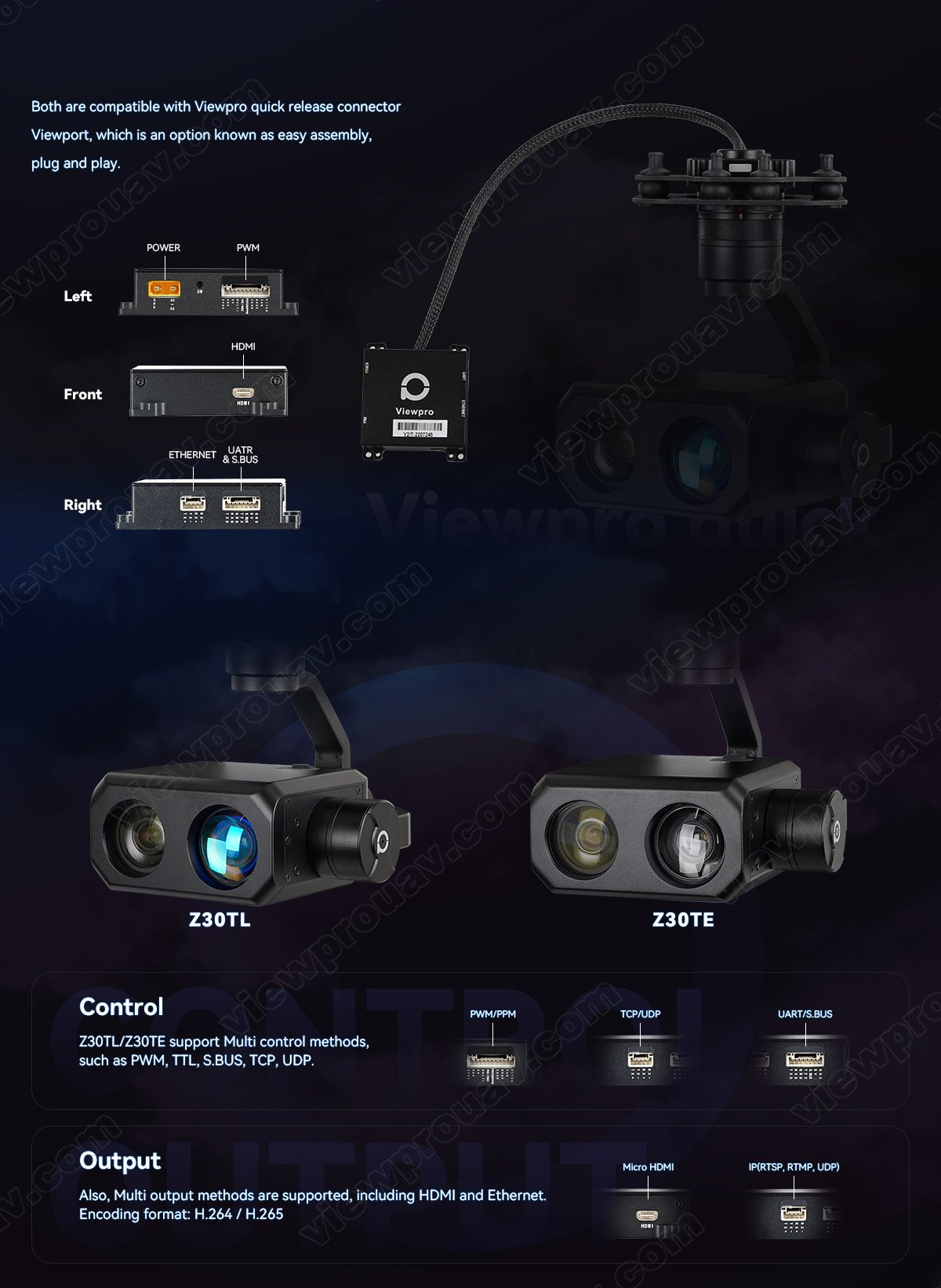

| Control method | PWM / TTL / S.BUS/ TCP(IP output version) |

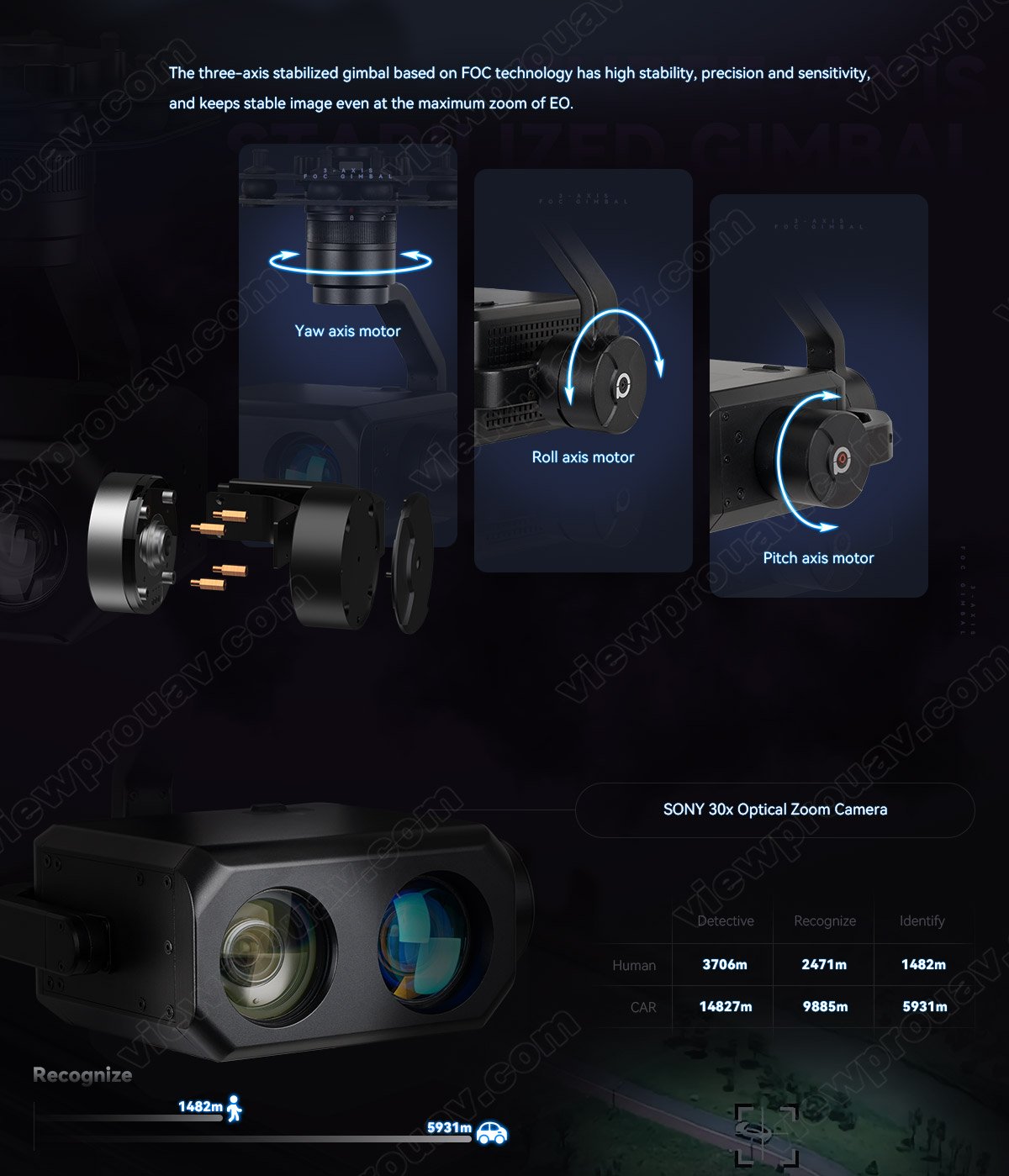

| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -50 110 , Roll: 50 , Yaw/Pan: 300 / 360 *N (IP output version) |
| Controllable Range | Pitch/Tilt: -45 90 , Yaw/Pan: 290 / 360 *N (IP output version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| Camera Spec | |
| Imager Sensor | SONY 1/2.8 Exmor R CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7 (wide end) ~ 2.3 (tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.01lux@F1.6 |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |

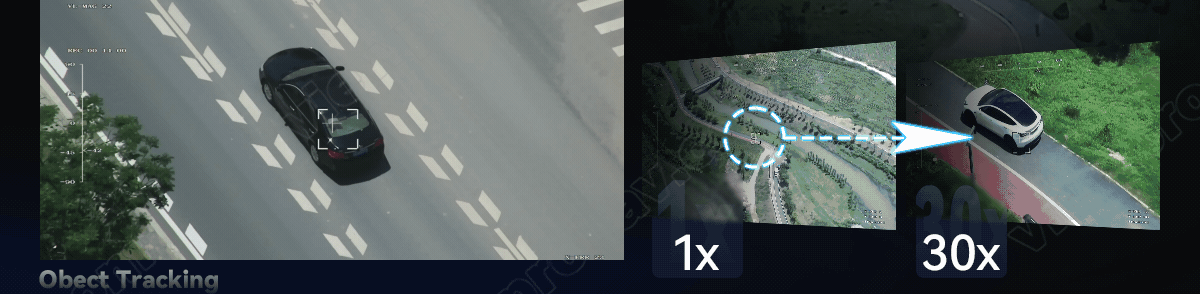

| EO Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 32 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Laser Light Supplement | |
| Effective range | 500 meters |
| Light wave length | 850 10nm |
| Illumination angle | power zoom synchronously, 70 ~2.0 adjustable |
| Zoom time | 3s (wide end C tele end) |
| Power consumption of laser chipset | 2 0.3W |
| Illumination angle | Tele end 2.0 : effective range 500 meters, spot diameter 18 meters Wide end 70 : effective range 50 meters |
| Working voltage | DC12V 10% |
| Power consumption in total | < 11W |
| Packing Information | |
| N.W. | 778g(Viewport version) |
| Product meas. | 141.9*153.7*158mm / 141.9*153.7*163.4mm(Viewport version) |
| Accessories | 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with foam cushion |
| Package meas. | 360*300*250mm |
