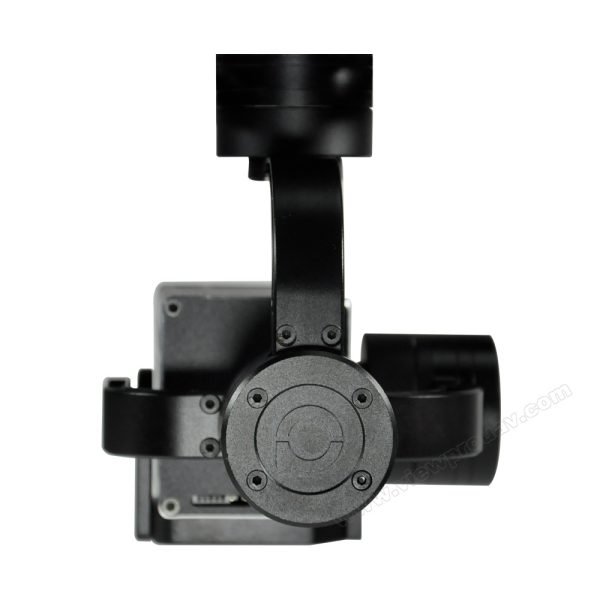

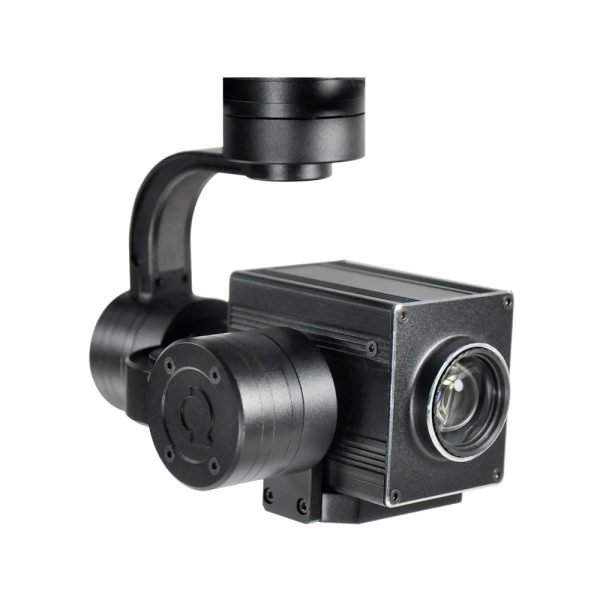

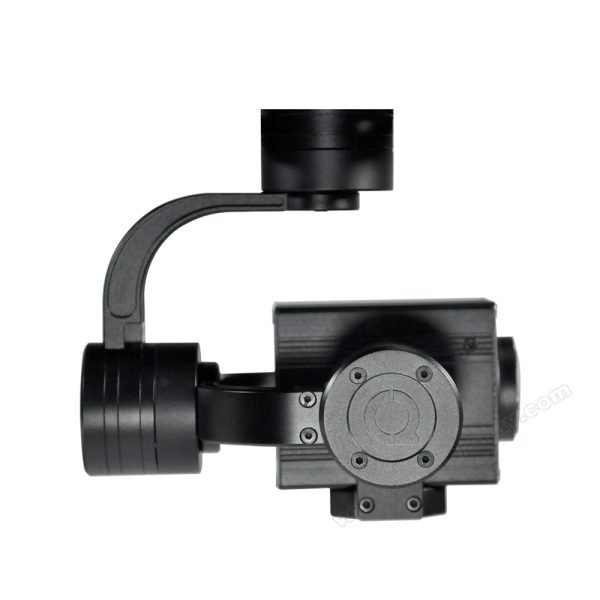

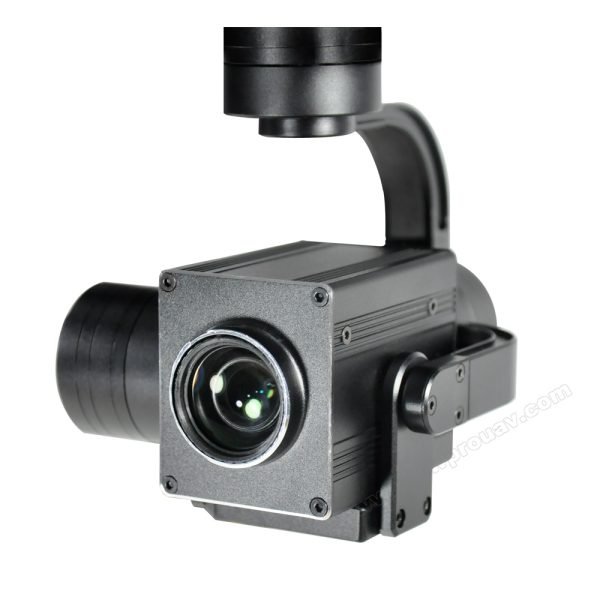

MZ10F 10x Optical Zoom Gimbal Camera
China Moneypro
The MZ10F 10x Optical Zoom Gimbal Camera is a professional drone-mounted system designed for aerial inspection, surveillance, and search and rescue missions. Featuring a 3-axis stabilized gimbal with a high-precision HD camera, it delivers crystal-clear 1080p 30fps video recording to onboard SD cards. The powerful 10x optical zoom lens allows operators to maintain safe distances while capturing detailed close-ups of targets. With a 1/3-inch CMOS sensor, 4-megapixel resolution, and exceptional low-light performance at 0.05lux, the camera excels in challenging conditions. The gimbal offers impressive motion ranges with 90-degree pitch, 45-degree roll, and 150-degree yaw capabilities, ensuring smooth, stable footage. Multiple output options including HDMI and analog connections provide flexibility for various applications. Controlled via PWM or TTL protocols, this compact 395g system operates reliably in temperatures from -20 to +50 degrees Celsius, making it ideal for professional aerial operations requiring precision imaging and extended coverage capabilities.

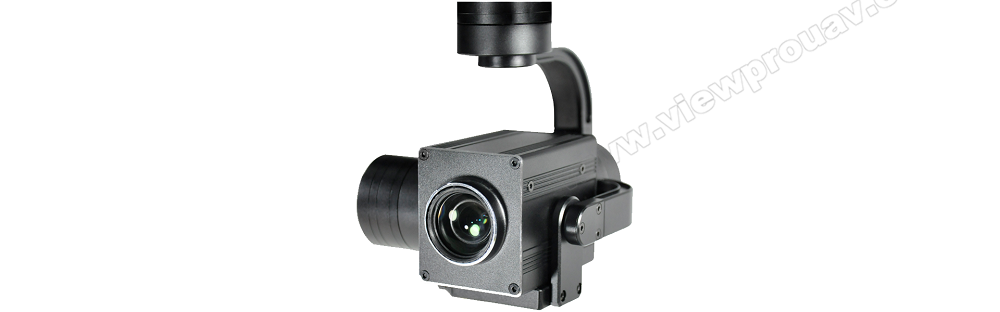

Professional 3-axis High-precise FOC Program

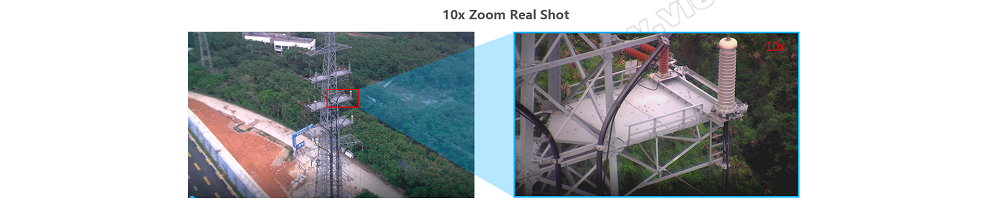

The Z10F is a high-performance gimbal system specifically engineered for 10X zoom cameras used in drone-based aerial inspection, surveillance, and search and rescue operations. Featuring an HD 10X optical zoom camera integrated with a 3-axis ultra-stable gimbal, the device captures and records 1080p video at 30 frames per second directly onto an onboard TF card. This setup delivers a steady aerial perspective, manageable either by the drone pilot or a separate operator, enabling efficient wide-area coverage from above. The powerful 10X zoom capability allows you to maintain a safe distance while getting a close-up view of any subject requiring detailed attention.
10x Optical Zoom Camera

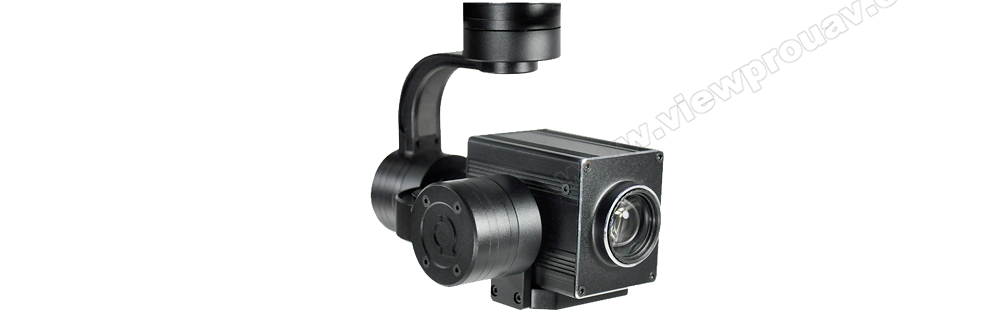

The Z10F gimbal and camera system is equipped with a 10x optical zoom lens, utilizing a 1/3-inch CMOS sensor that delivers approximately 4 million effective pixels. With an ultra-low illumination rating of Color 0.05lux@F1.6, it maintains clear image detail even in low-light environments. The camera also features a 105dB wide dynamic range, enabling simultaneous capture of details in both overly bright and overly dark areas, even under backlight or strong lighting conditions. Supporting 4 effective megapixels, the Z10F offers 10x optical autofocus and records HD 1080P video. Engineered specifically for UAV aerial photography, it adopts a fast-focus algorithm tailored to aerial imaging needs, achieving a focus time of less than 1 second.
Multi Output Methods Optional
| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 3S ~ 4S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 320mA @ 12V |
| Idle current | 240mA @ 12V |
| Power consumption | 3.85W |
| Working environment temp. | -20 ~ +50 |
| Output | micro HDMI(HD output 1080P 60fps) / Analog |
| Local-storage | SD card (Up to 32G, class 10, FAT32 or ex FAT format) |
| Control method | PWM / TTL |
| Gimbal Spec | |
| Pitch/Tilt | 90 |
| Roll | 45 |
| Yaw/Pan | 150 |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.03 |
| One-key to center | |
| Camera Spec | |
| Imager Sensor | 1/3inch CMOS |
| Total pixel | 4MP |
| Effective pixel | 2688*1520 |
| Dynamic range | 65dB |
| Lens | 5MP |
| Optical zoom | 10x, F=4.9~49mm |
| Min object distance | 1.5M |
| Viewing angle | Horizontal: 53.2 (Wide end) ~ 5.65 (Tele end) |
| Vertical: 39.8 (wide end) ~ 4.2 (tele end) | |
| Focus: 66.6 (wide end) ~ 7.2 (tele end) | |
| Sync system | Progressive scanning |
| Local video | 1080P 30fps local TF card |
| HD output | 1080P/720/480P 60fps HDMI1.4 |
| AV output | Standard CVBS 1Vp-p |
| S/N ratio | 38dB |
| Min illumination | Color 0.05lux@F1.6 |
| Backlight compensation | Backlight compensation/strong light inhibition |
| Gain | Auto |
| White balance | Auto/Manual |
| Shutter speed | Auto |
| Control system | UART/IR/PWM |
| Communication protocol | PELCO-D, Hitachi protocol or VISCA |
| Focus | Auto/Manual/One-time automatic focus |
| Focus speed | 2s |
| Lens initialization | Built-in |
| User presetting bit | 20 sets |
| Image rotation | 180 , Horizontal/Vertical mirror image |
| OSD | Not support |
| Object Tracking(Optional) | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <15ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 160*160 pixel |
| Tracking speed | 32 pixel/frame |
| Object memory time | 4s |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 395g |
| Product meas. | 86.2*108.3*113.3mm |
| Accessories | 1pc gimbal camera device, 16pcs screws / Hight quality cardboard box with foam coushion |
| Package meas. | 86.2*108.3*113.3mm |
