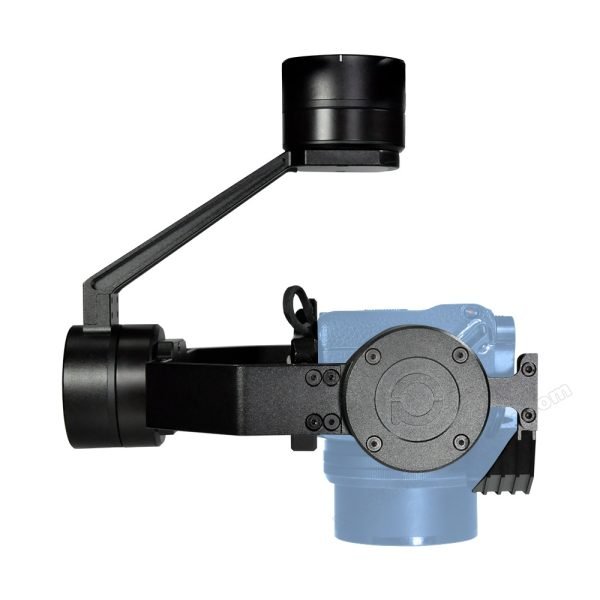

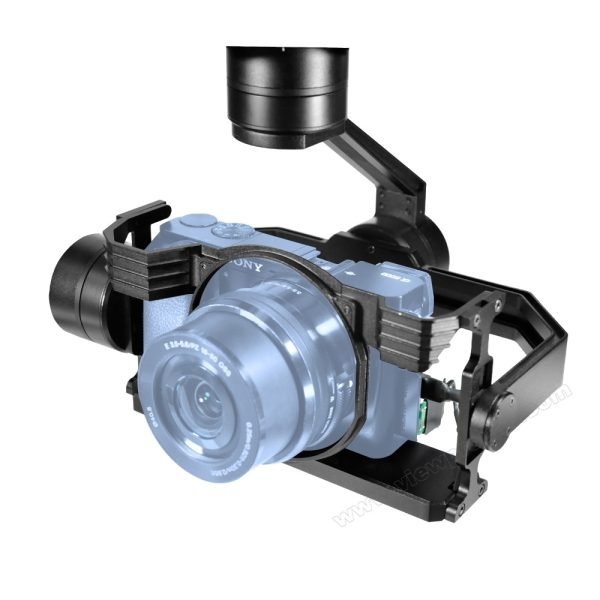

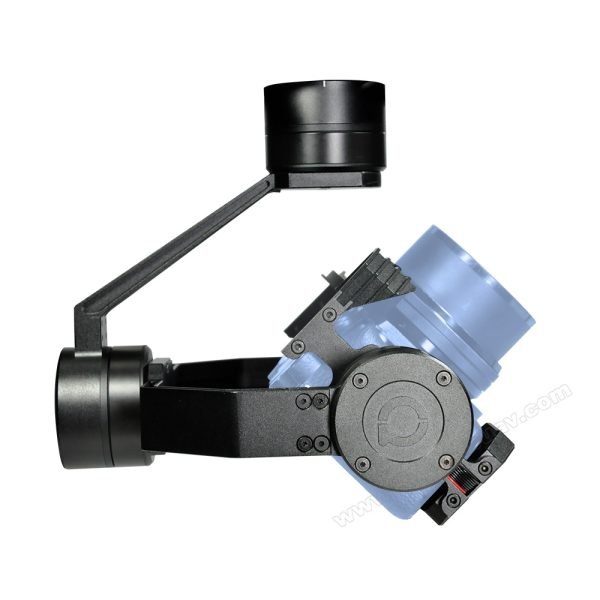

MZ-6K SONY ILCE Gimbal
China Moneypro
The MZ-6K SONY ILCE Gimbal is a precision three-axis gimbal specifically designed for SONY A6000 series mirrorless cameras. Featuring pinpoint-precision encoders on each motor and advanced FOC algorithm control, this gimbal delivers exceptional stability while maintaining a compact, lightweight design with minimal power consumption. It offers impressive motion ranges including 90-degree pitch/tilt, 85-degree roll, and 150-degree yaw capabilities. With ultra-low vibration angles and one-key centering functionality, it ensures smooth, professional-quality footage. The gimbal supports multiple control methods including PWM, TTL, and S.BUS, plus optional object tracking with 50Hz update rates and sub-15ms output delay. Operating efficiently on 3S-4S battery input with just 5.4W power consumption, it outputs 1080P 60fps HD video via micro HDMI or AV. Perfect for aerial photography and videography enthusiasts seeking reliable camera stabilization.

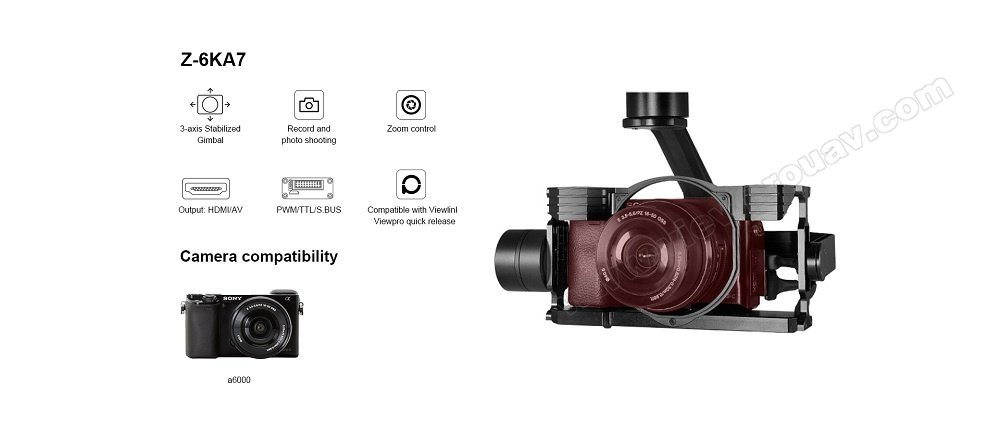

Z-6K (original name Z-6KA7) is tailored for MILC camera SONY A6000 series with a pinpoint-precision, three axis gimbal, which adopts pinpoint-precision encoder in each motor, use FOC algorithm controller, it has the advantages of high stability, small size, light weight and low power consumption.
| Hardware Parameter | |
| Working voltage | 12V ~ 16V |
| Input voltage | 3S ~ 4S |
| Dynamic current | 450mA @ 12V |
| Idle current | 300mA @ 12V |
| Power consumption | 5.4W |
| Working environment temp. | -40 ~ +60 |
| Output | micro HDMI(HD output 1080P 60fps) / AV |
| Control method | PWM / TTL / S.BUS |
| Gimbal Spec | |
| Pitch/Tilt | 90 |
| Roll | 85 |
| Yaw/Pan | 150 |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.03 |
| One-key to center | |
| Compatibility | |
| Compatible cameras | SONY Alpha 6000 camera |
| Controlling | Control camera zoom, record and photo shooting, object tracking (if applicable) |
| Object Tracking (Optional) | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <15ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 160*160 pixel |
| Tracking speed | 32 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 650g |
| Product meas. | L203*W159.4*H163.7mm |
