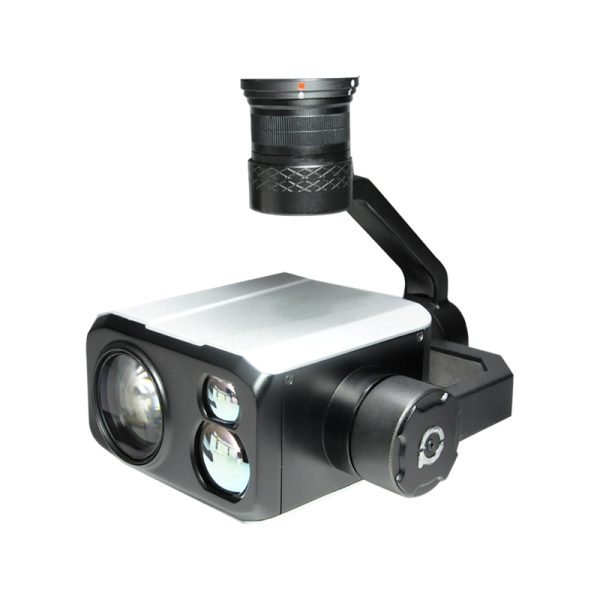

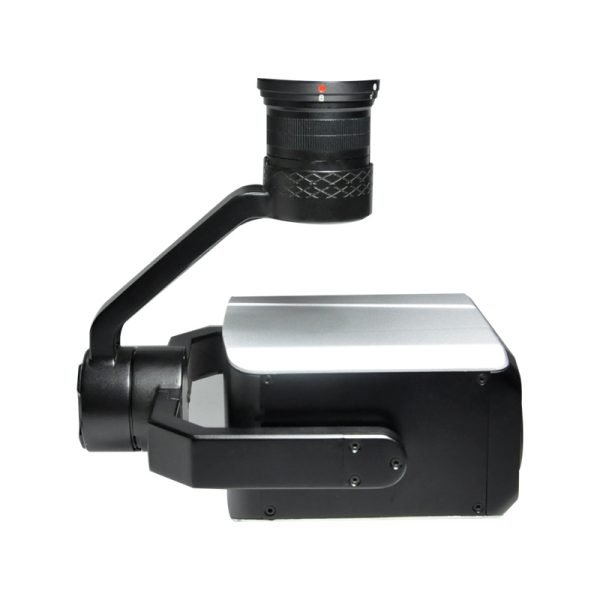

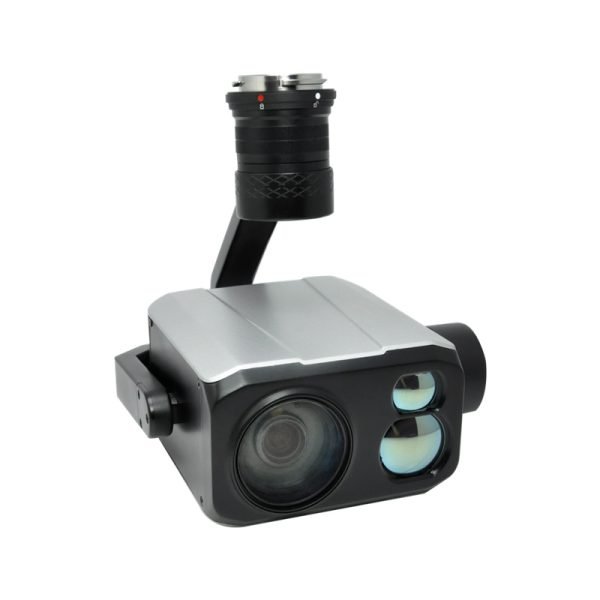

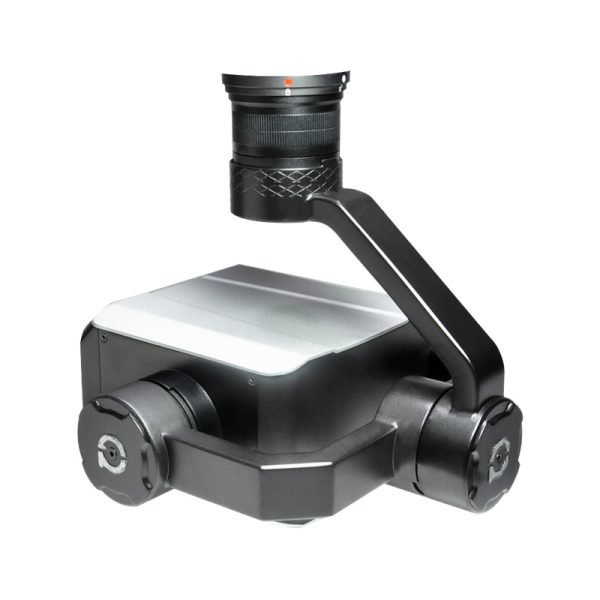

MX30TM 30x Optical Zoom Camera can be used on DJI drones M200 / M210 / M210RTK
China Moneypro

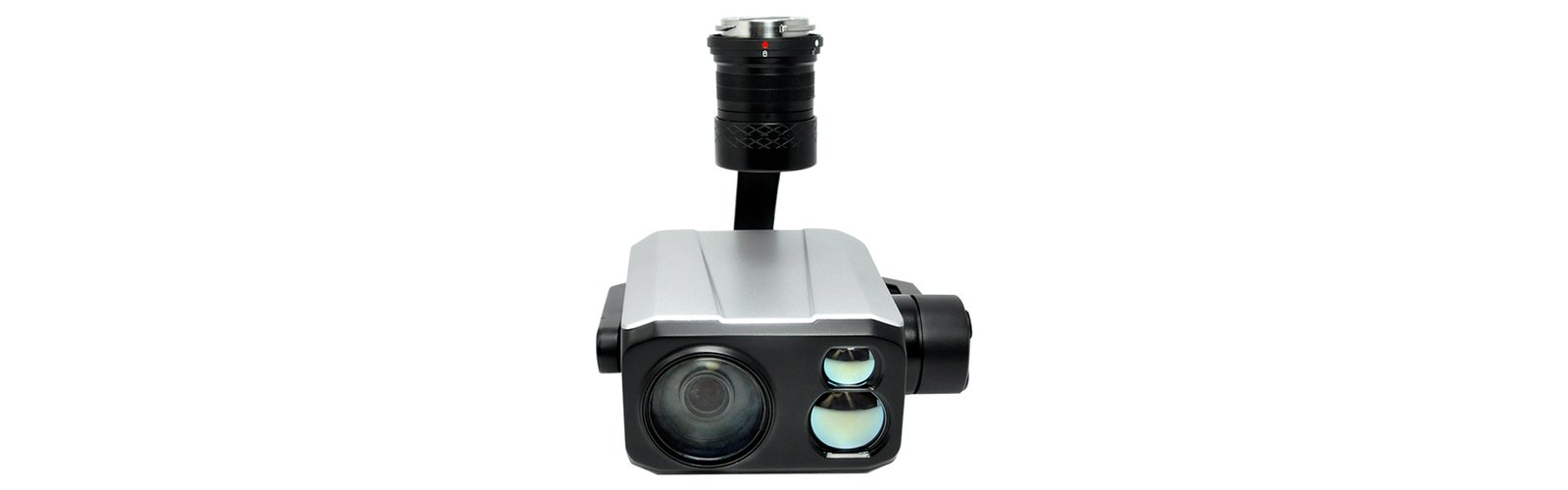

The MX30TM is a professional-grade 3-axis gimbal camera system designed for DJI M200, M210, and M210RTK drones. Featuring a powerful 30x optical zoom lens with a Sony 1/2.8 Exmor R CMOS sensor, it delivers exceptional image stability and precision. The advanced FOC motor control technology with high-precision encoders ensures pinpoint accuracy of 0.01 degrees, enabling smooth, stable footage even during high-speed flight. Key capabilities include real-time object tracking, integrated laser rangefinder measuring up to 1500 meters, and adjustable gimbal speed modes for optimal control. The one-key center function automatically returns the gimbal to its initial position. Controlled via DJI Pilot app, it offers comprehensive exposure controls, multiple white balance modes, and 360-degree rotation capability. With Full HD 1080p video recording, 12x digital zoom, and support for SD card storage up to 128GB, this professional imaging solution is ideal for surveillance, inspection, and aerial photography applications.
X30TM is a high-precision professional 3-axis gimbal which features high stability. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. It can be used on DJI drones M200 / M210 / M210RTK. Controlled by APP DJI PILOT it can meet many powerful functions, such as: photos or videos with 30 times optical zoom, object tracking, laser rangefinder. The speed of X30TM gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast mode for wide end, which makes the gimbal control sensitive and quick. The one-key to center function will allow the gimbal return to initial position automatically and rapidly. You can input a degree in APP Payload Setting and get the gimbal attitude angles exactly.

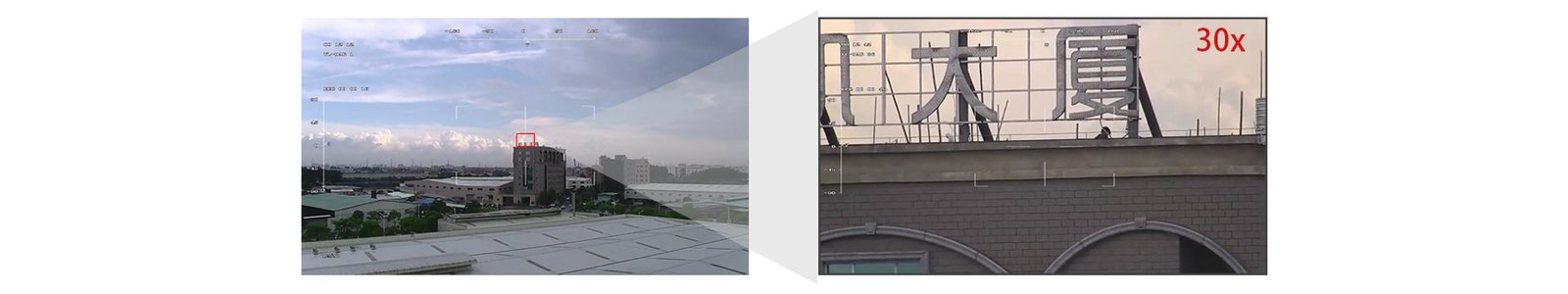

30x Optical Zoom Camera
Stabilizing the X30TM is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of 0.01 powered by a dedicated processor. 360 rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.
| Hardware Parameter | |
| Working voltage | 14V ~ 16V |
| Input voltage | 3S ~ 4S |
| Dynamic current | 450mA @ 12V |
| Idle current | 330mA @ 12V |
| Power consumption | 5.4W |
| Working environment temp. | -40 ~ +60 |
| Output | Skyport |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method | DJI Pilot |
| Gimbal Spec | |
| Pitch/Tilt | 90 |
| Roll | 85 |
| Yaw/Pan | 360 *N |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.03 |
| One-key to center | |
| Camera Spec | |
| Imager Sensor | SONY 1/2.8 Exmor R CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7 (wide end) ~ 2.3 (tele end) 720p mode: 63.7 (wide end) ~ 2.3 (tele end) SD: 47.8 (wide end) ~ 1.7 (tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.01lux@F1.6 |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| Fotoformate | JPEG |
| Videoformate | MP4 |
| Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <10ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 160*160 pixel |
| Tracking speed | 32 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Laser Rangefinder | |
| Range | 5~1500 meters |
| Resolution | 0.5m |
| Working current: | 80mA max |
| Light Beam | 905nm pulse laser |
| Divergent Angle | 3 mrad |
| Laser pulse frequency | 1HZ |
| Power | 1 mW (safe for eye) |
| Ranging mode | Pulse |
| Location Resolving | Latitude and longitude of target |
| Ranefinder | Target distance measuring |
| Packing Information | |
| N.W. | 682g |
| Product meas. | 135.5*135*120mm |
