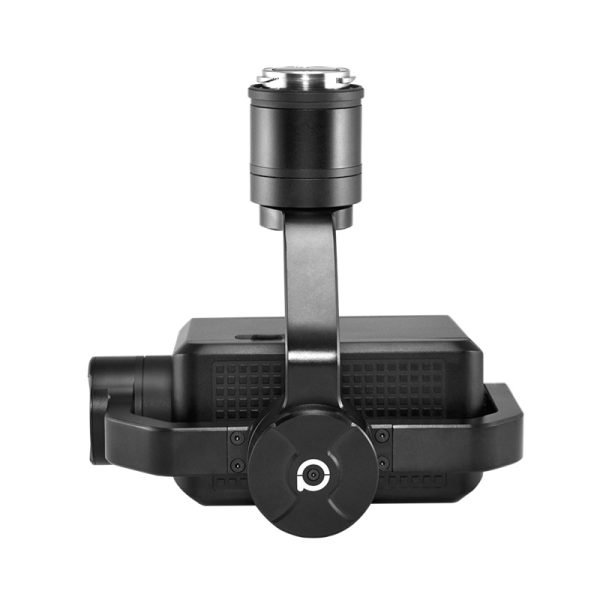

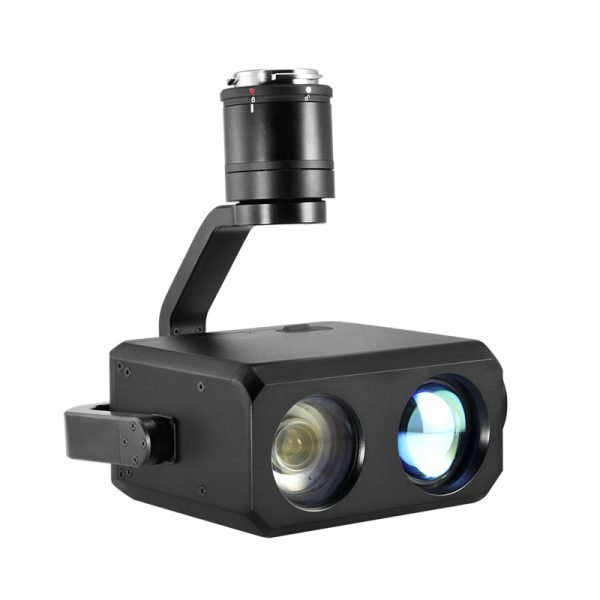

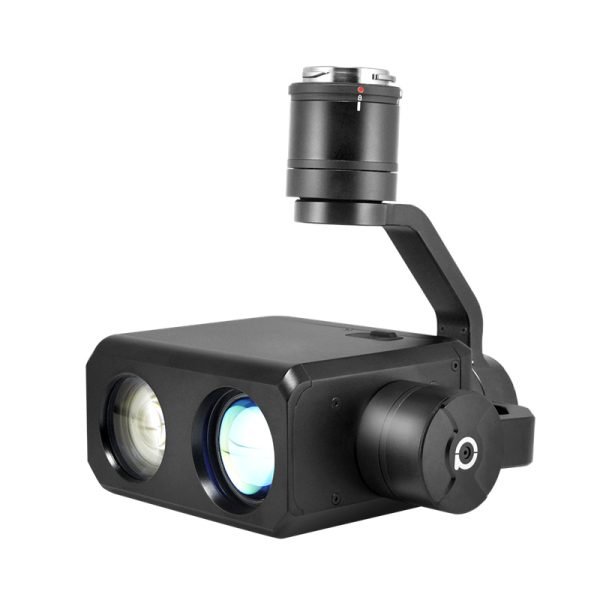

MX30TL 30x Optical Zoom Night Vision Camera
China Moneypro
The MX30TL is a professional 3-axis stabilized gimbal camera system featuring 30x optical zoom and 500-meter IR laser night vision capability. Designed for DJI M200, M210, M210RTK, and M300 RTK drones, this advanced system delivers exceptional surveillance and reconnaissance performance. The gimbal utilizes FOC motor control technology with precision encoders for superior stabilization across all three axes. The high-resolution camera captures Full HD 1080p video with a Sony 1/2.8-inch Exmor R CMOS sensor and 2.13MP effective pixels. Advanced features include intelligent object tracking, automatic exposure control, and multiple white balance modes for optimal performance in any lighting condition. The integrated IR laser illumination enables clear observation in complete darkness up to 500 meters, making it ideal for night surveillance, search operations, and engineering applications. Controlled via the DJI Pilot app, the system offers seamless integration with compatible DJI platforms. With low power consumption of just 12W and wide operating temperature range from -40 to +60 degrees Celsius, the MX30TL provides reliable performance in demanding environments. SD card storage supports up to 128GB for extended recording capabilities.

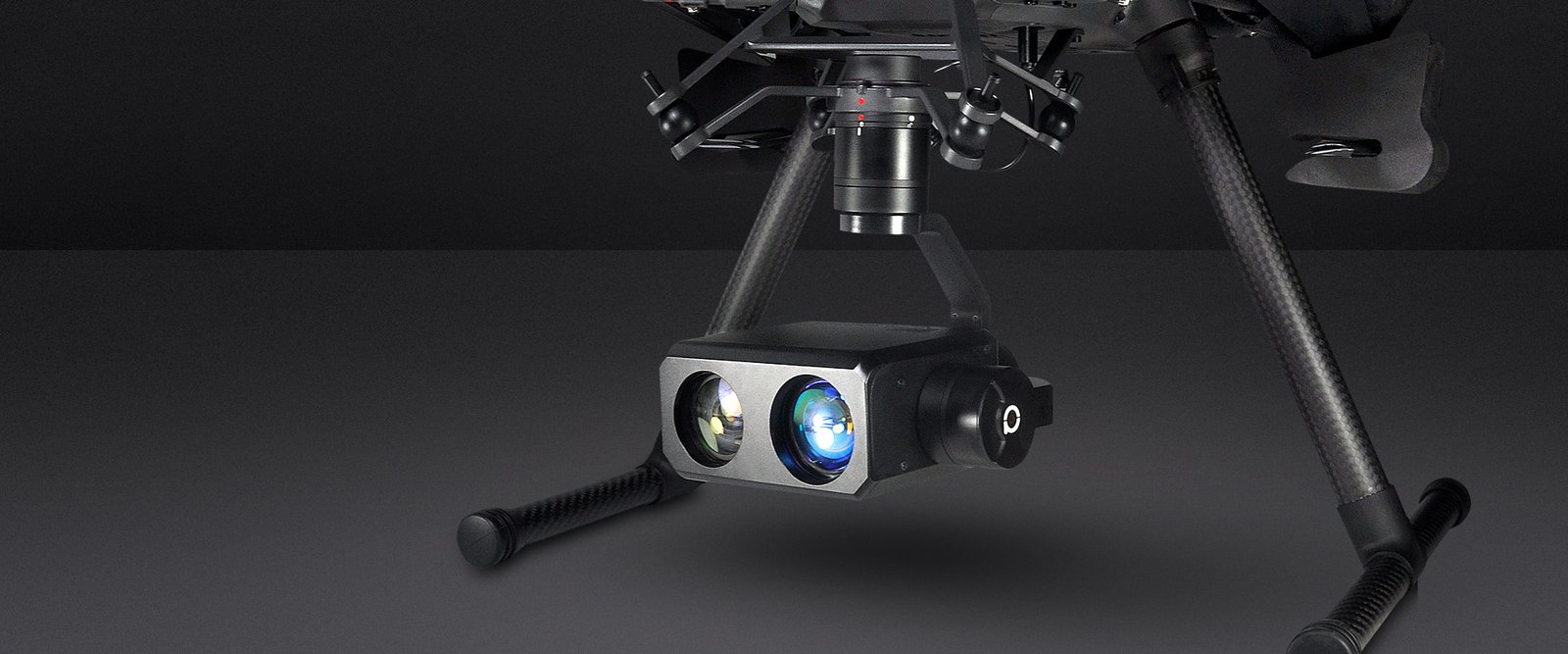

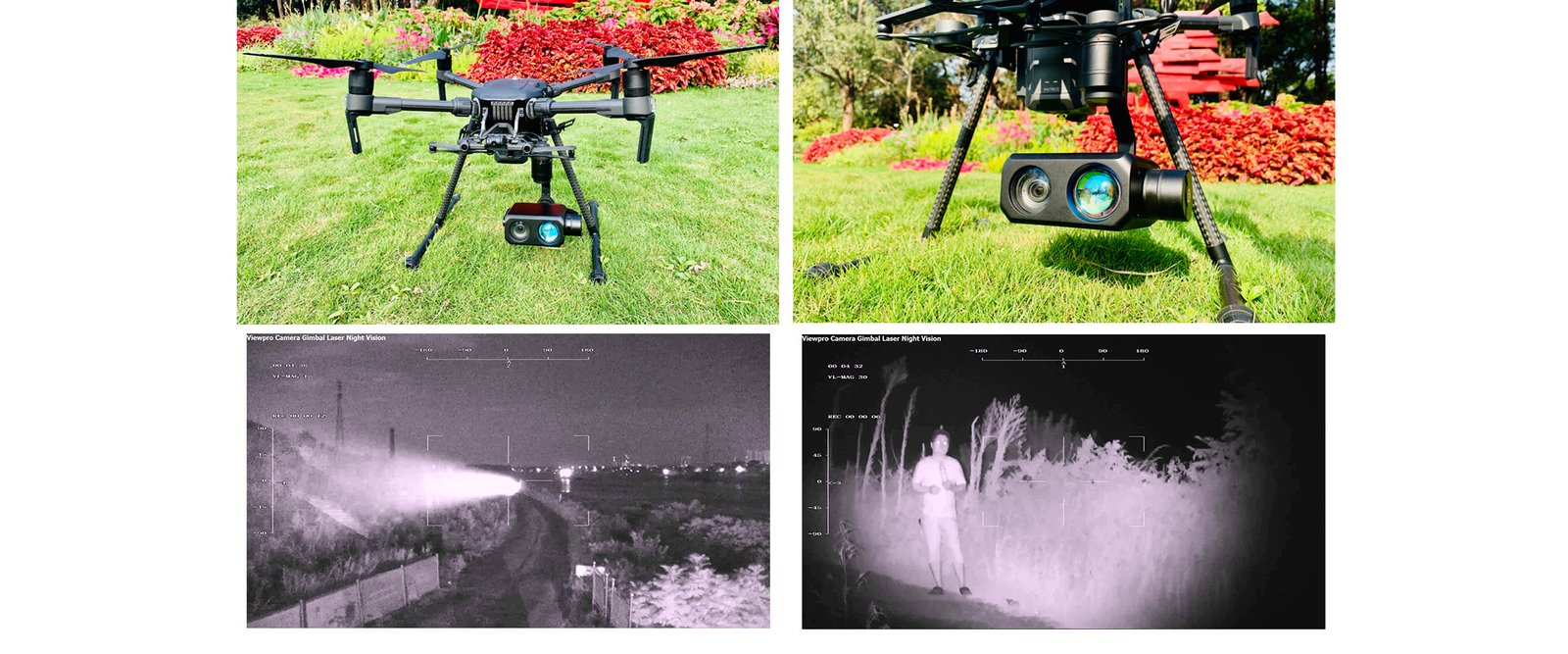

The X30TL is a high-performance 3-axis gimbal system featuring a 30x optical zoom camera and a 500-meter laser illuminator. Leveraging FOC motor control technology, each axis is equipped with a precision encoder for accurate positioning. Designed based on DJI PSDK, the gimbal is fully compatible with DJI M200, M210, M210RTK, their V2 series, as well as the M300 RTK drones. When operated via the DJI Pilot app, it enables a range of advanced functions, including 30x optical zoom shooting, object tracking, and infrared laser-assisted night vision. In addition, the laser illuminator allows clear observation even in complete darkness, making the X30TL ideal for night surveillance and search-and-rescue operations.
| Hardware Parameter | |
| Working voltage | 14V ~ 16V |
| Input voltage | 3S ~ 4S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 1000mA @ 12V |
| Idle current | 800mA @ 12V |
| Power consumption | 12W |
| Working environment temp. | -40 ~ +60 |
| Output | Skyport |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method | DJI Pilot |
| Gimbal Spec | |
| Pitch/Tilt | 90 |
| Roll | 85 |
| Yaw/Pan | 360 *N |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.03 |
| One-key to center | |
| Camera Spec | |
| Imager Sensor | SONY 1/2.8 Exmor R CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7 (wide end) ~ 2.3 (tele end) 720p mode: 63.7 (wide end) ~ 2.3 (tele end) SD: 47.8 (wide end) ~ 1.7 (tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.01lux@F1.6, AGC on, 1/30s |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| Fotoformate | JPEG |
| Videoformate | MP4 |
| Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <15ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 160*160 pixel |
| Tracking speed | 32 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| IR Laser Illumination | |
| Effective range | 500 meters |
| Light wave length | 850 10nm (940nm, 980nm) |
| Illumination angle | power zoom synchronously, 70 ~2.0 adjustable |
| Zoom time | 2s (wide end C tele end) |
| Power consumption of laser chipset | 2 0.2W |
| Illumination angle | Tele end 2.0 : effective range 500 meters, spot diameter < 20 meters Wide end 70 : effective range 40 meters |
| Working voltage | DC12V 10% |
| Power consumption in total | < 11W |
| Control system | PWM/TTL |
| Communication system | UART_TTL |
| Communication protocol | PELCO-D (defualt baud rate 9600bps) |
| Packing Information | |
| N.W. | 770g |
| Product meas. | 164*154*143mm |
