MW70 Miniature Three-Axis Dual-Light Stabilized Pod
China Moneypro
The MW70 is a compact three-axis gyro-stabilized pod featuring dual imaging capabilities: a long-wave uncooled infrared camera and a 13-megapixel visible light camera. Designed for miniature UAVs, unmanned vehicles, and reconnaissance equipment, this lightweight system delivers real-time video transmission in all weather conditions, day and night. With advanced autonomous target recognition and tracking capabilities, it achieves adult target recognition distances exceeding 200 meters in daylight and 120 meters at night. The system operates on DC10V-15V power with minimal 8W consumption, supports multiple interfaces including network and HDMI video output, and functions reliably in light rain. Its portable design and high reliability make it ideal for various micro and small unmanned platforms requiring persistent surveillance and reconnaissance capabilities.
1. Product Introduction
The MW70 is a miniature three-axis dual-light gyro-stabilized pod that integrates a long-wave uncooled infrared camera, a 13-megapixel high-definition visible light camera, and a gyro-stabilized platform. The CGTD070 stabilized pod is characterized by its small size, light weight, portability, and high reliability. It can be mounted on miniature unmanned aerial vehicles (UAVs) to achieve real-time visible light and infrared video transmission, and has the capability to operate in all weather conditions and around the clock.
2 Application Scenarios
Various micro and small unmanned aerial vehicles (multi-rotor, fixed-wing, and helicopters, etc.), unmanned vehicles, unmanned boats, and unmanned reconnaissance equipment.
3 Technical Specifications Requirements
| model | W70S | W70A |
| Gimbal parameters | ||
| Frame format | Three-axis mechanical gyroscope stabilization | |
| Infrared camera parameters | ||
| Detector response band | 8-14um, long wave | |
| Pixel size | 12um | |
| Optical F# | 1.0 | 1.0 |
| Video frame rate | 25Hz | 25Hz |
| Visible light camera parameters | ||
| Pixel count | 13 million | |
| tracker | ||
| Function | 1) Capable of autonomous target recognition;2) It has the ability to manually set the target tracking box size and lock onto the target;3) Possesses target detection and tracking prediction capabilities;4) Target visible light tracking or infrared tracking. | |
| System Indicators | ||
| storage | SD card storage | |
| effective range | Under daytime visibility of at least 8 km, the target recognition distance for adults is greater than 200 m; under nighttime visibility of at least 8 km, relative humidity of at least 60%, and background temperature difference of at least 5 K, the target recognition distance for adults is greater than 120 m. | |
| Rain test | It can work normally in light rain conditions. | |
4. Power Supply and Power Consumption
Power supply: DC10V DC15V@3A;
Stable power consumption 8W;
5 interfaces
Video: Network, HDMI;
Control: TTL serial port, network, SBUS;
Storage: SD card storage;
Mechanical interface: Please contact our customer service staff.

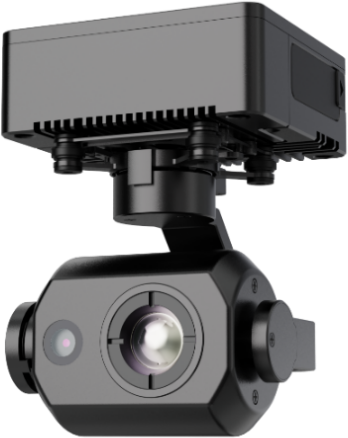

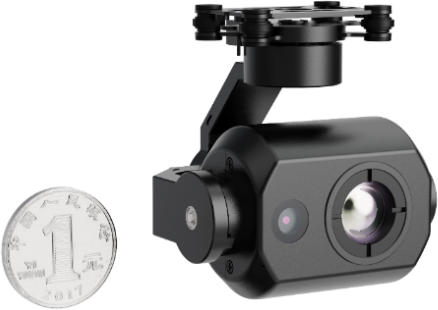

6 actual product photos
| Stabilization | 3-Axis |
|---|---|
| Sensor Configuration | Dual-Sensor (EO+IR) |
