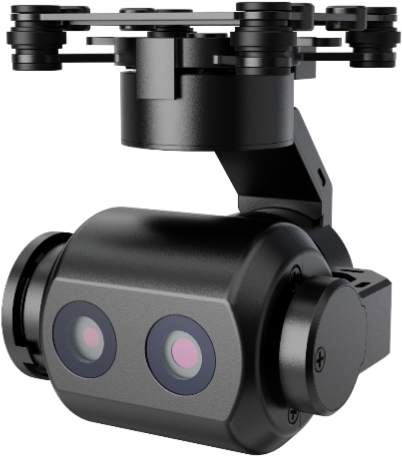

MW55 Miniature Three-Axis Long and Short Focal Spectrum Visible Light Stabilized Pod
China Moneypro
The MW55 is a miniature three-axis stabilized gimbal pod featuring advanced gyroscope stabilization technology with dual visible light CMOS sensors. It combines a 13-megapixel wide-angle sensor with a starlight-level 2-megapixel telephoto sensor, delivering real-time 1080P HD video output. The wide-angle lens offers 70.4-degree field of view with 200-meter adult recognition range, while the telephoto lens provides 30.9-degree field of view with 350-meter recognition capability. With exceptional stability accuracy of 0.02 degrees and comprehensive motion ranges, the gimbal excels in target locking and tracking. Weighing just 55 grams, it operates on DC9-15V power with minimal 9W consumption. The pod supports multiple interfaces including network, HDMI, TTL serial, and SBUS control, plus SD card storage. Built for demanding environments, it functions reliably from -40 to +55 degrees Celsius and maintains performance in light rain conditions, making it ideal for surveillance and reconnaissance applications.
1. Overview
The MW55 gimbal uses a three-frame gyroscope stabilization control system with an embedded gimbal cable. It is equipped with a 10-megapixel visible light CMOS sensor and a starlight-level visible light CMOS sensor, and has two field of view angles. It can output 1080P high-definition visible light video in real time. At the same time, the gimbal components have target locking and tracking functions.
2. Frame corner
Azimuth: -90 to +90 ;
Pitch angle: -120 to +90;
Roll angle: -30 to +30;
Stability accuracy: 0.02 (1, perturbation 0.5@1Hz)
3. CMOS Imaging Sensor Specifications
1) Ten-million-level CMOS
Pixels: 13 million;
Focal length: 3.5mm;
Field of view: 70.4 (D) 39.6 (V), error 5%;
Distortion: 5%;
Depth of field: 169cmINF
Lens configuration: 5P + 1IR (650nm band)
Real-time video resolution: 19201080;
Maximum photo resolution: 4K, 19201080;
Recognition distance: Under visibility conditions of not less than 8km, the target recognition distance for adults is greater than 200m;
2) Starlight-level CMOS
Pixels: 2 million;
Focal length: 10.3mm;
Field of view: 30.9 (D), 17.4(V);
Distortion: 0.7%;
Lens configuration: 5P + 1IR;
Real-time video resolution: 19201080;
Maximum photo resolution: 1920 1080;
Recognition distance: Under visibility conditions of not less than 8km, the target recognition distance for adults is greater than 350m;
4. Power supply
DC9V 15V, steady-state power consumption 9W;
5. Weight and volume
The gimbal weighs approximately 55g and measures 44mm 46mm 60mm.
The tracking servo board weighs approximately 35g and measures 52mm 52mm 18mm.
The control box and base plate weigh approximately 20g (optional).
6. Output Interface
Video: Network, HDMI;
Control: TTL serial port, network, SBUS;
Storage: SD card storage;
7. Environmental adaptability requirements
Operating temperature: -40 +55 ;
Storage temperature: -45 +60 ;
Rain resistance: The system can operate normally under light rain conditions.
| Stabilization | 3-Axis |
|---|
