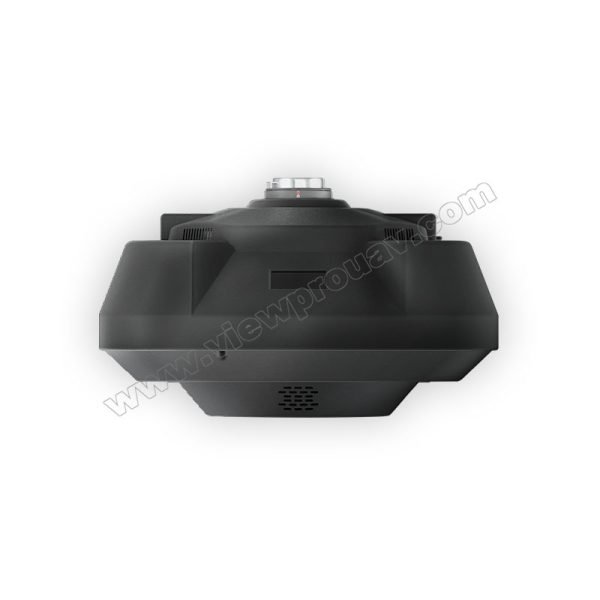

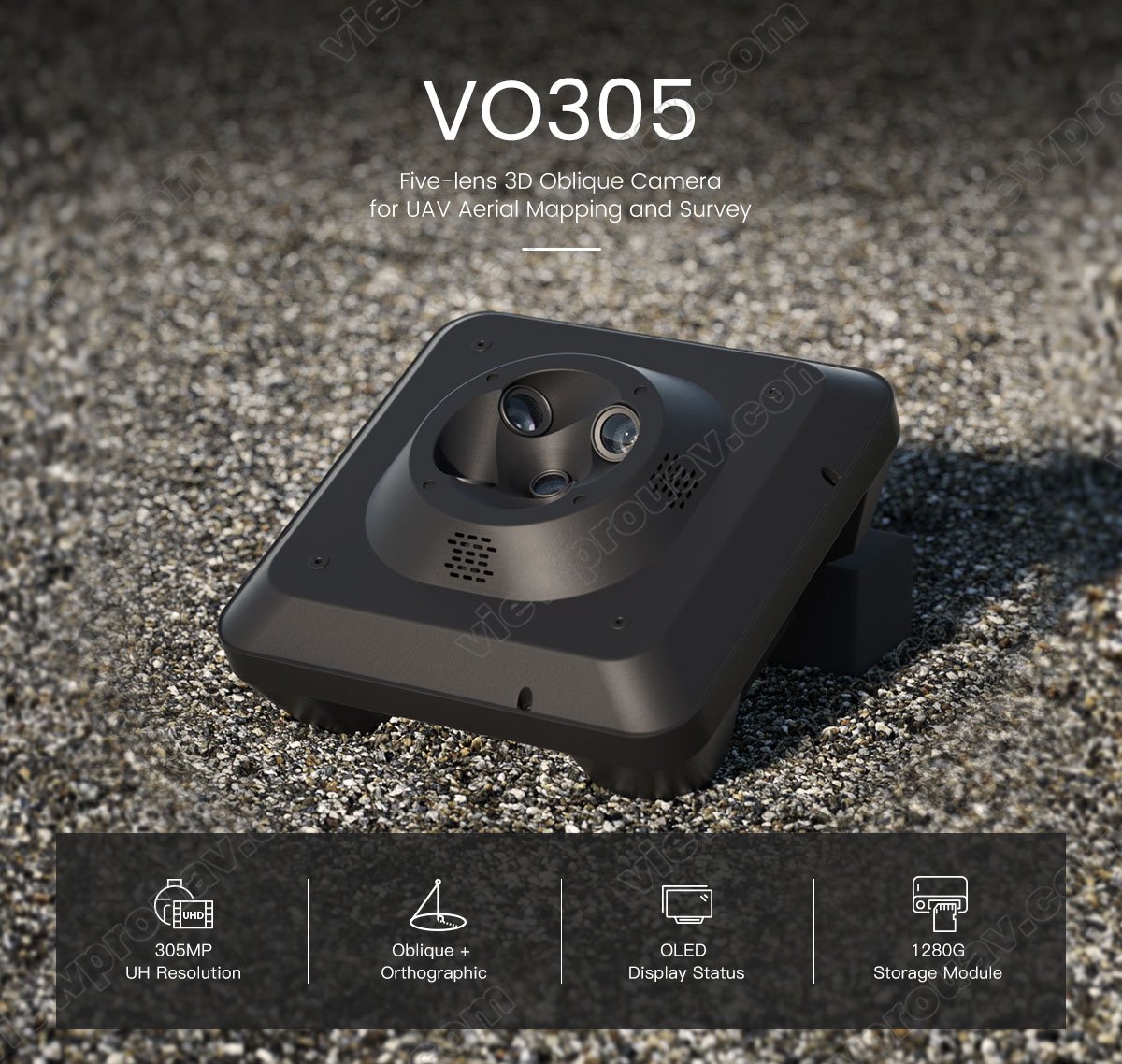

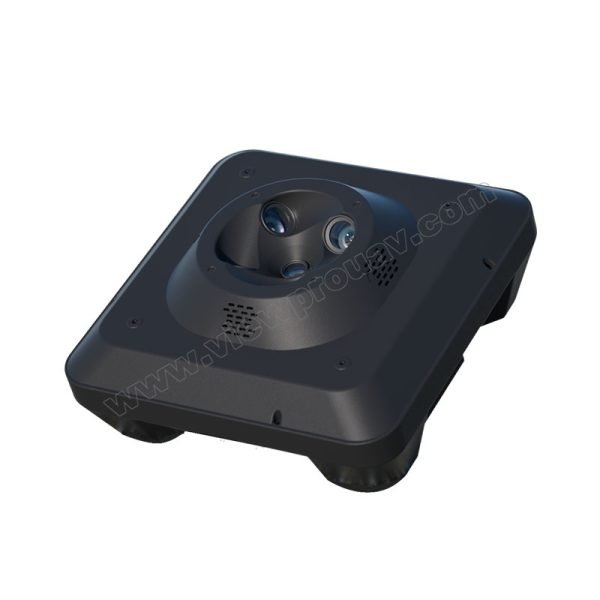

MVO305 UH Definition 3D Oblique Camera UAV Aerial Mapping and Surveying
China Moneypro

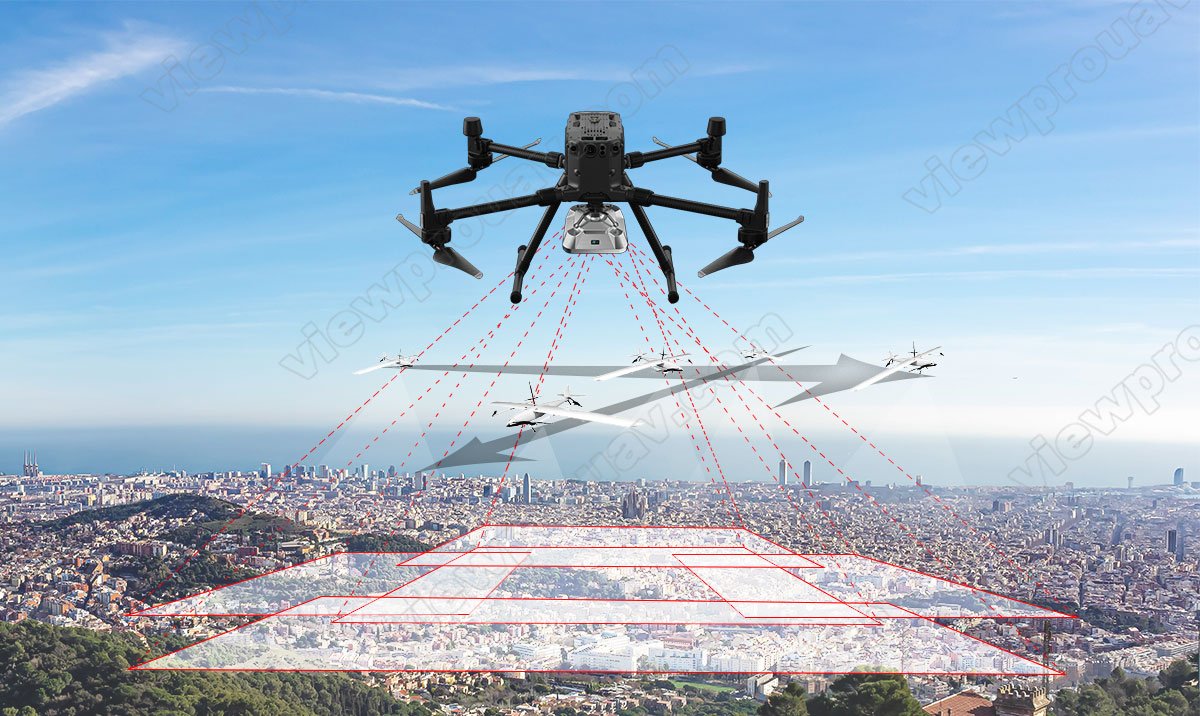

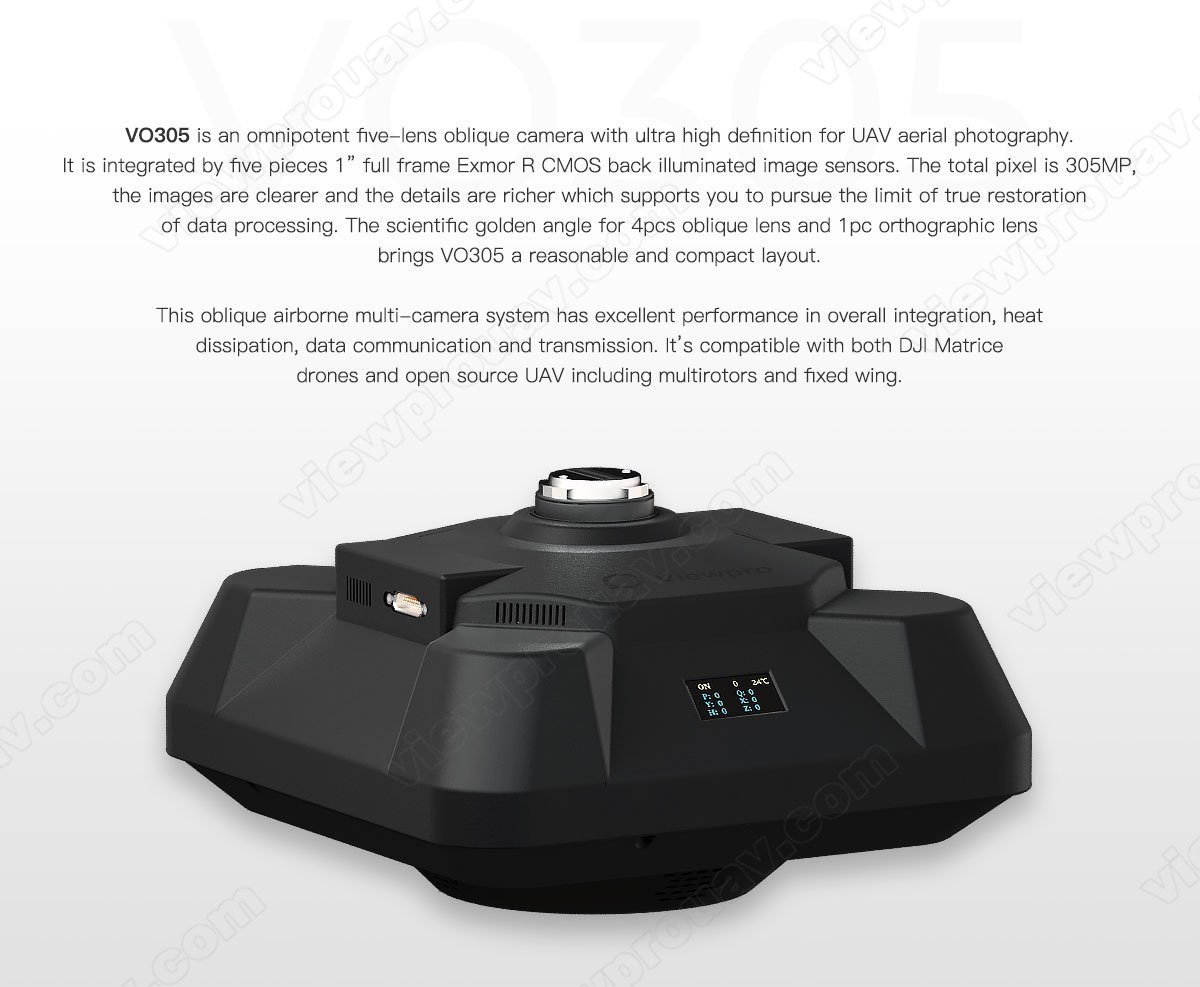

Ultra high definition 5 lenses oblique aerial mapping camera. Designed for profession mapping and survey missions. Support 3D modelling post processing.
| Model No. | VO-305 |
| Total Pixel | 61MP*5 = 305MP |
| Resolution | 9504*6336 |
| Sensor | Full Frame Exmor R CMOS (35.7*23.8mm) |

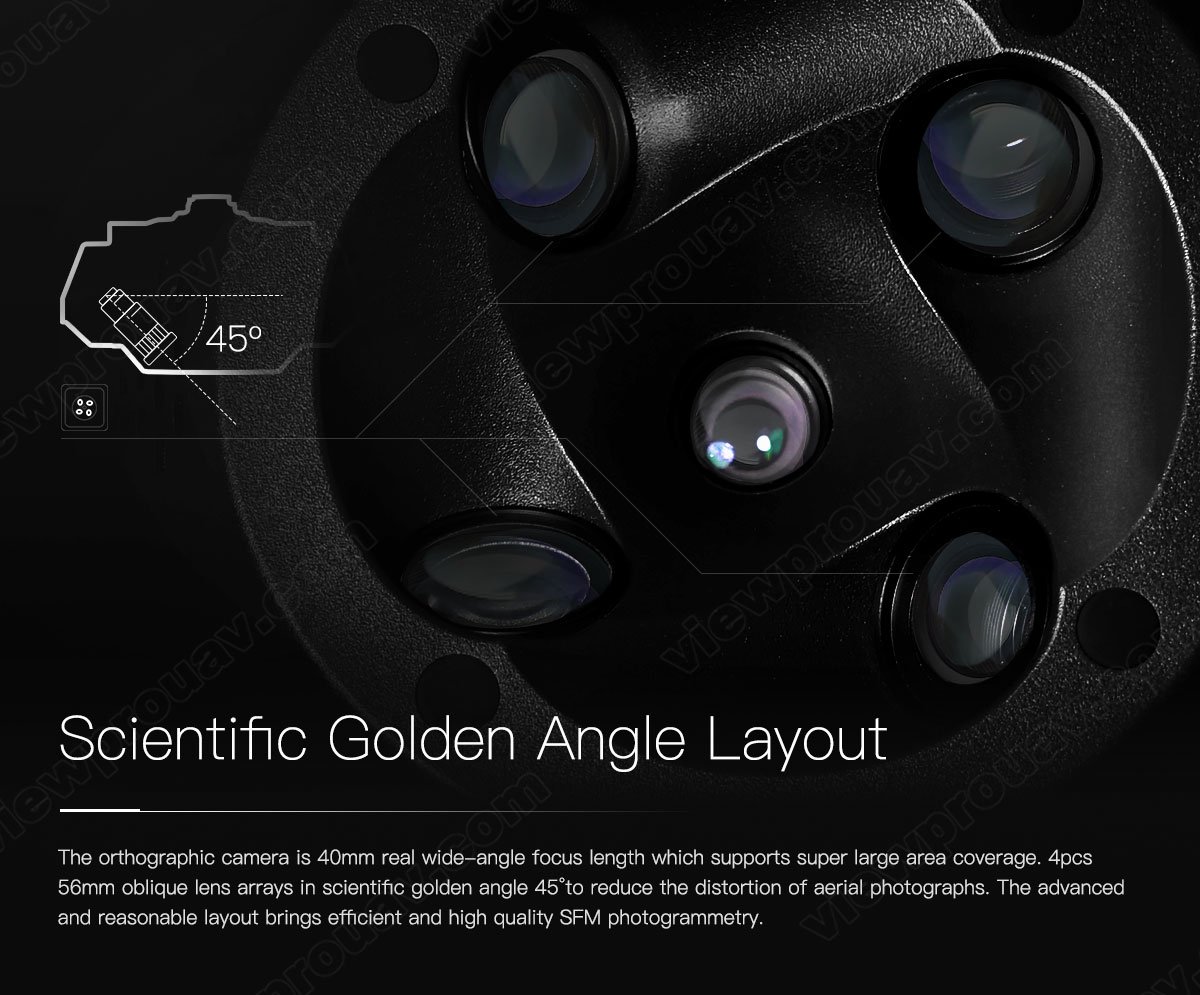

| Lens Size | Orthographic 1*40mm + Oblique 4*56mm |
| Oblique Lens Angle | 45 |
| Exposure Time | R1.2s |

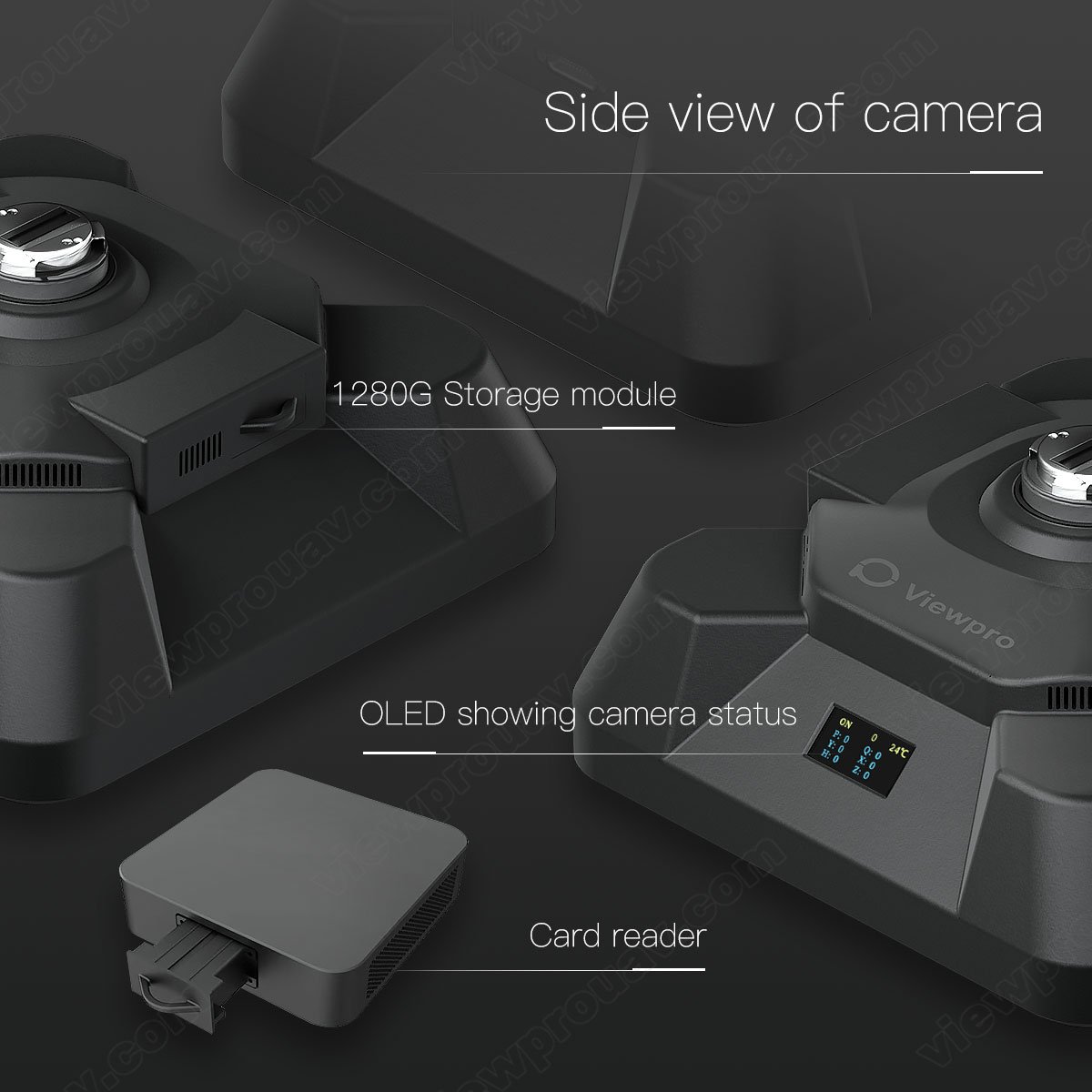

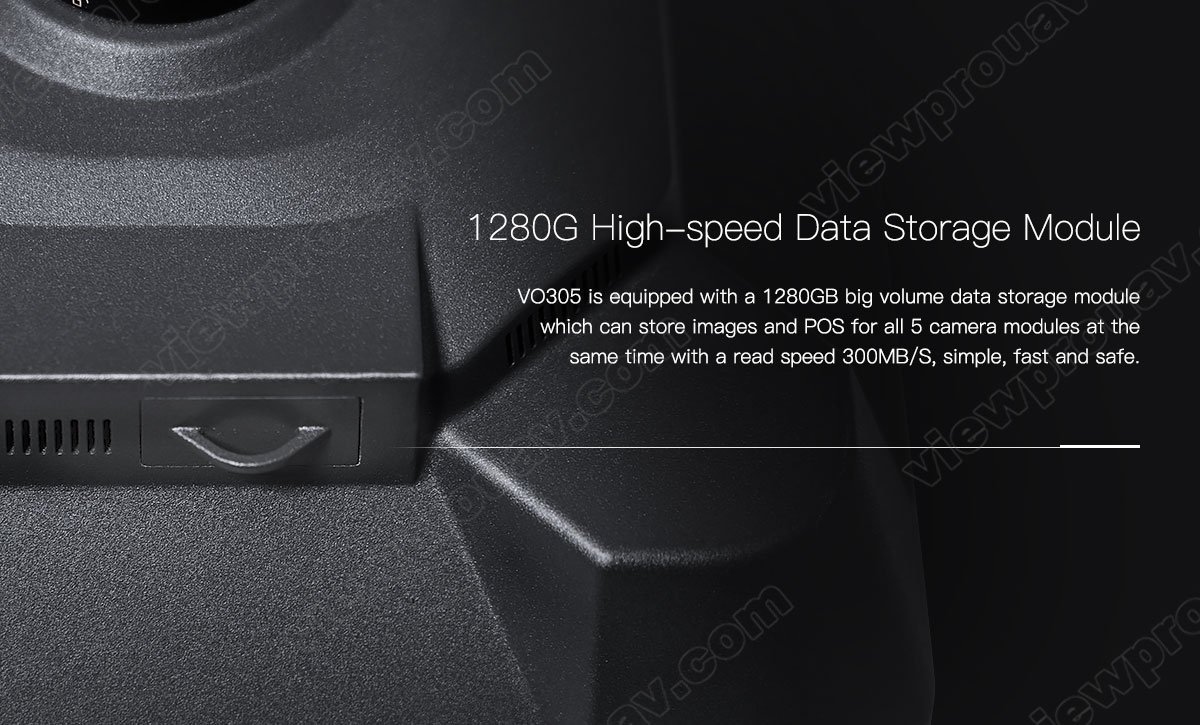

| Data Storage/ Read | 1280GB (256GB*5) Read speed 300MB/S(total) |

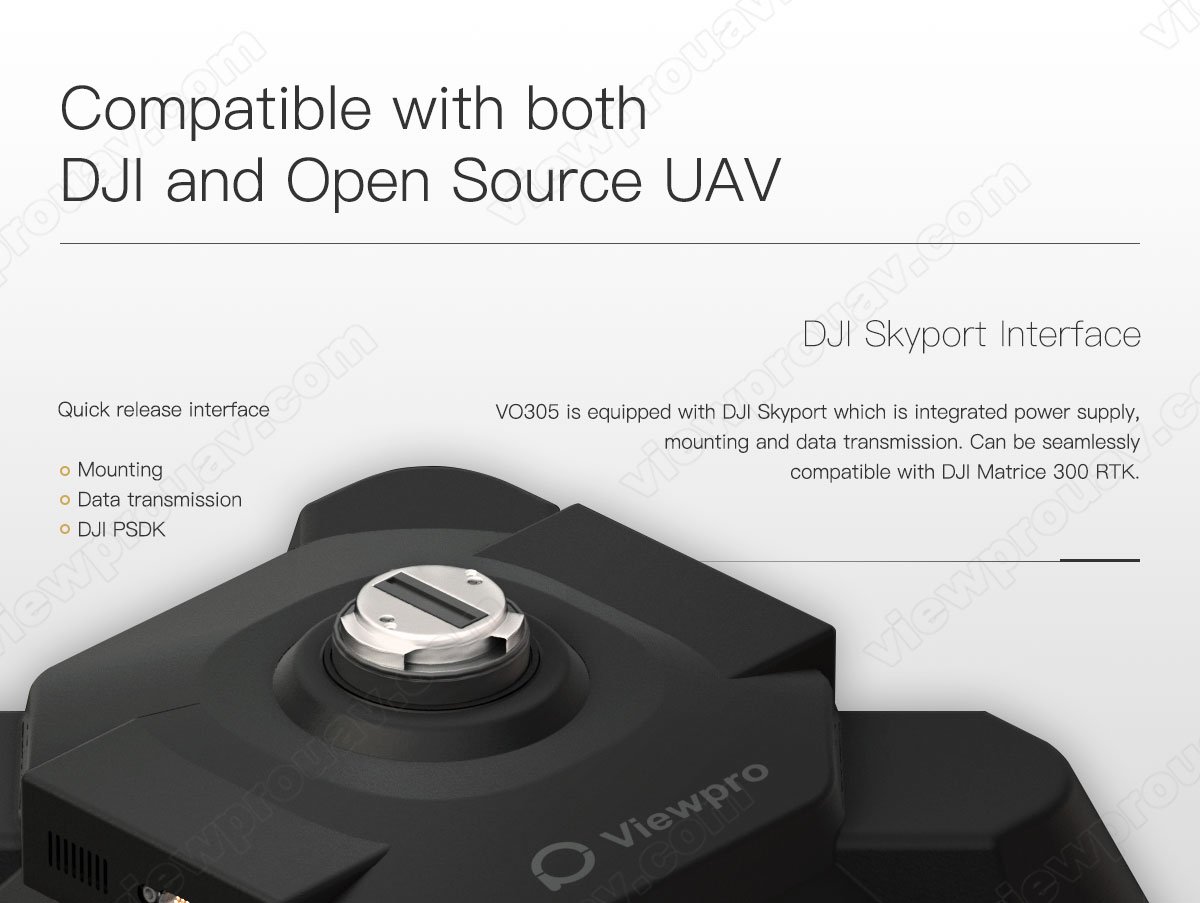

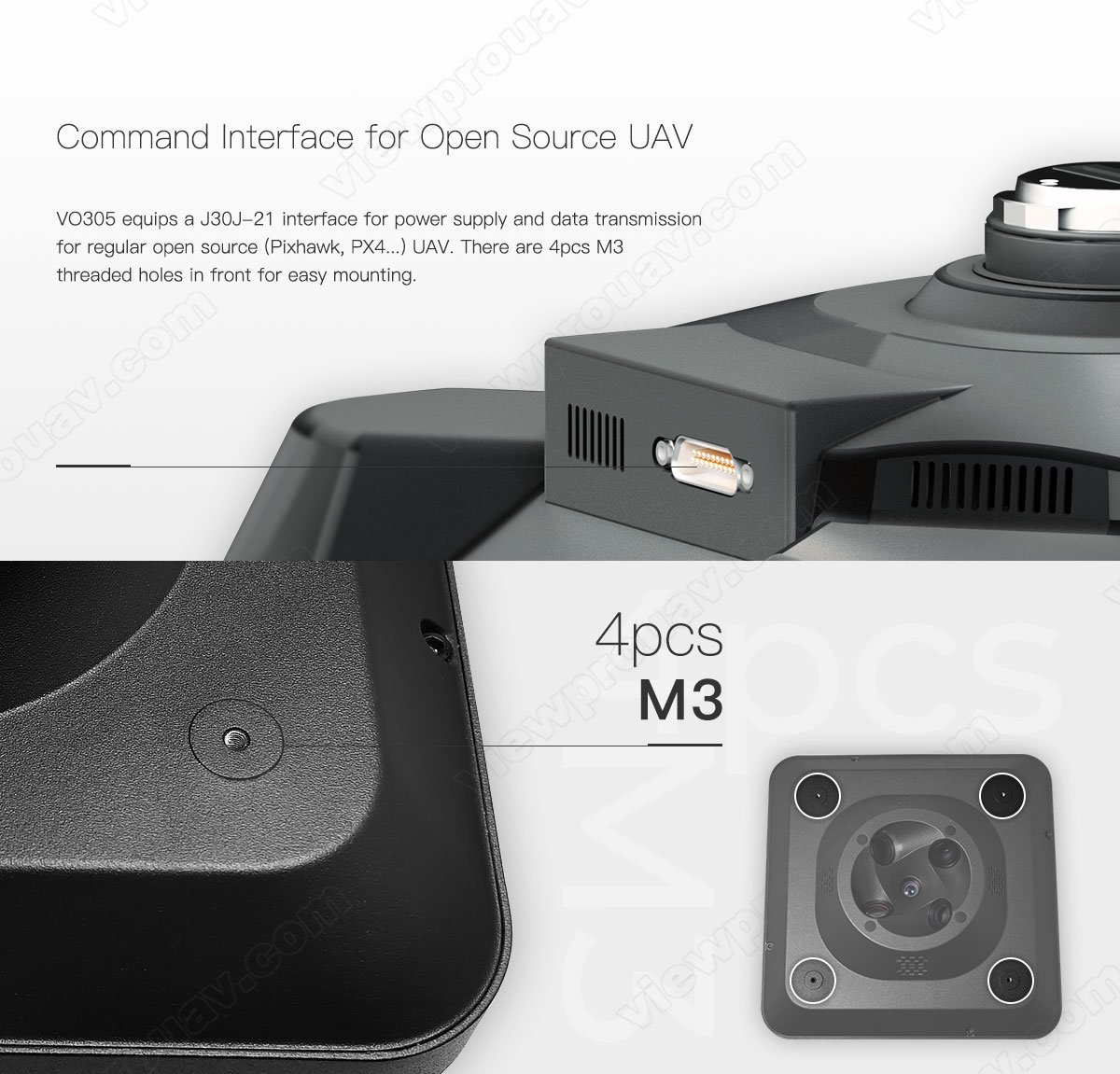

| Interfaces | J30J-21/ Viewport |
| POS | 5 lens POS separately & precisely |
| Power Supply | 10-50V 60W |
| Max. Power Rate | 60W(5 lens all on) |
| Heat Radiation | Intelligence Heat control, Active cooling |
| Working Environment | -10 C C 50 C |
| Camera Dimension | 200*200*112MM |
| Net Weight | 1300g |
| Package Dimension | 370*270*220mm |
