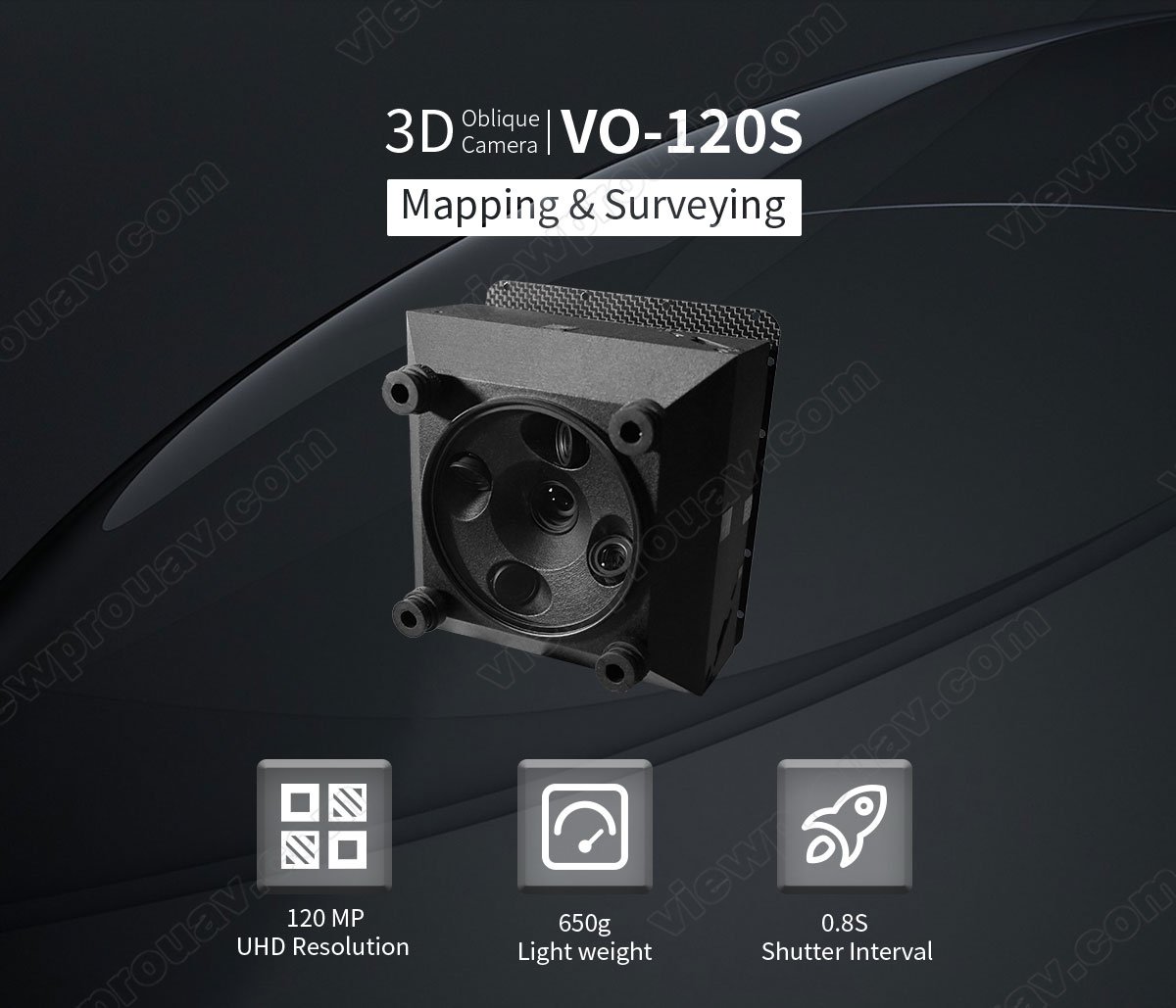

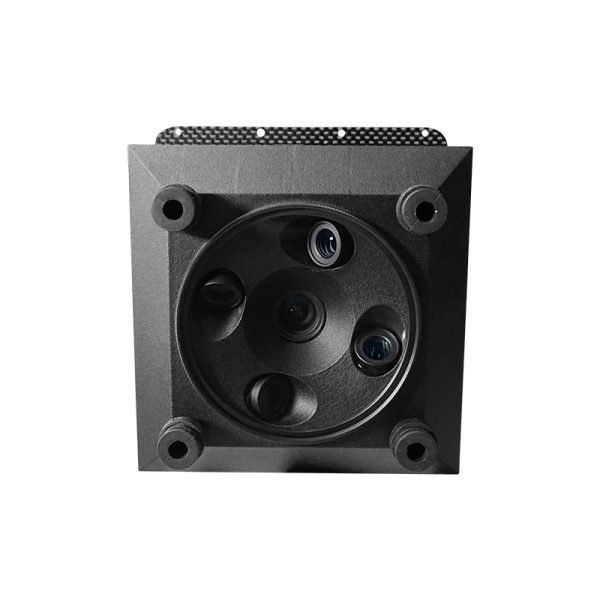

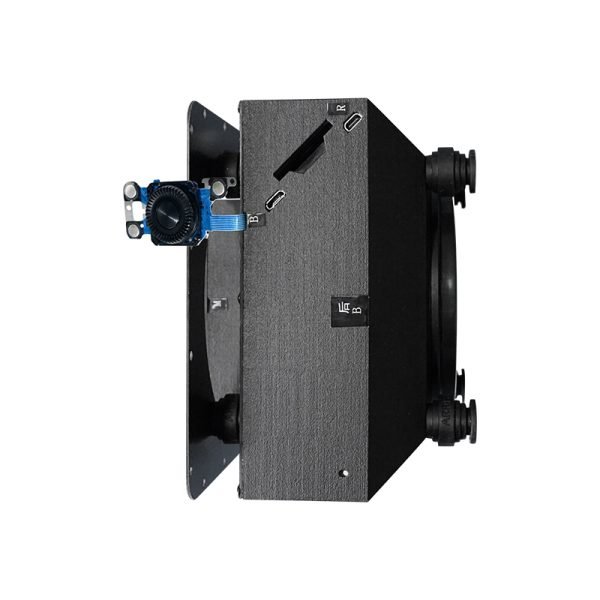

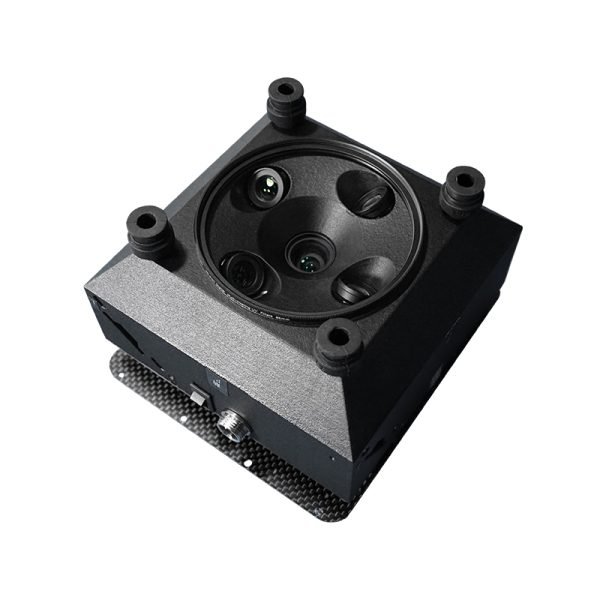

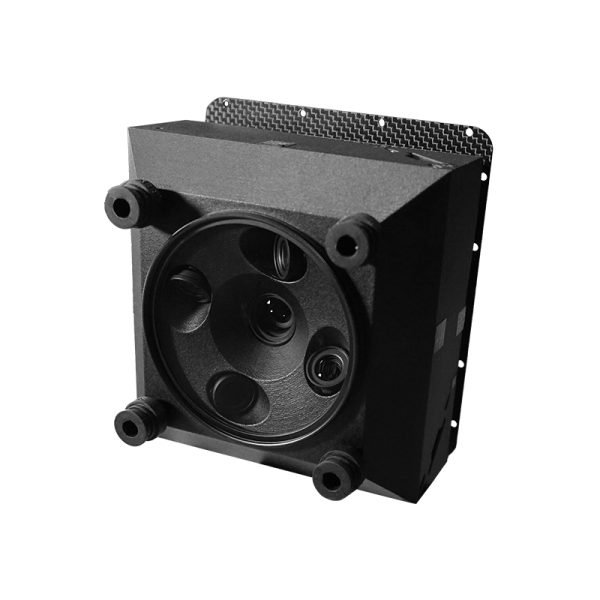

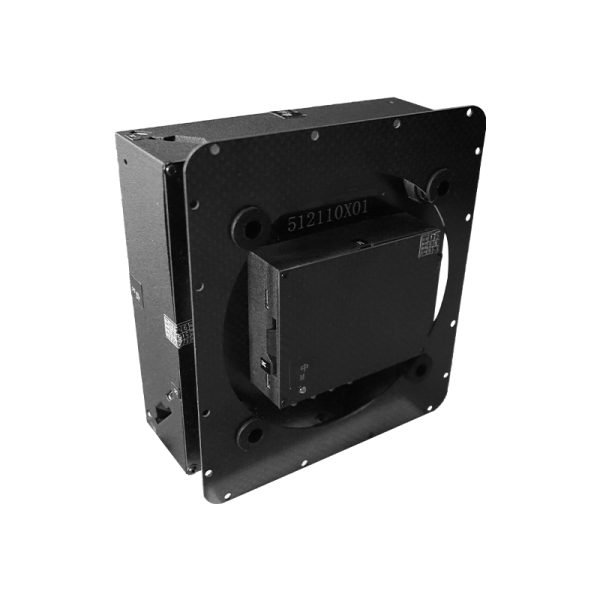

MVO-120S 3D Oblique Camera Mapping and Surveying with Geo Tagging Function
China Moneypro
The MVO-120S 3D Oblique Camera is a professional mapping and surveying sensor with a total 120 MP output from five synchronized lenses (1 nadir + 4 oblique), delivering ultra-high-resolution aerial images ideal for precise 3D modeling and GIS workflows. Featuring APS-C CMOS sensors, advanced internal mirror shutter technology, and geo-tagged imagery for seamless post-processing, it captures accurate data with onboard storage up to 640 GB. This compact, lightweight camera (~650 g) supports flexible parameter adjustment and integrates easily with UAV platforms for efficient surveying, urban planning, construction monitoring, and land-use mapping missions.
| Model No. | VO-120S |

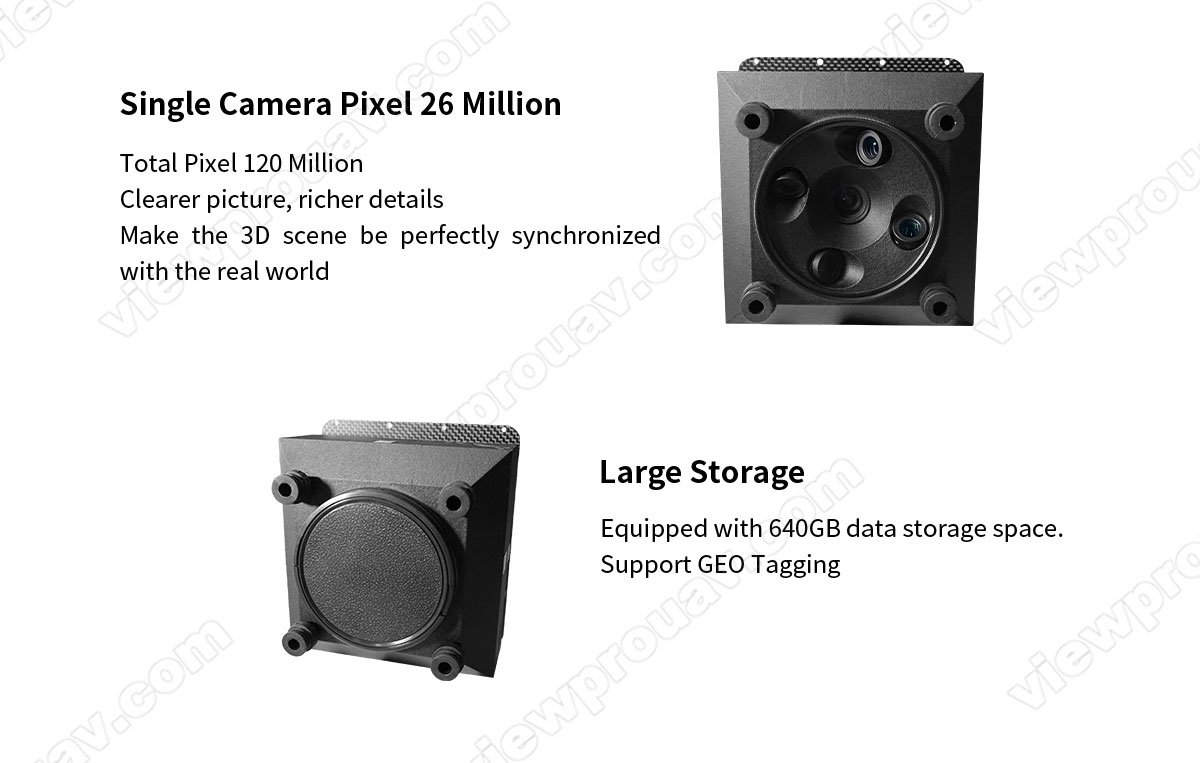

| Total Pixel | 24MP*5 = 120MP |
| Resolution | 6000*4000 for single picture |

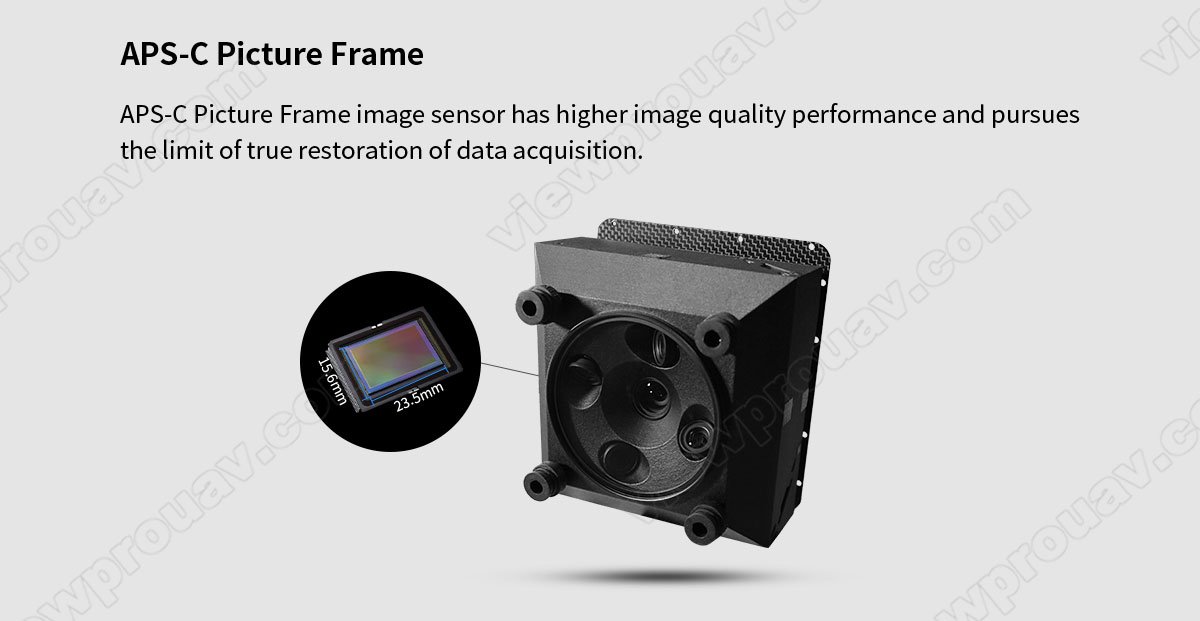

| Sensor | APS-C CMOS (23.5X15.6mm) |
| Lens Size | Orthographic 1*25.2mm + Oblique 4*35.7mm |
| Oblique Lens Angle | 45 |
| Shutter Triggering | High/low level signal (default) or PWM signal |
| Shutter Speed | 30-1/8000 |
| Min Exposure Time | 0.8s |
| Data Read/Storage | USB or SD card (max 128G*5=640G) |

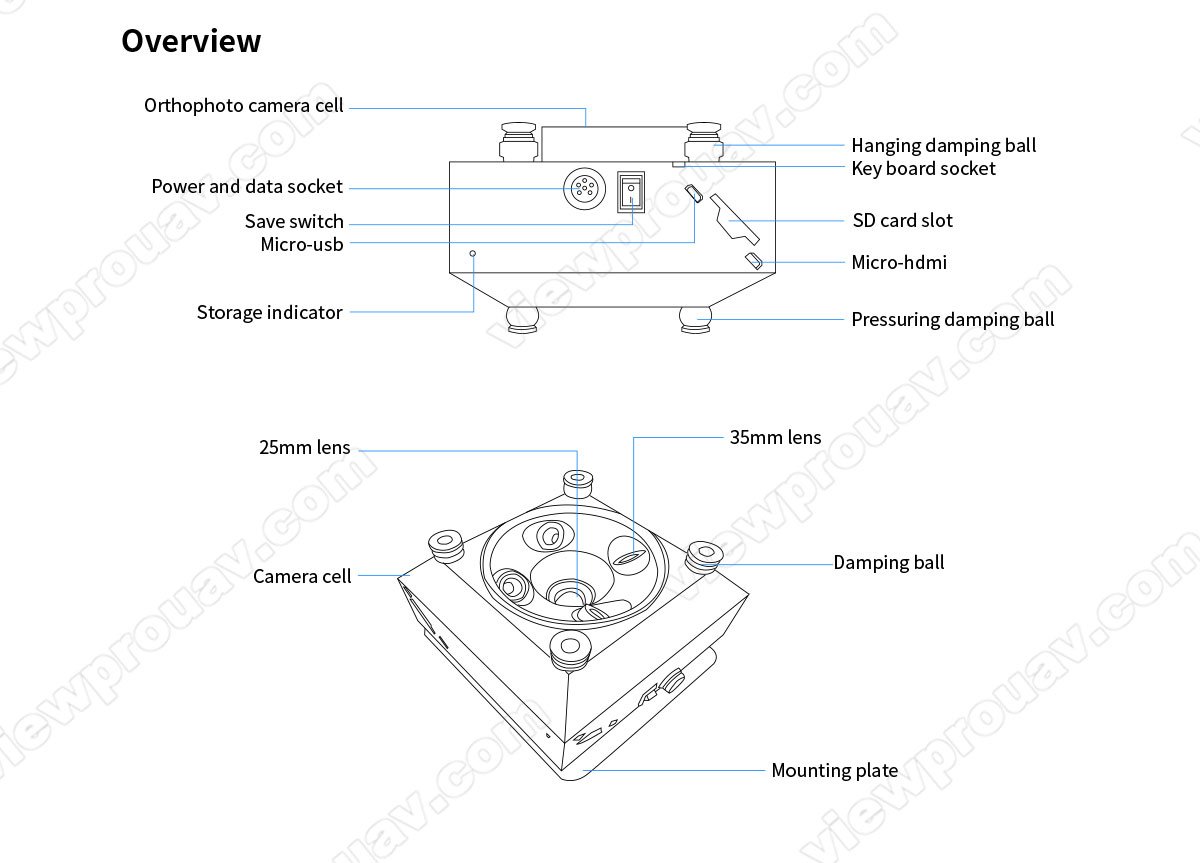

| Interfaces | SD card slot, HDMI, USB, Hot shoe, aviation plug |

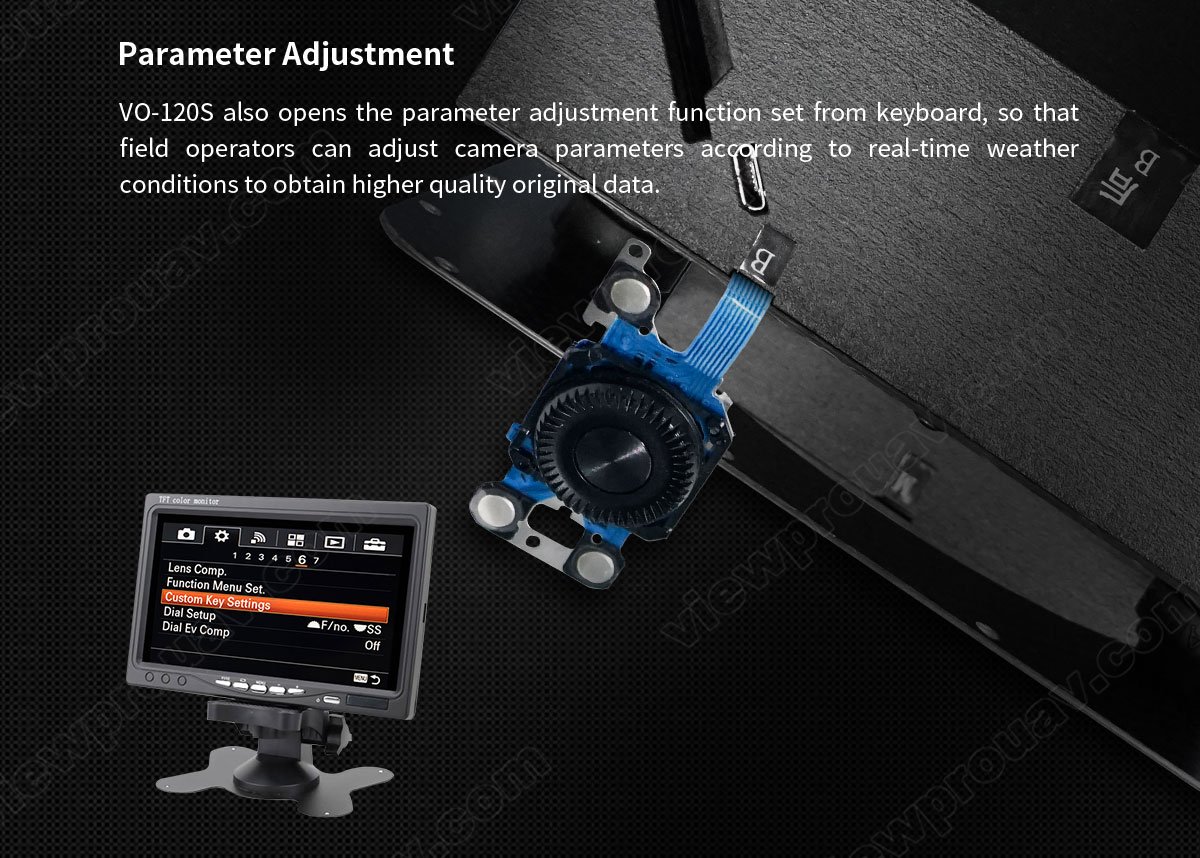

| Parameter Setting Methods | USB or button |
| Power Supply | 4S-7S (9-28V) |
| Working Environment | -20 C C 50 C |

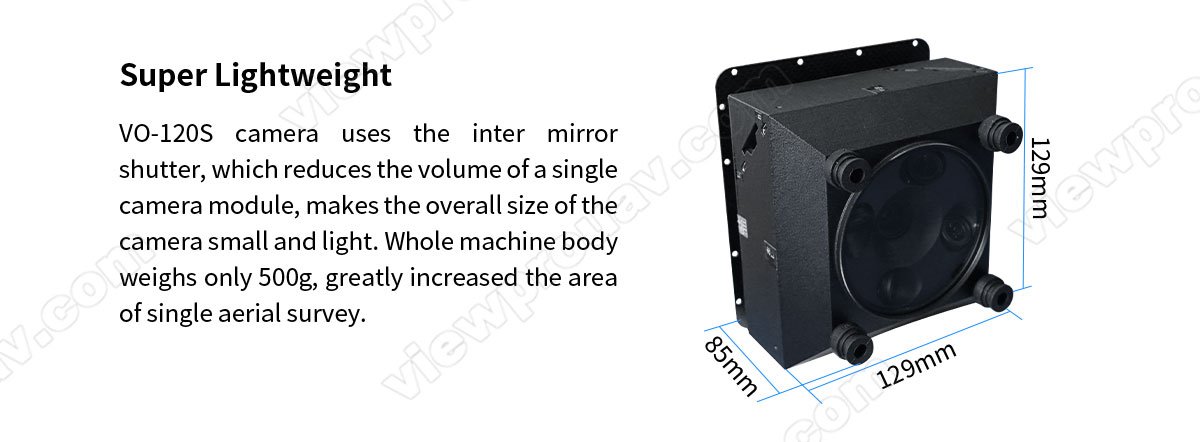

| Camera Dimension | 129*129*85MM |
| Net Weight | 650g |

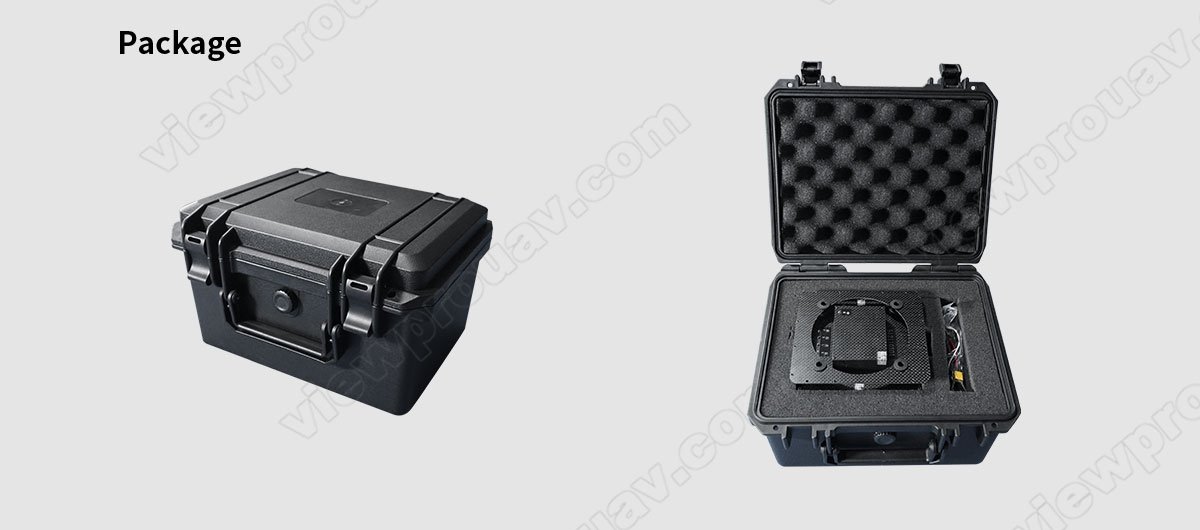

| Package Dimension | 30*25*20cm |
