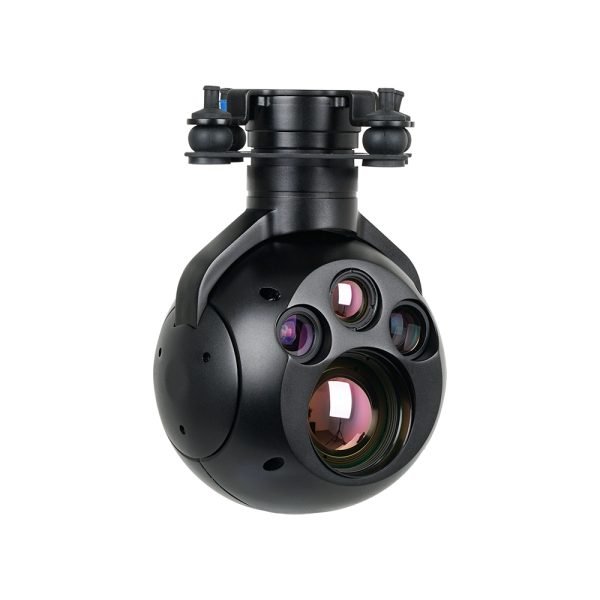

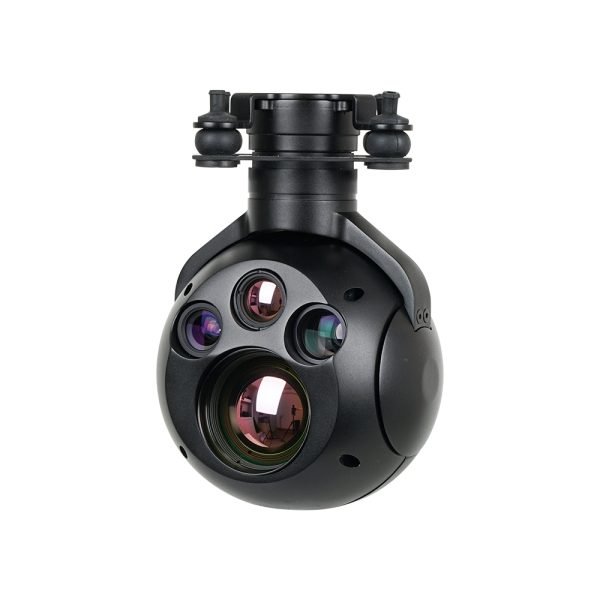

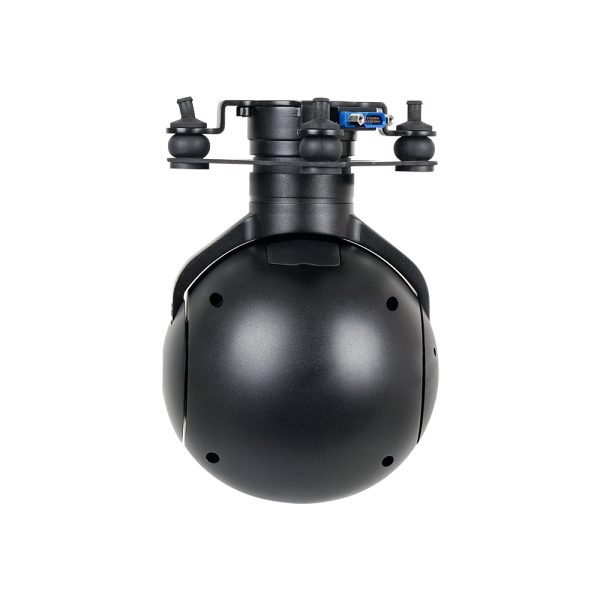

MU7DER Micro Prime Lens Dual EO/IR Object Tracking Gimbal Camera
China Moneypro

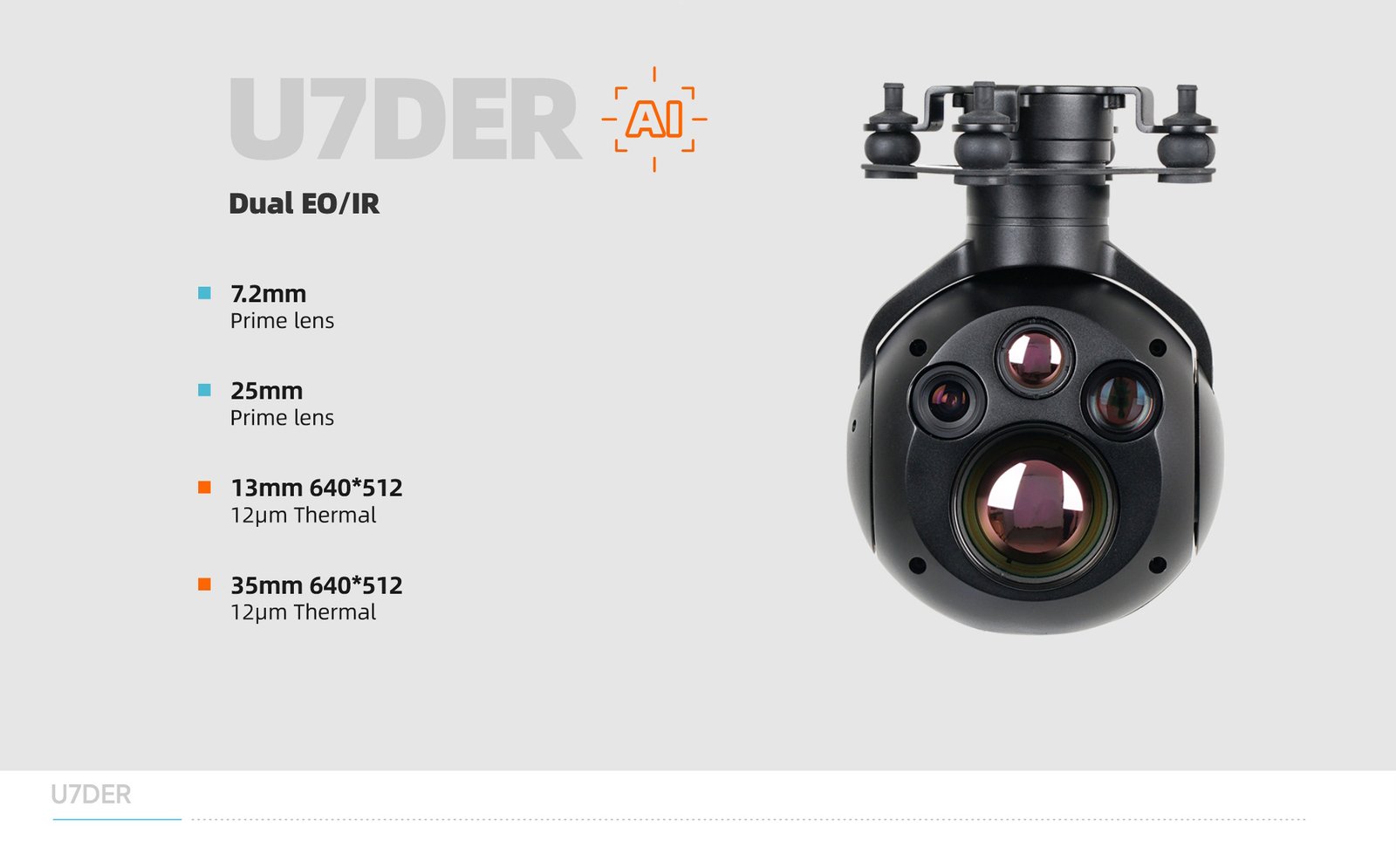

The MU7DER Micro Prime Lens Dual EO/IR Object Tracking Gimbal Camera is an advanced surveillance solution combining electro-optical and thermal imaging capabilities. Featuring dual EO cameras with 7.2mm and 25mm lenses, plus an uncooled thermal imager with 640×512 resolution, it delivers comprehensive monitoring in all conditions. The gimbal offers 360-degree pan rotation and -45 to 90-degree tilt range with exceptional 0.02-degree stability. Intelligent object tracking operates at 60Hz with support for targets as small as 16×16 pixels. Operating on 12V power with 1080p video output via IP RTSP, it supports SD card storage up to 128GB and multiple control methods including TTL, S.BUS, and TCP. Compact at 525g with athermal prime lens focusing, it’s ideal for professional surveillance, reconnaissance, and monitoring applications requiring reliable day-night performance.
| Hardware Parameter Q7DER | |
| Working voltage | 12V(3S) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 900~1500mA @ 12V |
| Idle current | 900mA @ 12V |
| Working environment temp. | -20 ~+60 |
| Output | IP rtsp (1080p 30fps) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 25fps) |

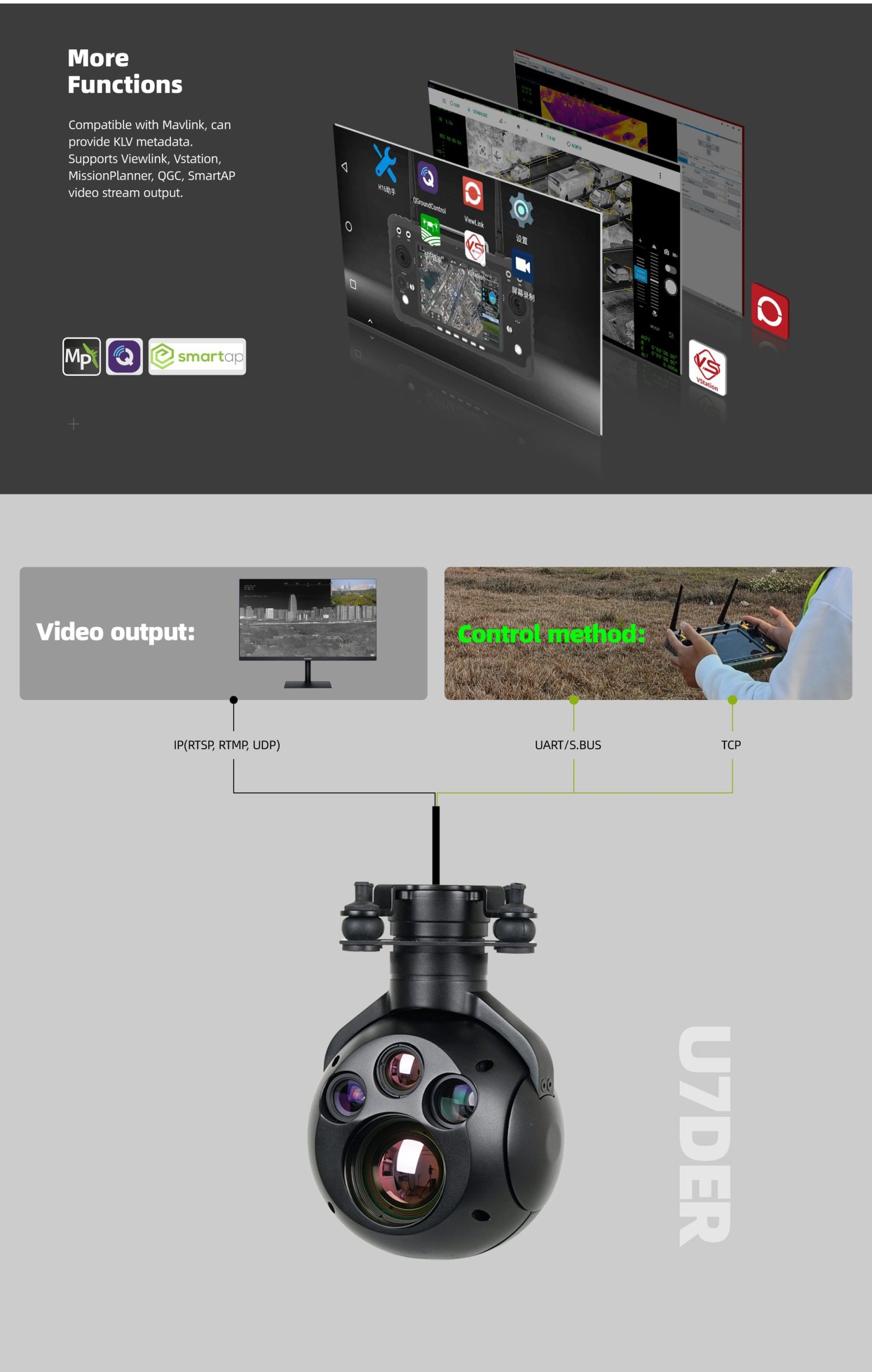

| Control method | TTL / S.BUS/ TCP |
| Gimbal Spec | |
| Angle scope of structure design | Pitch/Tilt: -60 120 , Yaw/Pan: 360 *N |
| Angle scope of software design | Pitch/Tilt: -45 90 , Yaw/Pan: 360 *N |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| EO Camera 1 Spec | |
| Resolution | 1920*1080 @60fps |
| Focus Length | 7.2mm |
| Angle of View | 42.28 *24.54 |
| EO Camera 2 Spec | |
| Resolution | 1920*1080 @60fps |
| Focus Length | 25mm |
| Angle of View | 12.71 *7.17 |

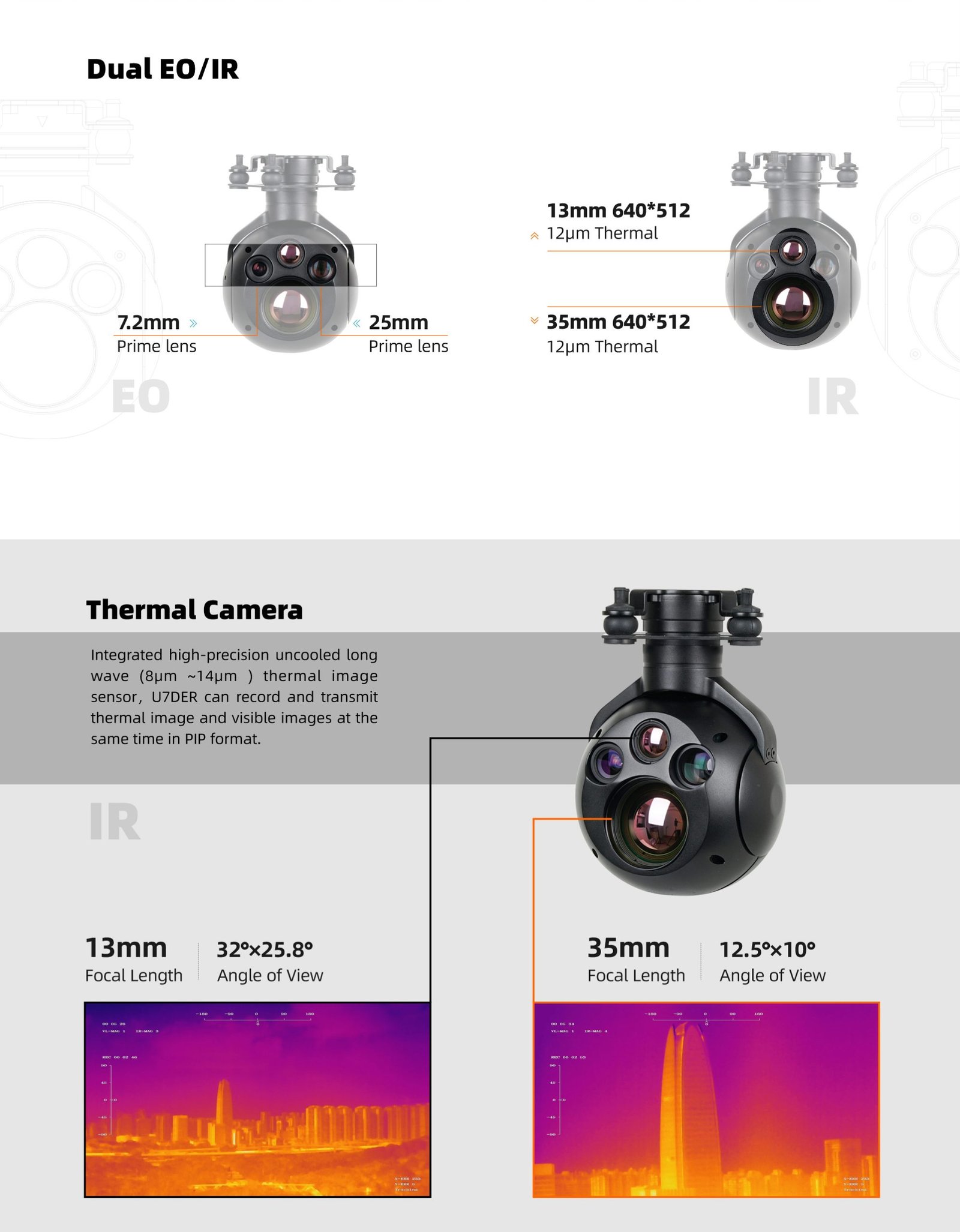

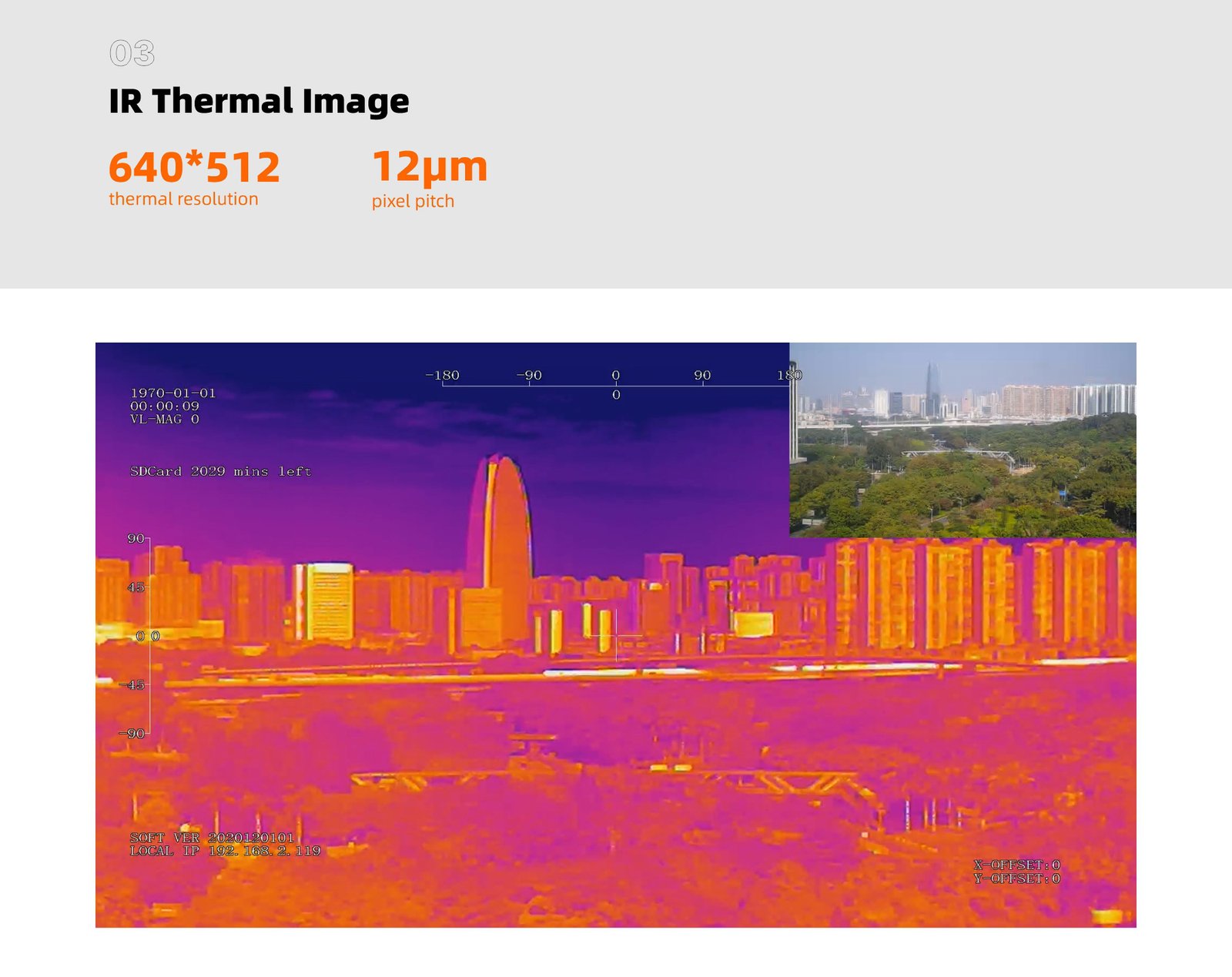

| IR Thermal Imager Spec | |
| Angle of View 1 | 32 *25.8 |
| Angle of View 2 | 12.5 *10 |
| Working mode | Uncooled VOx long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12 m |
| Focusing method | Athermal prime lens |
| Color palette | White hot, pseudo color |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |

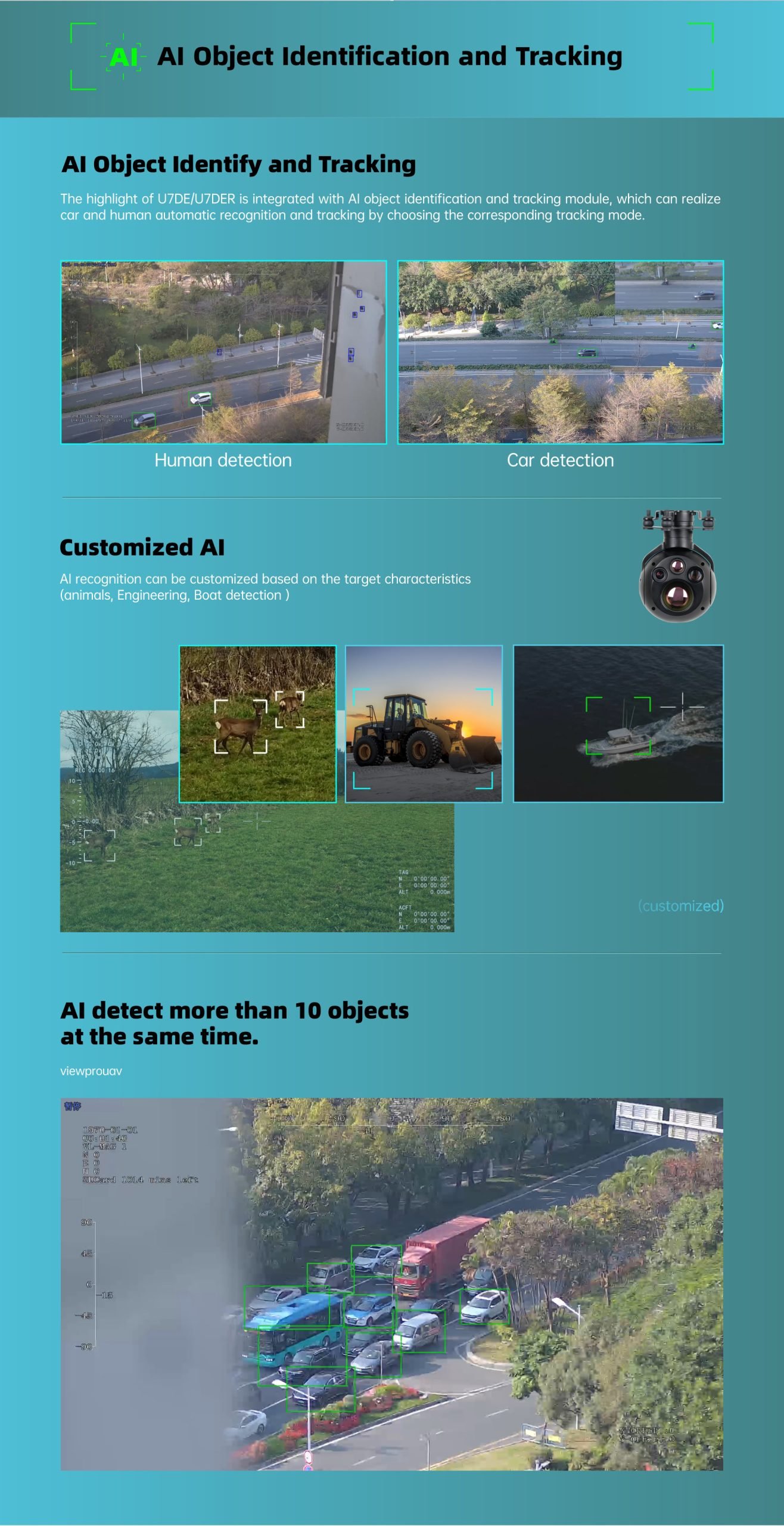

| EO Camera Object Tracking | |
| Update rate of deviation pixel | 60Hz |
| Minimum object contrast | 5% |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames |
| EO / IR Camera Object Tracking | |

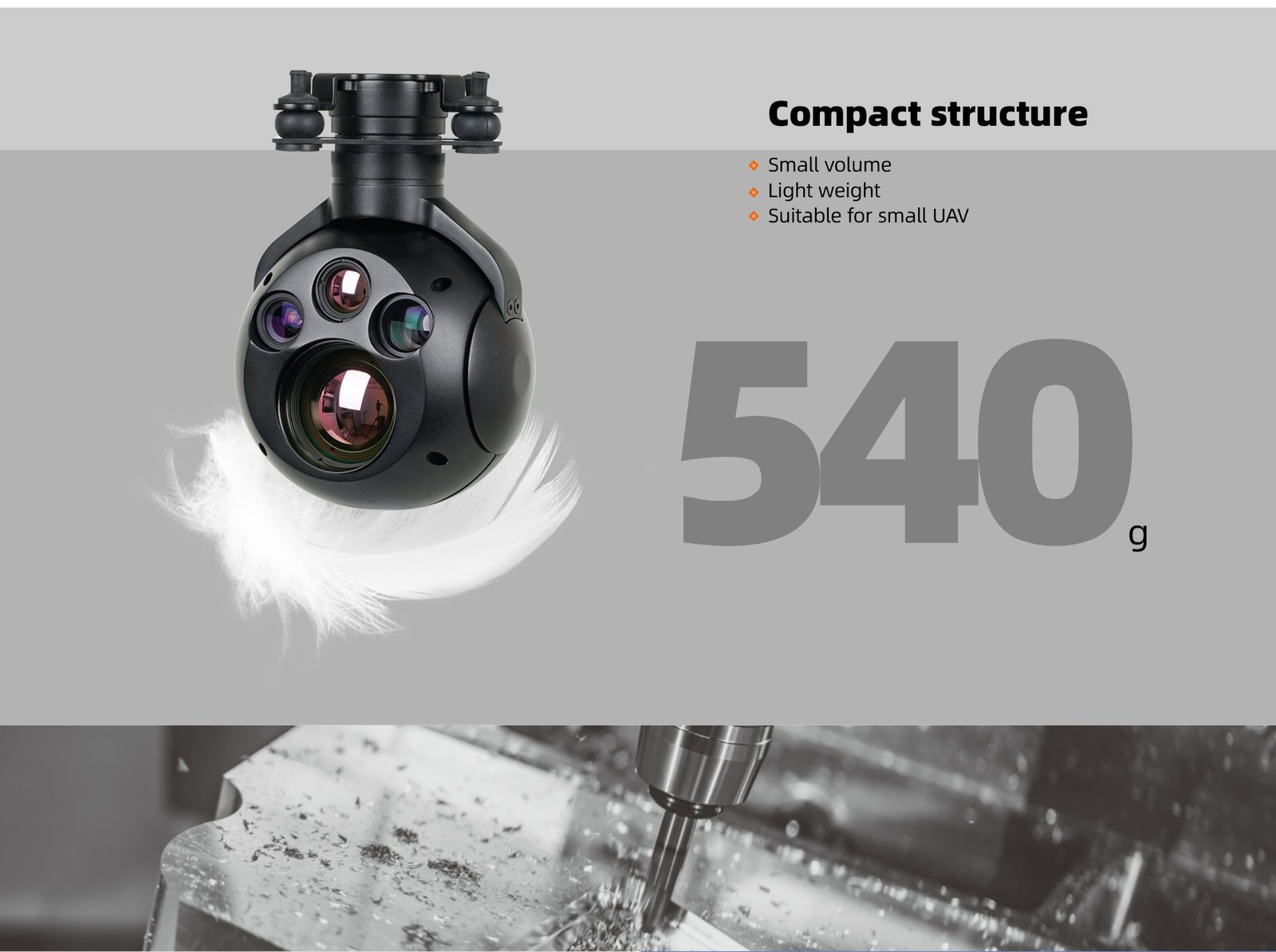

| N.W. | 525g (with damping system) |
| Product meas. | 95.9*86.7*135.6mm |
| Accessories | 1pc gimbal camera device, screws, USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 525g |
| Package meas. | 167*158*120mm |
