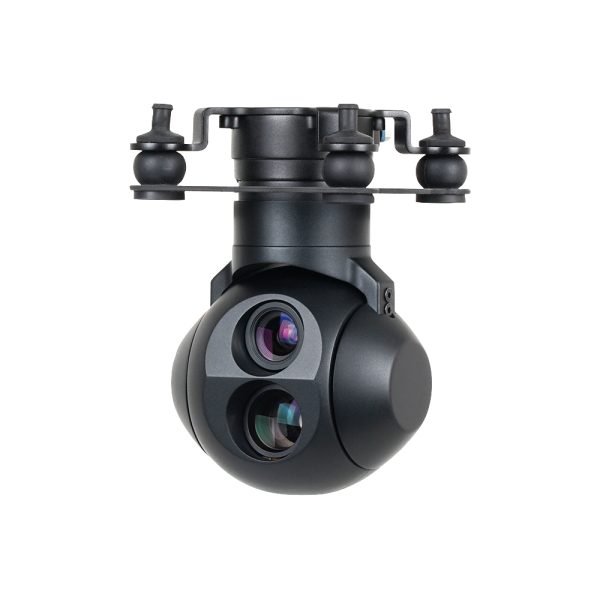

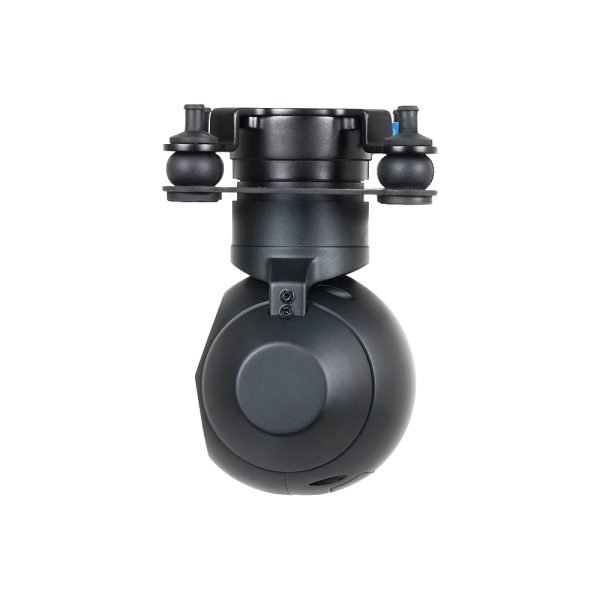

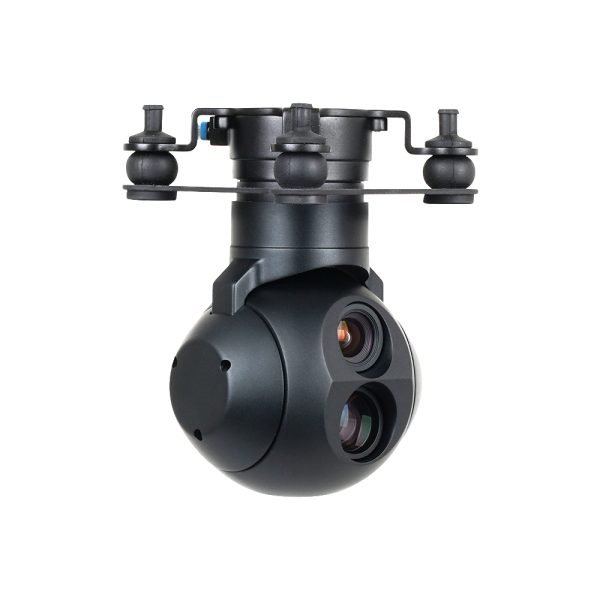

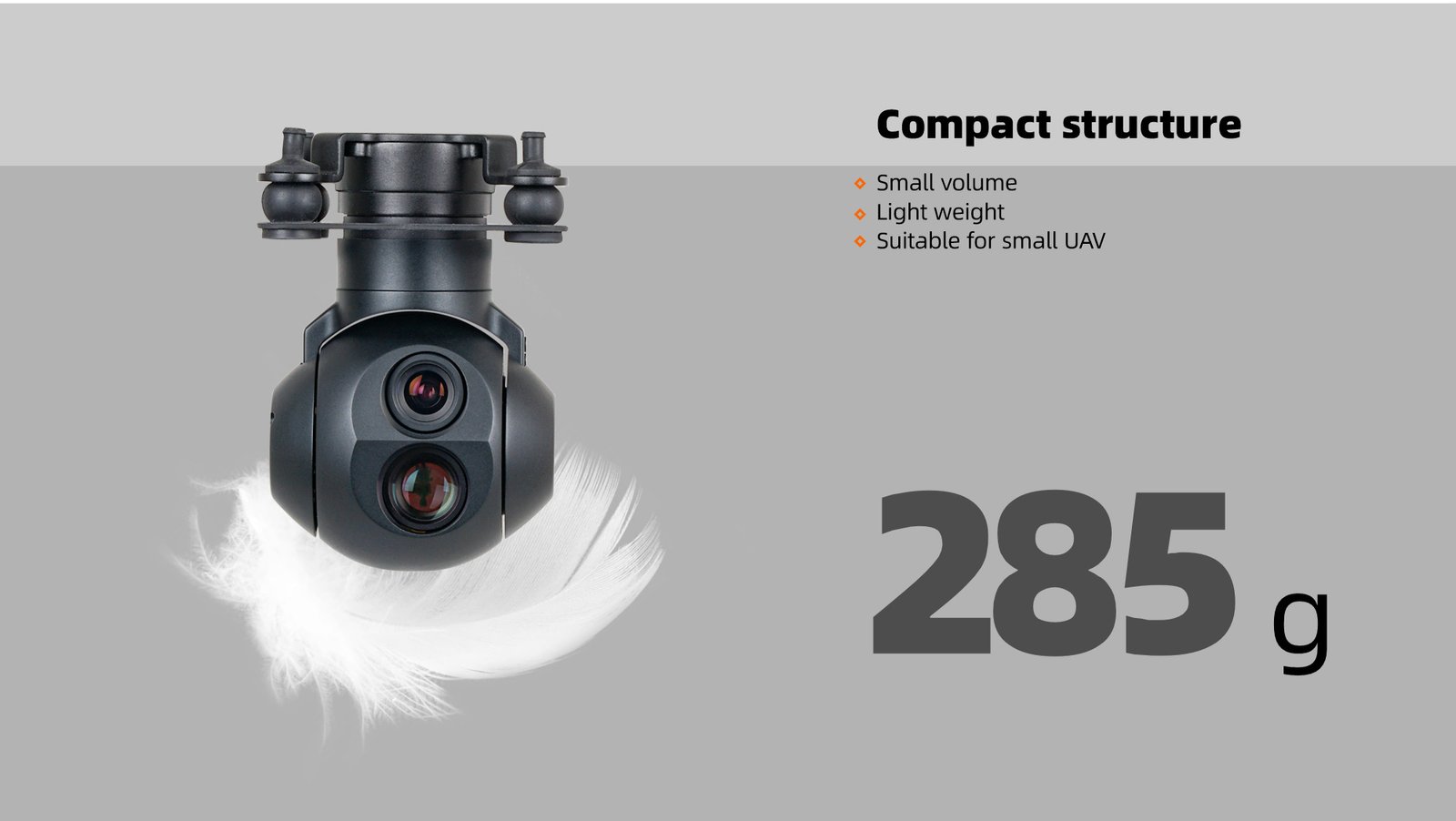

MU7DE Micro Prime Lens Dual EO Object Tracking Gimbal Camera for Surveillance
China Moneypro

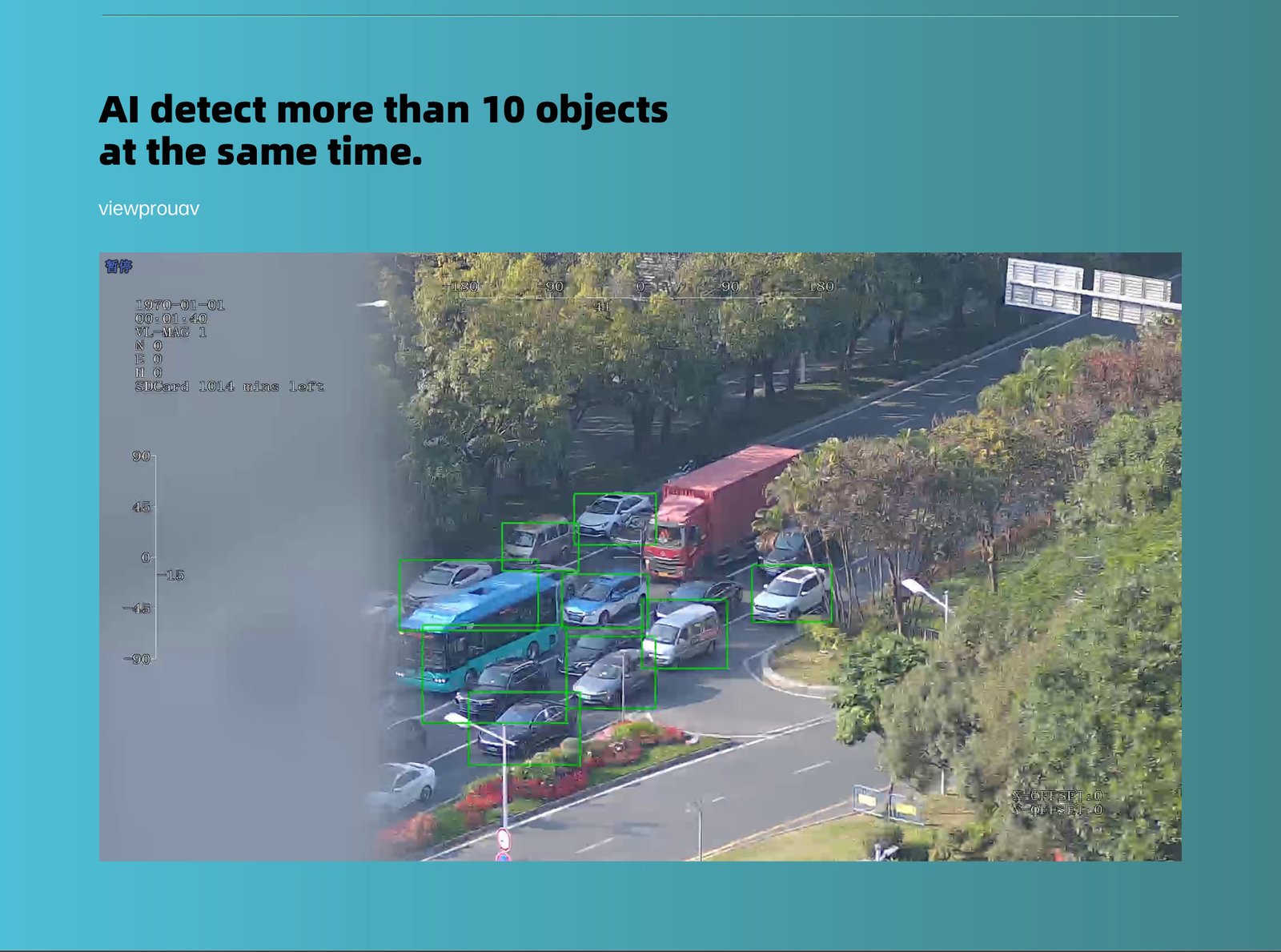

The highlight of MU7DE is integrated with AI object identification and tracking module, which can realize car and human automatic recognition and tracking by choosing the corresponding tracking mode.
| Hardware Parameter | |
| Working voltage | 12V(3S) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 600~1000mA @ 12V |
| Idle current | 600mA @ 12V |
| Working environment temp. | -20 ~+60 |

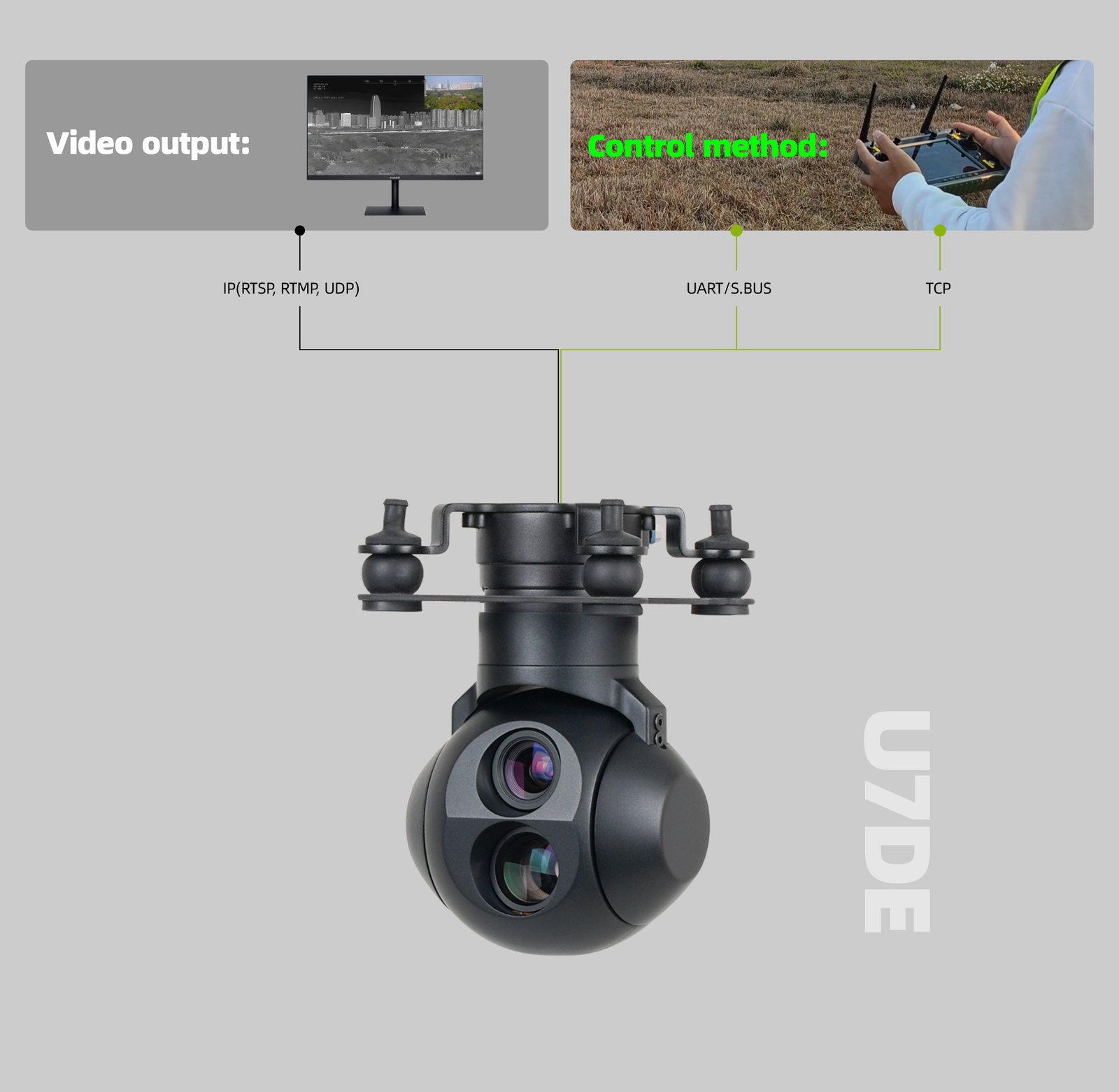

| Output | IP rtsp (1080p 30fps) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 25fps) |
| Control method | TTL / S.BUS/ TCP |
| Gimbal Spec | |
| Angle scope of structure design | Pitch/Tilt: -60 120 , Yaw/Pan: 360 *N |
| Angle scope of software design | Pitch/Tilt: -45 90 , Yaw/Pan: 360 *N |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |

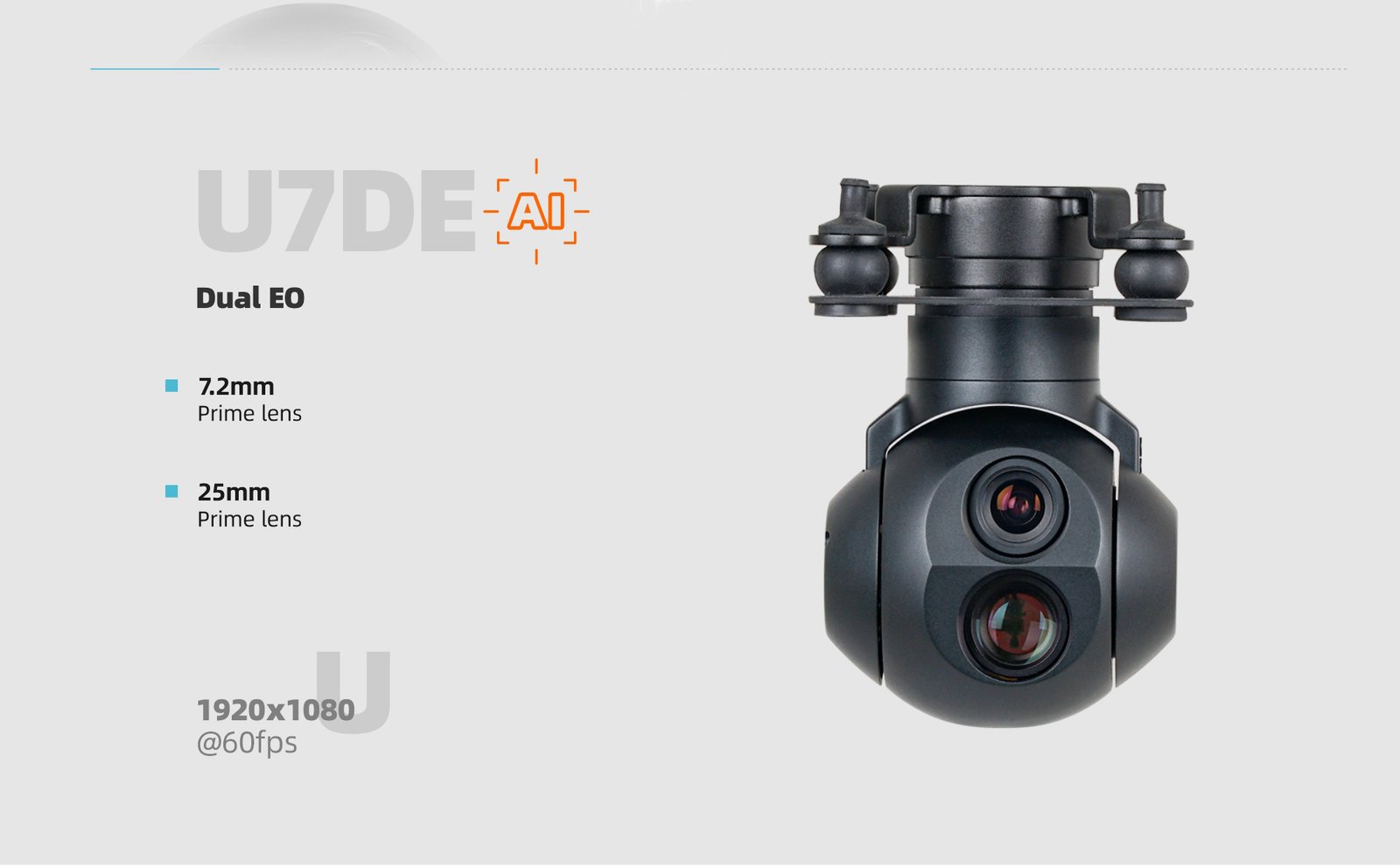

| EO Camera 1 Spec | |
| Resolution | 1920*1080 @60fps |
| Focus Length | 7.2mm |
| Angle of View | 42.28 *24.54 |
| EO Camera 2 Spec | |
| Resolution | 1920*1080 @60fps |
| Focus Length | 25mm |
| Angle of View | 12.71 *7.17 |
| EO Camera Object Tracking | |
| Update rate of deviation pixel | 60Hz |
| Minimum object contrast | 5% |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames |
| Packing Information | |
| N.W. | 230g (with damping system) |

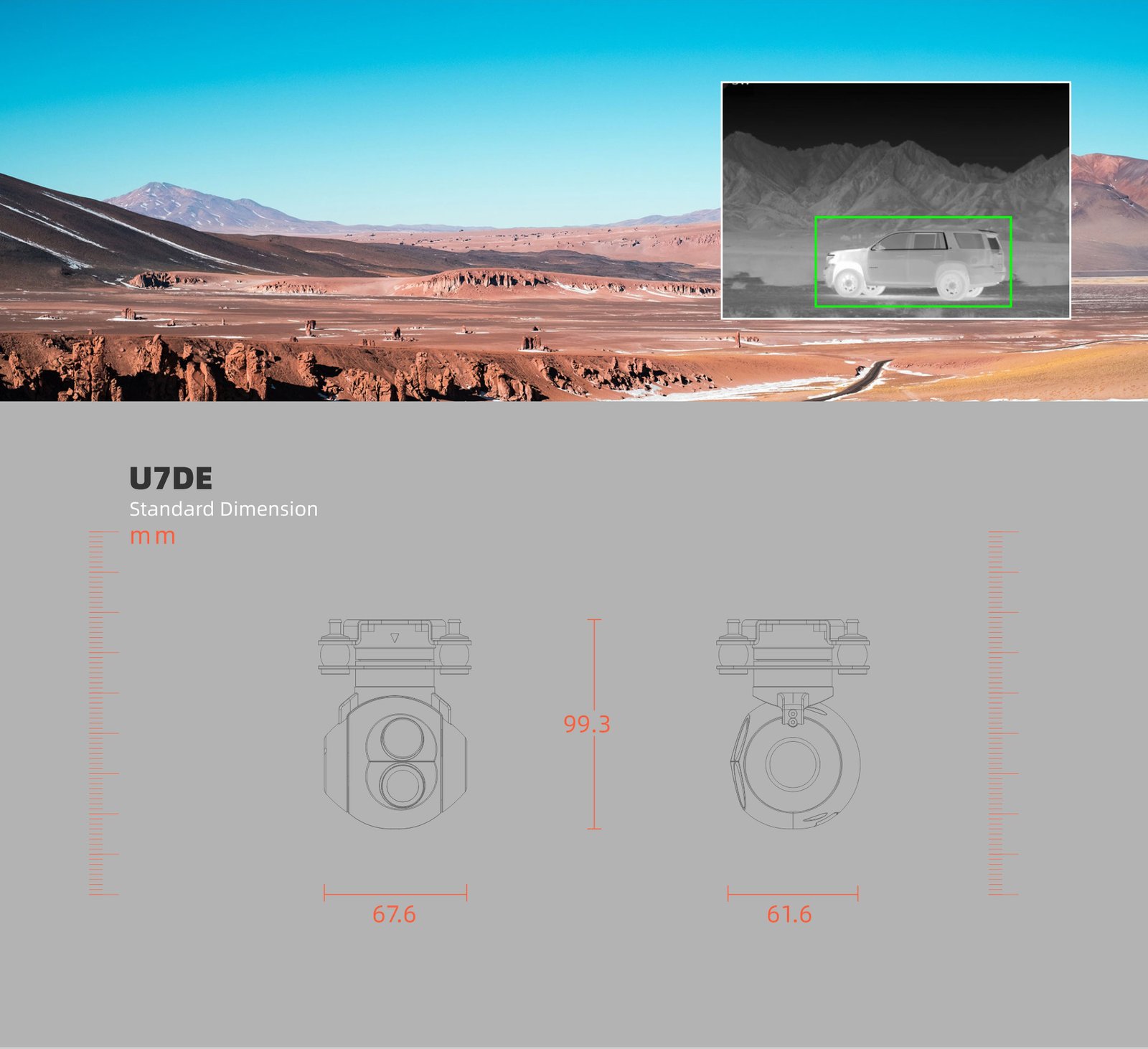

| Product meas. | 67.6*61.6*99.3mm |

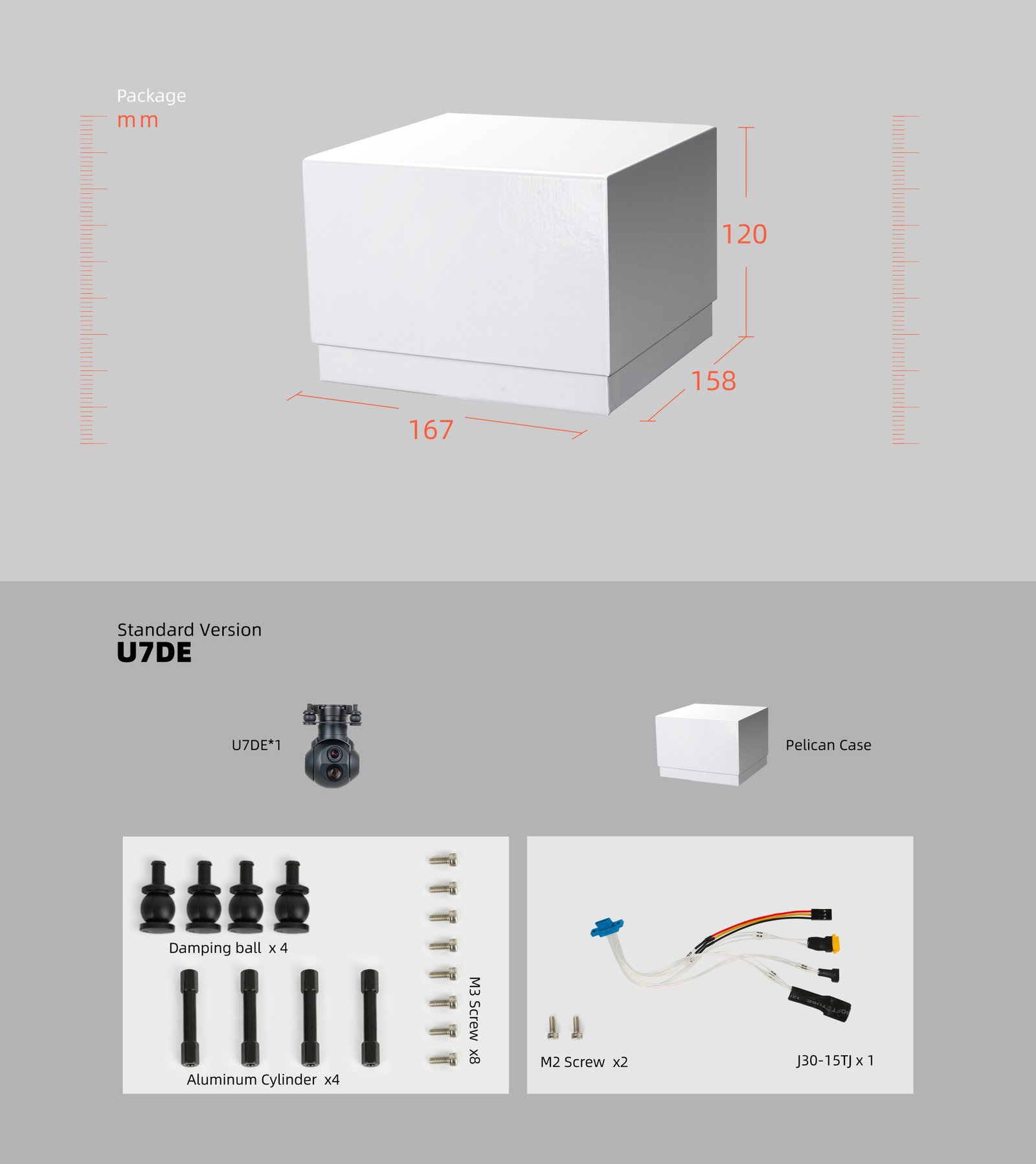

| Accessories | 1pc gimbal camera device, screws, USB to TTL cable / Hight quality plastic box with foam cushion |
| Package meas. | 167*158*120mm |
