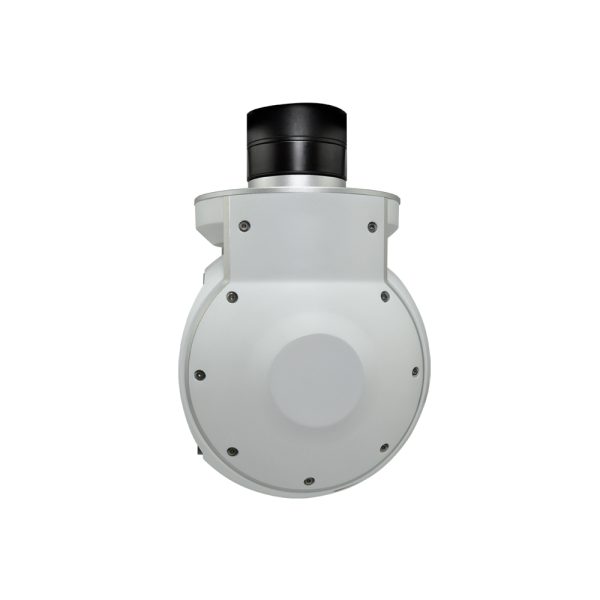

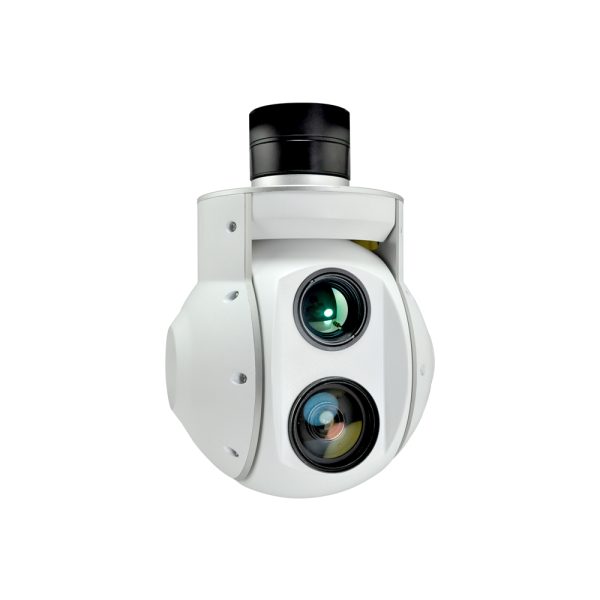

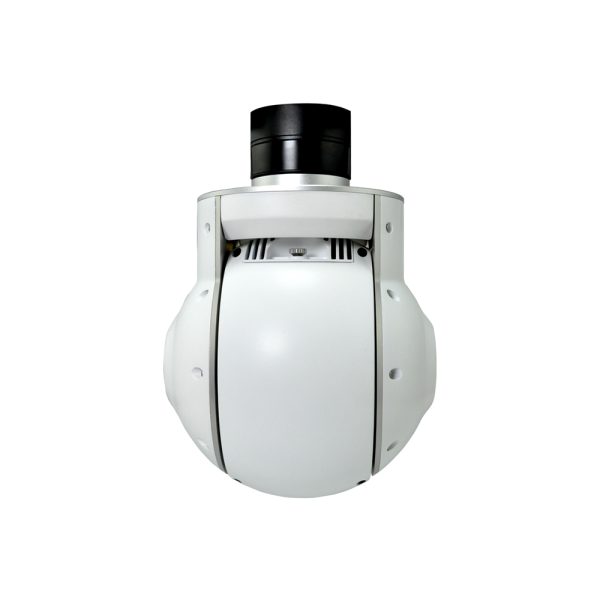

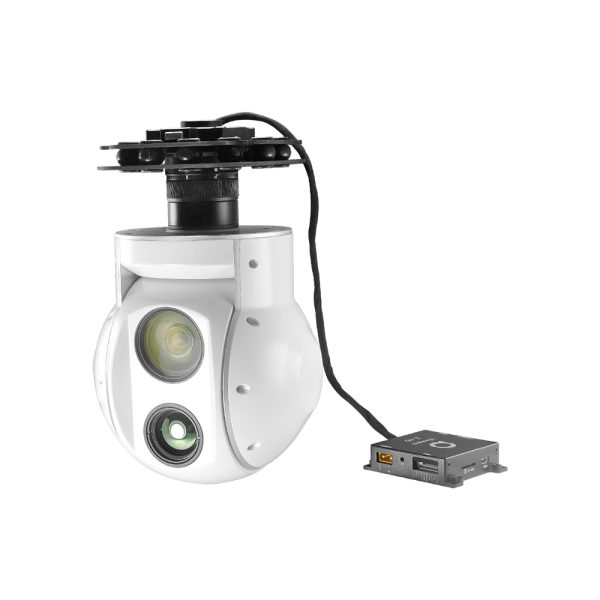

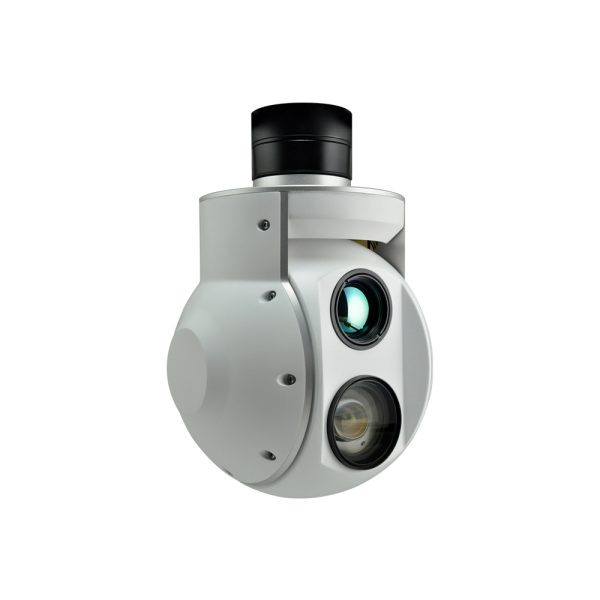

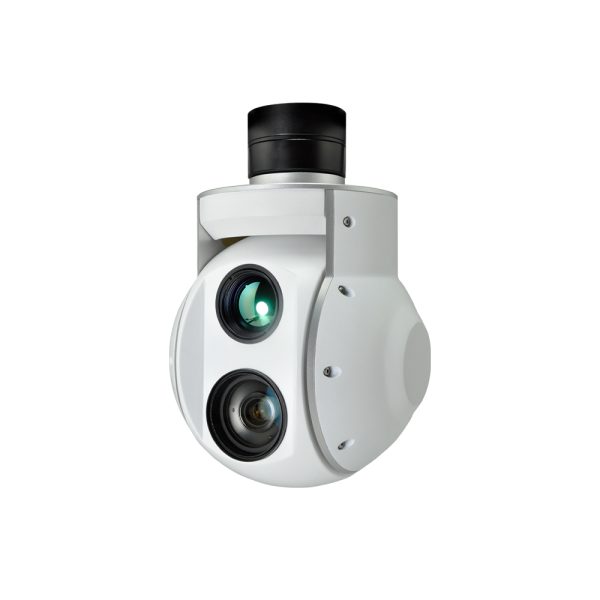

MU30TIR 30x Zoom Dual-sensor 2-axis Gimbal Camera
The MU30TIR is a professional 30x zoom dual-sensor gimbal camera combining visible light and thermal imaging capabilities. Featuring a SONY 1/2.8 Exmor R CMOS sensor with 2.13 megapixels and 1080p HD quality, it delivers exceptional low-light performance at 0.01 lux. The 30x optical zoom extends observation range to 500 meters. Integrated with a French ULIS thermal imager featuring 25mm lens and 640×480 resolution, it detects heat signatures up to 735 meters for people and 2255 meters for vehicles. The optional thermometry version measures temperatures from 0-120 degrees with real-time display and alarm alerts. Compact and lightweight at 1046g, it supports PWM, S.BUS, and TTL control with multiple output options including HDMI, IP, and SDI. Ideal for surveillance, search and rescue, inspection, and firefighting applications requiring day and night operation with precise thermal analysis capabilities.
U30TIR gimbal camera features an 30x optical zoom lens. It s powered by SONY 1/2.8 Exmor R , 2.13 mega effective pixels, fast auto-focus speed, 1080p HD image quality, as well as visible light, thermal imaging tracking. It is compact size, support PWM, S. BUS and TTL. Detecting by heat source, the 25mm thermal can reveal the damage of buildings, fire spark in forest, the location of people or animal and more. It s widely used in day and night surveillance, search, inspection and firefighting.

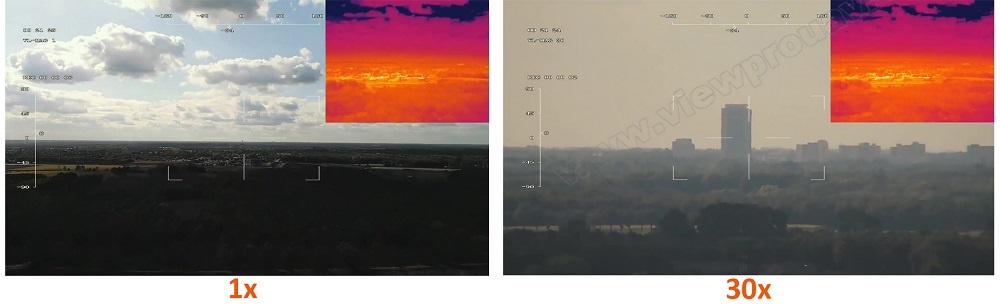

SONY 30x Zoom Starlight Camera
Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, U30TIR can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.
Professional Thermal Imager
Integrated French ULIS high-precision uncooled long wave (8 m ~14 m ) thermal image sensor, U30TIR can record and transmit thermal image and visible images at the same time in PIP format.

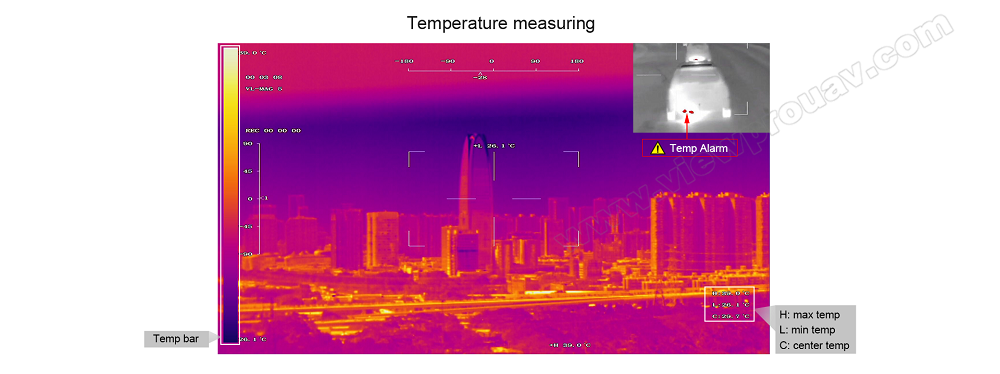

Optional thermometry version: With temperature measuring sensor, it could accurately attain the temperature of objects and individuals. The thermal sensor allows three points temperature ranging between 0 ~120 to be measured and displayed on screen. Adjust the different colors applied to the thermal data based on the needs of specific scenarios.
*Temp bar: Indicates gradually variation temperature with corresponding colors.
*Temp measurement: Display average, highest, and lowest temperatures in real time.
*Temp alarm: Don t miss a thing when object temperatures exceed pre-set alert values.
| Overall Specifications | |
| N.W. | 1046g |
| Product meas. | 127*122*195.4mm |
| Input voltage | 14.8V~25.2V |
| Dynamic current | 600~1250mA @ 16V |
| Power consumption | Average 9.6W, Max 20W |
| Working environment temp. | -20 ~ +50 |
| IP rate | IP4X |
| Output (optional) | Micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / SDI (1080P 30fps) |
| Storage | TF card (Up to 512G,class 10, FAT32 format) |
| Picture in TF Card | JPG(1920*1080) |
| Video in TF Card | MP4(1080P 30fps) |
| Control method | PWM / TTL / S.BUS / TCP / UDP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -40 (Up) 120 (Down), Yaw/Pan: 300 / 360 *N (IP / SDI output version) |
| Controllable Range | Pitch/Tilt: -30 115 , Yaw/Pan: 290 / 360 *N (IP / SDI output version) |
| Vibration angle | Pitch/Roll/Yaw: 0.02 |
| One-key to center | |
| Camera spec | |
| Imager Sensor | 1/2.8 Type STARVIS2 CMOS Sensor |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end) |
| Horizontal viewing angle | 64.0 (wide end) ~ 2.4 (tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.009 lux (1/30 sec, 50%, High Sensitivity mode On) |
| Color 0.09 lux (1/30 sec, 50%, High Sensitivity mode Off ) | |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Defog | Yes |
| Thermal Imager Spec | |
| Focus Length | 25mm |
| Horizontal FOV | 24.6 |
| Vertical FOV | 18.5 |
| Diagonal FOV | 30.4 |
| Detective Distance (Man: 1.8 0.5m) | 735 meters |
| Recognize Distance (Man: 1.8 0.5m) | 184 meters |
| Verified Distance (Man: 1.8 0.5m) | 92 meters |
| Detective Distance (Car: 4.2 1.8m) | 2255 meters |
| Recognize Distance (Car: 4.2 1.8m) | 564 meters |
| Verified Distance (Car: 4.2 1.8m) | 282 meters |
| Working mode | Uncooled long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*480 |
| Pixel pitch | 17 m |
| Focusing method | Athermal prime lens |
| NETD | 50mK (@25 ) |
| MRTD | 650mK (@characteristic frequency) |
| Color palette | White hot,black hot,Iron red |
| Digital zoom | 1x ~ 4x |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0 ~120 (For thermometry version only) |
| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Features | |
| OSD | Display the gimbal s yaw and pitch angle, magnification, card recording duration, aircraft GPS and altitude, date and time |
| Geotagging | Display time and GPS coordinate in picture exif |
| Card reading online | SMB read pictures or videos / HTTP read pictures or videos |
| KLV (UDP) | Card recording or Viewlink video playback |
| ArduPilot / PX4 | Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature |
| Video switching | EO+IR /IR+EO /EO /IR |
