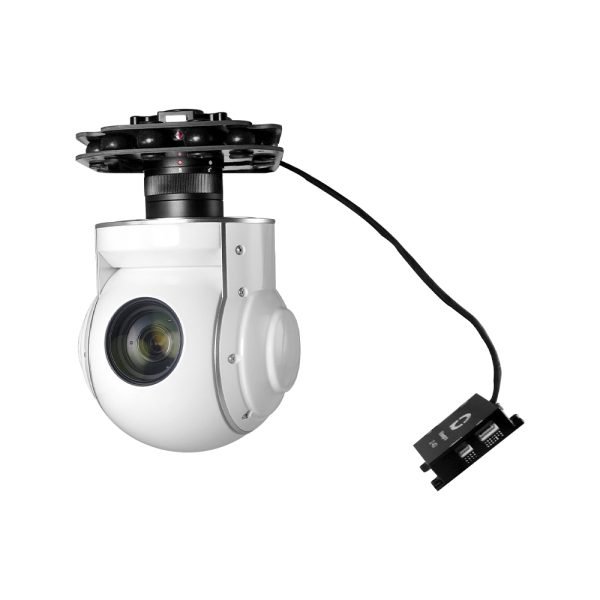

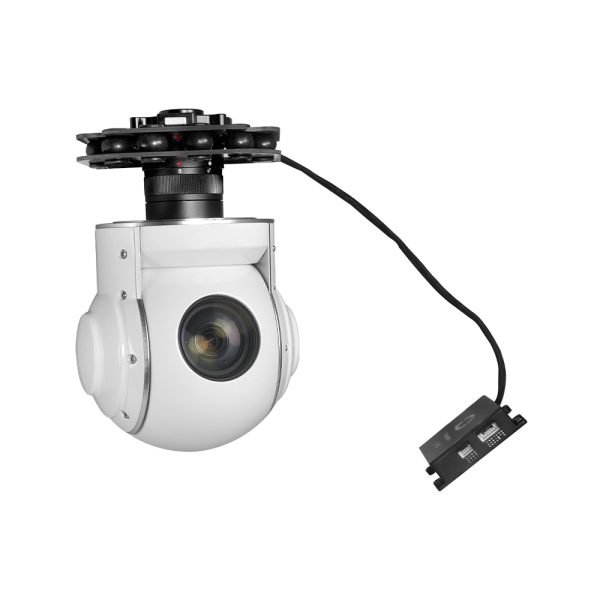

MU30T optimized 2-axis camera gimbal airplane VTOL and Multi-rotor UAV payload
The MU30T is a professional 2-axis camera gimbal designed for VTOL and multi-rotor UAV applications. Featuring a highly optimized FOC program with 0.02-degree control accuracy, it delivers pinpoint-precise stabilization through four damping balls and a lightweight damping board, ensuring seamlessly smooth video even during high-speed flight. The gimbal supports 300-degree pan rotation with an aerodynamic dome design. Powered by a SONY 1/2.8 Exmor R CMOS sensor with starlight capability at 0.01lux, the U30T offers 30x optical zoom, 2.13 megapixels, and 1080p HD quality with observation range up to 500 meters. Built-in object tracking algorithms enable stable target tracking with speeds up to 32 pixels per frame and minimal noise. Multiple output options include HDMI, Ethernet/IP, and SDI, supporting 1080p and 720p resolutions. Control methods include PWM, TTL, S.BUS, and TCP via Ethernet. Compatible with Viewpro Viewport for easy assembly and plug-and-play operation. Ideal for law enforcement, firefighting, infrastructure inspection, and search and rescue operations requiring rapid situational assessment and emergency response.
Professional 3-axis High-precise FOC Program
The U30T features a highly refined 2-axis camera gimbal driven by a dedicated processor, enabling motor control precision as fine as 0.02. Its mechanically restricted structure and internal wiring layout improve transmission stability and overall robustness. Four vibration-damping balls combined with a lightweight plate effectively cancel out shaking, resulting in ultra-smooth video output. The gimbal pan allows for up to 300° of rotation. Thanks to its aerodynamic dome design and 2-axis stabilization, the U30T delivers steady, clear footage even during high-speed flights on VTOL or fixed-wing aircraft.
SONY 30x Zoom Starlight Camera
Powered by a SONY 1/2.8 Exmor R CMOS module and featuring a starlight-level minimum illumination of just 0.01 lux at F1.6, the U30T delivers clear image details even in extremely low-light conditions. With 2.13 effective megapixels and 1080p HD video quality, paired with advanced 30x optical zoom, it offers an observation distance of up to 500 meters—making it suitable for a wide range of application scenarios across different fields.
Built-in Object Tracking Function
The system integrates built-in normalization, cross-correlation, and tracking algorithms, complemented by an object missing recapture mechanism to ensure robust target following. It supports custom on-screen display (OSD) characters, adaptive gate control, cross-cursor overlay, and trace information visualization. The tracking speed can reach up to 32 pixels per frame, accommodating object sizes ranging from 16×16 to 160×160 pixels. With a minimum signal-to-noise ratio (SNR) of 4 dB, the root-mean-square (RMS) error of pulse noise in the object’s position is less than 0.5 pixel, significantly enhancing both tracking precision and overall performance.
Multi Output Methods Optional
The Q10T supports HDMI, Ethernet/IP, and SDI output. HDMI delivers 1080p resolution, while the default Ethernet/IP output is set to 720p with 1080p recording capability. Both the IP and SDI output versions are capable of continuous 360-degree pan.
Multi Control Methods
The system natively supports PWM and TTL communication over serial ports, with SBUS available as an optional interface. For models featuring IP output, TCP control over Ethernet is also supported. Using the Viewpro Viewlink software, users can enable IP streaming, TTL-based command, and TCP remote control functions simultaneously.
Control box signal interfaces:
Compatible with Viewport
The U30T is designed to work seamlessly with Viewpro’s Quick Release Connector, known as Viewport. This optional feature enables easy assembly and true plug-and-play operation.
Signal interfaces of Viewport control box:
For more information about Viewport, please check below video instruction:
Applications
Mainly deployed in law enforcement, firefighting, power tower and pipeline inspection, as well as search and rescue operations. In emergencies, extensive monitoring and search capabilities are essential to rapidly transmit real-time situational data, enhance emergency response efficiency, and minimize casualties.
Dimensions
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 520~1000mA @ 16V |
| Working environment temp. | -20 ~ +60 |
| Output | micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / SDI (1080P 30fps) |
| Local-storage | TF card (Up to 512G,class 10, FAT32 format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |
| Card reading online | SMB read / HTTP read |
| Control method | PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -35 115 , Yaw/Pan: 300 / 360 *N (IP/SDI output version) |
| Controllable Range | Pitch/Tilt: -30 110 , Yaw/Pan: 290 / 360 *N (IP/SDI output version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| Camera spec | |
| Imager Sensor | SONY 1/2.8 Exmor R CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7 (wide end) ~ 2.3 (tele end) |
| 720p mode: 63.7 (wide end) ~ 2.3 (tele end) | |
| SD: 47.8 (wide end) ~ 1.7 (tele end) | |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.01lux@F1.6 |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 825g / 854g(Viewport version) |
| Product meas. | 115.8*103.5*181.3mm / 115.8*103.5*167.3mm (Viewport version) |
| Accessories | 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with foam cushion |
| G.W. | 2397g |
| Package meas. | 300*250*200mm |
