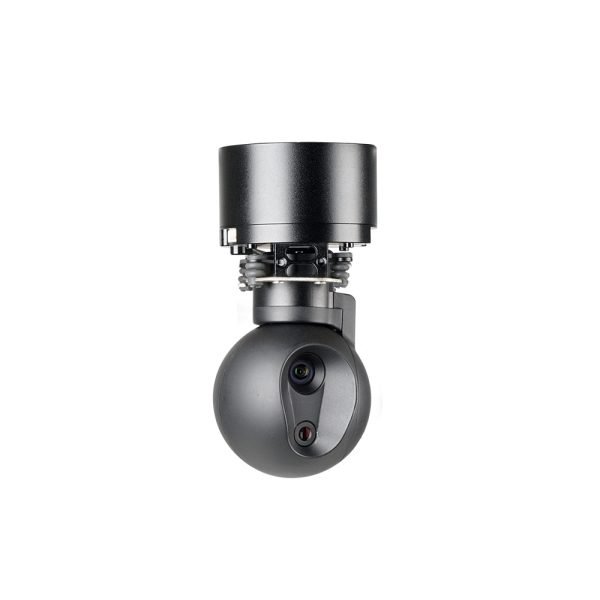

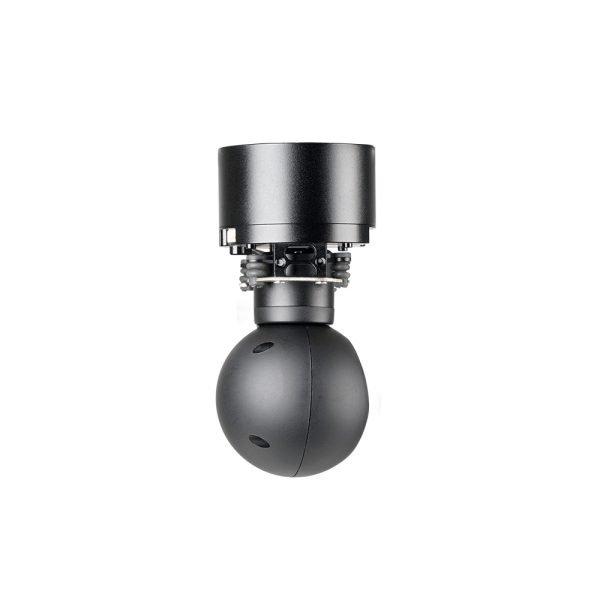

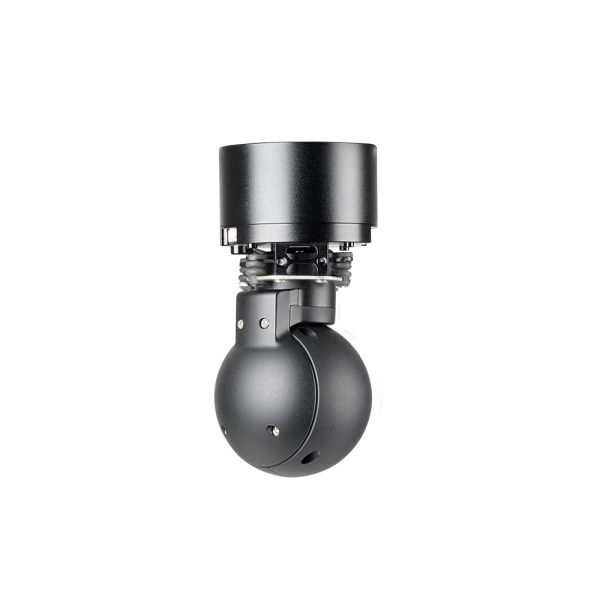

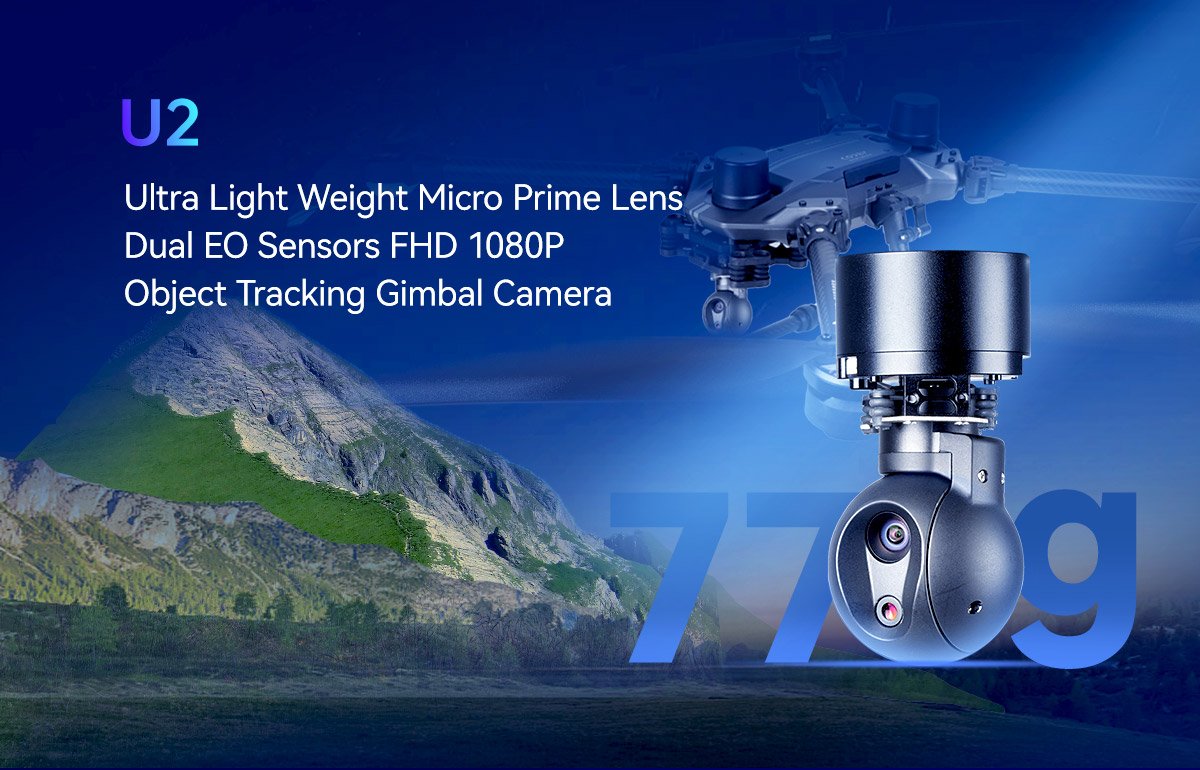

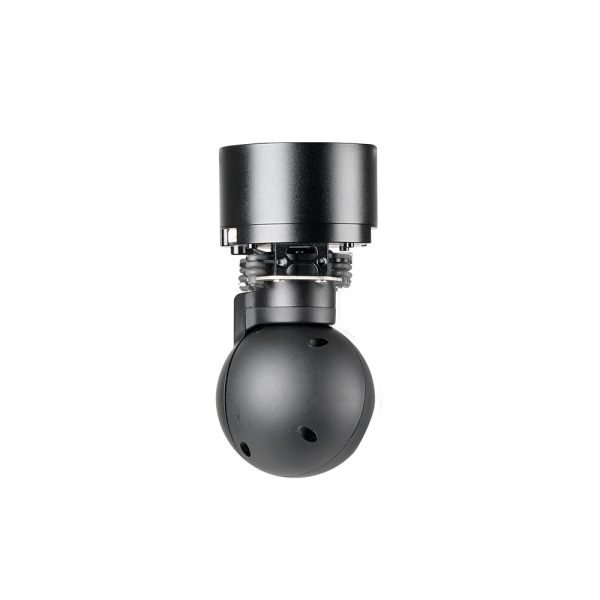

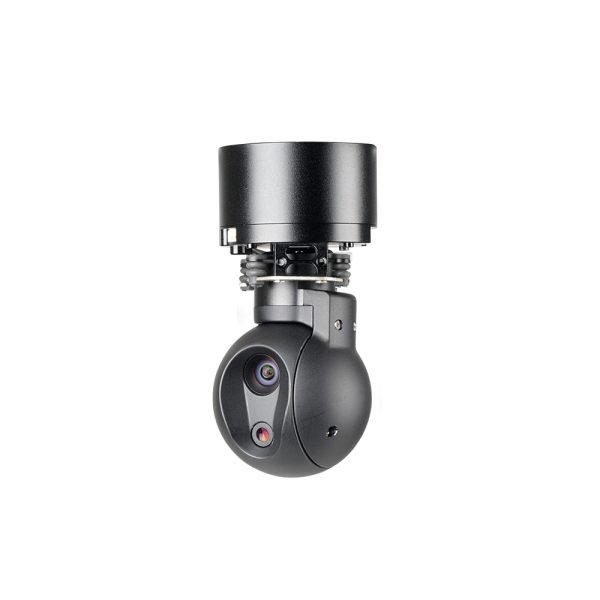

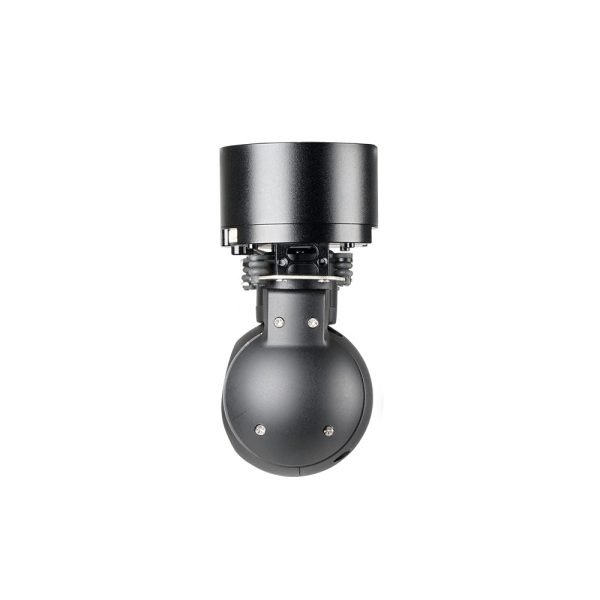

MU2 Ultra Light Weight Micro Prime LensDual EO Sensors FHD 1080P Object Tracking Gimbal Camera
China Moneypro
The MU2 Ultra Light Weight Micro Prime Lens Dual EO Sensors FHD 1080P Object Tracking Gimbal Camera is a compact, high-performance surveillance solution weighing just 80 grams. Featuring dual 1080p cameras with advanced object tracking capabilities, it delivers precise stabilization with 0.2mrad accuracy and 30 degrees per second angular velocity. The system includes a wide-angle 2.4mm lens and a telephoto 10.36mm lens with 12.5x hybrid zoom for versatile coverage. Intelligent tracking supports objects as small as 16×16 pixels with 100-frame memory retention. Operating on 12-16V power with minimal consumption, it offers RTSP streaming via Ethernet and TTL/TCP control. Perfect for UAVs, robotics, and surveillance applications requiring lightweight, reliable performance in temperatures from -20 to +50 degrees Celsius.
| Hardware Parameter | |
| Working voltage | 12~16V |
| Dynamic current | 200~700mA @ 12V |
| Power consumption | Average 2.4W, Max 8.4W |
| Working environment temp. | -20 ~+50 |
| Output | IP (RTSP 1080p 30fps H264) |
| Control method | TTL / TCP |
| Gimbal Spec | |
| Controllable Range | Pitch/Tilt: -30 115 , Yaw/Pan: 145 |
| Stability precision | 0.2mrad |
| Maximum angular velocity | 30 /S |
| One-key to center | |

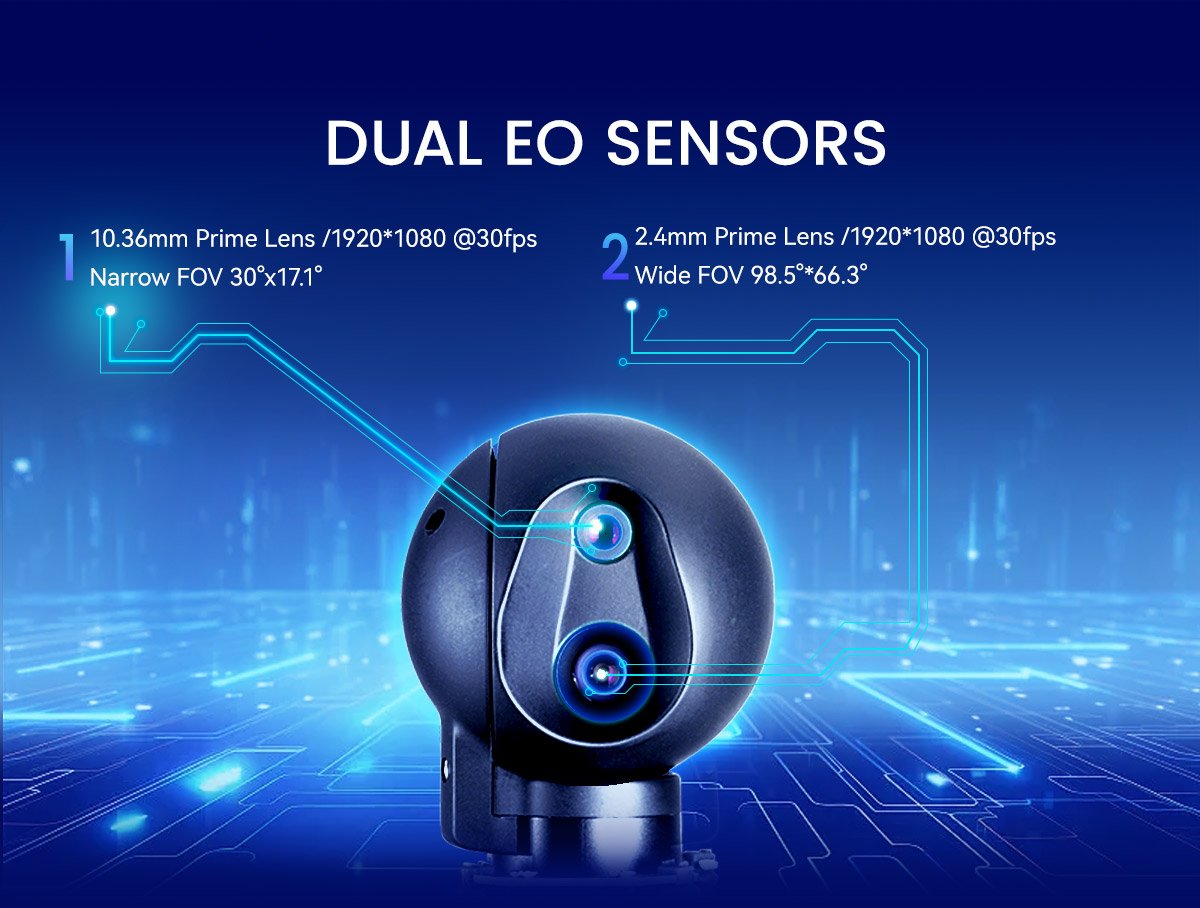

| EO Camera Spec 1 | |
| Resolution | 1920*1080 @30fps |
| Focus Length | 2.4mm |
| Angle of View | 98.5 *66.3 |
| EO Camera Spec 2 | |
| Resolution | 1920*1080 @30fps |
| Focus Length | 10.36mm |
| Angle of View | 30 *17.1 |

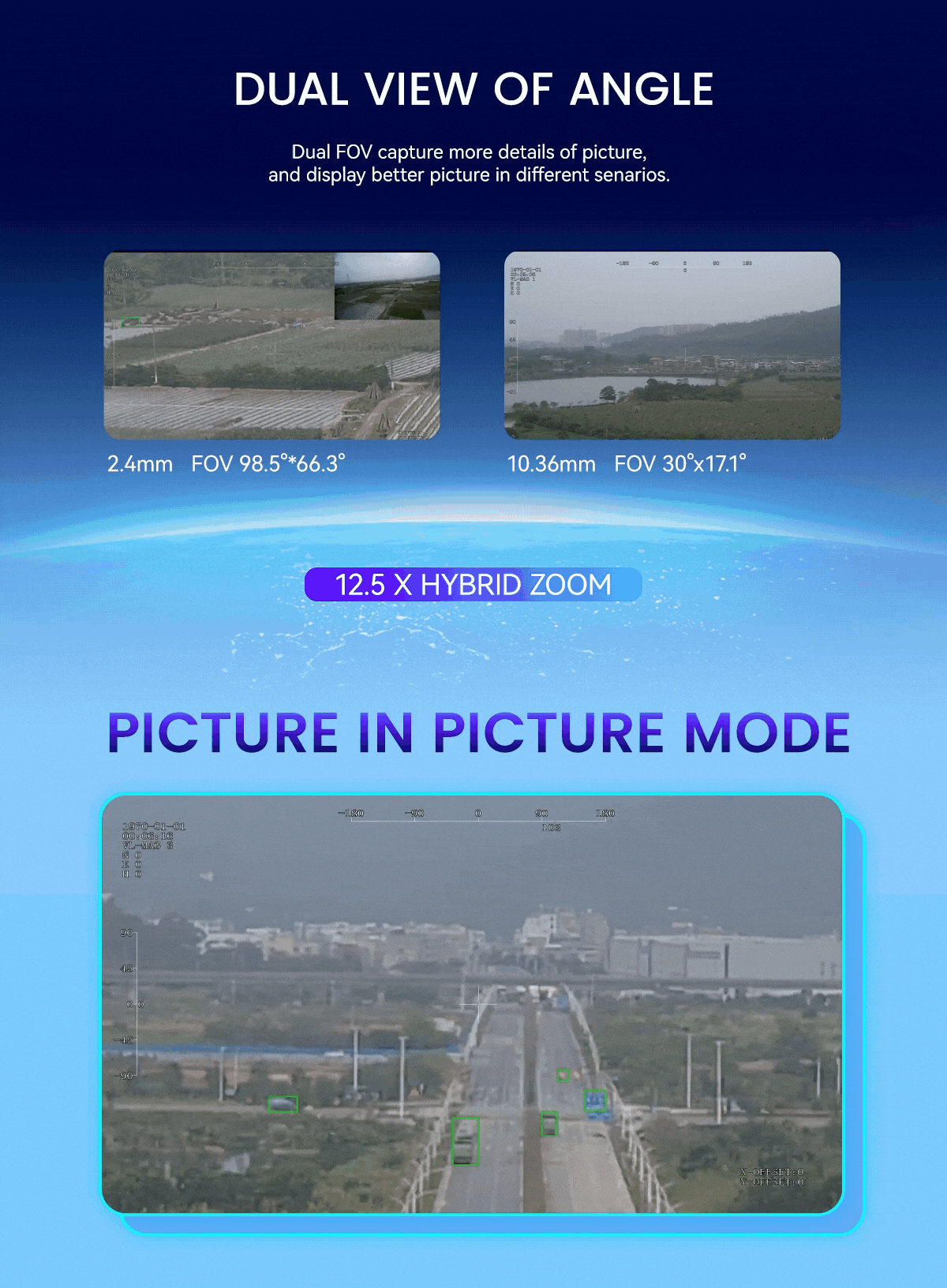

| Hybrid Zoom | 12.5x (Equivalent optical zoom 4.2x, digital zoom 3x ) |
| EO Camera Object Tracking | |
| Minimum object contrast | 5% |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed Man | 32 pixel/frame |
| Tracking speed (Car) | 48 pixel/frame |
| Object memory time | 100 frames |

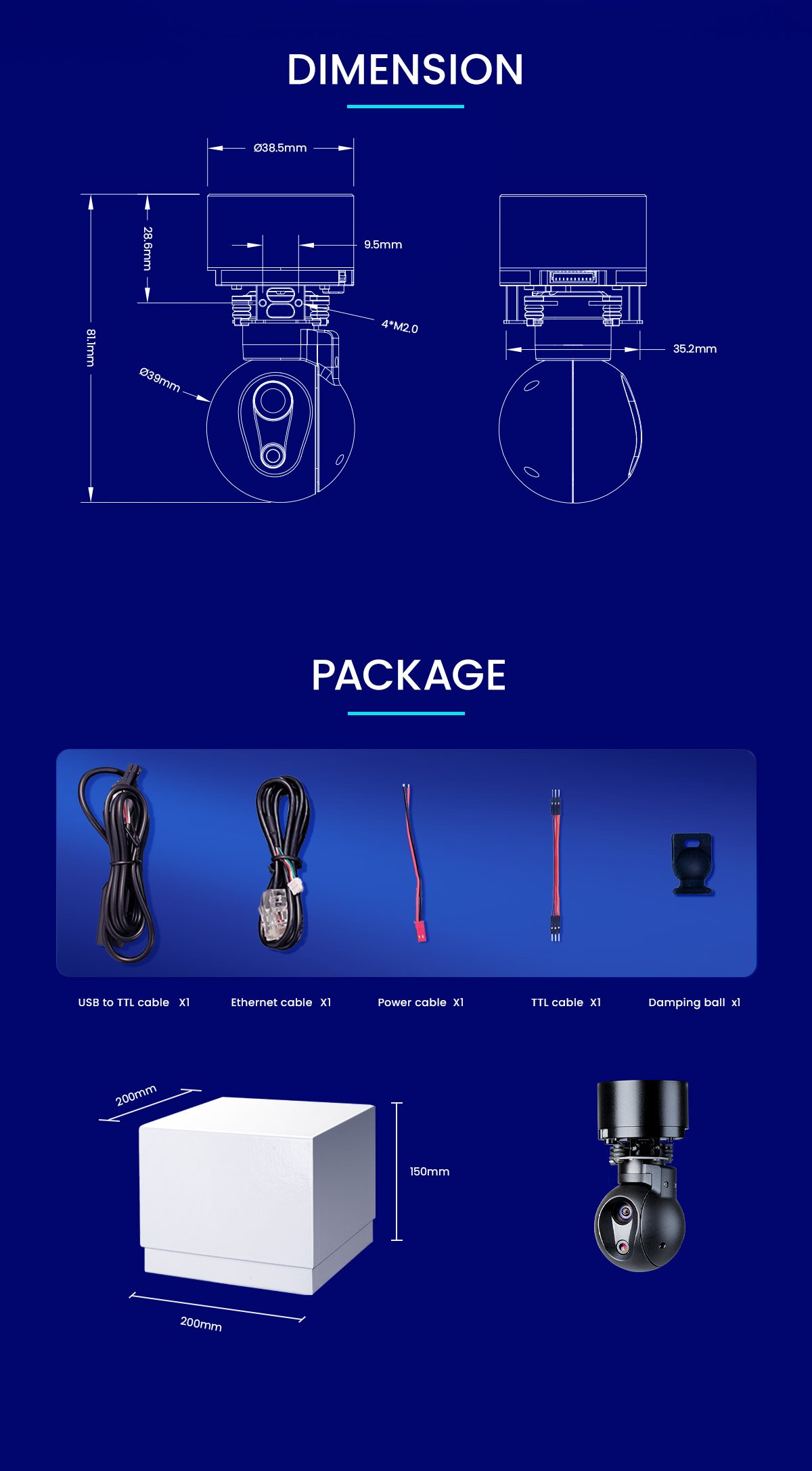

| Packing Information | |
| N.W. | 80g |
| Product meas. | 39*39*81.1mm |
| Accessories | UART and power connector, Ethernet cable, USB to TTL cable / Hight quality box with foam cushion |
