MTZ130DB-HNV000T635L305 Tri-axis Dual-light pod
The MTZ130DB-HNV000T635L305 is a lightweight tri-axis dual-light optoelectronic pod designed for medium and small-sized UAVs. It integrates an uncooled infrared thermal imager, laser rangefinder, three-axis servo stabilization platform, and autonomous image processing for automatic target recognition and tracking. The system delivers real-time infrared video for day and night reconnaissance and surveillance missions. It features high stability, accuracy, and integration with seamless compatibility to mainstream Chinese flight control platforms and ViewControlStudio software. The pod excels in reconnaissance, border patrol, search and rescue, and forest fire prevention applications. With advanced capabilities including automatic target tracking, memory tracking, laser ranging up to 3km, and precise stabilization within 0.1mrad, it provides comprehensive situational awareness. Operating at 24VDC with minimal power consumption of 30W, the compact 1.1kg pod offers quick-release mounting, 100Mbps Ethernet connectivity, and robust environmental adaptability from -20 to 55 degrees Celsius.
The MTZ130DB-HNV000T635L305 optoelectronic pod integrates an uncooled infrared thermal imager, a laser rangefinder, a three-axis servo stabilization platform, and an image processing component featuring autonomous recognition and tracking. With its lightweight design, high stability and accuracy, and high level of integration, the pod supports automatic target recognition and automatic tracking. It is ideally suited for medium to small-sized UAVs, enabling day-and-night reconnaissance and surveillance missions over target areas.
The pod has been adapted to several mainstream flight control platforms in China, ensuring seamless integration with flight control systems. It can also be connected to our organization’s ViewControlStudio display and control software platform, helping the overall system integrator accelerate UAV system development.
Equipped with an uncooled infrared thermal imager, the pod can detect, identify, and track ground targets around the clock, outputting real-time infrared video for mission personnel.
Typical applications of the optoelectronic pod include reconnaissance, border patrol, search and rescue operations, and forest fire prevention.
I. Photos of the actual product
Figure 1 Product Image
II. Product Functions
a) Capable of automatically identifying and tracking typical targets.
b) Equipped with self-testing and fault reporting functions.
c) Includes laser ranging capability.
d) Supports three degrees of freedom (azimuth, pitch, and roll).
e) Offers multiple operating modes, including heading lock, manual search, follow-up, attitude stabilization, and tracking.
f) Able to isolate carrier disturbances and stabilize the line of sight.
g) Features target locking/unlocking, with the pod outputting an image containing a tracking frame once a target is locked.
h) Provides automatic target tracking with the ability to resist natural interference.
i) Includes memory tracking, allowing rapid recapture of a target after brief loss.
j) Allows adjustment of the gate size.
k) Supports tracking point switching.
l) Can calculate target coordinates using laser ranging, UAV position, and attitude information.
m) Supports bidirectional communication with the control station via serial port / 100 Mbps Ethernet (UDP), and can output system working status, camera working status, and optical axis position.
n) Features a 100 Mbps Ethernet video interface (RTSP protocol).
o) Has photo and video recording capabilities.
p) Includes a quick-release function.
III. Mounting Platform
Vertical take-off fixed-wing drones, rotary-wing drones, tethered drones, etc.
IV. Main Technical Parameters
| model | TZ130DB-HNV000T635L305 |
| Infrared thermal imager | |
| Detector type | Uncooled focal plane detector |
| Operating band | 8 m 14 m |
| Detector resolution | 640 512 |
| Pixel size | 12 m |
| Lens focal length | 35mm |
| Field of view | 12.5 10㣨 5% |
| Pseudo-color | 6 types |
| Numbers multiplied | 1.0 4.0X |
| Noise equivalent temperature difference | NETD 50mK |
| Minimum distinguishable temperature difference | MRTD 500mK |
| Laser rangefinder | |
| wavelength | 1535nm |
| Maximum ranging distance | 3km (under conditions of visibility 15km) |
| Minimum ranging distance | 20m |
| Distance measurement accuracy | 2m |
| Ranging frequency | 1-5Hz adjustable |
| Servo Platform | |
| Orientation angle | 360 n (360 continuous rotation) |
| Pitch angle | -110 +90 (positive for upward) |
| Roll angle | -40 +40 |
| Frame corner accuracy | 0.3㣨1ң |
| Stable accuracy | 0.1mrad (1 ) |
| Maximum turning speed | Azimuth 50 /s, Pitch 50 /s |
| Maximum turning acceleration | Azimuth 20 /s2, Pitch 20 /s2 |
| System Indicators | |
| Image tracking | Automatically track selected target |
| AI recognition | Automatic detection and identification of typical targets |
| Rated operating voltage | 24VDC |
| Power supply voltage range | 11V to 36VDC |
| power | Stable power consumption: 30W (peak current 5A when powered on at 24VDC) |
| weight | 1.1Kg |
| volume | 130mm 153mm 212mm |
| interface | |
| Control Interface | RS232/TTL/RS422/100Mbps Ethernet (optional) |
| Video interface | 100M network |
| Storage interface | 128G memory card (Mini SD card) |
| Image format | JPG format |
| Video format | AVI format |
| Arm type | straight arm |
| quick-release type | With quick release |
| Environmental adaptability | |
| Operating temperature | -20 55 |
| Storage temperature | -40 60 |
| Vibration conditions | The acceleration is 2g; 30 minutes each in the vertical, horizontal and longitudinal directions. |
| Impact conditions | Peak acceleration 20g, duration 11ms |
| Protection level | Can fly in light rain |
V. Mechanical Dimensions and Installation Interface Diagram

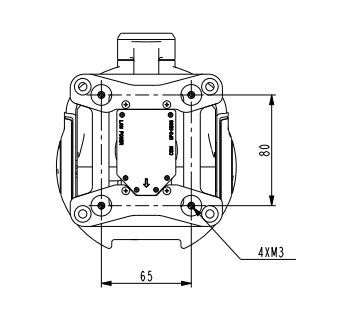

Figure 2 Interface and Dimension Diagram
