MTZ130-TAFNV233T635L121 Tri-axis Tri-light pod

The MTZ130-TAFNV233T635L121 optoelectronic pod integrates an uncooled infrared thermal imager, a 33x continuous zoom visible-light camera, a laser rangefinder, a three-axis servo stabilization platform, and an image processing module featuring autonomous recognition and tracking capabilities. With its lightweight design, high stability and accuracy, high level of integration, and advanced automatic target recognition and tracking functions, the pod is ideally suited for medium- and small-sized UAVs performing day-and-night reconnaissance and surveillance missions over target areas.

The pod has been adapted to several mainstream flight control platforms in China, enabling seamless integration with flight control systems. It can also be connected to our organization’s ViewControlStudio display and control software platform, helping system integrators accelerate the development of complete UAV systems.

Equipped with an uncooled infrared thermal imager and a visible-light camera, the optoelectronic pod supports round-the-clock detection, identification, and tracking of ground targets. It outputs real-time infrared and visible-light video for mission personnel to monitor.

Typical applications of the optoelectronic pod include reconnaissance, border patrol, search and rescue operations, and forest fire prevention.

I. Photos of the actual product

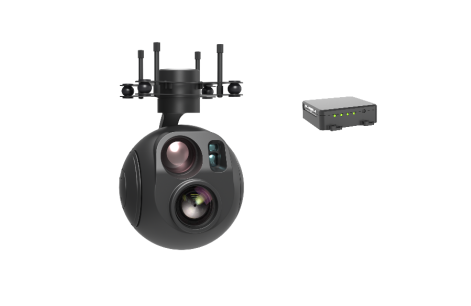

Figure 1 Product Image

II. Product Functions

a) Capable of automatically identifying and tracking typical targets
b) Equipped with self-test and fault reporting functions
c) Features 33× optical zoom for visible light
d) Supports long-wave uncooled infrared and visible light detection, and can output both infrared and visible light images
e) Integrated with laser ranging capability
f) Visible light channel supports optical zoom, autofocus, manual focus, fog penetration, and low-light enhancement
g) Infrared sensor offers 1.0× to 4.0× electronic magnification and six pseudo-color switching modes
h) Enables three-degree-of-freedom motion: azimuth, pitch, and roll
i) Provides multiple operating modes, including heading lock, manual search, follow-up, attitude stabilization, and tracking
j) Capable of isolating carrier disturbances and stabilizing the line of sight
k) Supports target locking/unlocking; once locked, the pod outputs an image with a tracking frame
l) Features automatic target tracking with resistance to natural interference
m) Includes memory tracking function for quick target recapture after brief loss
n) Allows adjustment of the tracking gate size
o) Supports tracking point switching
p) Calculates target coordinates using laser ranging, UAV position, and attitude information
q) Enables bidirectional communication with the control station via serial port / 100 Mbps Ethernet (UDP), and outputs system status, camera status, and optical axis position
r) Provides HD-SDI (optional) and 100 Mbps Ethernet video interface (RTSP protocol)
s) Supports photo and video recording functions

III. Mounting Platform

Vertical take-off fixed-wing drones, rotary-wing drones, tethered drones, etc.

IV. Main Technical Parameters

model	TZ130-TAFNV233T635L121
Infrared thermal imager
Detector type	Uncooled focal plane detector
Operating band	8 m 14 m
Detector resolution	640 512
Pixel size	12 m
Lens focal length	35mm
Field of view	12.5 10㣨 5%
Pseudo-color	6 types
Numbers multiplied	1..0 to 4.0X
Noise equivalent temperature difference	NETD 50mK
Minimum distinguishable temperature difference	MRTD 500mK
Visible light camera
resolution	1920 1080
Response band	0.4 m to 0.9 m
Pixel size	2.8 m
Optical zoom	33 times
Electron Magnification	2 times
focal length	4.8mm 158mm
Field of view	58.9 to 2.4
Focusing method	Autofocus, manual focus
Minimum Illumination	0.01 Lux
Laser rangefinder
wavelength	905nm
Maximum ranging distance	1.2km (visibility 5km, vehicle target 3m 6m)
Minimum ranging distance	5m
Distance measurement accuracy	1m
Ranging frequency	1Hz
Servo Platform
Orientation angle	360 n (360 continuous rotation)
Pitch angle	-110 +90 (positive for upward)
Roll angle	-40 +40
Frame corner accuracy	0.3㣨1ң
Stable accuracy	0.1mrad (1 )
Maximum turning speed	Azimuth 50 /s, Pitch 50 /s
Maximum turning acceleration	Azimuth 20 /s2, Pitch 20 /s2
System Indicators
Image tracking	Automatically track selected target
AI recognition	Automatic detection and identification of typical targets
Rated operating voltage	24VDC
Power supply voltage range	11V to 36VDC
power	Stable power consumption: 30W (peak current 5A when powered on at 24VDC)
weight	1.1Kg

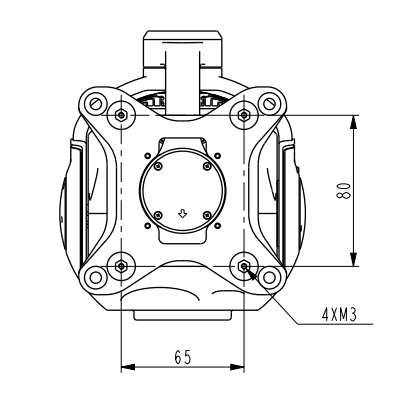

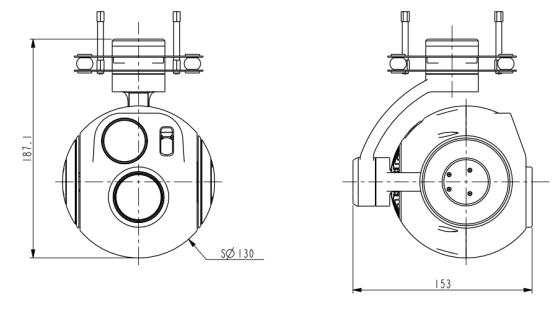

volume	130mm 153mm 188mm
interface
Control Interface	RS232/TTL/RS422/100Mbps Ethernet (optional)
Video interface	100Mbps Ethernet (SDI optional )
Storage interface	128G memory card (Mini SD card)
Image format	JPG format
Video format	AVI format
Arm type	straight arm
quick-release type	Without quick release
Environmental adaptability
Operating temperature	-20+55 (-40 optional)
Storage temperature	-40 60
Vibration conditions	The acceleration is 2g; 30 minutes each in the vertical, horizontal and longitudinal directions.
Impact conditions	Peak acceleration 20g, duration 11ms
Protection level	Can fly in light rain
