MTZ115TB-NNV210T625L121 Tri-axis Tri-light pod
The MTZ115TB-NNV210T625L121 Tri-axis Tri-light pod is an advanced optoelectronic system designed for medium and small-sized UAVs. It integrates an uncooled infrared thermal imager, 10x continuously zoom visible light camera, laser rangefinder, and three-axis servo stabilization platform for comprehensive day and night reconnaissance and surveillance. Featuring lightweight construction under 700g with high stability and accuracy, the pod delivers real-time infrared and visible light video feeds. It seamlessly integrates with mainstream Chinese flight control platforms and ViewControlStudio software. Advanced capabilities include automatic target tracking, memory tracking, multiple working modes, and precise laser ranging up to 2km. The system isolates carrier disturbances while maintaining stable line of sight. Ideal for reconnaissance, border patrol, search and rescue, and forest fire prevention missions.
The MTZ115TB-NNV210T625L121 optoelectronic pod integrates an uncooled infrared thermal imager, a 10x continuously zoomable visible light camera, a laser rangefinder, a three-axis servo stabilization platform, and an image processing module. It features a lightweight design, high stability and accuracy, high level of integration, and automatic tracking capability. The pod is well-suited for deployment on small to medium-sized unmanned aerial vehicles (UAVs) to perform round-the-clock reconnaissance and surveillance missions over target areas.
The pod has been adapted to several mainstream flight control platforms in China, enabling seamless integration with UAV flight control systems. It can also be connected to our organization’s ViewControlStudio display and control software platform, helping the overall system integrator to rapidly complete UAV system development.
Using the uncooled infrared thermal imager and visible light camera, the optoelectronic pod can detect, identify, and track ground targets day and night. It outputs real-time infrared and visible light video for mission personnel to view.
Typical applications of the optoelectronic pod include reconnaissance, border patrol, search and rescue operations, and forest fire prevention.
II. Product Images

Figure 1 Product Image
III. Product Functions
a) Equipped with self-testing and fault reporting capabilities.
b) Capable of detecting long-wave infrared and visible light bands, and outputting both infrared and visible light images.
c) Visible light channel supports 10x optical zoom, autofocus, manual focus, and low-light functionality.
d) Infrared sensor features 1–4x electronic zoom and six color palette switching modes.
e) Integrated with laser ranging capability.
f) Supports three-degrees-of-freedom motion: azimuth, pitch, and roll.
g) Offers multiple operating modes, including automatic search, manual search, follow-up, attitude stabilization, and tracking.
h) In manual search mode, can receive commands from the control station and perform pod operations accordingly.
i) Capable of isolating carrier disturbances and stabilizing the line of sight.
j) Supports target locking/unlocking; after locking, the pod outputs an image with a tracking frame overlay.
k) Provides automatic target tracking, with the ability to resist natural interference.
l) Features memory tracking, enabling rapid re-acquisition of a target after brief loss.
m) Allows adjustment of the tracking gate size.
n) Supports tracking point switching.
o) Can calculate target coordinates using laser ranging data and UAV attitude information.
p) Supports two-way communication with the control station via RS422/TTL/100 Mbps Ethernet, and outputs infrared images, visible light images, system status, camera status, and optical axis position.
q) Equipped with 100 Mbps Ethernet and synchronous 422 video output interfaces.
r) Includes photo and video recording functions.
IV. Mounting Platform
Vertical take-off fixed-wing drones, rotary-wing drones, tethered drones , etc.
V. Main Technical Parameters
| model | TZ115TB-NNV210T625L121 |
| Infrared thermal imager | |
| Detector type | Uncooled focal plane detector |
| Operating band | 8 m 14 m |
| Detector resolution | 640 512 |
| Pixel size | 12 m |
| Lens focal length | 25mm |
| Field of view | 17.5 14㣨 5% |
| Pseudo-color | 6 types |
| Numbers multiplied | 1 4X |
| Noise equivalent temperature difference | NETD 50mK |
| Minimum distinguishable temperature difference | MRTD 500mK |
| Visible light camera | |
| resolution | 1920 1080 |
| Response band | 0.4 m to 0.9 m |
| Optical zoom | 10 times |
| focal length | 5.1mm to 51mm |
| Field of view | 54 31 4.9 4.0 ( 5%) |
| zoom mode | Autofocus, manual focus |
| Minimum Illumination | 0.01 Lux (Black and White) |
| Laser rangefinder | |
| wavelength | 905nm |
| Maximum ranging distance | 2km (under conditions of visibility 15km) |
| Minimum ranging distance | 20m |
| Distance measurement accuracy | 2m |
| Ranging frequency | 1Hz |
| Servo Platform | |
| Orientation angle | 360 n (360 continuous rotation) |
| Pitch angle | -115 to +90 (positive for upward) |
| Roll angle | -40 +40 |
| Frame corner accuracy | 0.3㣨1ң |
| Stable accuracy | 0.1mrad (1 ) |
| Maximum turning speed | Azimuth 50 /s, Pitch 50 /s |
| Maximum turning acceleration | Azimuth 20 /s2, Pitch 20 /s2 |
| System Indicators | |
| Image tracking | Automatically track selected target |
| Power supply voltage | 20V to 36VDC |
| power | Stable power consumption: 30W (peak power-on current 5A) |
| weight | 700g |
| volume | 110mm 134mm 180mm |
| interface | |
| Control Interface | RS422/ TTL/100Mbps Ethernet |
| Video interface | 422 /100Mbps network |
| Storage interface | 128G memory card (Mini SD card) |
| Image format | JPG format |
| Video format | AVI format |
| Environmental adaptability | |
| Operating temperature | -20+60 (-40 optional) |
| Storage temperature | -40 65 |
| Vibration conditions | The acceleration is 2g; 30 minutes each in the vertical, horizontal and longitudinal directions. |
| Impact conditions | Peak acceleration 20g, duration 11ms |
| Protection level | Can fly in light to moderate rain |
VI. Mechanical Dimensions and Installation Interfaces

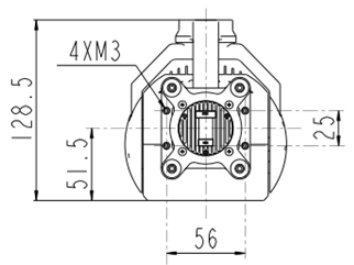

Figure 2 Product mechanical dimensions diagram
