MTZ096FA Tri-Axis Four-Light Pod

I. Product Introduction

The MTZ096FA three-axis four-light pod consists of an uncooled infrared thermal imager, a 4800W wide-angle visible light camera, a 4800W optical zoom visible light camera, a laser rangefinder, a three-axis servo stabilization platform, and image processing components (autonomous recognition and tracking) . It features lightweight design, high stability and accuracy, high integration, automatic target recognition, and automatic tracking, and can be applied to small unmanned aerial vehicles (UAVs) to perform day and night reconnaissance and surveillance missions over target areas.

The pod has been adapted to several mainstream flight control platforms in China, enabling seamless integration with flight control systems; it can also be connected to the ViewControlStudio display and control software platform of our organization, assisting the overall unit in quickly completing the development of the UAV system.

The optoelectronic pod uses an uncooled infrared thermal imager and a visible light camera to detect, identify, and track ground targets around the clock, and outputs infrared and visible light video in real time for mission personnel to view.

Optical pods are mainly used in scenarios such as reconnaissance, border patrol, personnel search and rescue, and forest fire prevention.

I. Product Images

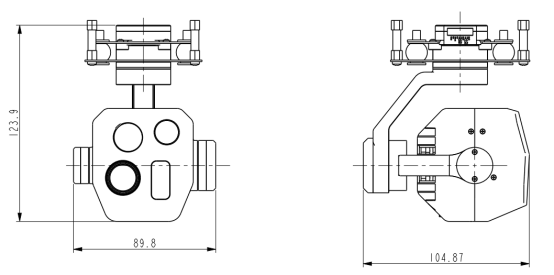

Figure 1 Product Image

II. Product Functions

a) It has the function of automatic identification and tracking of typical targets;

b) It has self-testing and fault reporting functions;

c) It has an 11x visible light hybrid zoom function;

d) It has the capability to detect long-wave uncooled infrared and visible light bands and can output infrared and visible light images;

e) Equipped with laser ranging capability;

f) Visible light has optical zoom, autofocus, manual focus, fog penetration and low-light functions;

g) The infrared sensor has electronic amplification and pseudo-color switching functions;

h) Possesses the ability to perform three degrees of freedom of motion: azimuth, pitch, and roll;

i) It has multiple working modes such as heading lock /manual search/follow-up/attitude stabilization/tracking;

j) Possesses the ability to isolate carrier disturbances and stabilize the line of sight;

k) It has the function of locking /unlocking targets, and after locking the target, the pod outputs an image with a tracking frame;

l) It has target tracking capabilities and the ability to resist natural interference;

m) It has a memory tracking function, which can recapture the target in a short time after it is briefly lost;

n) It has the function of adjusting the gate size;

o) Features tracking point switching functionality;

p) It can calculate target coordinates based on laser ranging, UAV position and attitude information;

q) It can communicate bidirectionally with the control station via serial port /100Mbps Ethernet (UDP) and can output information such as system working status, camera working status, and optical axis position;

r) Equipped with a 100Mbps Ethernet video interface ( RTSP protocol);

s) It has photo and video recording functions ;

III. Mounting Platform

Small rotary-wing drones, etc.

IV. Main Technical Parameters

model	TZ096FA
Infrared thermal imager
Detector type	Uncooled focal plane detector
Operating band	8 m 14 m
Detector resolution	640 512
Super-resolution	1280 1024
Pixel size	12 m
Lens focal length	19mm
Field of view	22.8 18.4㣨 5%
Temperature measurement mode	Point temperature measurement, area temperature measurement
Temperature measurement range	-20+150 / 2 or 2% (high sensitivity)0+500 / 3 or 3% (low sensitivity)
Over-temperature alarm	have
Palette	10 types
Numbers multiplied	8X
photo	1280 1024 JPG
video	1280 1024 MP4
Noise equivalent temperature difference	NETD 50mK
Minimum distinguishable temperature difference	MRTD 500mK
Zoom Visible Light Camera
Sensor size	1/2 CMOS
Effective pixels	4800W
Lens focal length	15mm 50mm
Field of view	29 23.5 9 7
magnification	11X
photo	8000 6000 JPG
video	4k@30,1080p@60 MP4
Wide-angle visible light camera
Sensor size	1/2 CMOS
Effective pixels	4800W
Lens focal length	4.49mm
Field of view	83.5
photo	8000 6000 JPG
video	4k@30,1080p@60 MP4
Laser rangefinder
wavelength	905nm
Maximum ranging distance	1.2km (for large targets (buildings) under visibility conditions 5km)
Minimum ranging distance	5m
Distance measurement accuracy	1m
Ranging frequency	1Hz
Servo Platform
Orientation angle	360 n (360 continuous rotation)
Pitch angle	-130 to +90 (positive for upward)
Roll angle	-60 +60
Stable accuracy	0.003㣨1ң
Maximum turning speed	Azimuth 60 /s, Pitch 60 /s
Maximum turning acceleration	Azimuth 50 /s2, Pitch 50 /s2
Image processing components
Automatic recognition	Capable of automatically recognizing people and vehicles with a target count of 32.
Target tracking	Target size 16 16
Tracking frame rate	50Hz
Image output	RTSP/UDP/RTMP are selectable, and the bitrate can be set from 200kbps to 6Mbps.
System Indicators
Rated operating voltage	12V
Power supply voltage range	10V 26VDC
power	Stable power consumption: 20W (peak current 5A when powered on at 24VDC)
weight	380g
volume	90mm 105mm 124mm
interface
Control Interface	UART/100Mbps Ethernet (optional)
Video interface	100M network
Storage interface	512G memory card (Micro SD card)
Image format	JPG format
Video format	AVI format
Environmental adaptability
Operating temperature	-20 55
Storage temperature	-40 to +60
