MTX120VA-HNV255T000L000 Tri-axis Single-Light Pod
The MTX120VA-HNV255T000L000 Tri-axis Single-Light Pod is a lightweight, highly integrated optoelectronic system featuring a 55x continuously zoom visible light camera designed for medium and small-sized UAVs. This advanced pod delivers automatic target recognition and tracking capabilities for comprehensive day and night reconnaissance and surveillance missions. It seamlessly integrates with mainstream Chinese flight control platforms and ViewControlStudio software for rapid UAV system development. The pod provides real-time infrared and visible light video output for mission personnel. Key features include 1920×1080 resolution, autofocus and manual focus modes, 0.01 Lux minimum illumination, three-axis stabilization with 0.1mrad accuracy, and multiple operating modes including heading lock, manual search, and automatic tracking. Advanced functions encompass memory tracking for target recapture, adjustable gate sizing, and bidirectional communication via serial port or 100Mbps Ethernet. The system weighs under 1kg, operates on 24VDC with low power consumption, and functions reliably in temperatures from -20 to +55 degrees Celsius. Ideal for reconnaissance, border patrol, search and rescue, and forest fire prevention applications.
The MTX120VA-HNV255T000L000 optoelectronic pod is equipped with a 55× continuously zoomable visible-light camera. It features a lightweight and compact design, high stability, exceptional accuracy, and a high degree of integration. With built-in automatic target recognition and tracking capabilities, the pod is ideally suited for deployment on small to medium-sized UAVs to perform round-the-clock reconnaissance and surveillance of target areas.
This pod has been adapted to multiple mainstream flight control platforms in China, enabling seamless integration with existing flight control systems. It can also be connected to our organization’s ViewControlStudio display and control software platform, helping the overall system integrator rapidly complete UAV system development.
The electro-optical pod utilizes its visible-light camera to detect, identify, and track ground targets day and night, while outputting real-time visible-light video (and infrared video where applicable) for mission personnel to view.
Typical applications of the optoelectronic pod include reconnaissance missions, border patrol, personnel search and rescue, and forest fire prevention.
I. Photos of the actual product
Figure 1 Product Image
II. Product Functions
a) Capable of automatically identifying and tracking typical targets.
b) Equipped with self-test and fault reporting functions.
c) Features 55x optical zoom in the visible light channel.
d) Visible light channel supports optical zoom, autofocus, manual focus, fog penetration, and low-light functions.
e) Provides three degrees of freedom (3-DOF) motion: azimuth, pitch, and roll.
f) Supports multiple operating modes, including heading lock, manual search, follow-up, attitude stabilization, and tracking.
g) Capable of isolating carrier disturbances and stabilizing the line of sight.
h) Supports target locking/unlocking; after locking, the pod outputs an image with a tracking frame.
i) Enables automatic target tracking, with resistance to natural interference.
j) Includes memory tracking function, allowing rapid reacquisition of a target after brief loss.
k) Allows adjustment of the tracking gate size.
l) Supports tracking point switching.
m) Can communicate bidirectionally with the control station via serial port or 100 Mbps Ethernet (UDP), and outputs system working status, camera working status, and optical axis position.
n) Equipped with a 100 Mbps Ethernet video interface (RTSP protocol).
o) Provides photo and video recording functions.
p) Features a quick-release mechanism.
III. Mounting Platform
Vertical take-off fixed-wing drones, rotary-wing drones, tethered drones, etc.
IV. Main Technical Parameters
| model | TX120VA-HNV255T000L000 |
| Visible light camera | |
| resolution | 1920 1080 |
| Response band | 0.4 m to 0.9 m |
| Pixel size | 2.8 m |
| Optical zoom | 55 times |
| focal length | 4.25mm 234mm |
| Field of view | 62.1 37.4 1.5 0.7 |
| zoom mode | Autofocus, manual focus |
| Minimum Illumination | 0.01 Lux (Black and White) |
| Servo Platform | |
| Orientation angle | 360 n (360 continuous rotation) |
| Pitch angle | -110 to +45 (positive for upward) |
| Roll angle | -40 +40 |
| Frame corner accuracy | 0.3㣨1ң |
| Stable accuracy | 0.1mrad (1 ) |
| Maximum turning speed | Azimuth 50 /s, Pitch 50 /s |
| Maximum turning acceleration | Azimuth 20 /s2, Pitch 20 /s2 |
| System Indicators | |
| Image tracking | Automatically track selected target |
| AI recognition | Automatic detection and identification of typical targets |
| Rated operating voltage | 24VDC |
| Power supply voltage range | 12V to 32VDC |
| power | Stable power consumption: 30W (peak current 5A when powered on at 24VDC) |
| weight | 1Kg |
| volume | 120mm 130mm 199mm |
| interface | |
| Control Interface | RS232/TTL/RS422/100Mbps Ethernet (optional) |
| Video interface | 100M network |
| Storage interface | 128G memory card (Mini SD card) |
| Image format | JPG format |
| Video format | AVI format |
| Arm type | slant arm |
| quick-release type | With quick release |
| Environmental adaptability | |
| Operating temperature | -20+55 (-40 optional) |
| Storage temperature | -40 60 |
| Vibration conditions | The acceleration is 2g; 30 minutes each in the vertical, horizontal and longitudinal directions. |
| Impact conditions | Peak acceleration 20g, duration 11ms |
| Protection level | Can fly in light rain |
V. Mechanical Dimensions and Installation Interface Diagram

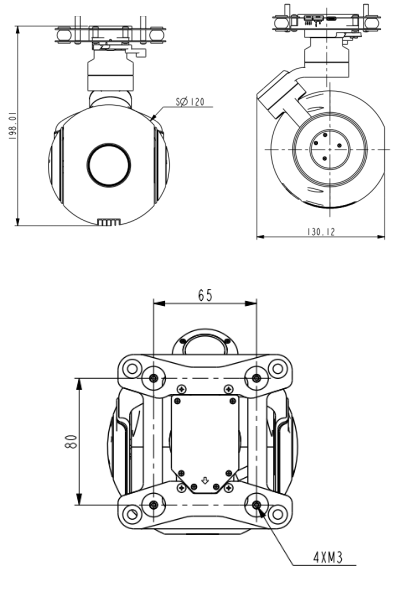

Figure 2 Product mechanical dimensions diagram
