MTX108VA-HNV230T000L000 Tri-axis Single-Light Pod

China Moneypro

The MTX108VA-HNV230T000L000 Tri-axis Single-Light Pod is an advanced optoelectronic system designed for medium and small-sized UAVs. It features a 30x continuously zoom visible light camera, three-axis servo stabilization platform, and autonomous image processing with target recognition and tracking capabilities. The lightweight pod delivers high stability and precision with exceptional integration. It seamlessly integrates with mainstream Chinese flight control platforms and ViewControlStudio software for rapid UAV system development. The pod combines uncooled infrared thermal imaging and visible light cameras for round-the-clock target detection, identification, and tracking, outputting real-time video feeds. Ideal for reconnaissance, border patrol, search and rescue, and forest fire prevention, it offers 30x optical zoom, autofocus, fog penetration, and low-light functionality. Advanced features include automatic target tracking with memory capability, multiple working modes, three degrees of freedom motion, and locking/unlocking functions. The system communicates via serial port or 100Mbps Ethernet, supports photo and video recording, and includes a quick-release mechanism. Operating at 24V DC with minimal power consumption and weighing under 700g, it performs reliably in temperatures from -20 to +55 degrees Celsius.

The MTX108VA-HNV230T000L000 optoelectronic pod consists of a 30x continuously zoom visible light camera, a three-axis servo stabilization platform, and an image processing component (autonomous recognition and tracking) . It features lightweight construction, high stability and precision, high integration, automatic target recognition, and automatic tracking, and can be applied to medium and small-sized UAVs to perform day and night reconnaissance and surveillance missions over target areas.

The pod has been adapted to several mainstream flight control platforms in China, enabling seamless integration with flight control systems; it can also be connected to the ViewControlStudio display and control software platform of our organization, assisting the overall unit in quickly completing the development of the UAV system.

The optoelectronic pod uses an uncooled infrared thermal imager and a visible light camera to detect, identify, and track ground targets around the clock, and outputs infrared and visible light video in real time for mission personnel to view.

Optical pods are mainly used in scenarios such as reconnaissance, border patrol, personnel search and rescue, and forest fire prevention.

I. Photos of the actual product

Figure 1 Product Image

II. Product Functions

a) It has the function of automatic identification and tracking of typical targets;

b) It has self-testing and fault reporting functions;

c) Features 30x optical zoom for visible light;

d) It has the function of real-time output of visible light images;

e) Visible light has optical zoom, autofocus, manual focus, fog penetration and low-light functions;

f) Possesses the ability to perform three degrees of freedom of motion: azimuth, pitch, and roll;

g) It has multiple working modes such as heading lock /manual search/follow-up/attitude stabilization/tracking;

h) It has the ability to isolate carrier disturbances and stabilize the line of sight;

i) It has the function of locking /unlocking targets, and the pod outputs an image with a tracking frame after locking the target;

j) It has an automatic target tracking function, can automatically track targets, and has the ability to resist natural interference;

k) It has a memory tracking function, which allows the target to be recaptured in a short time after being briefly lost;

l) It has the function of adjusting the gate size;

m) Features tracking point switching functionality;

n) It can communicate bidirectionally with the control station via serial port /100Mbps Ethernet (UDP) and can output information such as system working status, camera working status, and optical axis position;

o) Equipped with a 100Mbps Ethernet video interface ( RTSP protocol) ;

p) It has photo and video recording functions ;

q) Features quick-release mechanism;

III. Mounting Platform

Vertical take-off fixed-wing drones, rotary-wing drones, tethered drones, etc.

IV. Main Technical Parameters

model	TX108VA-HNV230T000L000
Visible light camera
resolution	1920 1080
Response band	0.4 m to 0.9 m
Optical zoom	30 times
focal length	4.3mm 129mm
Field of view	63.7 35.8 2.3 1.3 ( 5%)
zoom mode	Autofocus, manual focus
Minimum Illumination	0.01 Lux (Black and White)
Servo Platform
Orientation angle	360 n (360 continuous rotation)
Pitch angle	-110 to +45 (positive for upward)
Roll angle	-40 +40
Frame corner accuracy	0.3㣨1ң
Stable accuracy	0.1mrad (1 )
Maximum turning speed	Azimuth 50 /s, Pitch 50 /s
Maximum turning acceleration	Azimuth 20 /s2, Pitch 20 /s2
System Indicators
Image tracking	Automatically track selected target
AI recognition	Automatic detection and identification of typical targets
Rated operating voltage	24V DC
Power supply voltage range	12V to 32VDC
power	Stable power consumption: 30W (peak current 5A when powered on at 24VDC)
weight	700g

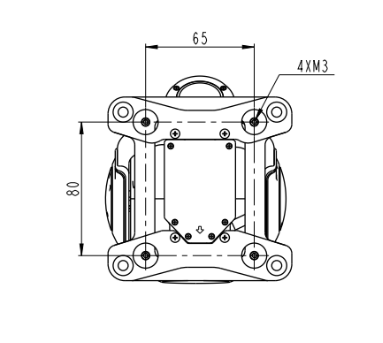

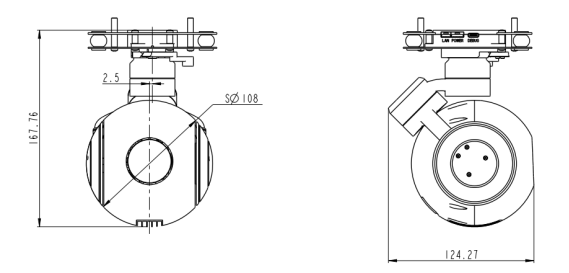

volume	108mm 125mm 168mm
interface
Control Interface	RS232/TTL/RS422/100Mbps Ethernet (optional)
Video interface	100M network
Storage interface	128G memory card (Mini SD card)
Image format	JPG format
Video format	AVI format
Arm type	slant arm
quick-release type	With quick release
Environmental adaptability
Operating temperature	-20+55 (-40 optional)
Storage temperature	-40 60
Vibration conditions	The acceleration is 2g; 30 minutes each in the vertical, horizontal and longitudinal directions.
Impact conditions	Peak acceleration 20g, duration 11ms
Protection level	Can fly in light rain
