MTX108IA-HNV000T635L000 Tri-axis Single-Light Pod
The MTX108IA-HNV000T635L000 Tri-axis Single-Light Pod is an advanced optoelectronic system designed for medium and small-sized UAVs. It combines an uncooled infrared thermal camera, three-axis servo stabilization platform, and intelligent image processing for autonomous target recognition and tracking. Weighing under 700 grams with compact dimensions, this lightweight pod delivers high stability and precision for day and night reconnaissance and surveillance missions. Features include real-time infrared and visible light video output, automatic target detection and tracking, multiple operating modes, and memory tracking capability. The pod integrates seamlessly with mainstream Chinese flight control platforms and ViewControlStudio software. With 640×512 infrared resolution, 12.5-degree field of view, and exceptional stabilization accuracy of 0.1 millirad, it excels in reconnaissance, border patrol, search and rescue, and forest fire prevention applications. Operating on 24V DC with minimal power consumption, it supports serial and Ethernet connectivity for bidirectional control station communication.
The MTX108IA-HNV000T635L000 optoelectronic pod integrates an infrared camera, a three-axis servo-stabilized platform, and an image processing unit capable of autonomous target recognition and tracking. Designed with lightweight construction, high stability and precision, and a high degree of integration, the pod supports automatic target recognition and tracking. It is well-suited for medium- and small-sized UAVs, enabling round-the-clock reconnaissance and surveillance over target areas.
The pod has been successfully adapted to multiple mainstream flight control platforms in China, allowing for seamless integration with flight control systems. It can also be connected to our organization’s ViewControlStudio display and control software platform, helping system integrators rapidly complete UAV system development.
Equipped with an uncooled infrared thermal imager and a visible light camera, the optoelectronic pod can detect, identify, and track ground targets day and night. It outputs real-time infrared and visible light video for mission personnel to monitor.
Typical applications of the optical pod include reconnaissance, border patrol, search and rescue operations, and forest fire prevention.
I. Photos of the actual product
Figure 1 Product Image
II. Product Functions
a) Capable of automatically identifying and tracking typical targets.
b) Equipped with self-test and fault reporting capabilities.
c) Supports real-time output of infrared light images.
d) Capable of three-degrees-of-freedom motion: azimuth, pitch, and roll.
e) Offers multiple working modes, including heading lock, manual search, follow-up, attitude stabilization, and tracking.
f) Able to isolate carrier disturbances and stabilize the line of sight.
g) Features target locking/unlocking functions; after locking, the pod outputs an image with a tracking frame.
h) Provides automatic target tracking with resistance to natural interference.
i) Includes memory tracking, allowing rapid target recapture after brief loss.
j) Supports adjustment of the gate size.
k) Enables tracking point switching.
l) Supports bidirectional communication with the control station via serial port / 100Mbps Ethernet (UDP), and can output system working status, camera working status, and optical axis position.
m) Equipped with a 100Mbps Ethernet video interface (RTSP protocol).
n) Features photo and video recording functions.
o) Includes a quick-release function.
III. Mounting Platform
Vertical take-off fixed-wing drones, rotary-wing drones, tethered drones, etc.
IV. Main Technical Parameters
| model | TX108IA-HNV000T635L000 |
| Infrared thermal imager | |
| Detector type | Uncooled focal plane detector |
| Operating band | 8 m 14 m |
| Detector resolution | 640 512 |
| Pixel size | 12 m |
| Lens focal length | 35mm |
| Field of view | 12.5 10㣨 5% |
| Pseudo-color | 6 types |
| Numbers multiplied | 1X 4X |
| Noise equivalent temperature difference | NETD 50mK |
| Minimum distinguishable temperature difference | MRTD 500mK |
| Servo Platform | |
| Orientation angle | 360 n (360 continuous rotation) |
| Pitch angle | -110 to +45 (positive for upward) |
| Roll angle | -40 +40 |
| Frame corner accuracy | 0.3㣨1ң |
| Stable accuracy | 0.1mrad (1 ) |
| Maximum turning speed | Azimuth 50 /s, Pitch 50 /s |
| Maximum turning acceleration | Azimuth 20 /s2, Pitch 20 /s2 |
| System Indicators | |
| Image tracking | Automatically track selected target |
| AI recognition | Automatic detection and identification of typical targets |
| Rated operating voltage | 24V DC |
| Power supply voltage range | 11V to 36VDC |
| power | Stable power consumption: 30W (peak current 5A when powered on at 24VDC) |
| weight | 700g |
| volume | 108mm 125mm 168mm |
| interface | |
| Control Interface | RS232/TTL/RS422/100Mbps Ethernet (optional) |
| Video interface | 100M network |
| Storage interface | 128G memory card (Mini SD card) |
| Image format | JPG format |
| Video format | AVI format |
| Arm type | slant arm |
| quick-release type | With quick release |
| Environmental adaptability | |
| Operating temperature | -20 55 |
| Storage temperature | -40 60 |
| Vibration conditions | The acceleration is 2g; 30 minutes each in the vertical, horizontal and longitudinal directions. |
| Impact conditions | Peak acceleration 20g, duration 11ms |
| Protection level | Can fly in light rain |
V. Mechanical Dimensions and Installation Interface Diagram

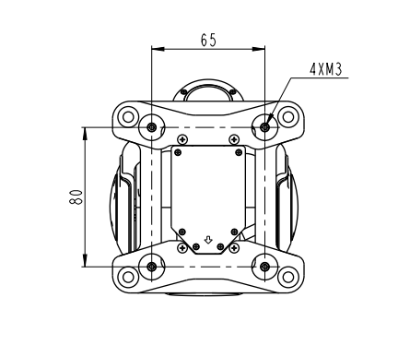

Figure 2 Interface and Dimension Diagram
