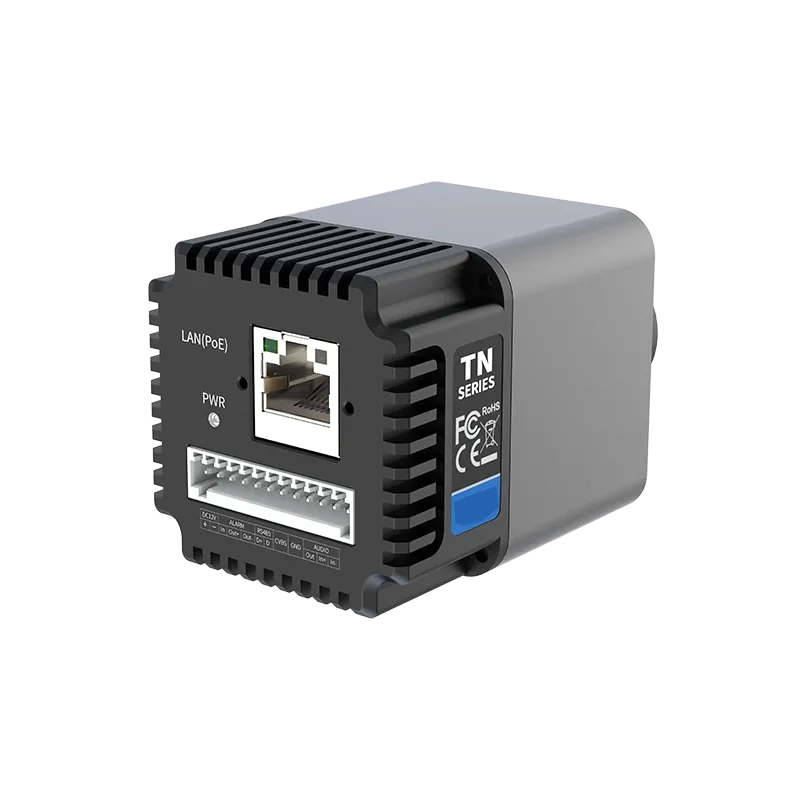

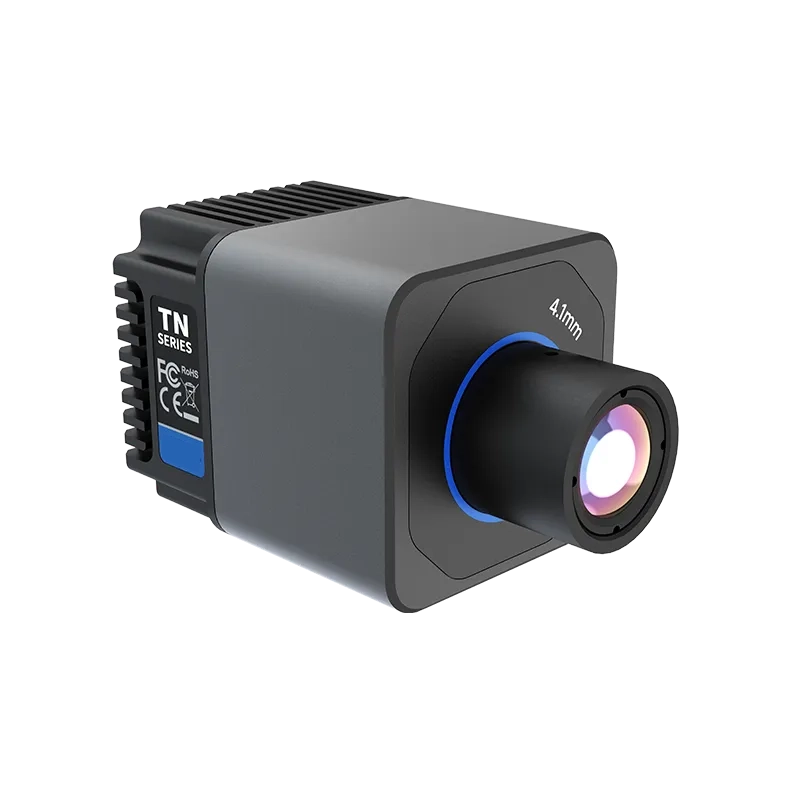

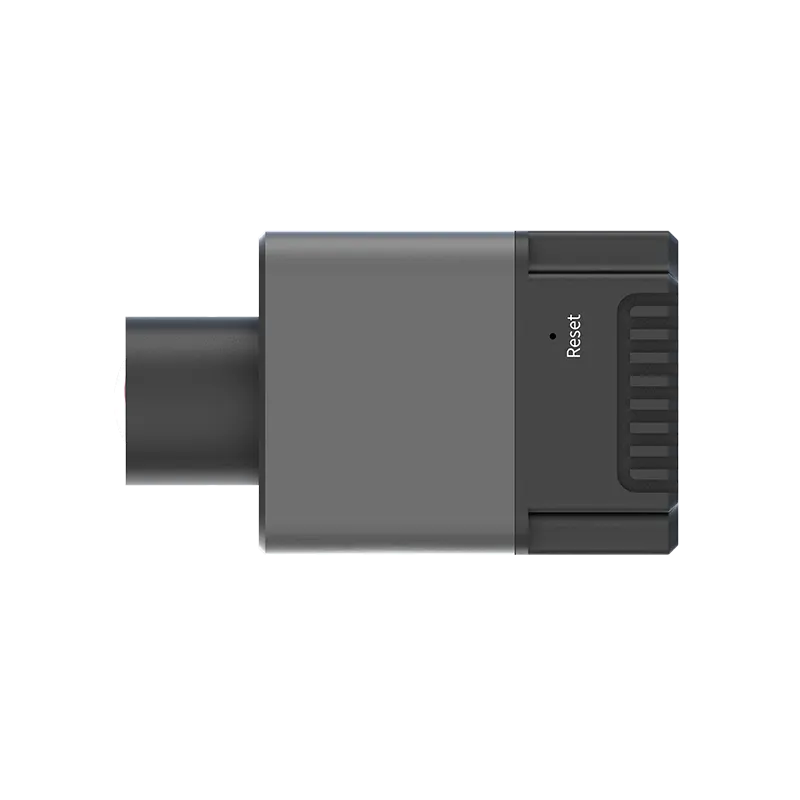

MTN460U Ultra-high Temperature Thermal Camera

China Moneypro

MTN460U Online Ultra-high Temperature Thermal Camera is a non-contact infrared thermal camera specially designed for ultra-high temperature measurement needs. It adopts an uncooled infrared FPA detector, featuring a high resolution of 640 512 and an ultra-wide temperature measurement range of 0~2000 C.
It features a compact and lightweight design, optional air-cooled/water-cooled shell, and a maximum tolerable ambient temperature of 220 C. Three optional lenses are available to provide clear and accurate infrared images and temperature measurement functions. Adopting open network protocols, they facilitate integration and secondary development for customers, improving overall system flexibility.

Feature

High-resolution Infrared lmaging

A new generation of 12 m uncooled infrared FPA detector (12 um pixel pitch) with 640 512 infrared resolution
Integrated with leading infrared image algorithms, providing higher definition and more fine-detail images /finer details

Ultra-high Temperature Measurement & Stable Output

An ultra-wide measurement range of 0~2000 C, specially designed for high-temperature scenarios
Synchronous output of 25 Hz image and temperature data, consistent and stable high-temperature monitoring

Refined Industrial Design, Easy Deployment

Compact and lightweight design, flexible, unconstrained installation integration
Optional air-cooled/water-cooled shells to meet the needs of harsh industrial sites
Three optional lenses, flexibly adaptive to a variety of application scenarios
Open network protocols, facilitating integration and secondary development for customers

Specification

Thermal Imaging Parameters
Detector	Uncooled VOx detector
Infrared Resolution	640 512
Pixel pitch	12 m
Spectral Band	7.5 m~14 m
Thermal Sensitivity (NETD)	40mK(@25 C, F#1.0, 25 Hz)

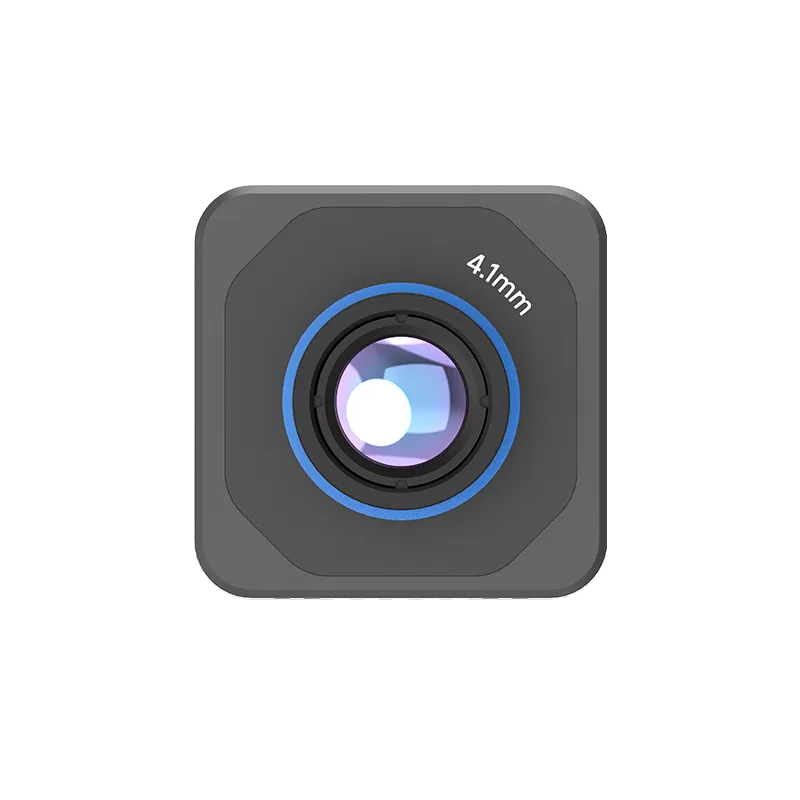

Focal Length	4.1mm/6.9mm/19mm
F Value	3.0/3.5/3.5
Focus Mode	Fixed focus, athermalized
FOV	100 82 /62.9 50.4 /22.9 18.4
Spatial Resolution	2.927mrad/1.74mrad/0.632mrad
Temperature Measurement Function
Measurement Range	0 C~800 C, 600 C~2000 C
Measurement Accuracy	2 C or 2% of readings, whichever is greater
Temperature Measurement Correction	Reflected temperature, ambient temperature, atmospheric transmissivity, object emissivity, distance
Measurement Tool	Temperature measurement of 12 points, 12 lines, and 12 areas, supporting isotherm settings and temperature alarm
Image Processing	Temperature width stretch, non-uniformity correction, thermal image capture, digital zoom (1-8)
Image and Video
Frame Rate	25 Hz
Palettes	20 color palettes including black-hot, white-hot, iron red, rainbow, etc.
Video Standards	H.264, H.265
System Interface
Communication interface	RJ45, 10M/100M adaptive Ethermet port; 1-channel RS485, supporting Pelco-D protocol expansion
Audio Interface	1-channel audio input, 1-channel audio output
Alarm Interface	1-channel alarm input, 1-channel alarm output
Video Interface	1-channel analog video
Audio Standards	G.711a/G.711U/AAC/PCM
Storage Interface	SD card
Network Protocol	IPv4, HTTP, HTTPS, SMTP, FTP, UPnP, DNS, DDNS, NTP, RTCP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP
Interface Protocol	Modbus TCP, ONVIF, GB28181, MQTT
Device Specifications
Operating Temperature	-20 ~+60
Power supply mode	12V DC or PoE power supply
Typical Power Consumption	<2.5W
Dimensions	<50x50x90mm
Weight	About 200g
