MTL-ASL04UAV low-altitude matrix lighting

China Moneypro

The MTL-ASL04UAV low-altitude matrix lighting system features 18 bright LEDs delivering maximum 75W optical power for professional drone applications. Equipped with a professional LED drive circuit and built-in thermal protection, this system ensures reliable, durable performance during extended operations. The ultra-wide DC20V-80V power supply eliminates the need for additional step-down converters. With high-efficiency LED lamp beads, temperature-resistant lampshade, and quality aluminum alloy cooling fins, the lighting delivers efficient, stable performance. Compatible with M300, M200, M600 rotorcraft and helicopters, it excels in night search and rescue, power line inspection, border surveillance, maritime operations, and emergency lighting. Weighing approximately 210g per unit with 10000 lumens brightness and 88% light efficiency, this lightweight solution meets diverse professional needs including police enforcement, energy inspection, and investigation support. The system includes PWM dimming control, soft start functionality, and comprehensive protection features for optimal safety and performance in critical applications.

TL-ASLO4UAV low-altitude matrix lightinq

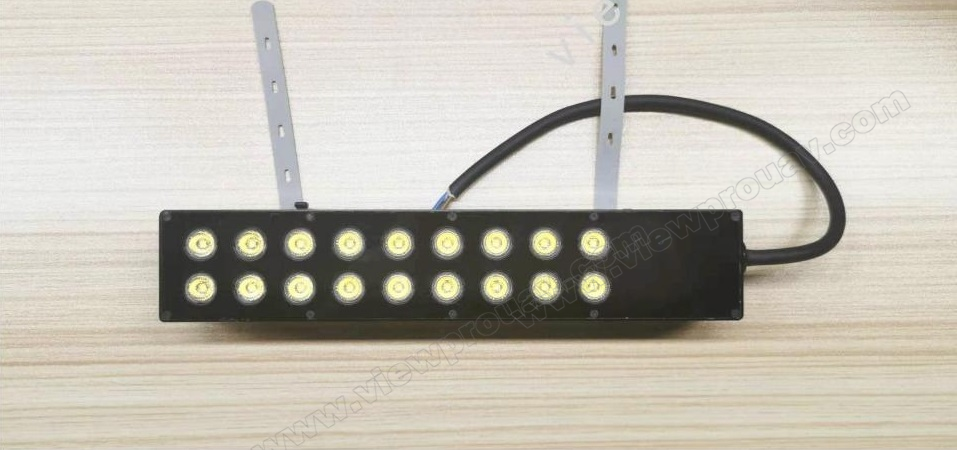

Equipped with 18 high-brightness LEDs, delivering up to 75W of optical power
Advanced professional LED driver design ensures stable long-term operation
Integrated overheat protection for dependable, long-lasting performance
Supports a wide DC input range of 20V to 80V—no extra voltage conversion needed
Allows full control of on/off state and adjustable light brightness

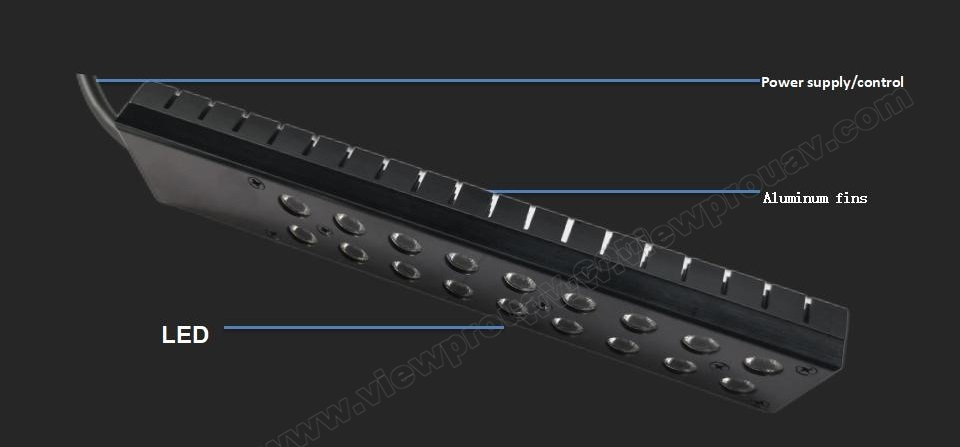

Using high-performance LED beads, a heat-resistant lampshade with high light transmittance, and premium aluminum alloy cooling fins, along with a professional driver circuit, this product delivers refined craftsmanship, reliable stability, and highly efficient illumination.

Adapted Models

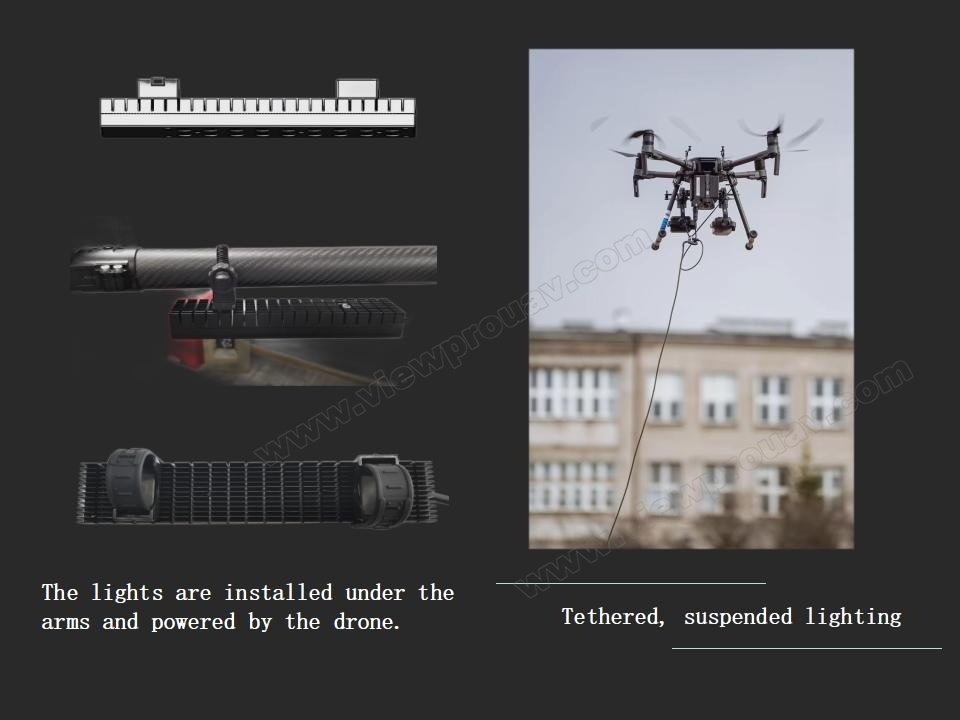

Compatible with various UAV platforms such as M300, M200, M600, as well as other multi-rotor aircraft and helicopters across multiple industries.

Applicable Scenarios
Ideal for emergency lighting needs including nighttime search and rescue, live current repair, auxiliary shooting illumination, border patrol, maritime rescue operations, and other urgent low-light situations.

Practical multiple application scenarios. Bring the light of life

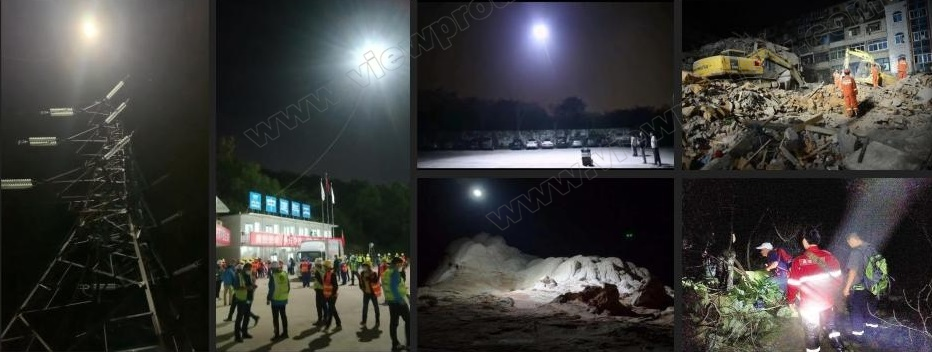

We present a lightweight yet high-brightness solution designed to support emergency rescue drone operations, police enforcement, and energy inspections. It delivers efficient lighting for nighttime patrols, forensic investigations, evidence gathering, warning and dispersal tasks, directional signaling, power line monitoring, and search-and-rescue missions.
We are dedicated to crafting premium products with a professional and focused approach, driving greater value for unmanned system applications.

TL-ASLO4 Airborne Matrix Lighting Product Parameters
Module size	length 230mmwidth 40mmheight 22mm (not including hook)
Module power	18 lamp beads，maximum output 75w optical power
Input voltage	DC20V~80V (default XT30 interface)
Working current	1A~4A
Light efficiency	88%，stable brightness
Brightness	1000OLM
Single lamp weight	about 210g
Soft start	Soft start time 3S (maximum power output directly without control
Typical working height	30～50m
Thermal protection	enter thermal protection above 60℃，limit brightness to 20% when above 80℃，and automatically extinguish when above 85℃
Overcurrent protection	with 8A reverse connection/overcurrent protection fuse
Dimming function	brightness adjustment range 0~100% (with pwm control)
