MT230TA Tri-Axis Tri-Light Pod

The MT230TA electro-optical pod consists of a cooled infrared thermal imager, a 30x continuous zoom visible light camera, a laser rangefinder, a three-axis servo-stabilized platform, and an image processing component (autonomous recognition and tracking) . It features high precision and long operating range, and can be applied to medium and small-sized UAVs to perform day and night reconnaissance and surveillance missions over target areas.

The optoelectronic pod uses a cooled infrared thermal imager and a visible light camera to detect, identify, and track ground targets around the clock, and outputs infrared and visible light video in real time for mission personnel to view.

The pod has been adapted to several mainstream flight control platforms in China, enabling seamless integration with flight control systems; it can also be connected to the ViewControlStudio display and control software platform of our organization, assisting the overall unit in quickly completing the development of the UAV system.

Optical pods are mainly used in scenarios such as reconnaissance, border patrol, personnel search and rescue, and forest fire prevention.

I. Photos of the actual product

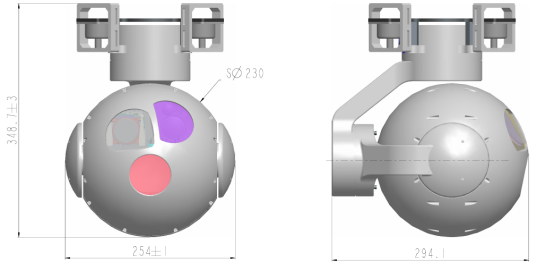

Figure 1 Product Image

II. Product Functions

a) It has the function of automatic identification and tracking of typical targets;

b) It has self-testing and fault reporting functions;

c) It has a 30x optical zoom function for visible light ;

d) Possesses mid-wave infrared and visible light band detection capabilities, and can output infrared and visible light images;

e) Visible light has optical zoom, autofocus, manual focus and low light functions;

f) Infrared technology has continuous zoom capability;

g) Equipped with laser ranging function;

h) Possesses azimuth, pitch, and roll three-axis stabilization capabilities;

i) It has multiple working modes such as automatic search , manual search, follow-up, and tracking;

j) It has the function of receiving commands from the control station and completing pod operations;

k) Possesses the ability to isolate carrier disturbances and stabilize the line of sight;

l) It has the function of locking /unlocking targets, and after locking the target, the pod outputs an image with a tracking frame;

m) It has an automatic target tracking function, which can automatically track targets and is resistant to natural interference;

n) It has a memory tracking function, which allows the target to be recaptured in a short time after being briefly lost;

o) It has the function of adjusting the gate size;

p) It has a tracking point switching function;

q) The target coordinates can be calculated based on laser ranging and UAV attitude information;

r) It can communicate bidirectionally with the control station via RS422/100Mbps network and output information such as system working status, camera working status, and optical axis position;

s) Equipped with HD-SDI/100Mbps Ethernet video output interface;

a) It has photo and video recording functions .

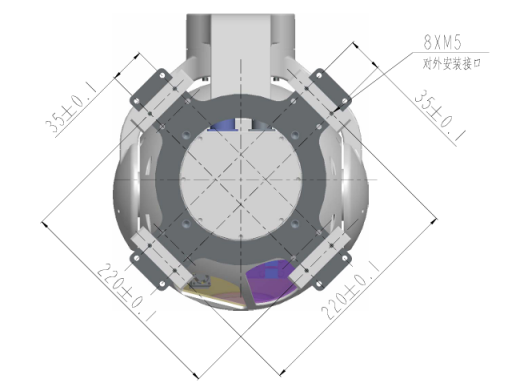

III. Mounting Platform

Vertical take-off fixed-wing drones, rotary-wing drones, tethered drones, etc.

IV. Main Technical Parameters

model	T230TA
Infrared thermal imager
Detector type	Cooled focal plane detector
Operating band	3 m 5 m
Detector resolution	640 512
Pixel size	15 m
Lens focal length	20mm to 275mm continuous zoom
Field of view	27 x 21.7 to 2 x 1.6
Noise equivalent temperature difference	NETD 20mK
Minimum distinguishable temperature difference	MRTD 180mK
Visible light camera
resolution	1920 1080
Response band	0.4 m to 0.9 m
Pixel size	2.8 m
Optical zoom	30 times
Mixed Variable Multiplication	60 times
focal length	4.3mm 129mm
Field of view	63.7 35.8 2.3 1.3 ( 5%)
zoom mode	Autofocus, manual focus
Minimum Illumination	0.01 Lux (Black and White)
Laser rangefinder
wavelength	1535nm
Maximum ranging distance	6km (under conditions of visibility 15km)
Minimum ranging distance	20m
Distance measurement accuracy	2m
Ranging frequency	1 5Hz
Servo Platform
Orientation angle	360 n (360 continuous rotation)
Pitch angle	-120 +90 (positive for upward)
Roll angle	-30 to 30 (automatic stabilization)
Frame corner accuracy	0.1 (1 )
Stable accuracy	0.1mrad (1 )
Angular position accuracy	1mrad (1 )
Maximum turning speed	Azimuth 60 /s, Pitch 60 /s
Maximum turning acceleration	Azimuth 100 /s2, Pitch 100 /s2
System Indicators
Image tracking	Automatically track selected target
Rated operating voltage	24VDC
Power supply voltage range	20V 32VDC
power	Stable power consumption: 60W
weight	11Kg
volume	254mm 294mm 349mm
interface
Control Interface	RS422/100Mbps Ethernet
Video interface	HD-SDI/100Mbps Ethernet
Storage interface	128G memory card (Mini SD card)
Image format	JPG format
Video format	AVI format
Environmental adaptability
Operating temperature	-40 60
Storage temperature	-45 65
Vibration conditions	The acceleration is 2g; 30 minutes each in the vertical, horizontal and longitudinal directions.
Impact conditions	Peak acceleration 20g, duration 11ms
Protection level	Protect from light rain
