MS260TC Cooling Dual-Axis Tri-Light Pod

The MS260TC Cooling Dual-Axis Tri-Light Pod is an advanced electro-optical system designed for small and medium-sized UAVs. It combines a cooled infrared thermal imager, 30x continuous zoom visible light camera, laser rangefinder, and two-axis servo-stabilized platform with autonomous identification and tracking capabilities. Operating day and night, it simultaneously outputs infrared and visible light video for real-time mission monitoring. The pod seamlessly integrates with mainstream Chinese flight control platforms and ViewControlStudio software. Featuring high precision and extended operating range, it excels in reconnaissance, border patrol, search and rescue, and forest fire prevention. Key capabilities include automatic target tracking, 15x infrared zoom, laser ranging up to 6km, stabilized line-of-sight, and dual-axis movement. The system weighs under 10kg, operates continuously for 8 hours, and withstands environmental extremes from -40 to 60 degrees Celsius.

The MS260TC electro-optical pod integrates a cooled infrared thermal imager, a 30x continuous zoom visible light camera, a laser rangefinder, a two-axis servo-stabilized platform, and an image processing component featuring autonomous identification and tracking. Designed for high precision and extended operational range, the pod is ideally suited for small to medium-sized UAVs performing day-and-night reconnaissance and surveillance missions over target areas.

Equipped with a cooled infrared thermal imager and a visible light camera, the optoelectronic pod enables round-the-clock detection, identification, and tracking of ground targets. It simultaneously outputs real-time infrared and visible light video feeds for mission personnel to monitor.

The pod has been adapted to several mainstream flight control platforms in China, allowing seamless integration with existing flight control systems. It can also be connected to our organization’s ViewControlStudio display and control software platform, helping system integrators accelerate the development of complete UAV systems.

Typical applications of this electro-optical pod include reconnaissance, border patrol, search and rescue operations, and forest fire prevention.

I. Photos of the actual product

S260TC

Figure 1 Product Image

II. Product Functions

a) Enables automatic identification and tracking of typical targets.
b) Features self-test and fault reporting functions.
c) Provides 30× optical zoom for visible light.
d) Supports both mid-wave infrared and visible light detection, and outputs infrared and visible light images.
e) Visible light channel supports optical zoom, autofocus, manual focus, and low‑light operation.
f) Infrared sensor supports 15× continuous zoom.
g) Equipped with laser ranging function.
h) Capable of two‑degree‑of‑freedom movement in azimuth and pitch.
i) Offers multiple operating modes: automatic search, manual search, follow‑up, and tracking.
j) In manual search mode, can receive commands from the control station and complete pod operations accordingly.
k) Ability to isolate carrier platform disturbances and stabilize the line of sight.
l) Supports target lock/unlock; when locked, the pod outputs an image with a tracking frame.
m) Features automatic target tracking that resists natural interference.
n) Includes memory tracking, allowing rapid target re‑acquisition after brief loss.
o) Allows adjustment of the gate size.
p) Supports tracking point switching.
q) Calculates target coordinates using laser ranging data, pod azimuth and pitch angles, and UAV attitude information.
r) Bidirectional communication with the control station via 100 Mbps Ethernet/RS422, outputting infrared images, visible light images, system status, camera status, and optical axis position.
s) Equipped with HD‑SDI / 100 Mbps Ethernet multi‑channel video output interfaces.
t) Provides photo and video recording functions.

III. Mounting Platform

Vertical take-off fixed-wing drones, rotary-wing drones, tethered drones, etc.

IV. Main Technical Parameters

modelS260TC
Infrared thermal imager
Detector typeCooled focal plane detector
Operating band3 m 5 m
Detector resolution640 512
Pixel size15 m
Lens focal length18mm to 275mm continuous zoom
Field of view29.9o 24.1o 2o 1.6o
Noise equivalent temperature differenceNETD 20mK
Minimum distinguishable temperature differenceMRTD 180mK
Visible light camera
resolution1920 1080
Response band0.4 m to 0.9 m
Pixel size2.8 m
Optical zoom30 times
Mixed Variable Multiplication60 times
focal length4.3mm 129mm
Field of view63.7 35.8 2.3 1.3 ( 5%)
zoom modeAutofocus, manual focus
Minimum Illumination0.01 Lux (Black and White)
Laser rangefinder
wavelength1535nm
Maximum ranging distance 6km (under conditions of visibility 15km)
Minimum ranging distance 20m
Distance measurement accuracy 2m
Ranging frequency1 5Hz
Servo Platform
Orientation angle360 n (360 continuous rotation)
Pitch angle-120 +20 (positive for upward)
Frame corner accuracy 0.06㣨1ң
Stable accuracy 0.05mrad (1 )
Maximum turning speedAzimuth  60 /s, Pitch 60 /s
Maximum turning accelerationAzimuth  100 /s2, Pitch 100 /s2
System Indicators
Image trackingAutomatically track selected target
AI recognitionAutomatic detection and identification of typical targets
Rated operating voltage24VDC
Power supply voltage range20V to 32VDC
powerStable power consumption:  100W; Peak power consumption: 200W
weight 10Kg
volume 260mm 260mm 355mm
Continuous working time 8h
Image recording time 8 hours (simultaneous recording of two video streams)
Image frame rate 25Hz
interface
Control InterfaceRS422
Video interfaceHD-SDI/100Mbps Ethernet (H.264)
Storage interface 128G memory card (Mini SD card)
Image formatJPG format
Video formatAVI format
Environmental adaptability
Operating temperature-40 60
Storage temperature-45 65
Vibration conditionsThe acceleration is 2g; 30 minutes each in the vertical, horizontal and longitudinal directions.
Impact conditionsPeak acceleration 20g, duration 11ms
Protection levelCan fly in light to moderate rain

V. Mechanical Dimensions and Installation Interfaces

S260TC
S260TC

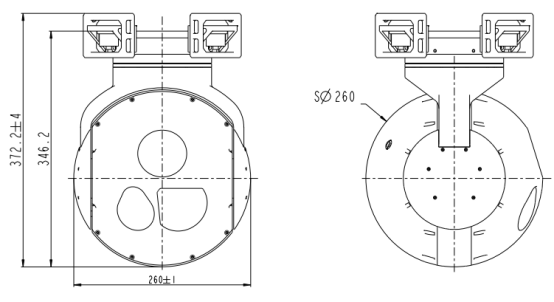

Figure 2 Product mechanical dimensions diagram
