MS155TA-NNV230T660L305 Two-axis, three-light pod
Integrated high-altitude heating system with active window de-icing and anti-fogging capability.
The system incorporates an integrated high-altitude heating module, providing active window de-icing and anti-fogging to maintain clear optical performance in extreme cold and high-altitude operating conditions.
I. Product Introduction
The MS155TA-NNV230T660L305 optoelectronic pod integrates an uncooled infrared thermal imager, a 30x continuously zoomable visible light camera, a laser rangefinder, a two-axis servo-stabilized platform, and an image processing module capable of autonomous target identification and tracking. Designed for high precision and low latency, the pod is suitable for deployment on small unmanned aerial vehicles (UAVs) to perform round-the-clock reconnaissance and surveillance missions over target areas.
The pod utilizes its uncooled infrared thermal imager and visible light camera to detect, identify, and track ground targets day and night, while simultaneously outputting real-time infrared and visible light video feeds for mission personnel.
It has been adapted to several mainstream flight control platforms in China, allowing seamless integration with existing flight control systems. Additionally, the pod can interface with our organization’s ViewControlStudio display and control software platform, helping the overall unit accelerate the development of UAV systems.
Typical applications of this optoelectronic pod include reconnaissance, targeting and guidance, border patrol, personnel search and rescue, and forest fire prevention.
I. Photos of the actual product

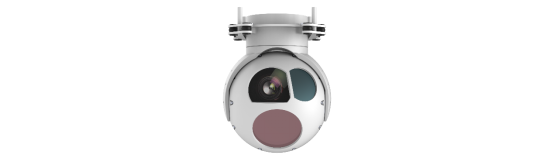

Figure 1 Product Image
II. Product Functions
a) Capable of automatically identifying and tracking typical targets.
b) Equipped with self-test and fault reporting functions.
c) Provides 30× optical zoom for visible light.
d) Supports both long-wave infrared and visible light detection, with output capability for infrared and visible images.
e) Visible light module supports optical zoom, autofocus, manual focus, and low-light operation.
f) Infrared sensor features 1–4× electronic magnification and six color palette switching modes.
g) Integrated with laser ranging functionality.
h) Offers two-degree-of-freedom movement in azimuth and pitch.
i) Supports multiple operation modes, including automatic search, manual search, follow-up, attitude stabilization, and tracking.
j) In manual search mode, can receive commands from the control station and complete pod operations accordingly.
k) Effectively isolates carrier disturbances and stabilizes the line of sight.
l) Enables target locking/unlocking; when locked, the pod outputs an image with a tracking frame.
m) Includes automatic target tracking function, capable of continuous tracking under natural interference.
n) Features memory tracking, allowing short-term target reacquisition after temporary loss.
o) Supports adjustable gate size.
p) Provides tracking point switching capability.
q) Can calculate target coordinates using attitude data from the laser rangefinder and UAV.
r) Supports bidirectional communication with the control station via RS422/100 Mbps Ethernet, outputting infrared images, visible images, system status, camera working status, and optical axis position.
s) Equipped with HD-SDI and 100 Mbps Ethernet multi-channel video output interfaces.
t) Includes photo and video recording functions.
III. Mounting Platform
Vertical take-off fixed-wing drones, rotary-wing drones, tethered drones, etc.
IV. Main Technical Parameters
| model | S155TA-NNV230T660L305 |
| Infrared thermal imager | |
| Detector type | Uncooled focal plane detector |
| Operating band | 8 m 14 m |
| Detector resolution | 640 512 |
| Pixel size | 12 m |
| Lens focal length | 60mm |
| Field of view | 7.32 5.86㣨 5% |
| Pseudo-color | 10 types |
| Numbers multiplied | 1 4X |
| Noise equivalent temperature difference | NETD 50mK |
| Minimum distinguishable temperature difference | MRTD 500mK |
| Visible light camera | |
| resolution | 1920 1080 |
| Response band | 0.4 m to 0.9 m |
| Pixel size | 2.8 m |
| Optical zoom | 30 times |
| Mixed Variable Multiplication | 60 times |
| focal length | 4.3mm 129mm |
| Field of view | 63.7 35.8 2.3 1.3 ( 5%) |
| zoom mode | Autofocus, manual focus |
| Minimum Illumination | 0.01 Lux (Black and White) |
| Laser rangefinder | |
| wavelength | 1535nm |
| Maximum ranging distance | 3km (under conditions of visibility 15km) |
| Minimum ranging distance | 20m |
| Distance measurement accuracy | 2m |
| Ranging frequency | 1-5Hz adjustable |
| Servo Platform | |
| Orientation angle | 360 n (360 continuous rotation) |
| Pitch angle | -120 +90 (positive for upward) |
| Frame corner accuracy | 0.2 (1 ) |
| Stable accuracy | 0.1mrad (1 ) |
| Maximum turning speed | Azimuth 60 /s, Pitch 60 /s |
| Maximum turning acceleration | Azimuth 50 /s2, Pitch 50 /s2 |
| System Indicators | |
| Image tracking | Automatically track selected target |
| AI recognition | Automatic detection and identification of typical targets |
| Rated operating voltage | 24VDC |
| Power supply voltage range | 20V 32VDC |
| power | Stable power consumption: 30W (peak power-on current 5A) |
| weight | 2.5Kg |
| volume | 155mm 165mm 211mm |
| interface | |
| Control Interface | RS422/100Mbps Ethernet |
| Video interface | HD-SDI/100Mbps Ethernet |
| Storage interface | 128G memory card (Mini SD card) |
| Image format | JPG format |
| Video format | AVI format |
| Environmental adaptability | |
| Operating temperature | -20+55 (-40 optional) |
| Storage temperature | -40 60 |
| Vibration conditions | The acceleration is 2g; 30 minutes each in the vertical, horizontal and longitudinal directions. |
| Impact conditions | Peak acceleration 20g, duration 11ms |
| Protection level | Can fly in light rain |
V. Mechanical Dimensions and Installation Interfaces

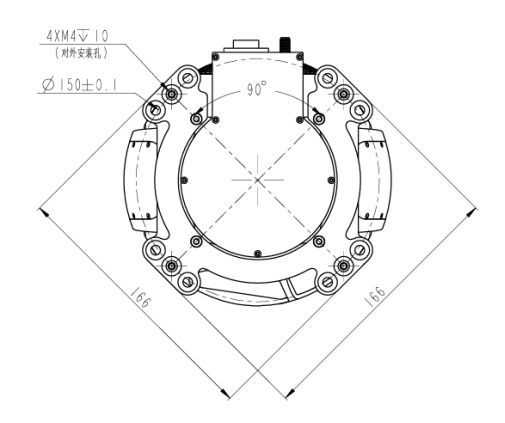

Figure 2 Product mechanical dimensions diagram
