MS140TA-NNV230T635L305 Two-axis, three-light pod

The MS140TA-NNV230T635L305 optoelectronic pod consists of an uncooled infrared thermal imager, a 30x continuously zoom visible light camera, a laser rangefinder, a two-axis servo-stabilized platform, and an image processing component (autonomous identification and tracking) . It features high precision and low latency, and can be applied to small unmanned aerial vehicles (UAVs) to perform day and night reconnaissance and surveillance missions over target areas.

The optoelectronic pod uses an uncooled infrared thermal imager and a visible light camera to detect, identify, and track ground targets around the clock, while simultaneously outputting infrared and visible light video in real time for mission personnel to view.

The pod has been adapted to several mainstream flight control platforms in China, enabling seamless integration with flight control systems; it can also be connected to the ViewControlStudio display and control software platform of our organization, assisting the overall unit in quickly completing the development of the UAV system.

This optoelectronic pod is mainly used in scenarios such as reconnaissance, guidance, border patrol, personnel search and rescue, and forest fire prevention.

I. Photos of the actual product

Figure 1 Product Image

II. Product Functions

a) It has the function of automatic identification and tracking of typical targets;

b) It has self-testing and fault reporting functions;

c) It has a 30x optical zoom function for visible light ;

d) It has the capability to detect long-wave uncooled infrared and visible light bands and can output infrared and visible light images;

e) Equipped with laser ranging capability;

f) Visible light has optical zoom, autofocus, manual focus, fog penetration and low-light functions;

g) The infrared sensor features 1.0 to 4.0x electronic amplification and six pseudo-color switching functions;

h) Possesses the ability to move with two degrees of freedom: azimuth and pitch;

i) It has multiple working modes such as heading lock /manual search/follow-up/attitude stabilization/tracking;

j) Possesses the ability to isolate carrier disturbances and stabilize the line of sight;

k) It has the function of locking /unlocking targets, and after locking the target, the pod outputs an image with a tracking frame;

l) It has an automatic target tracking function, which can automatically track targets and has the ability to resist natural interference;

m) It has a memory tracking function, which can recapture the target in a short time after it is briefly lost;

n) It has the function of adjusting the gate size;

o) Features tracking point switching functionality;

p) It can calculate target coordinates based on laser ranging, UAV position and attitude information;

q) It can communicate bidirectionally with the control station via serial port /100Mbps Ethernet (UDP) and can output information such as system working status, camera working status, and optical axis position;

r) Equipped with HD-SDI/100Mbps Ethernet video interface (RTSP protocol).

s) It has photo and video recording functions ;

III. Mounting Platform

Vertical take-off fixed-wing drones, rotary-wing drones, tethered drones, etc.

IV. Main Technical Parameters

model	S140TA-NNV230T635L305
Infrared thermal imager
Detector type	Uncooled focal plane detector
Operating band	8 m 14 m
Detector resolution	640 512
Pixel size	12 m
Lens focal length	35mm
Field of view	12.5 10㣨 5%
Pseudo-color	6 types
Numbers multiplied	1.0 4.0X
Noise equivalent temperature difference	NETD 50mK
Minimum distinguishable temperature difference	MRTD 500mK
Visible light camera
resolution	1920 1080
Response band	0.4 m to 0.9 m
Pixel size	2.8 m
Optical zoom	30 times
Electron Magnification	2 times
focal length	4.3mm 129mm
Field of view	63.7 35.8 2.3 1.3
Focusing method	Autofocus, manual focus
Minimum Illumination	0.01 Lux
Laser rangefinder
wavelength	1535nm
Maximum ranging distance	3km (under conditions of visibility 15km)
Minimum ranging distance	20m
Distance measurement accuracy	2m
Ranging frequency	1 5Hz
Servo Platform
Orientation angle	360 n (360 continuous rotation)
Pitch angle	-120 +90 (positive for upward)
Frame corner accuracy	0.2 (1 )
Stable accuracy	0.05mrad (1 )
Maximum turning speed	Azimuth 60 /s, Pitch 60 /s
Maximum turning acceleration	Azimuth 50 /s2, Pitch 50 /s2
System Indicators
Image tracking	Automatically track selected target
AI recognition	Automatic detection and identification of typical targets
Rated operating voltage	24VDC
Power supply voltage range	20V to 32VDC
power	Stable power consumption: 30W (peak current 5A when powered on at 24VDC)
weight	1.3Kg

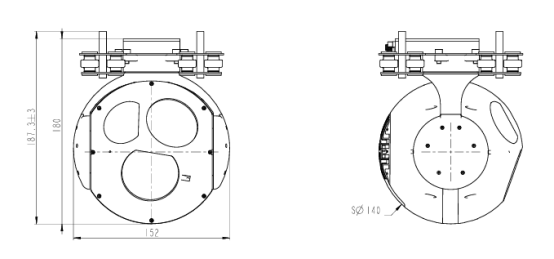

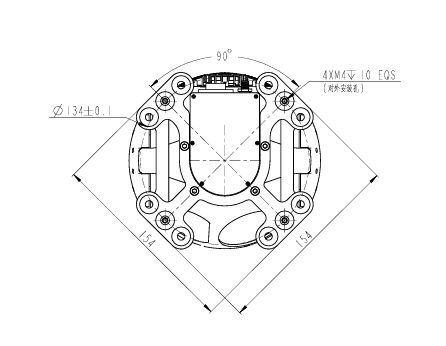

volume	140mm x 152mm x 188mm
interface
Control Interface	RS422/100Mbps Ethernet
Video interface	100Mbps Ethernet ( HD-SDI optional)
Storage interface	128G memory card (Mini SD card)
Image format	JPG format
Video format	AVI format
Environmental adaptability
Operating temperature	-20+55 (-40 optional)
Storage temperature	-40 to +60
Vibration conditions	The acceleration is 2g; 30 minutes each in the vertical, horizontal and longitudinal directions.
Impact conditions	Peak acceleration 20g, duration 11ms
Protection level	Can fly in light rain
