MS108VB-NNV230T000L000 Two-axis single-light pod (30x full-color night vision)

The MS108VB-NNV230T000L000 optoelectronic pod consists of a full-color night vision 30x continuous zoom visible light camera, a two-axis servo stabilization platform, and an image processing component (autonomous recognition and tracking). It features ultra-small size, ultra-light weight, high precision, and low latency, and can be applied to small and micro UAVs to perform reconnaissance and surveillance tasks on target areas.

The electro-optical pod uses a visible light camera to detect ground targets and outputs visible light video in real time for mission personnel to view.

The pod has been adapted to several mainstream flight control platforms in China, enabling seamless integration with flight control systems; it can also be connected to the ViewControlStudio display and control software platform of our organization, assisting the overall unit in quickly completing the development of the UAV system.

This optoelectronic pod is mainly used in scenarios such as reconnaissance, guidance, border patrol, personnel search and rescue, and forest fire prevention.

II. Actual product photos

Figure 1 Product Image

I. Product Functions

a) It has the function of automatic identification and tracking of typical targets;

b) It has self-testing and fault reporting functions;

c) Equipped with 30x optical zoom and full-color night vision function;

d) It has the function of real-time output of visible light images;

e) Visible light has optical zoom, autofocus, manual focus, fog penetration and low-light functions;

f) Possesses the ability to move freely along two axes: azimuth and pitch;

g) It has multiple working modes such as heading lock /manual search/follow-up/attitude stabilization/tracking;

h) It has the ability to isolate carrier disturbances and stabilize the line of sight;

i) It has the function of locking /unlocking targets, and the pod outputs an image with a tracking frame after locking the target;

j) It has an automatic target tracking function, can automatically track targets, and has the ability to resist natural interference;

k) It has a memory tracking function, which allows the target to be recaptured in a short time after being briefly lost;

l) It has the function of adjusting the gate size;

m) Features tracking point switching functionality;

n) It can communicate bidirectionally with the control station via serial port /100Mbps Ethernet (UDP) and can output information such as system working status, camera working status, and optical axis position;

o) Equipped with a 100Mbps Ethernet video interface ( RTSP protocol) ;

p) It has photo and video recording functions ;

II. Mounting Platform

Vertical take-off fixed-wing drones, rotary-wing drones, tethered drones, etc.

III. Main Technical Parameters

model	S108VB-NNV230T000L000
Visible light camera
resolution	1920 1080
Response band	0.4 m to 0.9 m
Optical zoom	30 times
Mixed Variable Multiplication	60 times
focal length	5.1mm 153mm
Field of view	55.2 31.1 2.7 1.5 ( 5%)
zoom mode	Autofocus, manual focus
Minimum Illumination	0.01 Lux (color)
Servo Platform
Orientation angle	360 n (360 continuous rotation)
Pitch angle	-120 +90 (positive for upward)
Frame corner accuracy	0.3㣨1ң
Stable accuracy	0.1mrad (1 )
Maximum tracking angular velocity	20 /s
Maximum turning speed	Azimuth  50 /s, Pitch 50 /s
Maximum turning acceleration	Azimuth  20 /s2, Pitch 20 /s2
System Indicators
Image tracking	Automatically track selected target
AI recognition	Automatic detection and identification of typical targets
Rated operating voltage	24VDC
Power supply voltage range	12V to 32VDC
power	Stable power consumption:  15W (peak current 5A when powered on at 24VDC)
weight	550g
volume	108mm 108mm 156.5mm
interface
Control Interface	RS232/TTL/RS422/100Mbps Ethernet (optional)
Video interface	100M network
Storage interface	128G memory card (Mini SD card)
Image format	JPG format
Video format	AVI format
quick-release type	Without quick release
Environmental adaptability
Operating temperature	-20+55 (-40 optional)
Storage temperature	-40 to +60
Vibration conditions	The random vibration acceleration was 6g; 5 minutes each in the vertical, horizontal, and longitudinal directions.
Impact conditions	Peak acceleration (half-sine wave): 20g, duration: 11ms
Protection level	Can fly in light rain

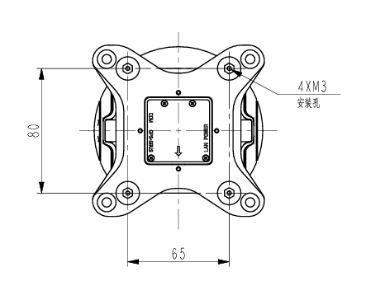

IV. Mechanical Dimensions and Installation Interface Diagram

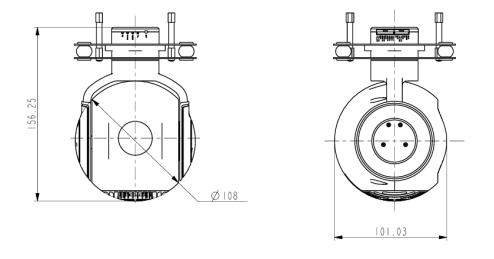

Figure 2 Product mechanical dimensions diagram
