MS090VB-NNV210T000L000 Two-axis single-light pod

China Moneypro

The MS090VB-NNV210T000L000 optoelectronic pod consists of a 10x continuously zoom visible light camera, a two-axis servo stabilization platform, and an image processing component. It features ultra-small size, ultra-light weight, high precision, and low latency, and can be applied to small and micro UAVs to perform day and night reconnaissance and surveillance missions over target areas.

I. Product Introduction

The electro-optical pod uses a visible light camera to detect ground targets and outputs visible light video in real time for mission personnel to view.

This miniature pod has been adapted to several mainstream flight control platforms in China, enabling seamless integration with flight control systems; it can also be connected to our ViewControlStudio display and control software platform to assist the overall unit in quickly completing the development of the UAV system.

This optoelectronic pod is mainly used in scenarios such as reconnaissance, guidance, border patrol, personnel search and rescue, and forest fire prevention.

Actual product photos

Figure 1 Product Image

II. Product Functions

a) It has self-testing and fault reporting functions;

b) It has the function of real-time output of visible light images;

c) Visible light has optical zoom, autofocus, manual focus, fog penetration and low-light functions;

d) Possesses the ability to move freely along two axes: azimuth and pitch;

e) It has multiple working modes such as heading lock/manual search/follow-up/attitude stabilization/tracking;

f) Possesses the ability to isolate carrier disturbances and stabilize the line of sight;

g) It has target locking/unlocking capabilities, and the pod outputs an image with a tracking frame after locking onto a target; (optional)

h) Equipped with automatic target tracking function, capable of automatically tracking targets and resisting natural interference; (optional)

i) It has a memory tracking function, which allows the target to be recaptured in a short time after being briefly lost;

j) It has the function of adjusting the gate size;

k) It has the function of switching tracking points;

l) It can communicate bidirectionally with the control station via serial port/100Mbps Ethernet (UDP) and can output information such as system working status, camera working status, and optical axis position;

m) Equipped with a 100Mbps Ethernet video interface (RTSP protocol);

n) Equipped with photo and video recording functions;

III. Mounting Platform

Vertical take-off fixed-wing drones, rotary-wing drones, tethered drones, etc.

IV. Main Technical Parameters

model	S090VB-NNV210T000L000
Visible light camera
Optical zoom	10 times
focal length	4.8mm to 48mm
zoom mode	Autofocus, manual focus
Minimum Illumination	0.01 Lux (color)
Servo Platform
System Indicators
Image tracking	Automatic tracking of selected targets (optional)
Rated operating voltage	24VDC
Power supply voltage range	12V to 32VDC

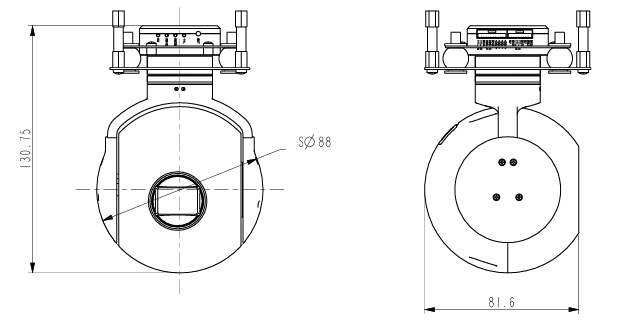

volume	88mm x 81.6mm x 131mm
interface
Control Interface	RS232/TTL/RS422/100Mbps Ethernet (optional)
Video interface	100M network
Image format	JPG format
Video format	AVI format
quick-release type	Without quick release
Environmental adaptability
Vibration conditions	The random vibration acceleration was 6g; 5 minutes each in the vertical, horizontal, and longitudinal directions.
Impact conditions	Peak acceleration (half-sine wave) 20g, duration 11ms
Protection level	Can fly in light rain
