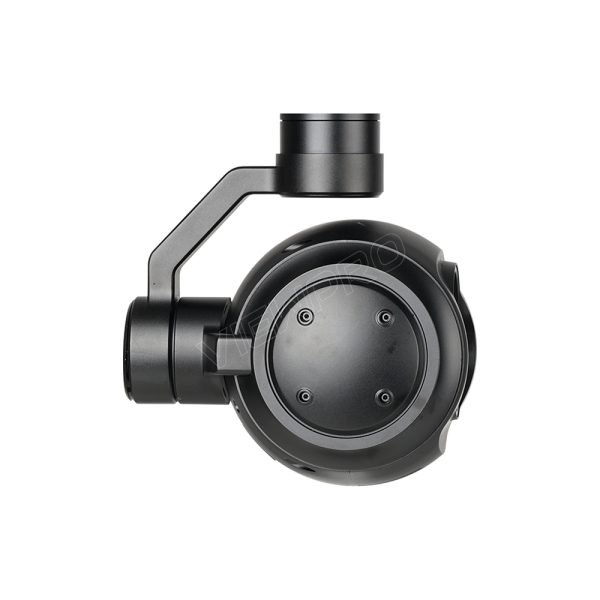

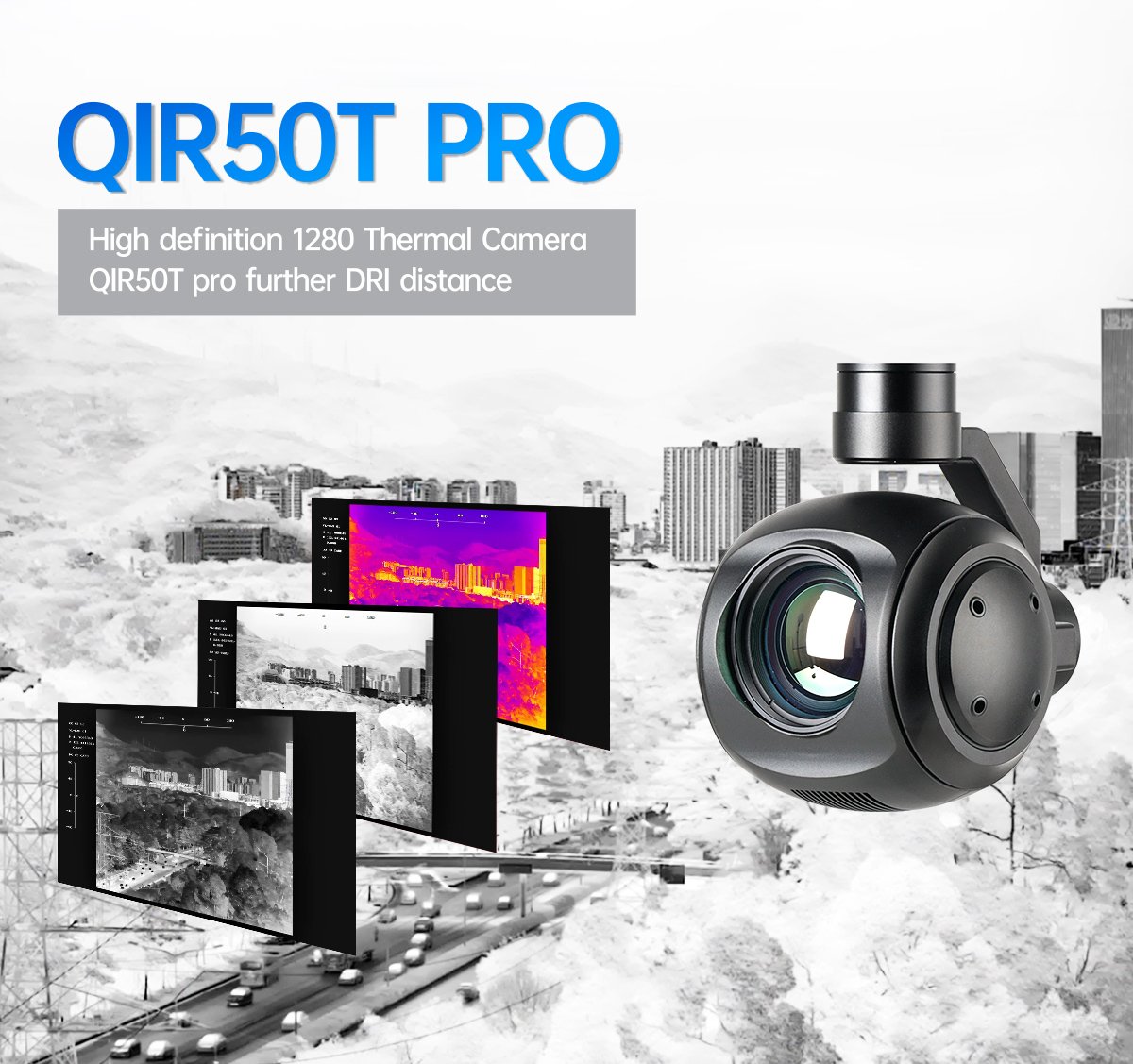

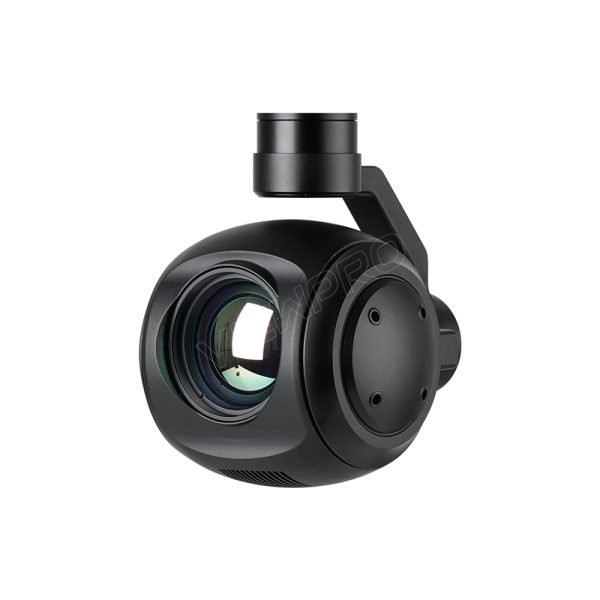

MQIR50T Pro 1280 High definition Infrared Thermal Camera for Long Range Application
China Moneypro
The MQIR50T Pro 1280 is a professional-grade infrared thermal camera engineered for extended-range surveillance and reconnaissance applications. Featuring a 1280×1024 uncooled thermal detector with a 50mm lens, this system delivers exceptional long-distance target detection capabilities, identifying personnel at over 2 kilometers and vehicles beyond 6 kilometers. The camera integrates a stabilized gimbal with precise pitch, roll, and yaw control, ensuring steady imaging even during dynamic operations. Multiple output options including HDMI, IP streaming, and SDI accommodate diverse integration requirements. Advanced features include automatic thermal object tracking, temperature measurement, digital zoom up to 4x, and SD card recording in MP4 format. Operating across -20 to +60 degrees Celsius, the system supports PWM, TTL, and S.BUS control protocols. With geotagging capabilities and real-time thermal analysis, the MQIR50T Pro 1280 delivers professional-grade thermal imaging for security, search and rescue, and industrial monitoring applications.
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 500mA~1000mA @ 16V |
| Working environment temp. | -20 ~ +60 |

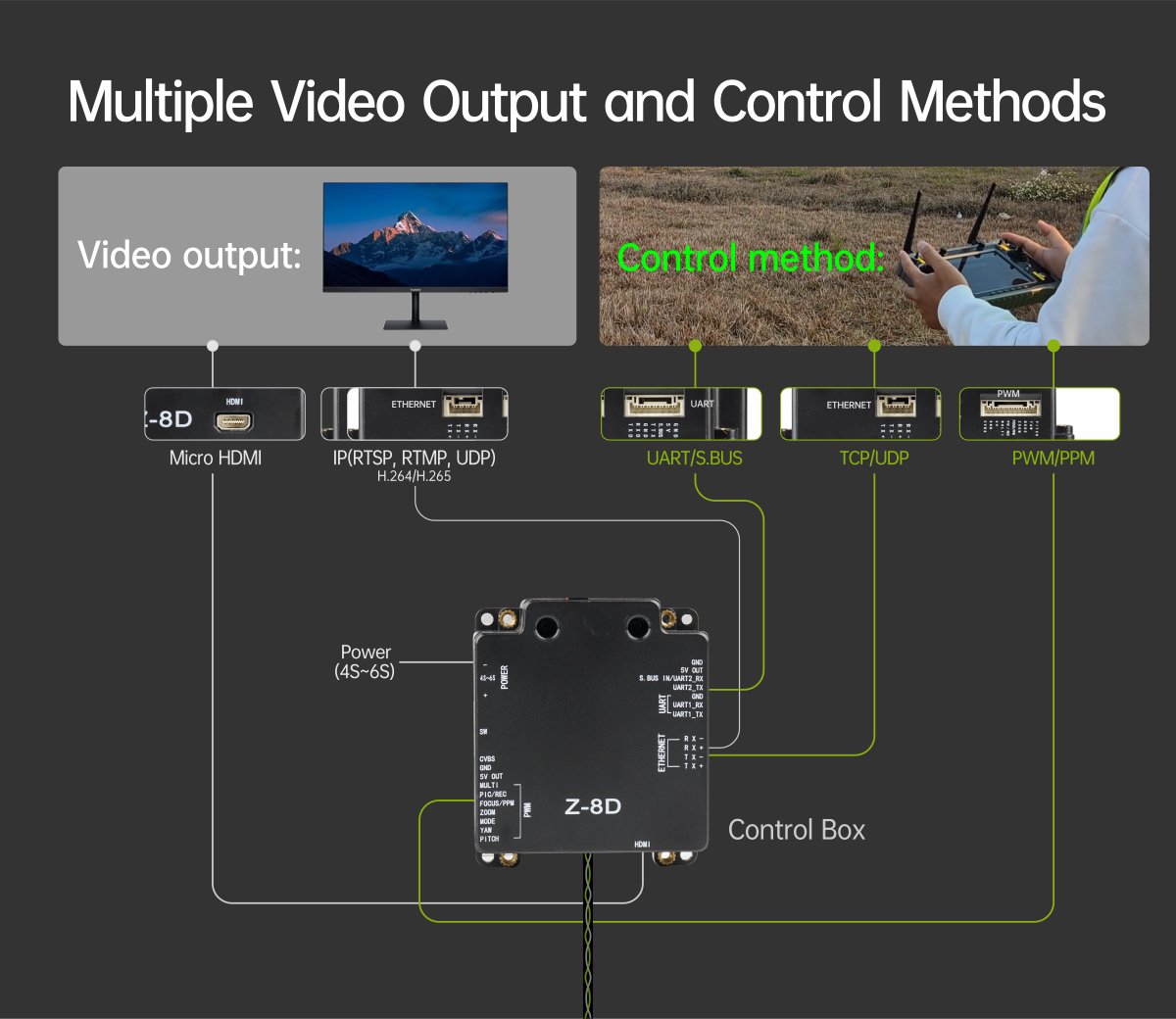

| Output | micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / SDI (1080P 30fps) |
| Local-storage | SD card (Up to 512G,class 10, FAT32 format) |
| Picture storage format in TF card | JPG(1920*1080) |
| Video storage format in TF card | MP4 (1080P 30fps) |

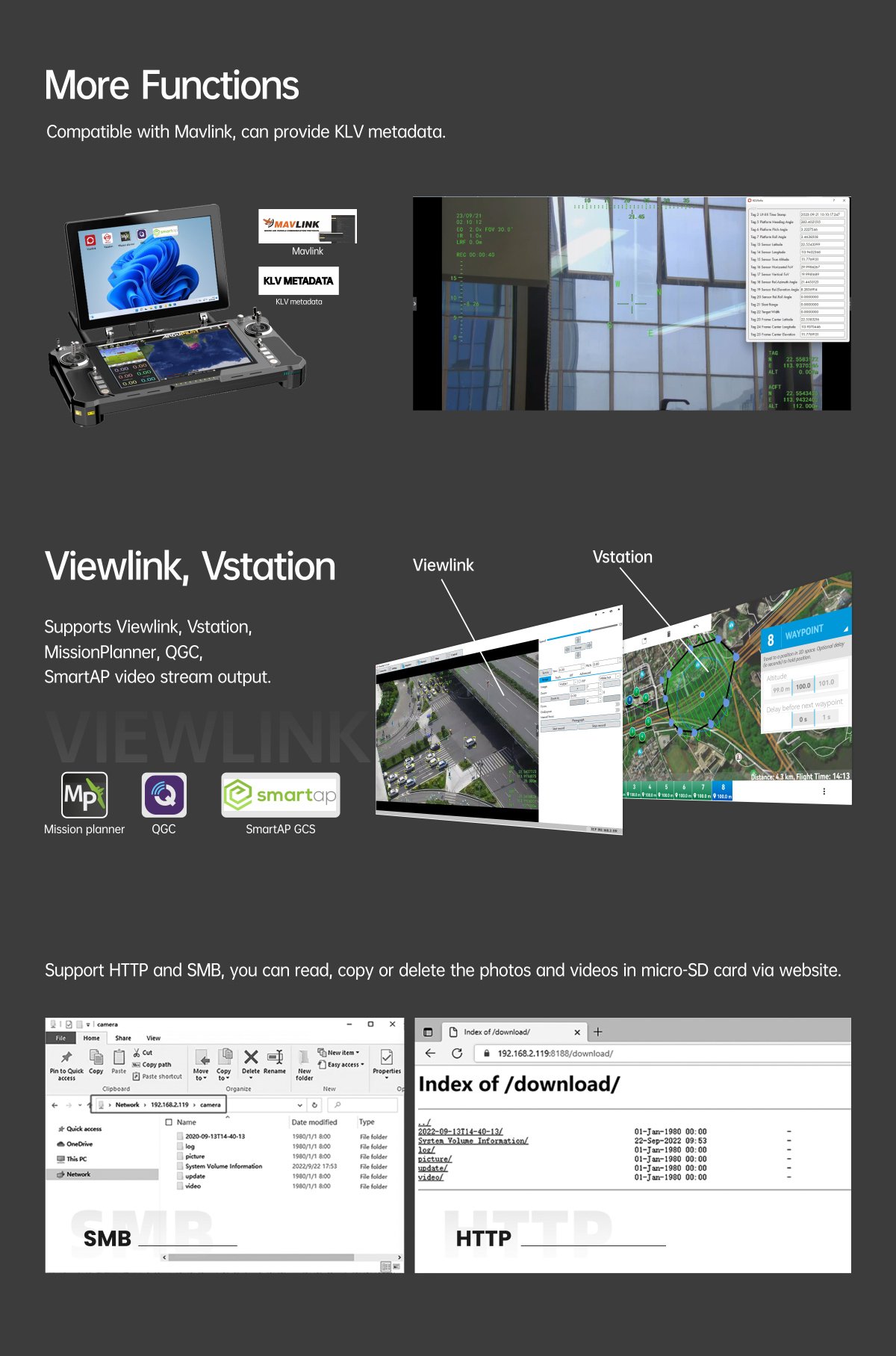

| Card reading online | SMB read / HTTP read |
| Control method | PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |

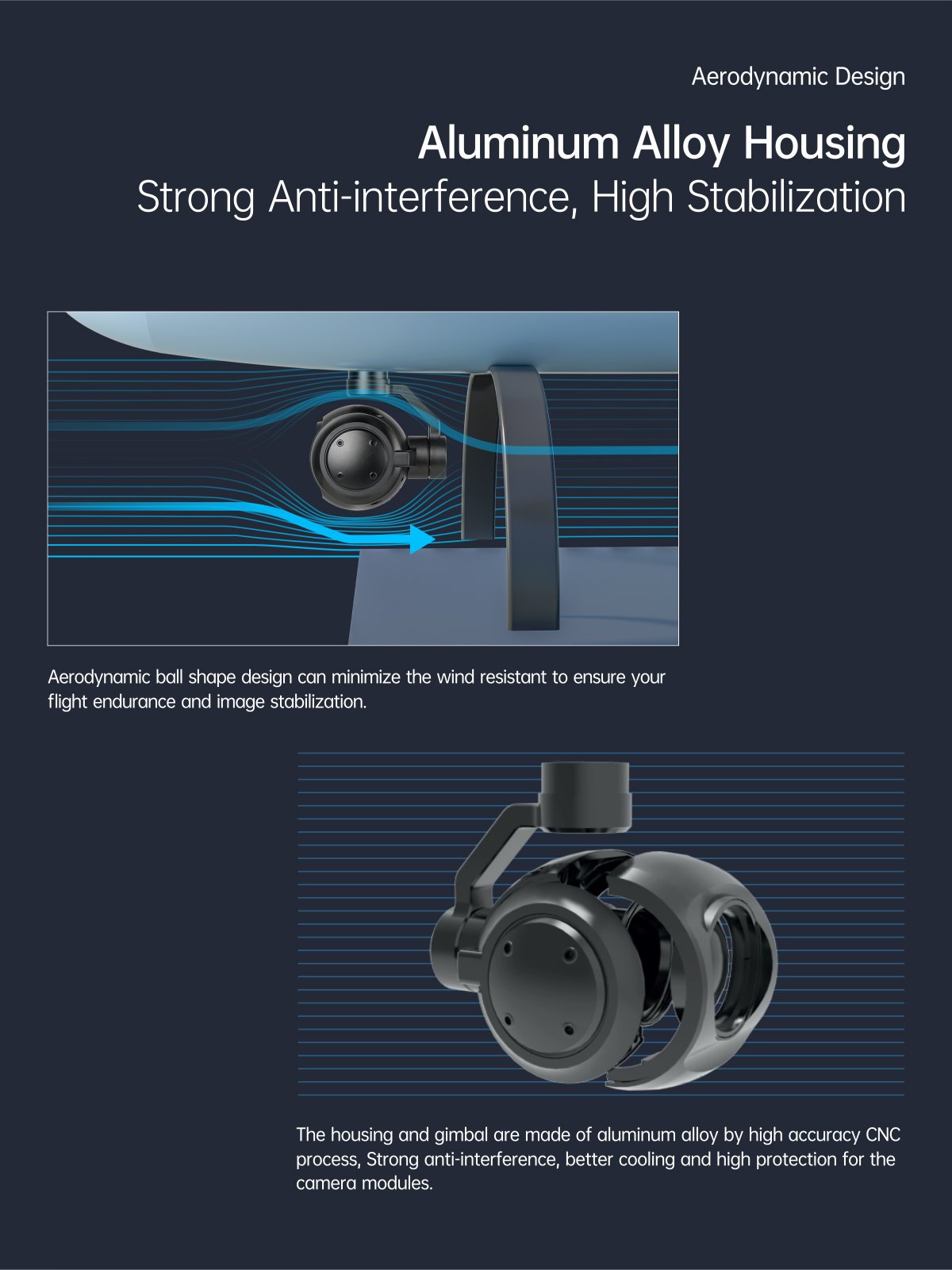

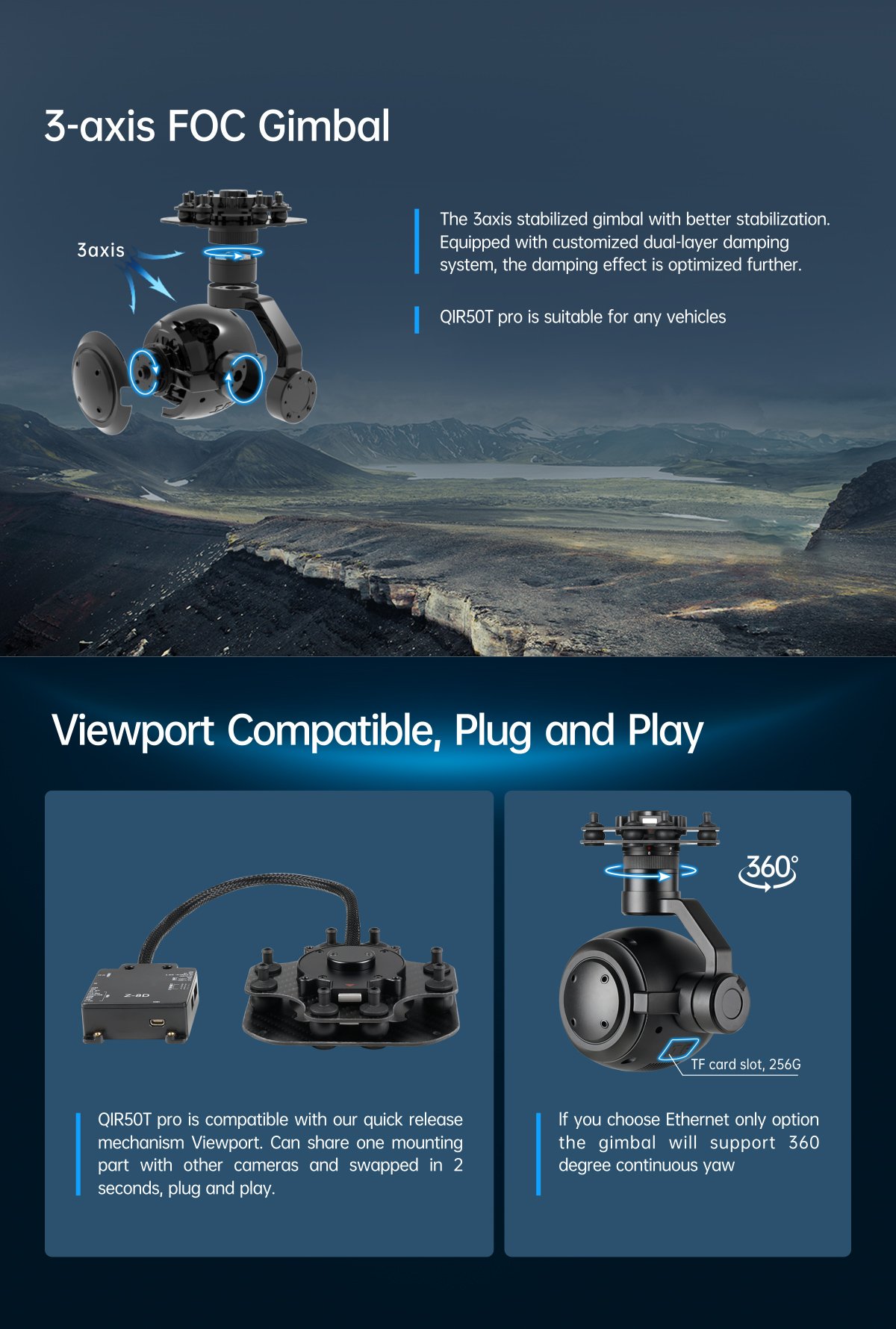

| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -90~125 , Roll: 35 , Yaw/Pan: 300 / 360 *N (IP / SDI output version) |
| Controllable Range | Pitch/Tilt: -45 ~120 , Yaw/Pan: 290 / 360 *N (IP / SDI output version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| IR Thermal Imager Spec | |
| Focus Length | 50mm |
| Horizontal FOV | 17.5 |
| Vertical FOV | 14 |
| Diagonal FOV | 22.3 |
| Detective Distance (Man: 1.8 0.5m) | 2083 meters |
| Recognize Distance (Man: 1.8 0.5m) | 521 meters |
| Verified Distance (Man: 1.8 0.5m) | 260 meters |
| Detective Distance (Car: 4.2 1.8m) | 6389 meters |
| Recognize Distance (Car: 4.2 1.8m) | 1597 meters |
| Verified Distance (Car: 4.2 1.8m) | 799 meters |
| Working mode | Uncooled long wave (8 m~14 m) thermal imager |

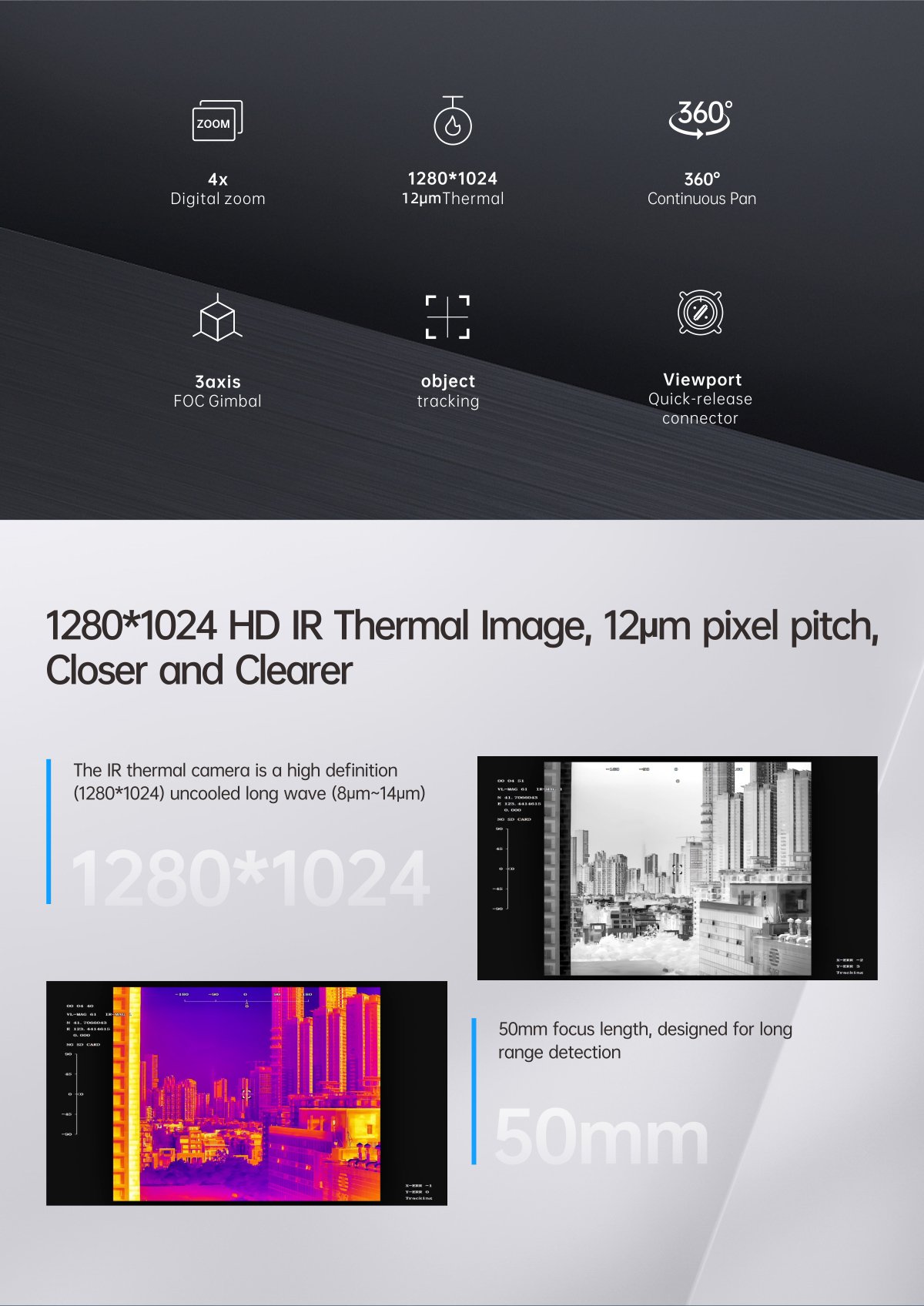

| Detector pixel | 1280*1024 |
| Pixel pitch | 12 m |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | 50mK (@25 ) |
| MRTD | 650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, black, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |

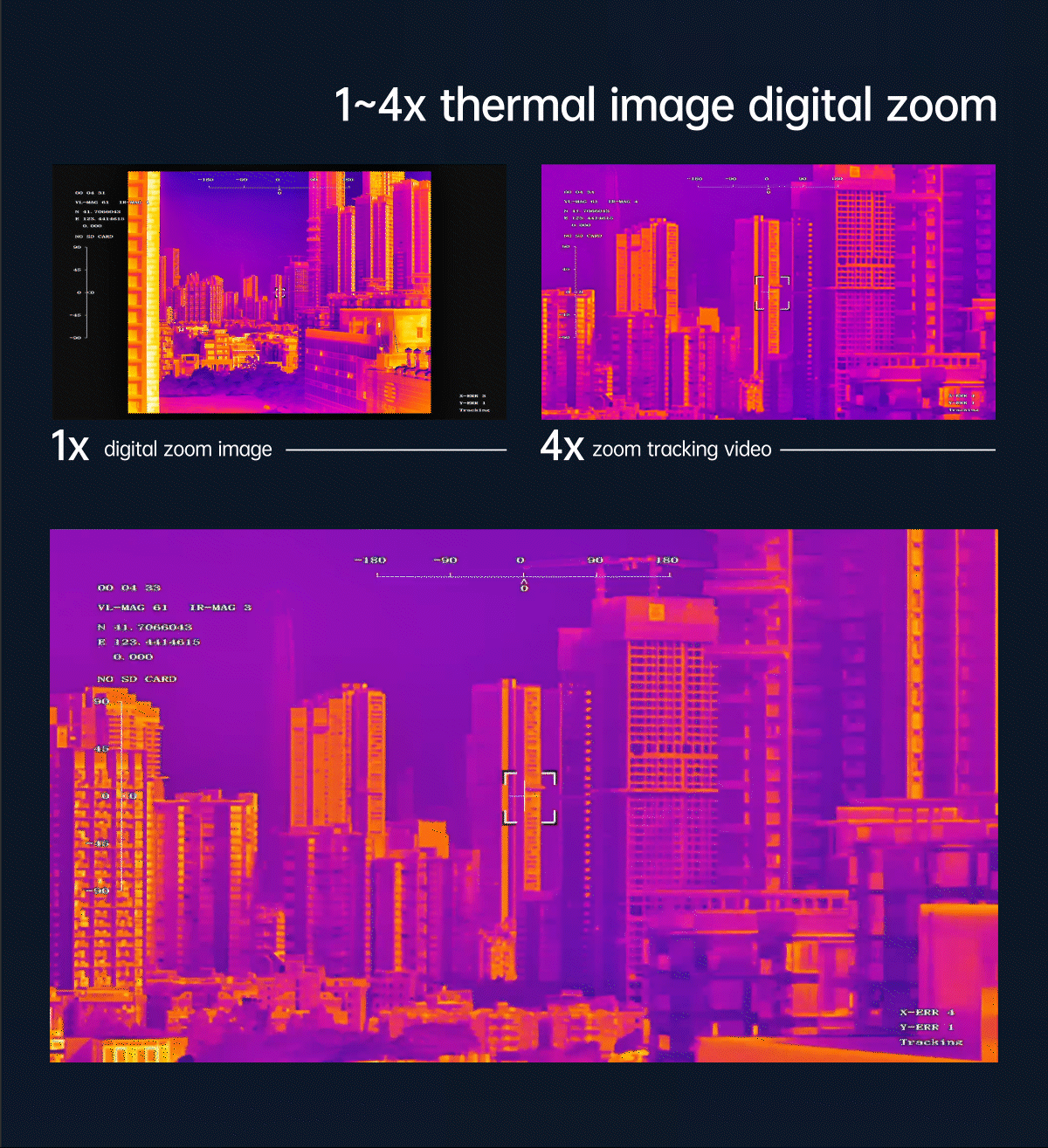

| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |

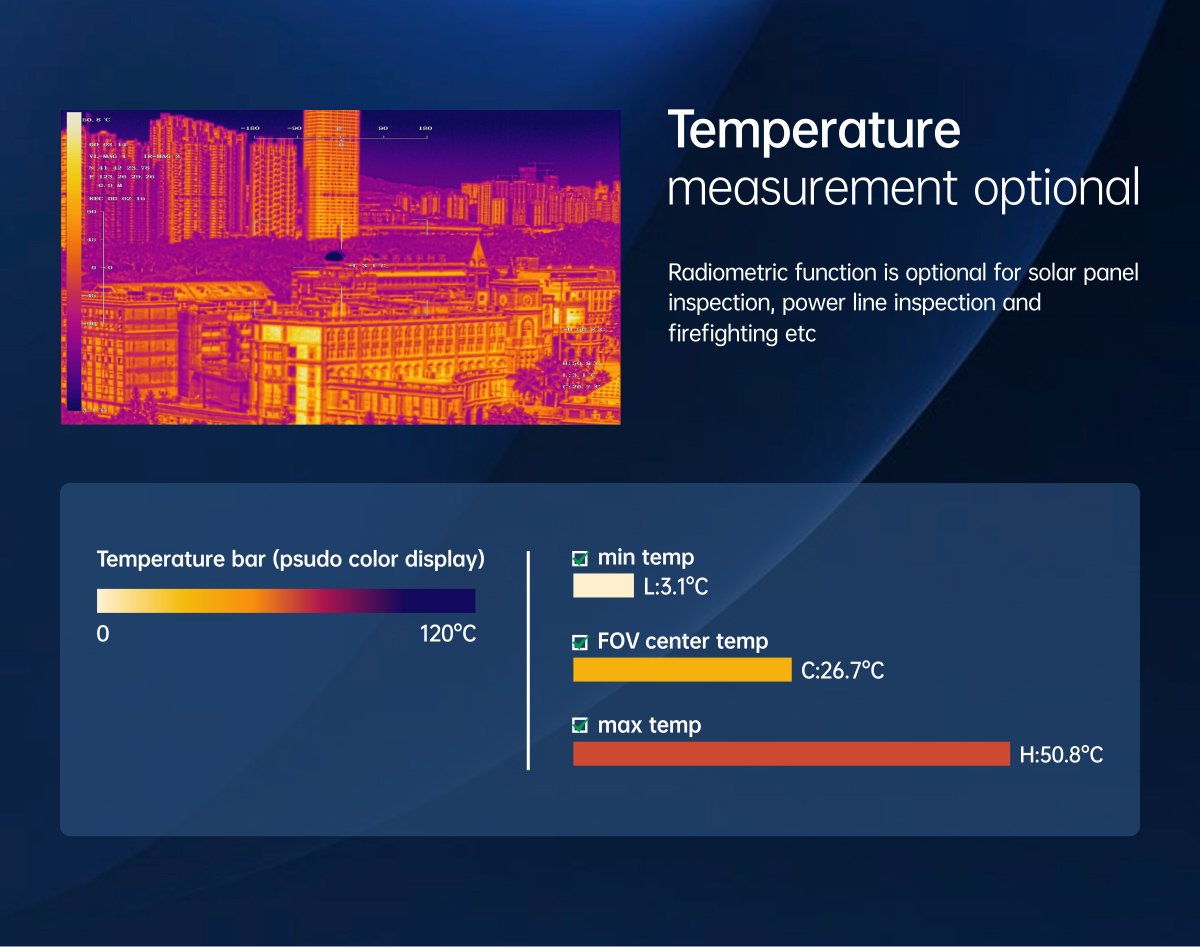

| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0 ~120 (For thermometry version only) |

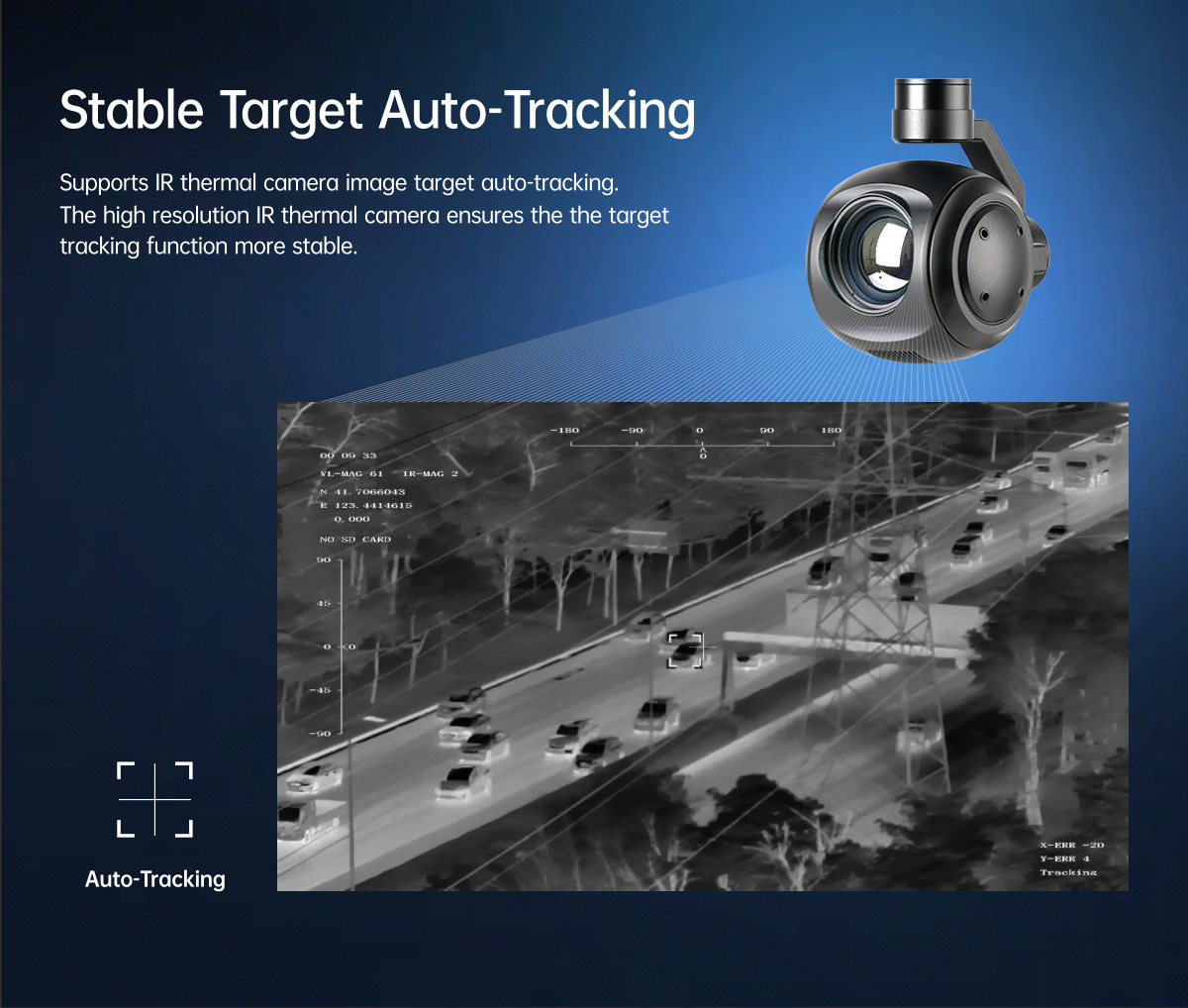

| IR Thermal Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames (4s) |
| Packing Information | |
| N.W. | 1020g (Viewport version) |
| Product meas. | 112*136*190.9mm |

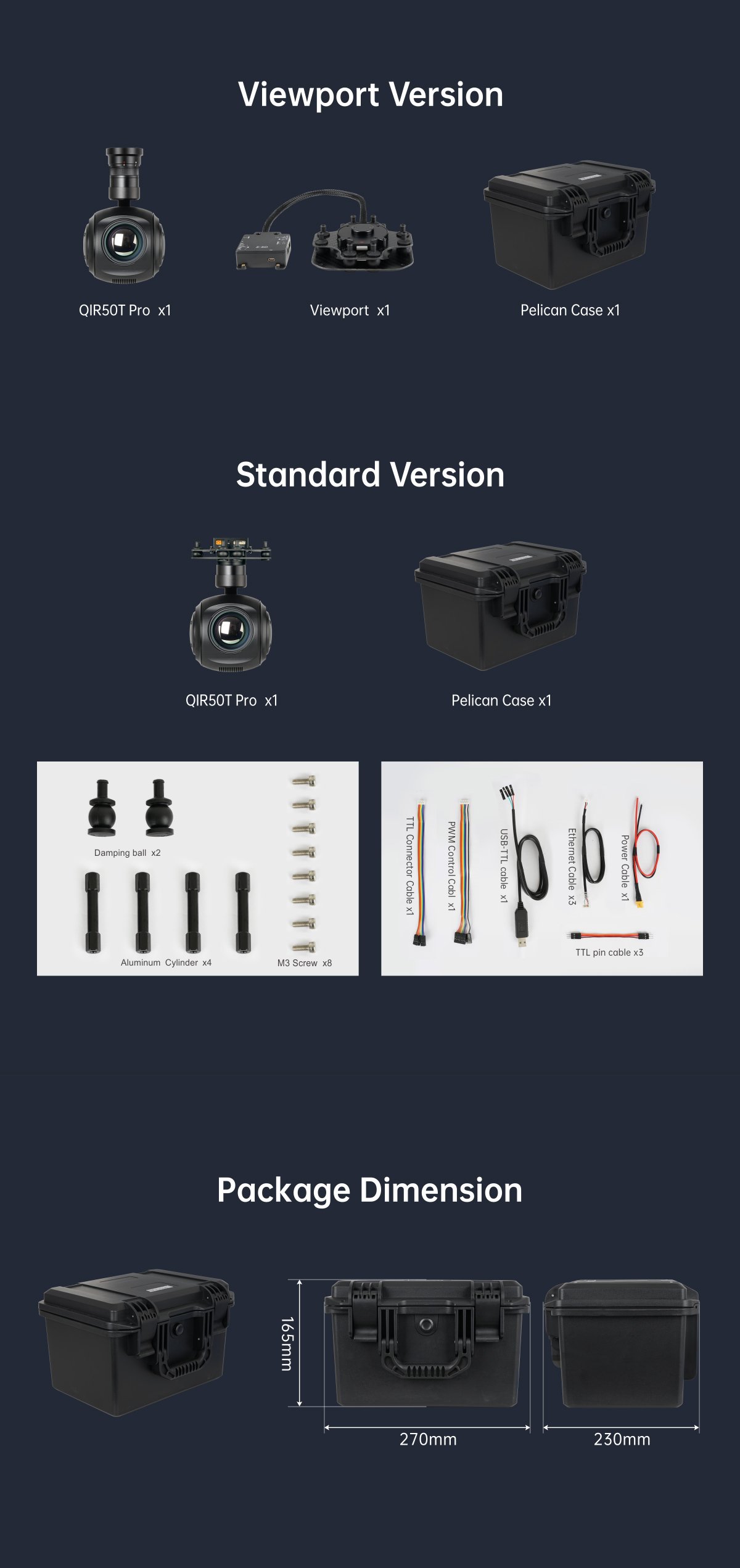

| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 2632g |
| Package meas. | 300*250*200mm |
