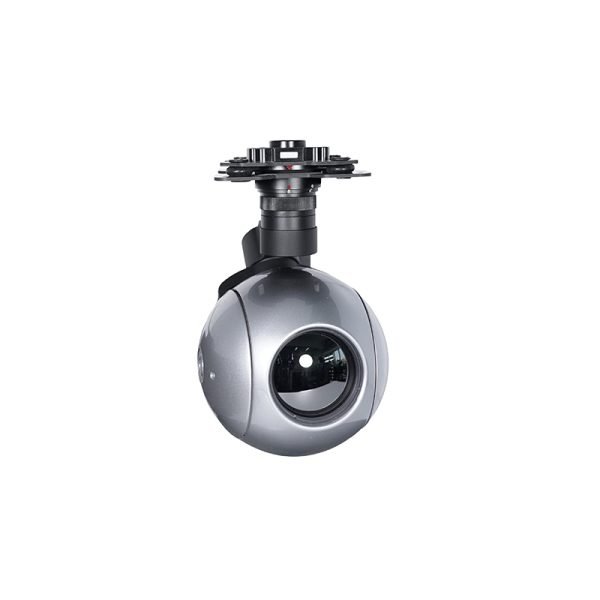

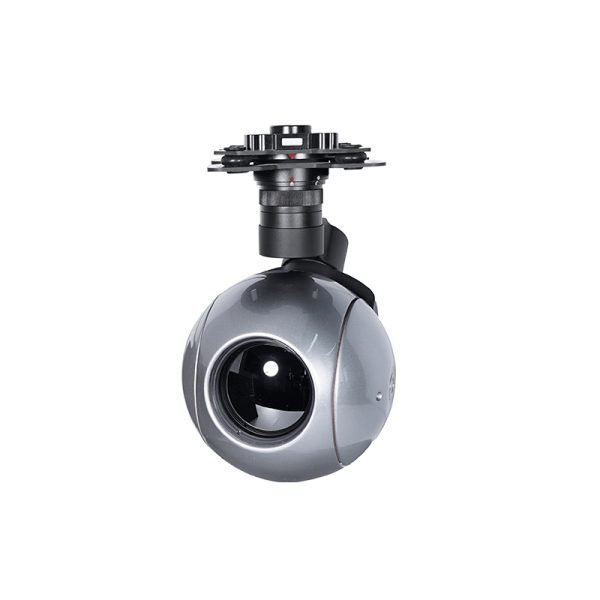

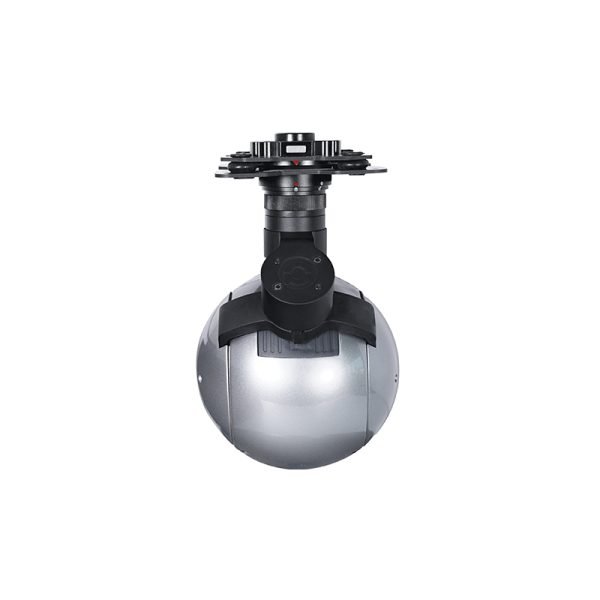

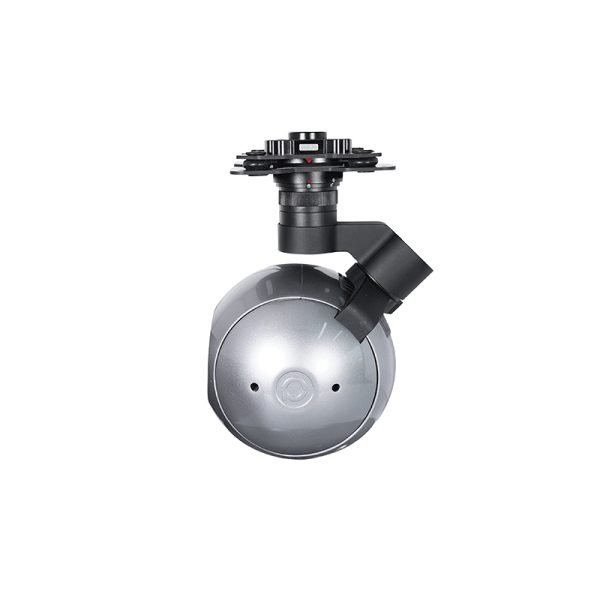

MQIR50T 50mm Drone IR Thermal Gimbal Camera
China Moneypro
The MQIR50T is a professional 3-axis drone thermal gimbal camera featuring a powerful 50mm infrared lens with French ULIX uncooled long-wave thermal imaging technology. This precision gimbal delivers exceptional stability in a compact, lightweight design with low power consumption, utilizing advanced FOC motor control and pinpoint-precision encoders. It supports multiple control methods including PWM, S.BUS, and serial commands, with adjustable speed modes for accurate operation. The camera simultaneously records thermal and visible images, revealing temperature details invisible to the naked eye for equipment inspection, building assessment, and search operations. With detection ranges up to 1471 meters for people and 4510 meters for vehicles, it offers three color palettes and multiple output options including HDMI, Ethernet/IP, and SDI. The one-key center function enables automatic gimbal repositioning, while integrated object tracking and geotagging capabilities enhance operational efficiency for professional drone applications.
Professional 3-axis High-precise FOC Program
The thermal imaging camera lens size of QIR50T is 50mm. It has just one infrared camera. There are 3 color palette to choose, white, iron red, pseudo color. QIR50T is a pinpoint-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts pinpoint-precision encoder in each motor. QIR50T supports PWM control, S.BUS contral and serial command control, suitable for close range remote control or remote data command control.
The speed of QIR50T gimbal is adjustable, low speed mode is used for large zoom range, the control will be more accurate. Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. Also the one-key to center function will allow the gimbal return to initial position automatically and rapidly.
Powerful 50mm Thermal Imager
Integrated French ULIX high-precision uncooled long wave (8 m ~14 m ) with 50mm lens thermal image sensor, QIR50T can record and transmit thermal image and visible images at the same time. See the unseen. ULIX thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.
Multi Output Methods Optional
QIR50T supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.

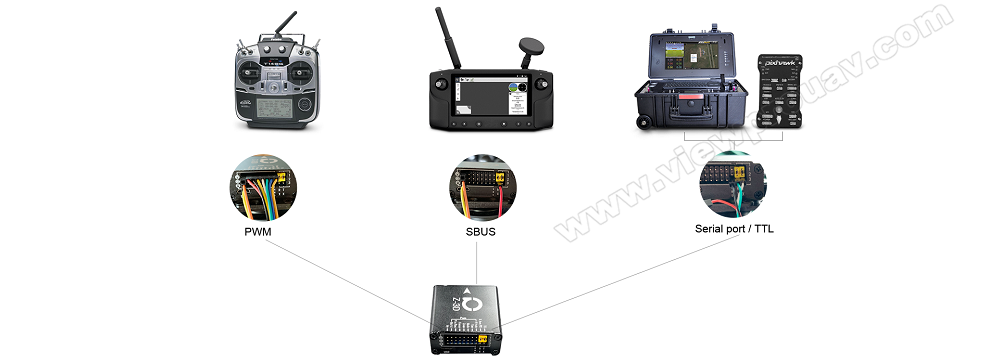

Multi Control Methods
Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 500mA~1000mA @ 16V |
| Working environment temp. | -20 ~ +60 |
| Output | micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / SDI (1080P 30fps) |
| Local-storage | SD card (Up to 512G,class 10, FAT32 format) |
| Picture storage format in TF card | JPG(1920*1080) |
| Video storage format in TF card | MP4 (1080P 30fps) |
| Card reading online | SMB read / HTTP read |
| Control method | PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -90~125 , Roll: 35 , Yaw/Pan: 300 / 360 *N (IP / SDI output version) |
| Controllable Range | Pitch/Tilt: -45 120 , Yaw/Pan: 290 / 360 *N (IP / SDI output version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| IR Thermal Imager Spec | |
| Focus Length | 50mm |
| Horizontal FOV | 12.4 |
| Vertical FOV | 9.3 |
| Diagonal FOV | 15.5 |
| Detective Distance (Man: 1.8 0.5m) | 1471 meters |
| Recognize Distance (Man: 1.8 0.5m) | 368 meters |
| Verified Distance (Man: 1.8 0.5m) | 184 meters |
| Detective Distance (Car: 4.2 1.8m) | 4510 meters |
| Recognize Distance (Car: 4.2 1.8m) | 1127 meters |
| Verified Distance (Car: 4.2 1.8m) | 564 meters |
| Working mode | Uncooled long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*480 |
| Pixel pitch | 17 m |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | 50mK (@25 ) |
| MRTD | 650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, black, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0 ~120 (For thermometry version only) |
| IR Thermal Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames (4s) |
| Packing Information | |
| N.W. | 875g / 945g (Viewport version) |
| Product meas. | 133.4*118.6*185.7mm / 133.6*118.6*193.6mm(Viewport version) |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 2632g |
| Package meas. | 300*250*200mm |
