MQ40TIR 4K 40x Zoom 50mm IR Thermal Dual-Sensor Tracking Camera
China Moneypro

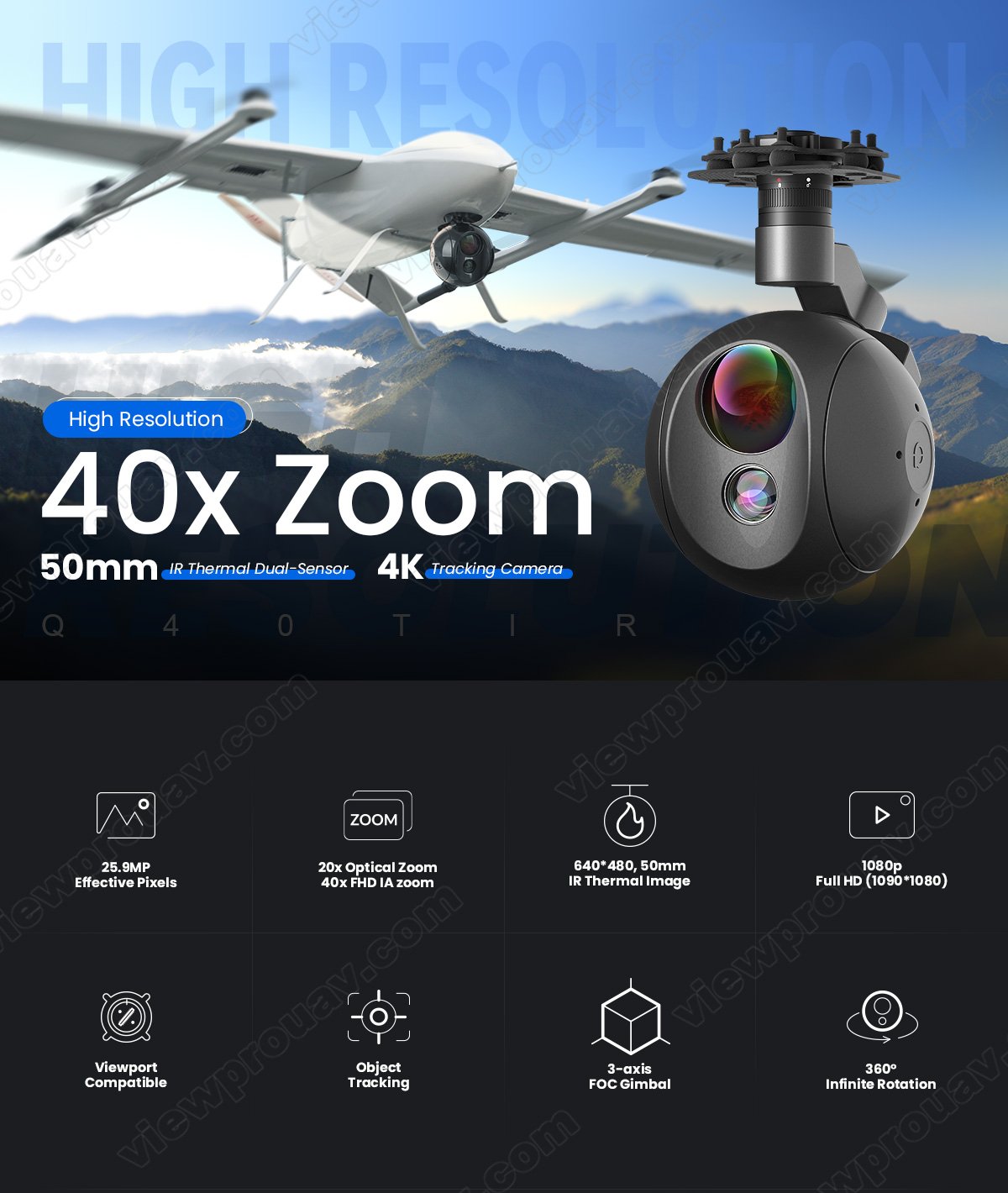

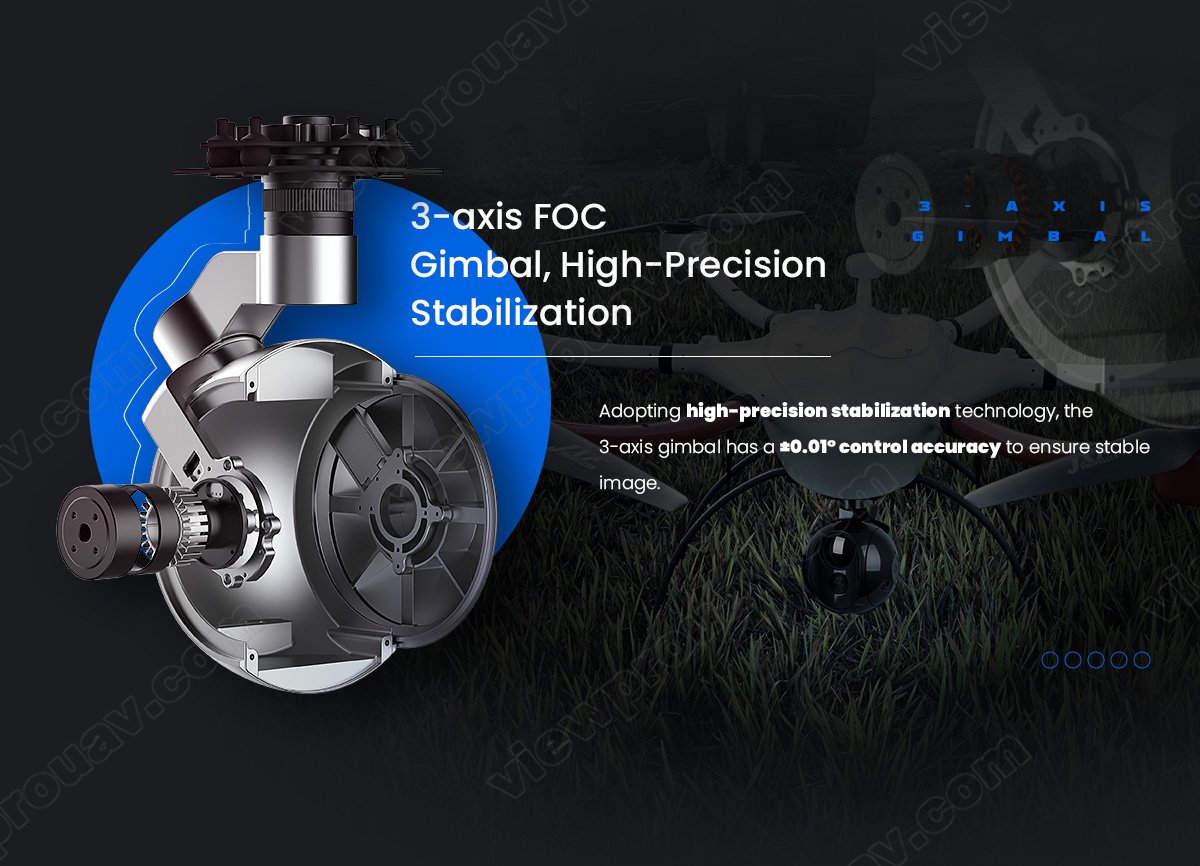

MQ40TIR is a powerful 3-axis gimbal camera which integrates a 20x optical zoom/40x IA zoom camera, a 50mm 640 480 thermal camera. The 3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 40 times zoom. Detecting by heat source, the 50mm thermal camera can reveal the damage of buildings, fire spark in forest, the location of people or animal and more. It very suitable for VTOL, Helicopter, etc, mainly supply in fire-fighting, surveillance, inspection, search and rescue etc.
| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 500mA @ 12V |
| Idle current | 400mA @ 12V |
| Power consumption | 6W |
| Working environment temp. | -20 ~ +60 |

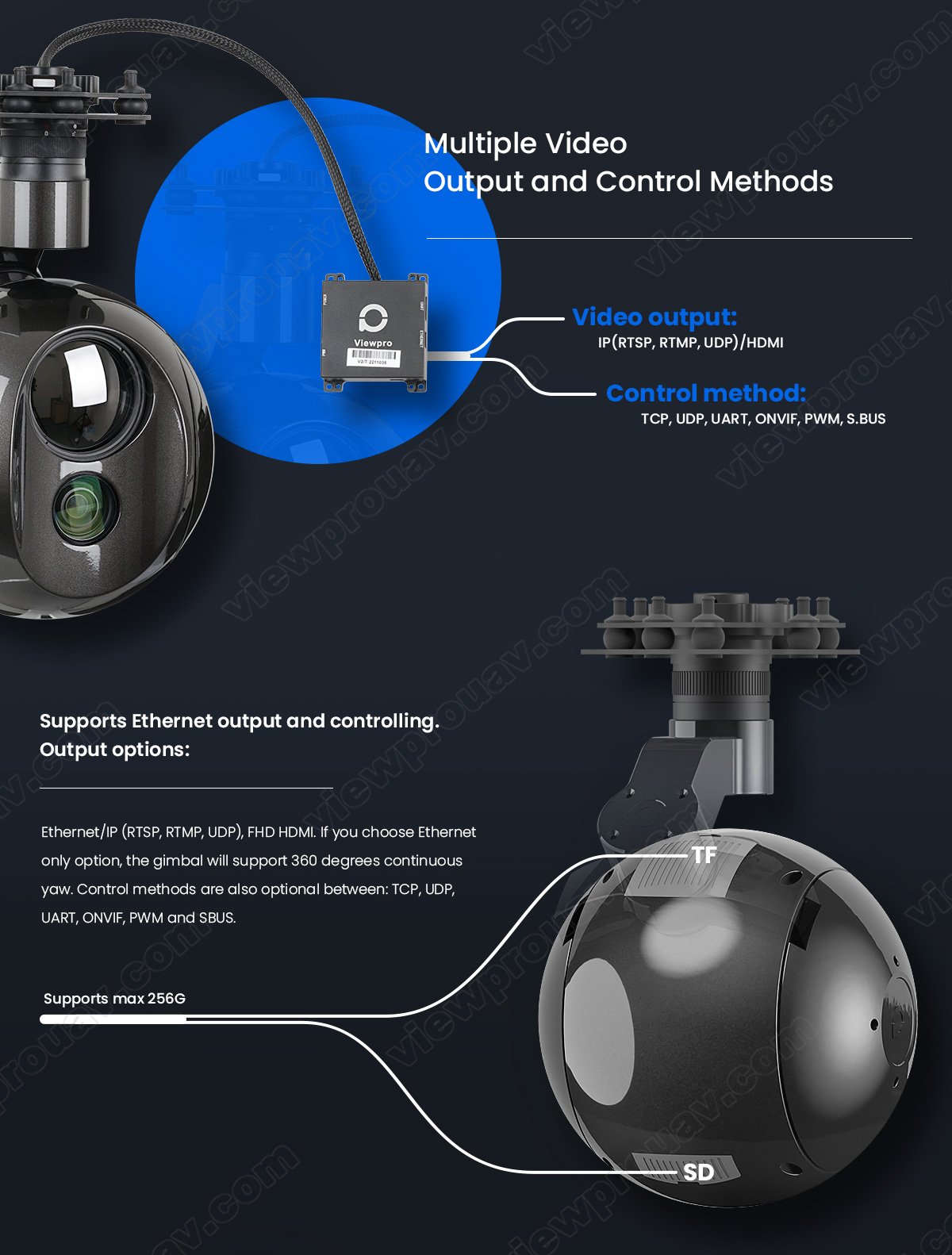

| Output | micro HDMI(HD output 1080P 60fps) / IP / SDI |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format), 128G*2 |

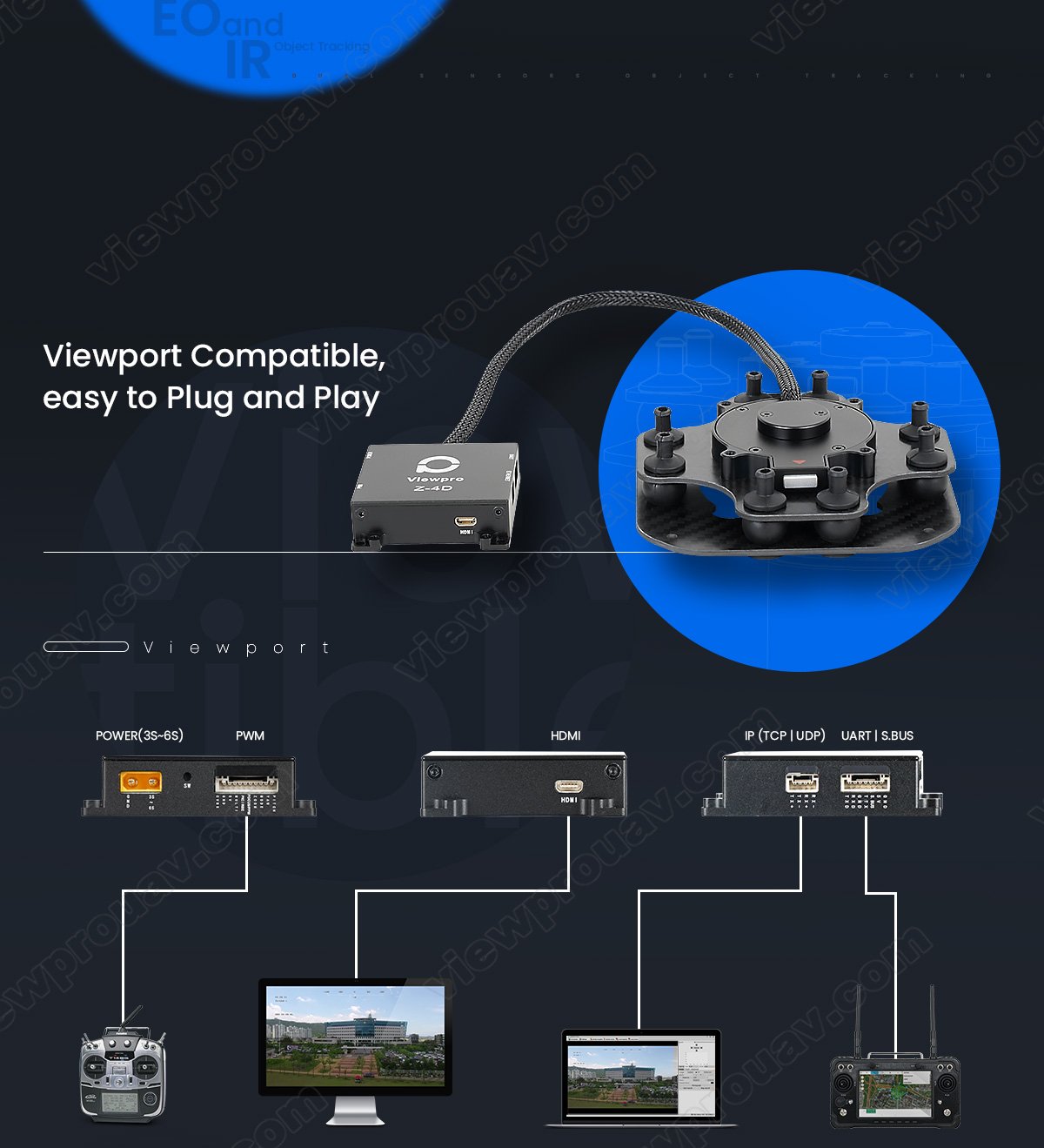

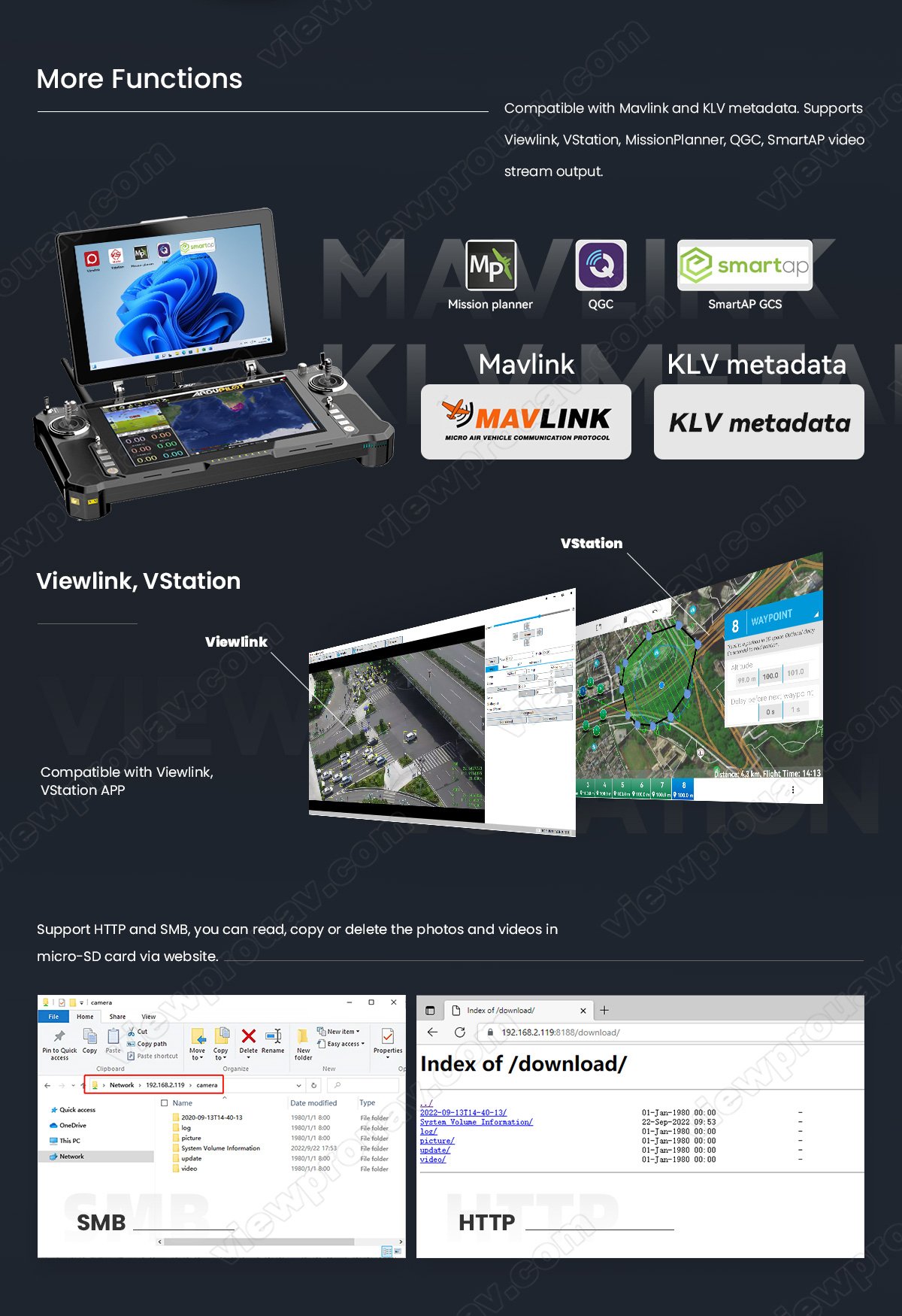

| Control method | PWM / TTL / SBUS / TCP(IP output) |
| Gimbal Spec | |
| Pitch/Tilt | 90 |
| Roll | 85 |

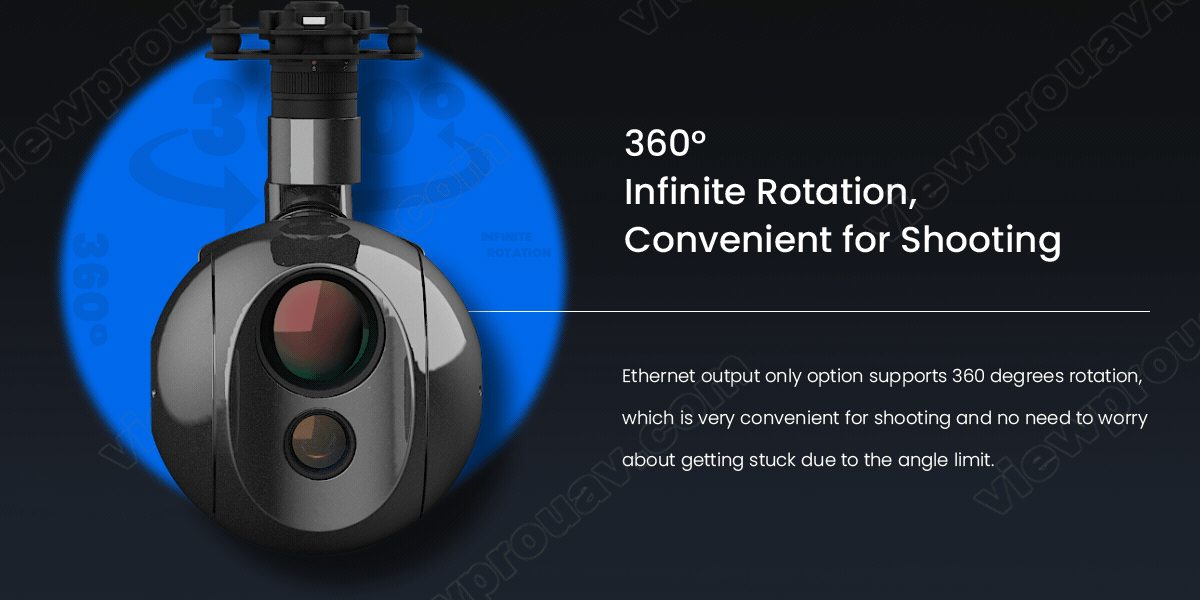

| Yaw/Pan | 170 / 360 *N (IP/SDI output) |
| Vibration angle | Pitch/Roll: 0.01 , Yaw 0.01 |
| One-key to center | |

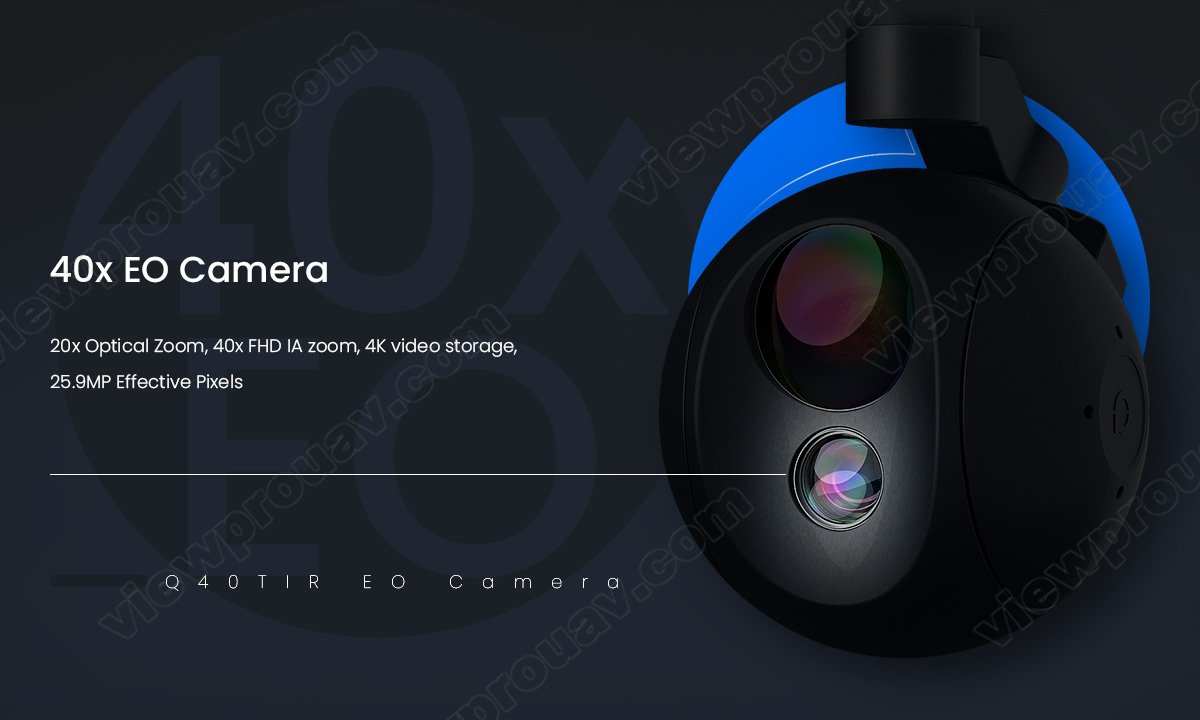

| Camera Spec | |
| Imager Sensor | Panasonic 1/2.3inch CMOS |
| Lens | F1.8~F3.6(f=4.08~81.6mm) |
| Zoom | Optical zoom:20x, iA zoom:25x(4k) / 40x(FHD) |
| Total pixel | 25.9MP |
| Record effective pixel | 4k:8.29MP / FHD:6.10MP(16:9) |
| Picture effective pixel | 25.9MP(4:3) |
| Optical Image Stabilization | 5 axis Optical Image Stabilization |
| Record format | MPEG-4 |
| Record pixel | 4k:3840*2160/30p FHD:1080/60p (HD:720/30p) |
| Record shutter speed(Manual) | 1/30 ~ 1/8000 |
| Picture format | JPEG |
| Picture pixel | 20.4M(4:3 |
| Picture shutter speed(Manual) | 1/2 ~ 1/2000 |
| Dynamic range | 65dB |
| Min object distance | 1.5M |
| Viewing angle | Horizontal: 62.95 (Wide end) ~ 3.45 (Tele end) |
| Vertical: 38.00 (wide end) ~ 1.94 (tele end) | |
| Sync system | Progressive scanning |
| Local video | 1080P 30fps local TF card |
| HD output | 1080P/720/480P 60fps HDMI1.4 |
| S/N ratio | 38dB |
| Min illumination | Color 0.05lux@F1.6 |
| Backlight compensation | Backlight compensation/strong light inhibition |
| Gain | Auto |
| White balance | Auto/Manual |
| Focus | Auto/Manual/One-time automatic focus |
| Focus speed | 2s |
| Lens initialization | Built-in |
| User presetting bit | 20 sets |
| Image rotation | 180 , Horizontal/Vertical mirror image |
| Facial recognition | |

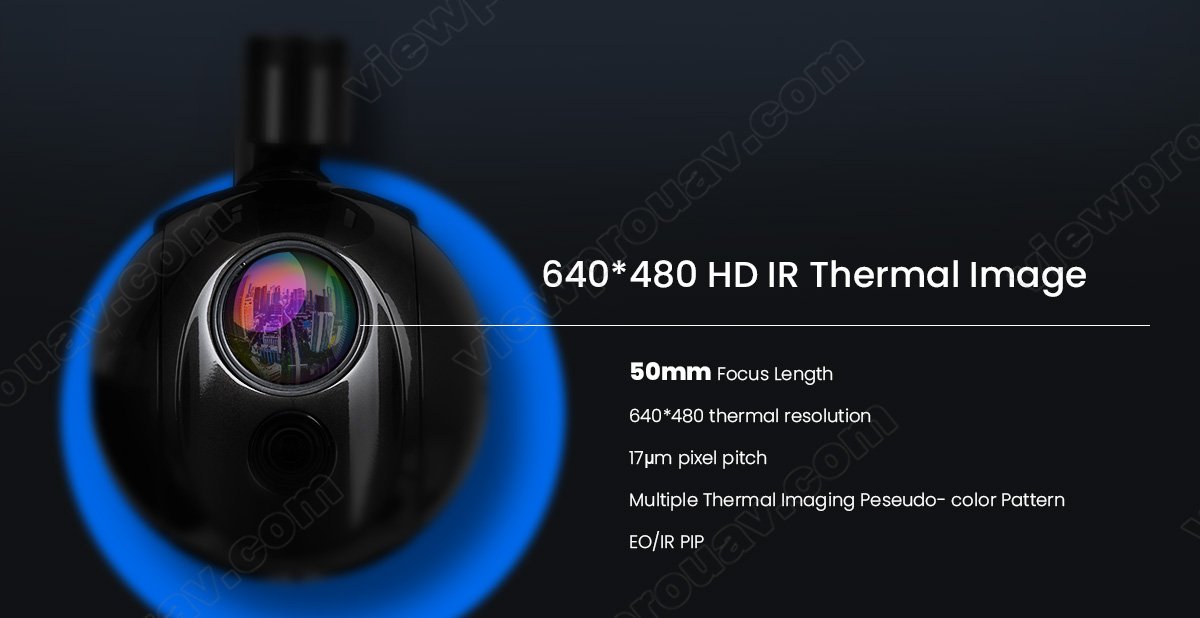

| IR Thermal Imager Spec | |
| Focus Length | 50mm |
| Horizontal FOV( ) | 12.4 |
| Vertical FOV( ) | 9.3 |
| Diagonal FOV( ) | 15.5 |
| Detective Distance (Man: 1.8 0.5m) | 1471 meters |
| Recognize Distance (Man: 1.8 0.5m) | 368 meters |
| Verified Distance (Man: 1.8 0.5m) | 184 meters |
| Detective Distance (Car: 4.2 1.8m) | 4510 meters |
| Recognize Distance (Car: 4.2 1.8m) | 1127 meters |
| Verified Distance (Car: 4.2 1.8m) | 564 meters |
| Working mode | Uncooled long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*480 |
| Pixel pitch | 17 m |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | 50mK (@25 ) |
| MRTD | 650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |

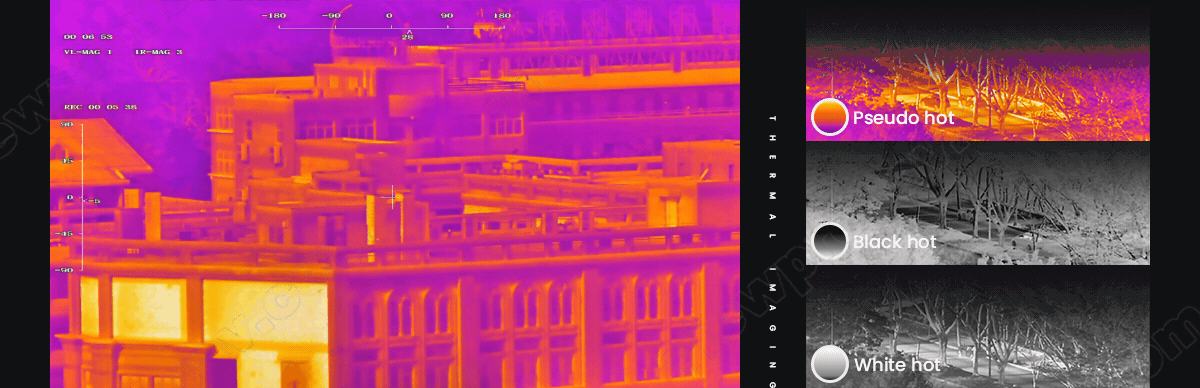

| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x, 3x |
| Sync correct time | Yes |

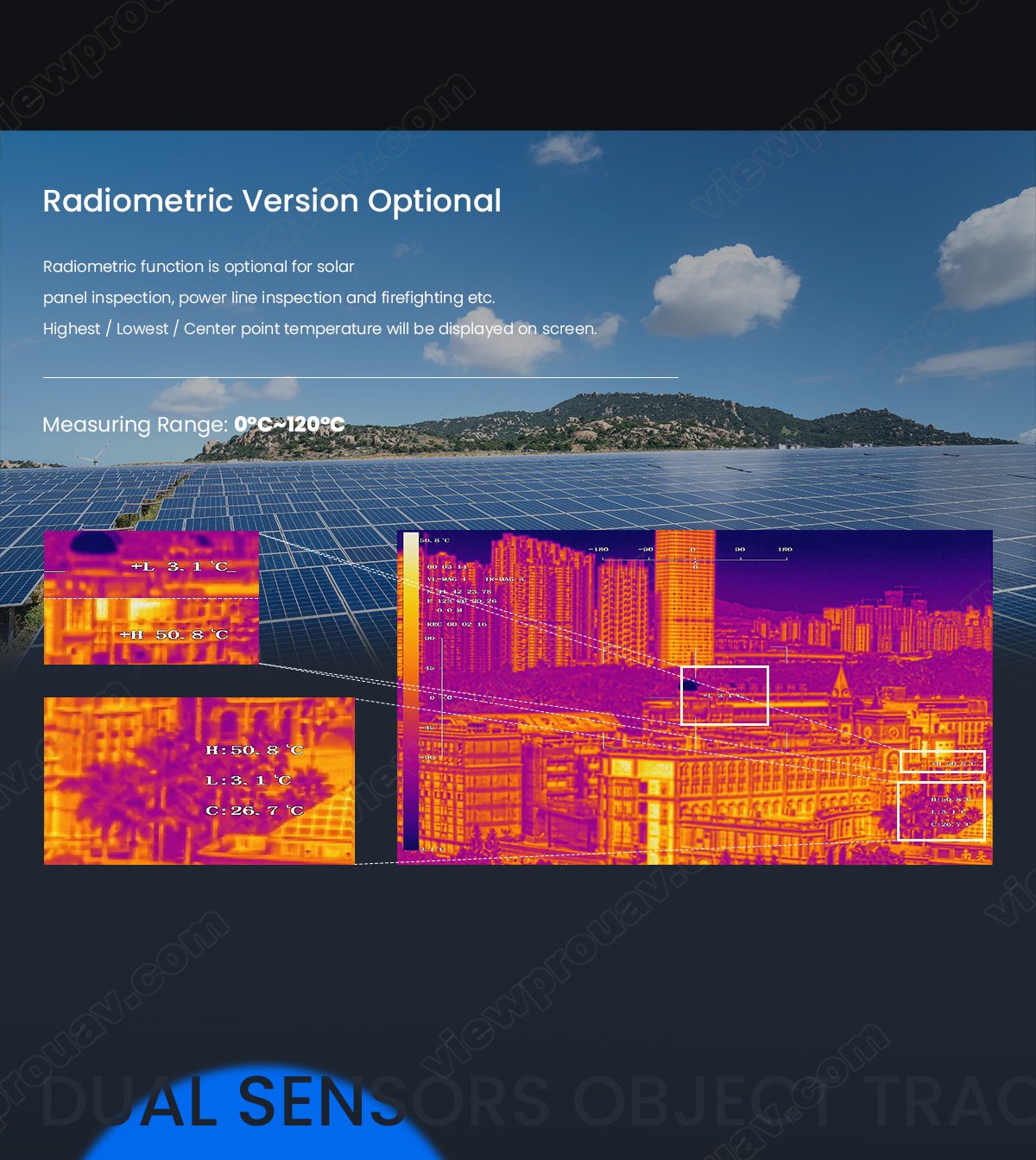

| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0 ~100 |

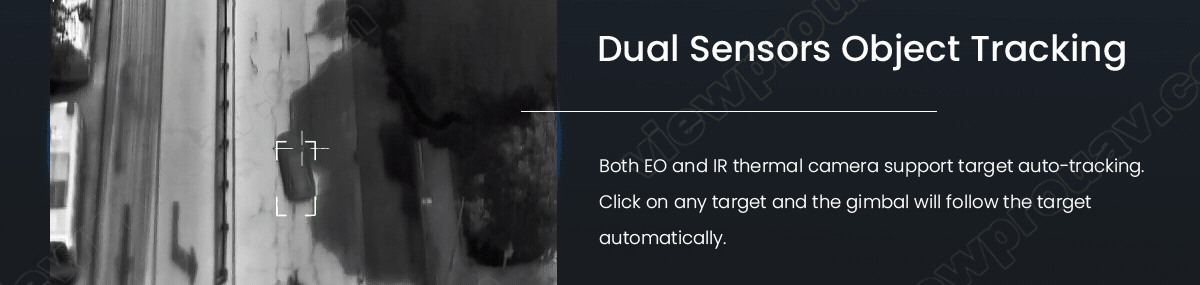

| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 1560g (Viewport version) |

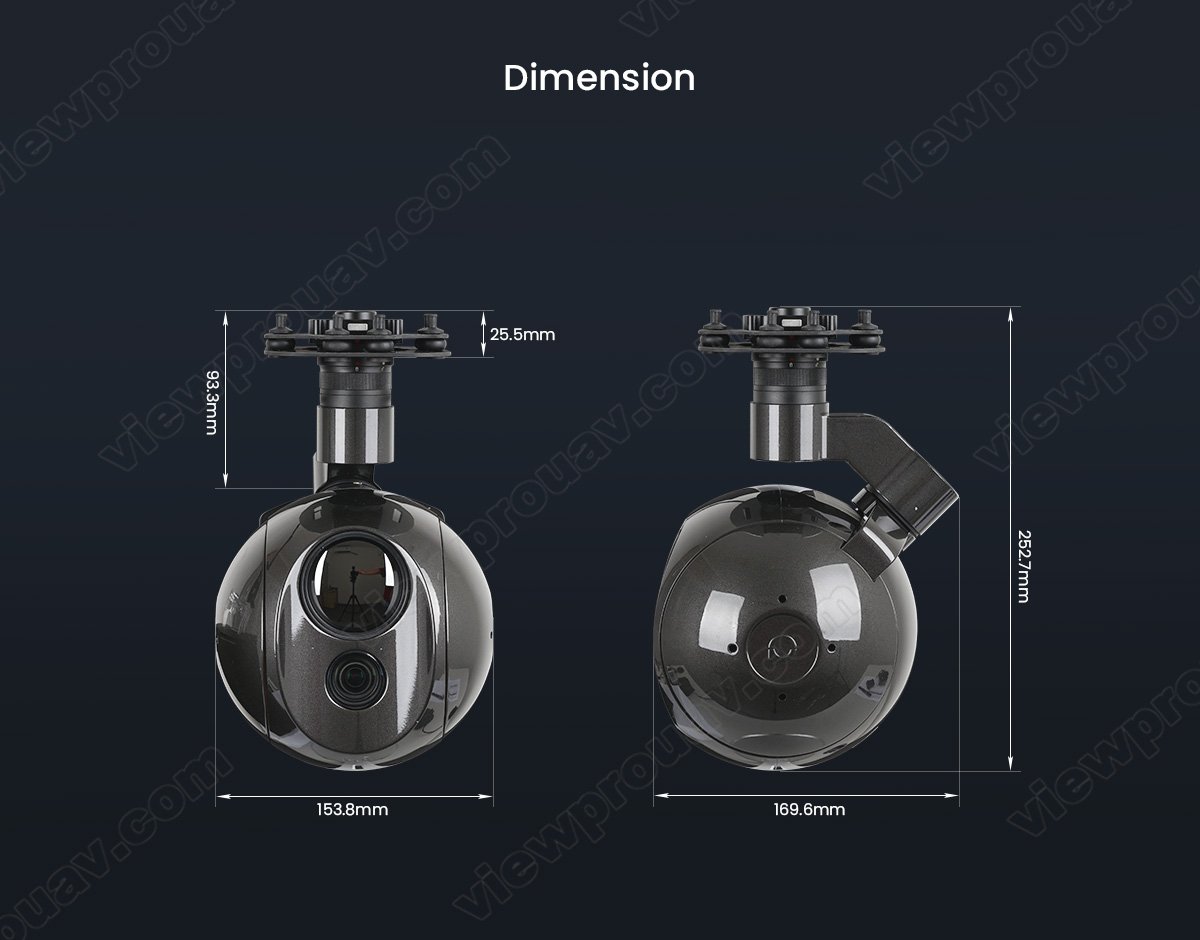

| Product meas. | 175.5*176*218mm |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| Package meas. | 360*300*250mm |
