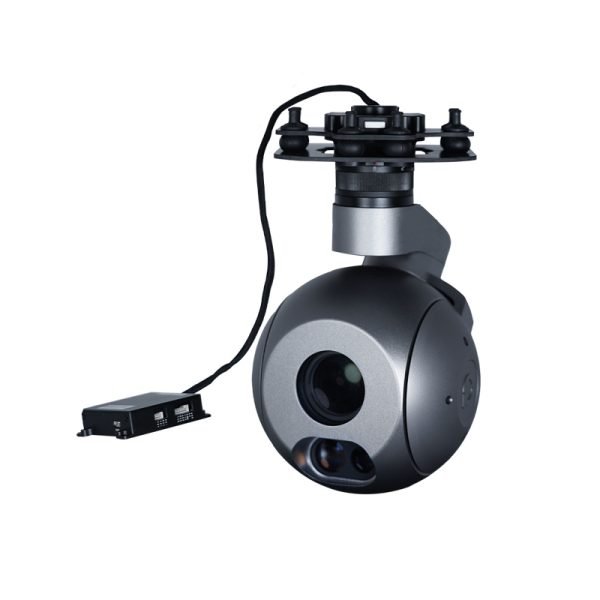

MQ30TM 30x Object GPS Coordinate Resolving and LRF Gimbal Camera
China Moneypro
The MQ30TM is a professional-grade 3-axis stabilized gimbal camera featuring a 30x optical zoom lens and advanced targeting capabilities. Equipped with a dedicated processor, it delivers pinpoint-precise motor control with 0.02-degree accuracy, eliminating vibration through four damping balls for seamlessly smooth video capture even during high-speed flight. The system includes intelligent object tracking with adaptive algorithms, GPS coordinate resolving for targets within 3000 meters, and an integrated infrared laser rangefinder. It supports multiple output methods including HDMI and Ethernet IP, with flexible control options via PWM, TTL, S.BUS, and TCP protocols. Built with a Sony 1/2.8-inch Exmor R CMOS sensor, it captures full HD 1080p video with exceptional low-light performance at 0.01 lux. The gimbal offers 360-degree pan rotation capability and comprehensive exposure controls for professional surveillance and reconnaissance applications.

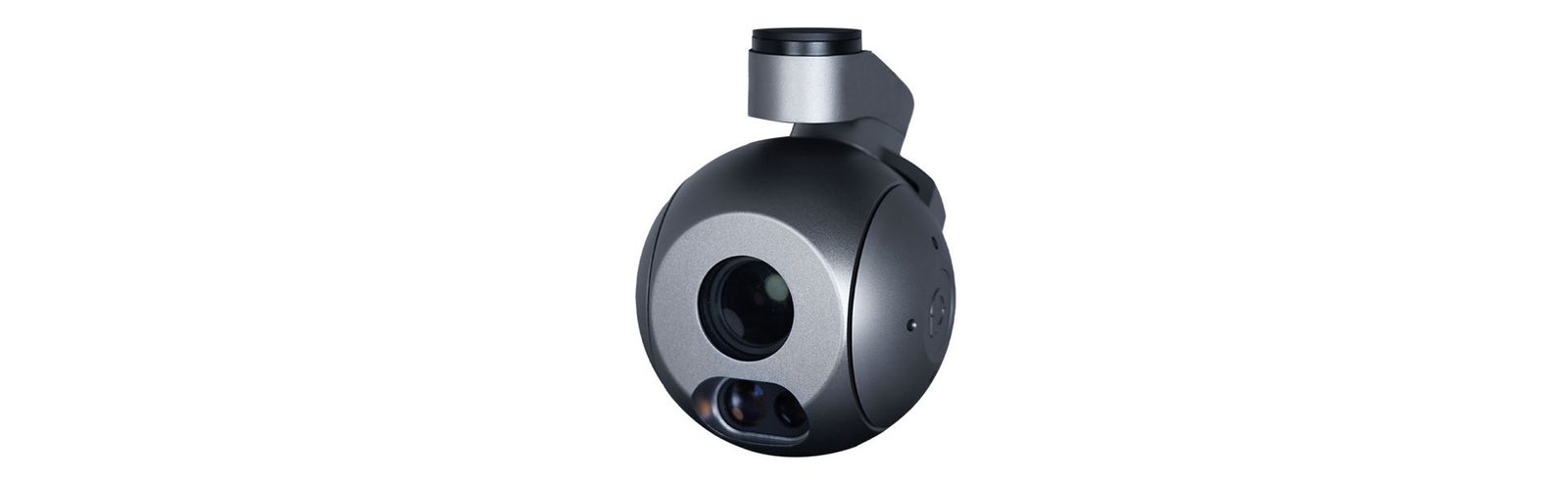

The Q30TM delivers highly efficient 3-axis stabilization for cameras, featuring ultra-precise motor control with an accuracy of 0.02°, driven by a dedicated processor. Unlike conventional gimbals that depend on electrical slip rings, the Q30TM adopts a unique mechanically restricted design with hidden internal wiring, ensuring more reliable data transmission and enhanced long-term durability. To eliminate vibration, it incorporates four damping balls along with a lightweight damping plate, resulting in exceptionally smooth video footage.

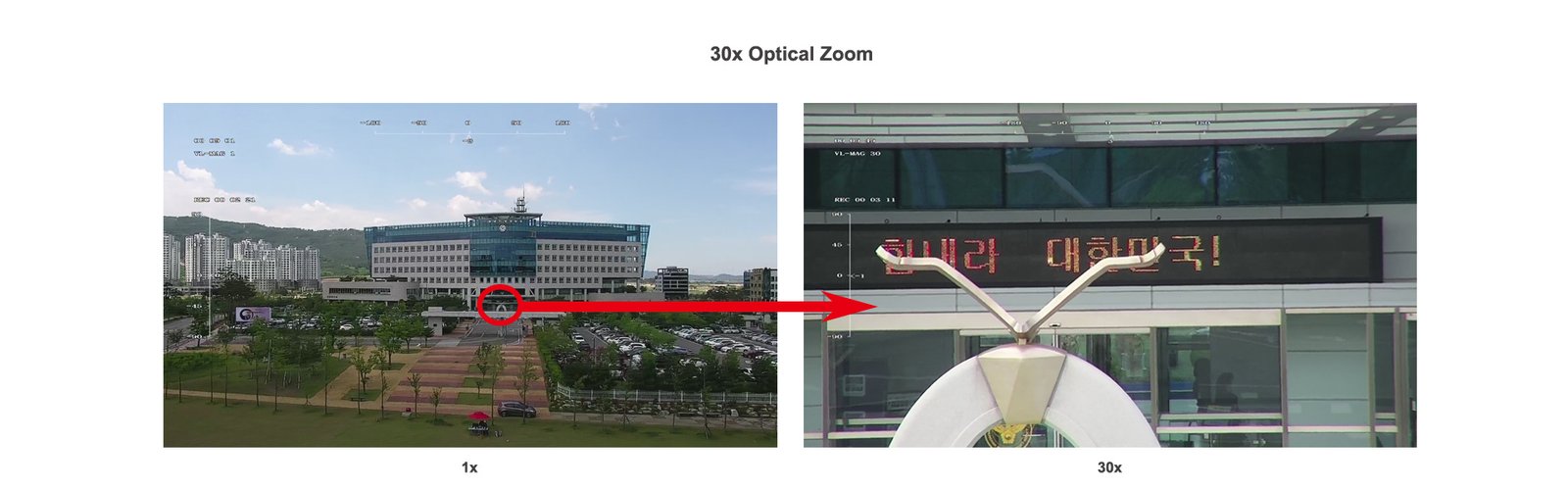

30x Optical Zoom Camera
The Q30TM stabilization system is a finely tuned 3-axis gimbal, engineered for exceptional motor precision. With a dedicated processor enabling control accuracy as fine as 0.01°, it delivers highly responsive rotational performance. Full 360° movement is fully supported through the gimbal’s rotation mechanism. Even during high-speed flight, the system consistently produces stable and smooth video footage.

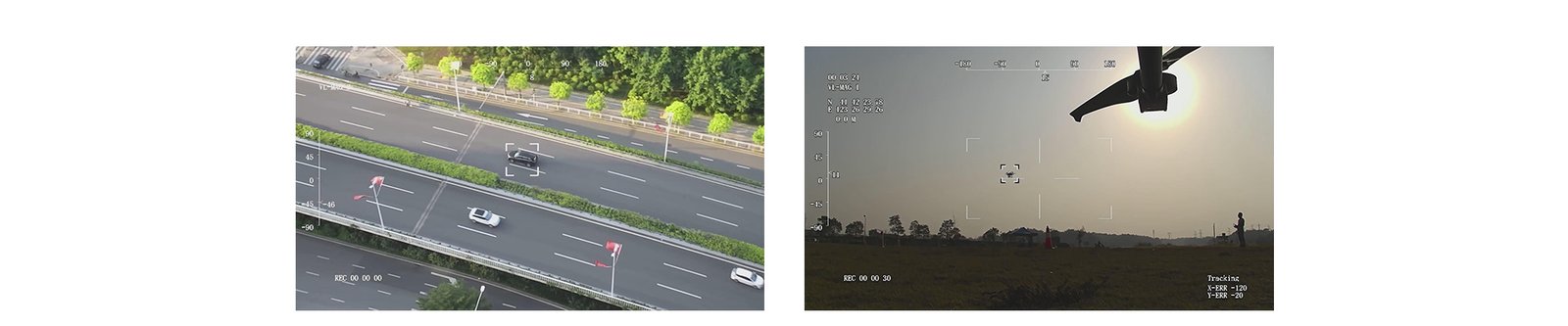

Camera Object Tracking
By incorporating built-in normalization, cross-correlation, and a tracking algorithm—augmented with an object missing recapture mechanism—the system ensures reliable target locking. It supports customizable on-screen display (OSD) characters, adaptive gate control, a cross cursor, and real-time trajectory visualization. The tracker achieves a velocity of up to 32 pixels per frame and handles objects sized between 32×32 and 128×128 pixels. Even under a minimum signal-to-noise ratio (SNR) of 4 dB, the root-mean-square (RMS) jitter of pulse noise at the object position remains below 0.5 pixels, delivering noticeably enhanced tracking precision and overall performance.

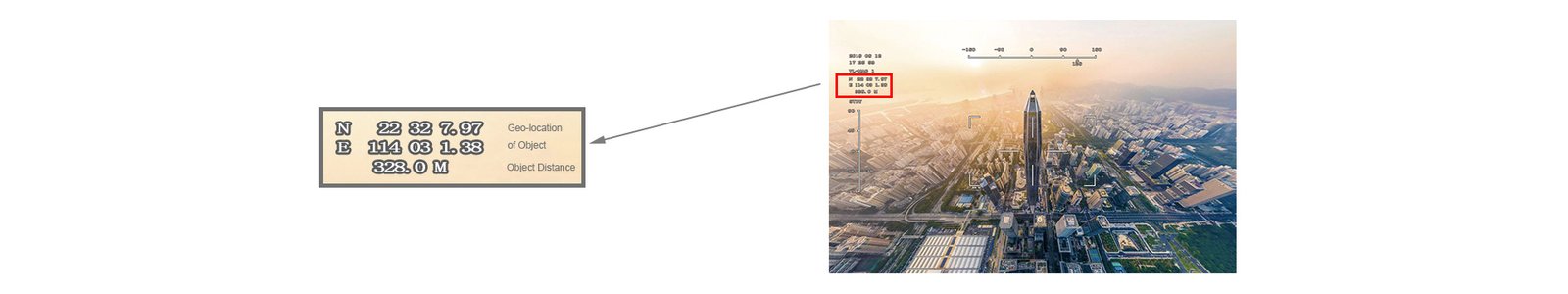

GPS Location Resolving
The advanced ranging algorithm is capable of calculating object distances up to 3,000 meters with high precision. It accurately parses the longitude and latitude of the target and presents the results visually on the display. This functionality provides significant support for military and police operations.

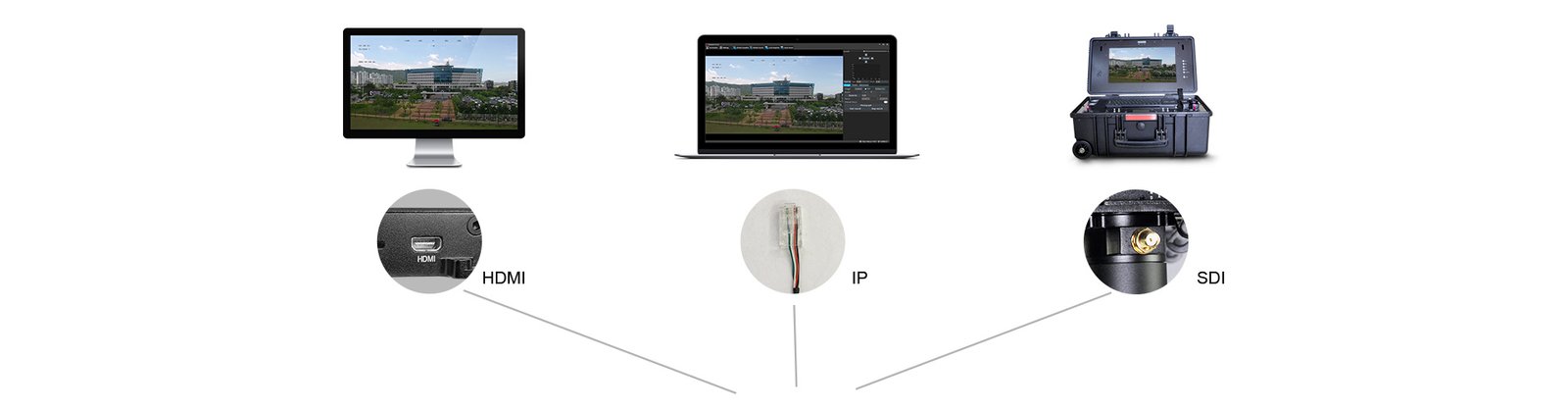

Multi Output Methods Optional
The Q30TM is compatible with both HDMI and Ethernet/IP output. While HDMI delivers a 1080p signal, the default Ethernet/IP output is set to 720p, with recording maintained at 1080p. Additionally, IP output enables a 360-degree endless panning capability.

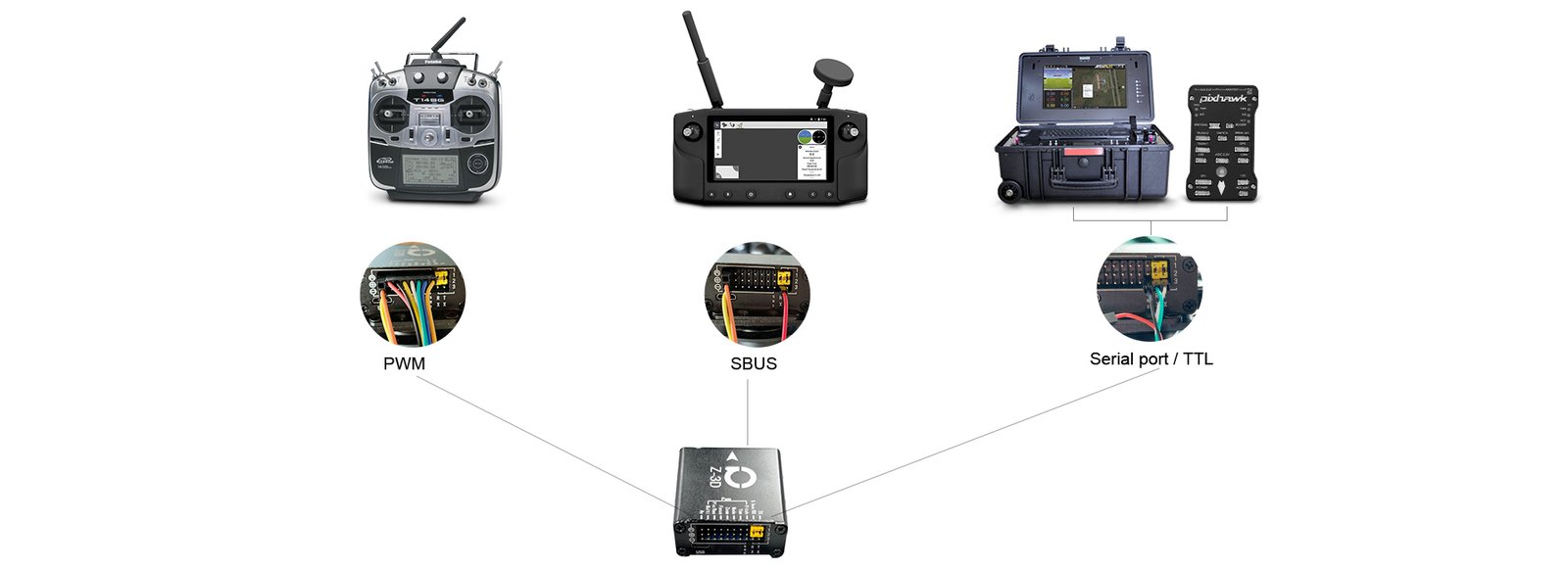

Multi Control Methods
With default settings, PWM and TTL serial port control are supported, while SBUS control is available as an option. Using Viewpro’s Viewlink software, you can enable IP output and TTL control.

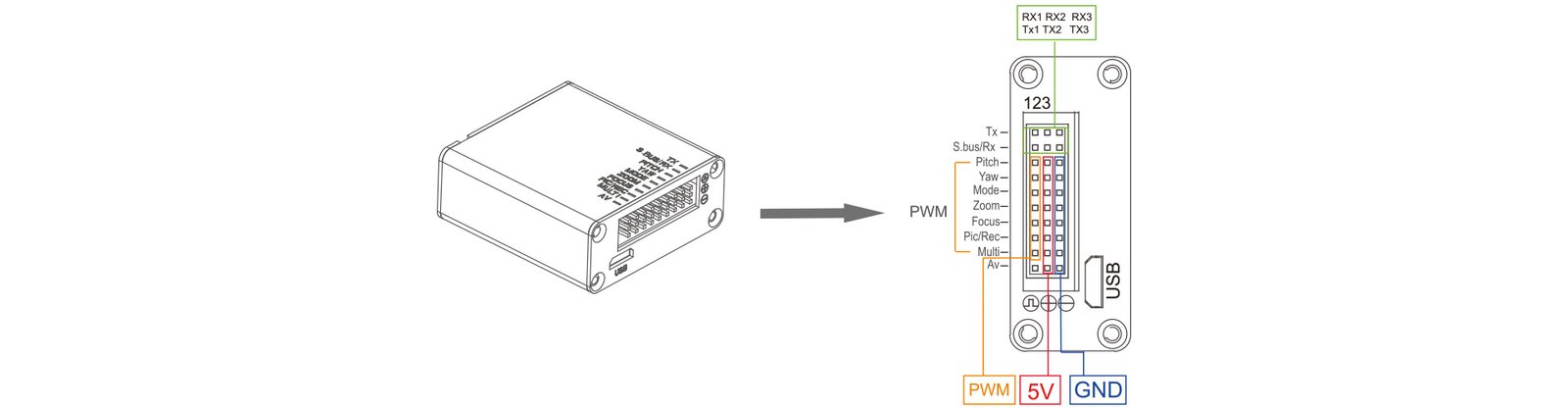

Control box signal interfaces:
| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 3S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 950~1100mA @ 12V |
| Idle current | 950mA @ 12V |
| Working environment temp. | -20 ~ +60 |
| Output | micro HDMI(HD output 1080P 25/30/50/60fps) IP(1080P/720P 25/30fps) |
| Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080 / 1280*720) |
| Video storage format | MP4 (1080P/720P 25fps/30fps) |
| Control method | PWM / TTL / S.BUS / TCP(IP output) /DJI Pilot |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -60 120 ,Roll: 35 , Yaw/Pan: 300 / 360 *N (IP output version) |
| Controllable Range | Pitch/Tilt: -45 90 , Yaw/Pan: 290 / 360 *N (IP output version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| Camera Spec | |
| Imager Sensor | SONY 1/2.8 Exmor R CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7 (wide end) ~ 2.3 (tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.01lux@F1.6 |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 32 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| IR Laser Rangefinder | |
| Laser Wavelengths | 1550nm |
| Optical aperture | Transmit 13mm / Receive17 mm |
| Resolution | 0.75m |
| Measure ability | 3000m (Typical value 1: Object size: the target surface is larger than the laser spot area Reflectivity: 60% Accuracy rate: 90% Visibility: 10 km Environment temperature: 20 Atmospheric pressure: 1013 mbar) |
| Vehicle target measuring | 2300m (Typical value 2: Object size: 2.3*2.3 m Emissivity: 30% Others same as Typcial value 1) |
| Eye-safe | Class 1 Standard IEC 60825-1, Second Edition (2007-03) |
| Laser beam angle (Typical value) | 1.0 mrad |
| Accuracy (Typical value) | 0.75m |
| Accuracy (In harsh condition) | 2m |
| Measurement frequency | 2Hz |
| Object resolution (Typical value) | 30m |
| Packing Information | |
| N.W. | 888g(Viewport Version) |
| Product meas. | 112*129*203.9mm |
| Accessories | 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with foam cushion |
